Description
Ready Stock Dispatch — DW802 automatic edge bander ships with voltage, plug type, and language confirmed before leaving our Shandong facility, avoiding on-site electrical mismatches.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Bander |
| Total Power | 4200W |
| Voltage & Frequency | 220V / 380V / Customizable |
| Edge Banding Motor Power | 140W |
| Transmission Motor Power | 140W |
| Trimming Motor Power | 800W × 2 |
| Polishing Motor Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000ml |
| Edge Banding Thickness Range | 0.3–3mm |
| Edge Banding Height Range | 0–50mm |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 100mm |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 1300mm × 600mm × 950mm |
| Net Weight | 135 kg |
| Motor Count | 6 motors (edge, transmission, trimming ×2, polishing ×2, vacuum) |
| Trimming Stations | Trimming + Polishing (straight edge) |
| Plug Options | EU / USA / AU / UK |
| Language Options | Chinese and English standard; Spanish, French and other languages customizable |
| Assembly State | Fully assembled |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Home decoration panel edge sealing | MDF and particleboard with PVC banding |
| Small workshop cabinet production | Plywood and ecological board with veneer or PVC edge |
| Custom furniture short-run edging | Solid wood board up to 50mm banding height |
| Joinery startup semi-automatic edging | Mixed panel materials from 0.3mm to 3mm edge thickness |
Why Voltage Confirmation Must Happen Before the DW802 Leaves the Factory
An automatic edge banding machine in stock is only useful if it matches your workshop’s electrical supply the day it arrives.
I once watched a Middle East installer wait three weeks for a step-up transformer because a machine built for 440V was connected to a 380V grid. The commissioning engineer sat idle, the production schedule slipped, and the customer blamed the supplier. That single mismatch cost more than the machine itself in lost time. With the DW802, we confirm your local voltage, frequency, and plug type — EU, USA, AU, or UK — before the unit is crated. [NEED_CITE: voltage and frequency standards by export market]
Stock Availability and Dispatch Timing
The DW802 is held as an automatic edge banding machine in stock so that small workshops and home decoration producers can take delivery without waiting through a full production cycle. Each unit leaves the floor fully assembled and tested, meaning your operator can begin running panels shortly after uncrating and electrical hookup.
Compact Footprint for Space-Constrained Workshops
At 1300mm × 600mm × 950mm and 135 kg, the DW802 fits into joinery shops where floor space is limited. The single-operator workflow does not require a separate feeding table or extended outfeed conveyor, so the machine slots into existing bench lines without rearranging the entire workshop layout. [NEED_CITE: typical small workshop floor space constraints]
How the Six-Motor Layout Affects Edge Quality on MDF and Plywood

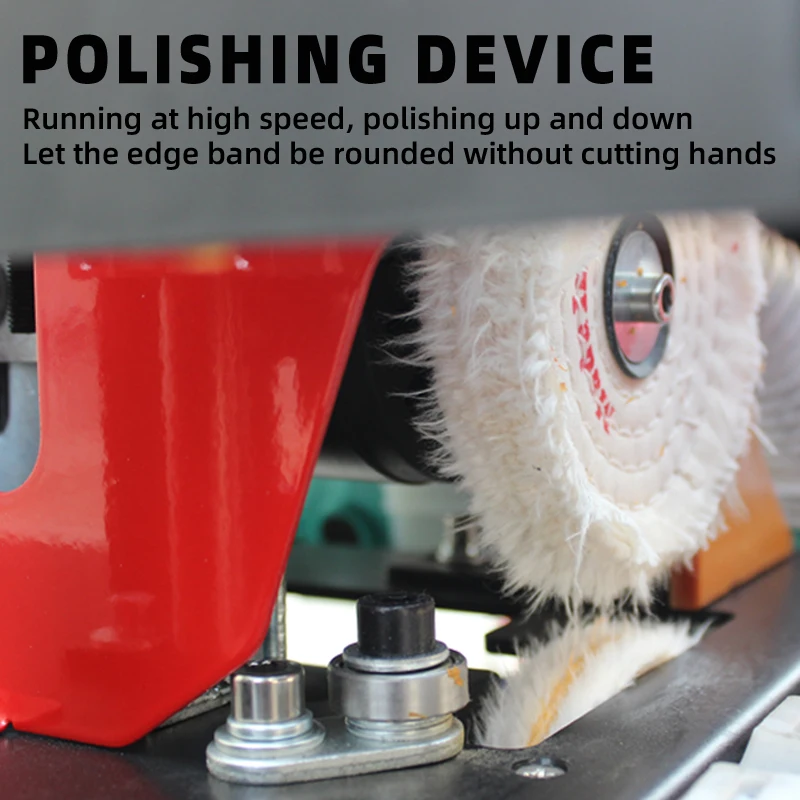

The DW802 assigns dedicated motors to each process stage rather than sharing a single drive. The two 800W trimming motors handle flush and radius trimming in one pass, while the two 180W polishing motors follow immediately to smooth the trimmed edge. For MDF and particleboard — substrates that chip easily if the trimming cutter is underpowered — this separation prevents tear-out and leaves a clean glue line. The 1200W vacuum motor captures offcuts at the trimming station, keeping the polishing belt free from debris that would otherwise scratch the finished edge.
What Happens When Buyers Skip the Voltage and Language Check
A machine that arrives with a control panel your operator cannot read becomes a training bottleneck. Labels in an unfamiliar script slow down every setup change, and a wrong button press during the first week can damage the glue pot heater. Similarly, running a 380V motor on a 220V supply without a transformer causes overheating within hours — a failure that looks like a warranty claim but traces back to a missed specification step. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Why Buyers Source This Edge Bander From Our Ready-Stock Channel
Every DW802 dispatched from this channel undergoes a pre-shipment test on the buyer’s specified panel thickness, with photographs documenting glue adhesion, trimming result, and edge polish before crating. Voltage and plug selection are locked in writing — not assumed — so the unit matches the workshop grid on arrival. The 4000ml glue pot allows extended runs across multiple panels without pausing for refill, a practical advantage for shops running mixed batches of MDF and plywood. Multilingual control panels in English, Spanish, French, or other agreed languages are configured before dispatch, removing the language barrier at first power-on. OEM logo printing is available for distributors who want the machine branded under their own name.
Documentation & Verification
- Factory test record run on your specified panel thickness and edge material
- Electrical schematic confirming your ordered voltage and plug configuration
- CE declaration of conformity for the DW802 automatic edge bander
- Operation and maintenance manual in your operator’s agreed language
- Pre-shipment packing photographs showing crating and accessory inclusion
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply
- 1300mm × 600mm footprint needs a level floor with 0.4–0.8 MPa air line
- Ships fully assembled — no sub-frame bolting required on arrival
- First-run guidance covers glue pot temperature setting for your PVC or veneer thickness
- Spare parts list covers trimming cutters, polishing wheels, and glue roller
- Daily maintenance limited to glue pot cleaning and vacuum port inspection
Before You Request a Quote
To match the right DW802 configuration to your workshop, send us your panel material types and typical thickness range, the edge banding material you use — PVC, veneer, or both — and the voltage and frequency printed on your workshop distribution board. If your operator needs the control panel in a language other than Chinese or English, let us know so we can prepare the interface before dispatch.
Frequently Asked Questions
Q: Is this DW802 edge bander currently in stock and what is the dispatch lead time?
A: The DW802 is maintained as ready stock for fast dispatch. Once voltage, plug type, and control panel language are confirmed, the unit goes through a pre-shipment test on your panel material before crating. Dispatch timing depends on the configuration work required, and we provide a confirmed ship date at quotation stage.
Q: Can the voltage and plug type be matched to my country before shipment?
A: Yes. The DW802 supports 220V and 380V configurations with EU, USA, AU, and UK plug options. We require a photo or specification of your workshop distribution board to confirm voltage and frequency before the machine is wired, preventing on-site electrical mismatches.
Q: What panel materials and edge banding thickness does this model handle?
A: The DW802 processes MDF, particleboard, plywood, ecological board, and solid wood panels. It accepts PVC and veneer edge banding from 0.3mm to 3mm thickness, with a banding height range up to 50mm and minimum sheet dimensions of 250mm length and 100mm width.
Q: Is the control panel available in my operator’s language?
A: Chinese and English are standard. Spanish, French, and other languages are configurable before dispatch. We confirm the required language during quotation so the interface is set before the machine ships, avoiding setup delays on arrival.
Q: What spare parts and after-sales support come with the machine?
A: Each DW802 ships with a spare parts list covering trimming cutters, polishing wheels, and consumable glue roller components. A factory test record, operation manual in your agreed language, and packing photographs are included. Remote technical guidance is available for first-run commissioning questions.
