Description
Voltage-Locked Dispatch — every DW802 unit ships only after your local frequency and plug type are confirmed on a signed electrical checklist, eliminating the dead-on-arrival failures that plague cross-border machinery orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage Options | 220V / 380V / customization available |
| Edge Banding Thickness Range | 0.3–3 mm |
| Edge Banding Height Range | 0–50 mm |
| Minimum Sheet Length | 250 mm |
| Minimum Sheet Width | 100 mm |
| Glue Pot Capacity | 4000 ml |
| Trimming Motor Power | 800W × 2 |
| Polishing Motor Power | 180W × 2 |
| Edge Motor Power | 140W |
| Transmission Motor Power | 140W |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 1300 × 600 × 950 mm |
| Net Weight | 135 kg |
| Feed Speed | (basis not stated in source) |
| Plug Options | EU, USA, AU, UK |
| Control Panel Language | Chinese and English standard; other languages customizable |
| Assembly State | Fully assembled |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC or veneer banding |
| Home decoration panel processing | Plywood and ecological board, straight-edge profiles |
| Small-batch furniture workshop production | Solid wood panels up to 50 mm edge height |
| Joinery startup first-machine upgrade | Offcut-sized workpieces down to 250 × 100 mm |
Why the Voltage Question Should Come Before the Price on an Automatic Edge Banding Machine in Stock
A machine wired for the wrong frequency will trip its inverter within minutes of first power-on, and no amount of remote troubleshooting fixes a burned PLC board.
I once watched a container of edge banders arrive in Southeast Asia wired for 380V when the workshop ran 220V/60Hz. The variable frequency drives faulted immediately. A well-meaning electrician tried to rewire on-site and shorted the control board. The customer sat idle for weeks waiting for replacement electronics. That failure was entirely preventable with a single confirmation document before crating. [NEED_CITE: voltage and frequency standards by export market]
Ready Stock Means Your Workshop Is Running Sooner
When a small furniture operation needs its first automatic edge banding machine in stock, waiting months for a production slot is not an option. The DW802 ships from available inventory, which collapses the typical multi-week lead times down to the shipping transit window. The unit arrives fully assembled — no foundation bolts, no belt alignment, no glue system commissioning from scratch. You uncrate, connect power and air, load the glue pot, and run your first panel the same day.
Dispatch Only Happens After Your Electrical Profile Is Locked
The order process does not move to crating until your local voltage, frequency, and plug type are confirmed in writing. The DW802 supports configurations from 110V through 440V, with plug options spanning EU, USA, AU, and UK standards. This step takes a single exchange but prevents the kind of field failure that turns a fast delivery into a months-long dispute. [NEED_CITE: CE machinery directive requirements for industrial equipment]
What the Specification Sheet Actually Means on the Shop Floor

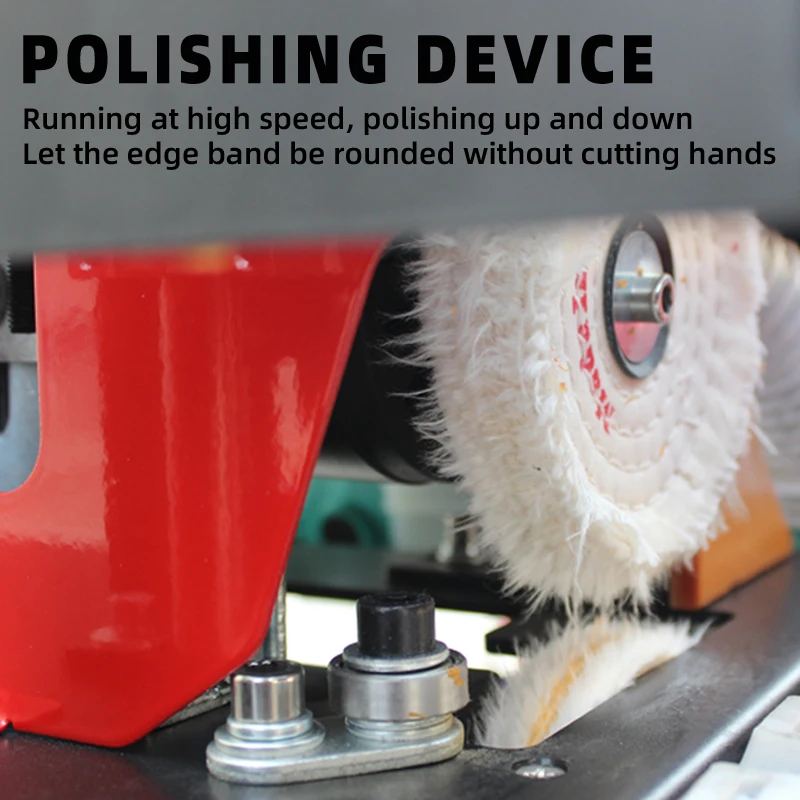

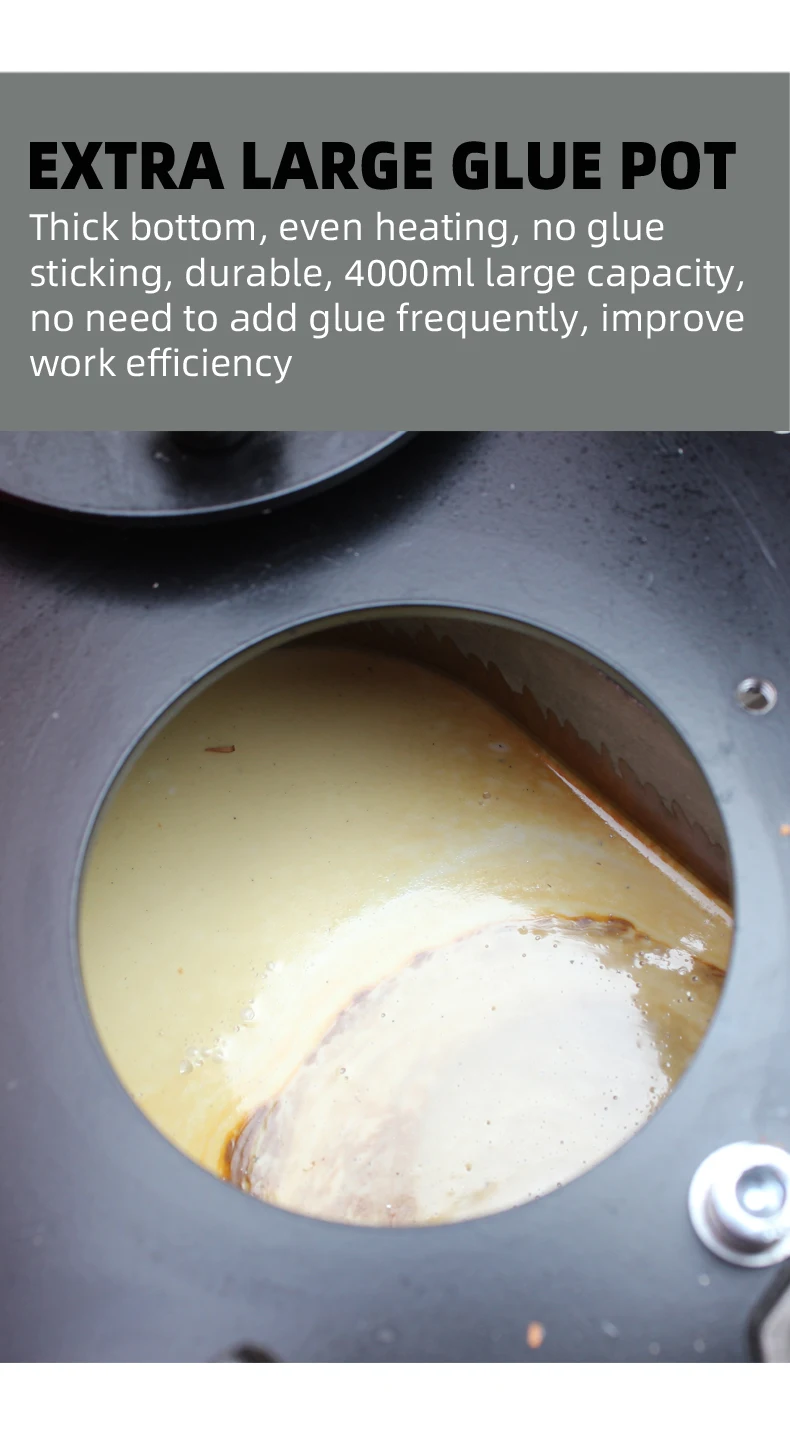

The dual 800W trimming motors handle the excess banding material on both top and bottom simultaneously, which matters when you are running MDF that tends to chip on the exit side. The 180W × 2 polishing stations follow immediately, buffing the trimmed edge to a finished surface in the same pass. A 4000 ml glue pot keeps the EVA adhesive at working temperature long enough to process a full batch of cabinet panels without pausing for refills. The integrated 1200W vacuum system pulls dust and shavings away from the glue line before they can embed in the bond — an often-overlooked factor in edge adhesion quality. Minimum workpiece dimensions of 250 × 100 mm mean you can run offcuts and narrow stiles that larger machines would reject outright.
What Happens When You Skip the Configuration Step
Buying an automatic edge banding machine in stock without confirming electrical compatibility is the most common reason small workshops experience commissioning delays. The symptoms vary: inverters throwing overvoltage faults, motors running hot at the wrong frequency, or control relays chattering and failing prematurely. Beyond the hardware damage, you lose production days while sourcing local transformers or waiting for replacement boards shipped internationally. [NEED_CITE: common causes of commissioning failure in exported woodworking machinery]
Why Source This Unit Here
The DW802 leaves the factory with a pre-shipment test record that covers every functional station — gluing, head-and-tail cutting, trimming, and polishing — run on actual panel stock matching your specification. Voltage confirmation is a formal document in the shipping packet, not a verbal agreement. The machine ships fully assembled at 135 kg, which keeps freight costs predictable and eliminates on-site mechanical assembly risk. Spare parts lists and packing photographs are included so your receiving team can verify completeness before signing the bill of lading.
Documentation & Verification
- CE declaration of conformity covering the DW802 electrical and mechanical safety scope
- Electrical schematic confirming your specific voltage, frequency, and plug configuration
- Factory test record demonstrating all stations on your specified panel thickness range
- Operation and maintenance manual in your agreed language with illustrated troubleshooting steps
- Spare parts list with part numbers for trimming blades, polishing wheels, and glue pot components
- Packing photographs taken at crating for customs and receiving inspection
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage and a 4200W capacity breaker
- Air supply must deliver 0.4–0.8 MPa clean dry air through a standard industrial quick-connect
- Arrives fully assembled at 135 kg — position with a pallet jack on any level workshop floor
- Glue pot preheat cycle and belt tracking adjustment covered in the first-start section of the manual
- Trimming and polishing alignment verified at factory; recheck after transit with the included gauge
- Spare trimming blades and polishing wheels ship in the parts kit for initial consumable coverage
What to Share With Your Inquiry
Tell us the panel materials you process most often and their typical thickness range so we can confirm the DW802 edge height capacity covers your work. Provide your workshop voltage and frequency — a photo of an existing machine nameplate works well — so the correct electrical configuration is locked before production. Let us know if you need the control panel labeled in a language beyond English or Chinese.
Frequently Asked Questions
Q: Is this model in stock and how fast can it ship?
A: The DW802 is maintained in ready stock for fast dispatch. Once your voltage and plug configuration are confirmed, the unit moves to pre-shipment testing and crating. Total time from confirmed order to port departure typically compresses to the pre-shipment verification window rather than a full production cycle.
Q: How do I confirm the correct voltage and plug type for my country before ordering?
A: We request your local voltage, frequency, and a photo of an existing workshop machine nameplate or electrical panel. Our engineering team matches this to a DW802 configuration and sends a voltage confirmation document for your sign-off before the machine leaves the factory.
Q: Can I order just one unit, or is there a minimum order quantity?
A: Single-unit orders are standard for the DW802. The machine ships fully assembled in a single crate, which keeps freight straightforward and avoids the complexity of consolidating a full container when you only need one edge bander.
Q: What shipping options are available and how is the machine packed for transit?
A: The DW802 is crated with internal bracing and packing photographs are provided before sealing. Shipping options include sea freight to your nearest port or door-to-door delivery depending on destination. At 135 kg net weight, the unit handles standard LCL or FCL container loading.
Q: What if I need the control panel in a language other than English or Chinese?
A: The standard control panel ships in Chinese and English. Spanish and other languages are customizable on request. Specify your preferred language at inquiry stage so the panel overlay and manual are prepared before dispatch, ensuring your operators can commission the machine without translation delays.
