Description
Voltage confirmed before dispatch — every stocked unit is verified against your local power frequency and phase, so this automatic edge banding machine runs the day it is unpacked.
Technical Specifications
| Parameter | Value |
|---|---|

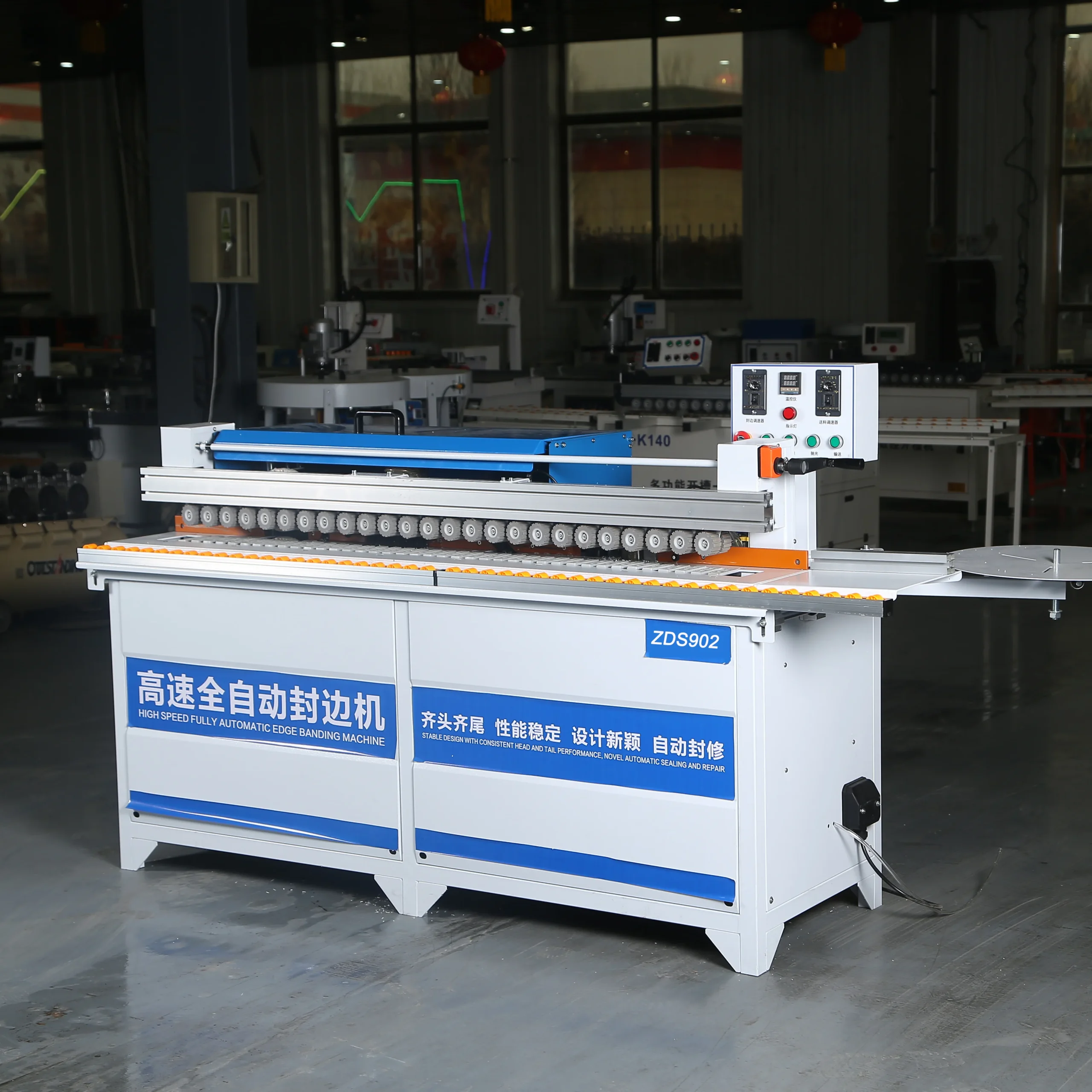

| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V (confirm frequency with manufacturer) |
| Total Power | 4200W |
| Overall Dimensions (L×W×H) | 207×60×122 cm |
| Net Weight | 245 kg |
| Edge Band Height Range | 0–35 mm |
| Edge Band Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 4000 ml |
| Glue Application | Double-sided gluing with intelligent temperature control |
| Edge Strip Cutting | Pneumatically controlled |

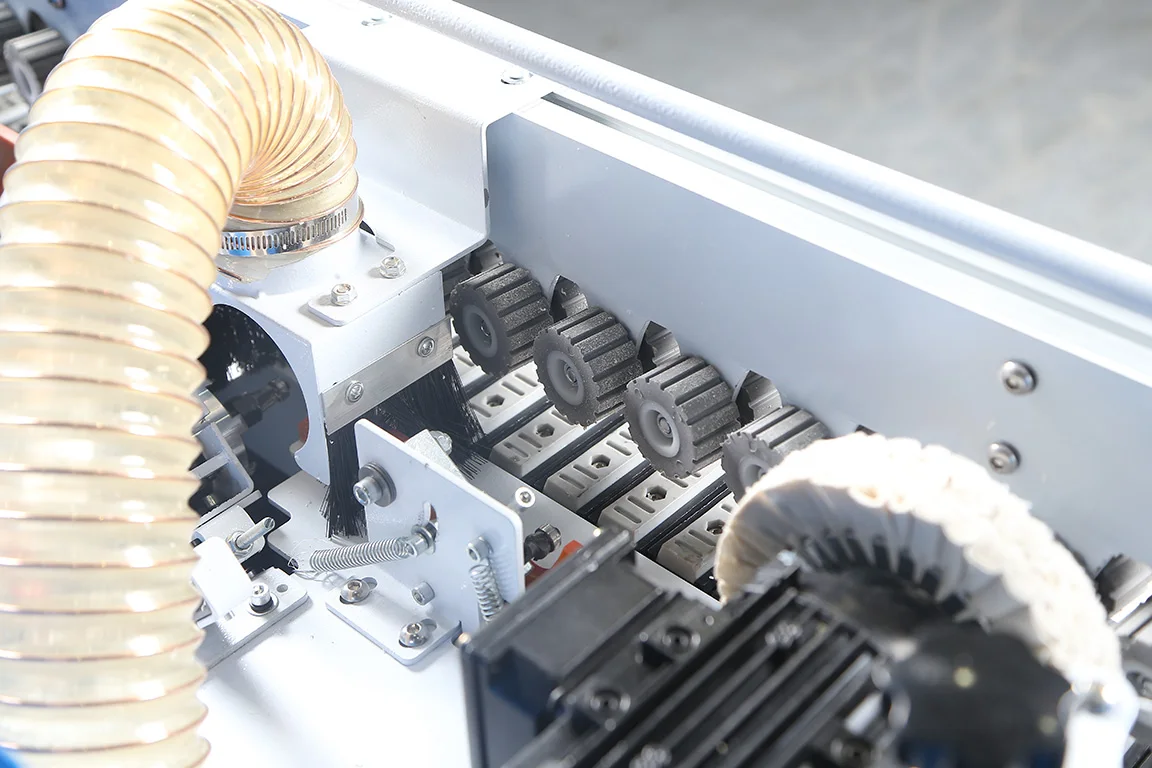

| Polishing | Up and down dual polishing motors |
| Trimming | Double high-speed trimming motors |

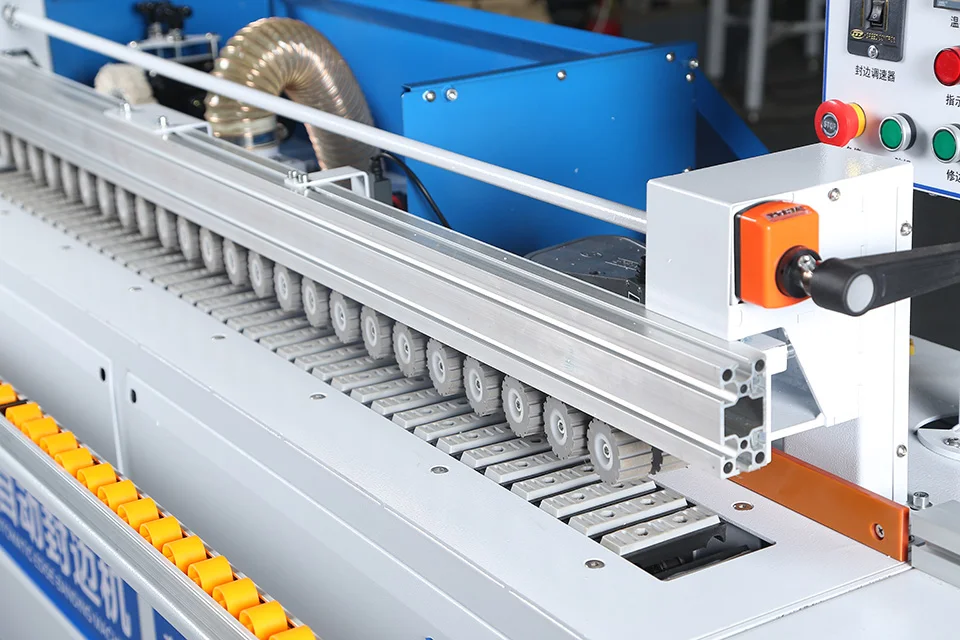

| Pressure Beam | Integrated with adjustable handle |

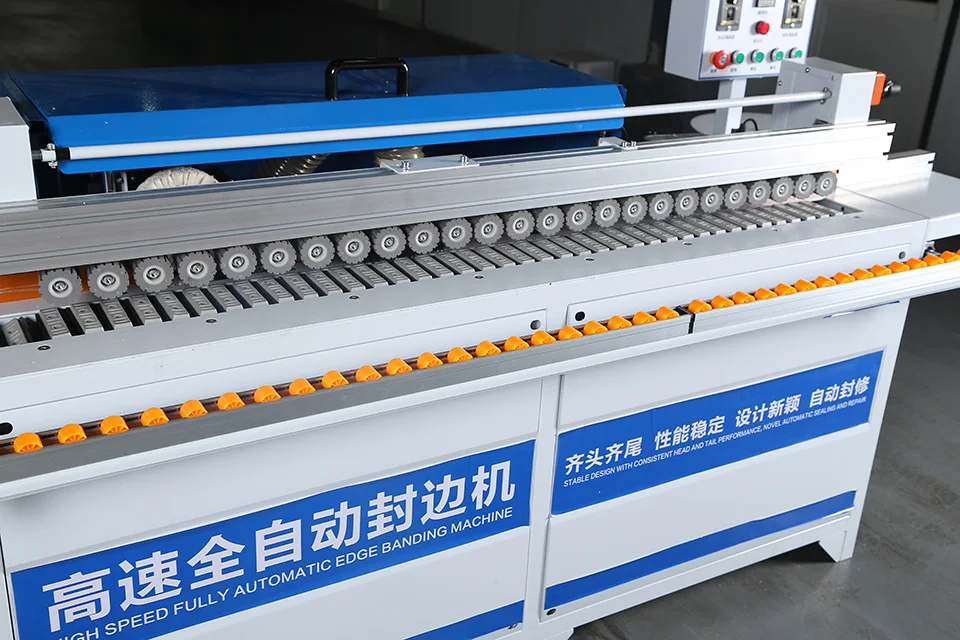

| Conveyor Belt | Silicone material, double rows of pressure wheels |
| Assembly State | Partially assembled — some setup required |
| Feed Speed | Not stated in source — confirm with manufacturer |
| Panel Thickness Range | Not stated in source — confirm with manufacturer |
| Tolerance | Not stated in source — confirm with manufacturer |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Small-batch furniture panel processing | Plywood panels with veneer or melamine edge strips |
| Workshop transition from manual to machine banding | Solid wood panels up to the machine’s thickness range |
| Shelving and carcass edge sealing | Particleboard and MDF boards for cabinet carcasses |
Why the Voltage Question Comes Before the Lead Time
Matching your workshop supply to the machine rating is the single most important step before ordering an automatic edge banding machine in stock.
I once watched a 415V workshop in the Middle East sit idle for three weeks because the machine that arrived was wired for 380V. The cabinet line was waiting on that one unit, operators standing by, containers already cleared through customs. A stocked unit ships fast, but if the phase and frequency are wrong, speed of dispatch means nothing. Voltage and frequency standards vary widely across export markets [NEED_CITE: voltage and frequency standards by export market], and a mismatch is only discovered when the electrician opens the panel on arrival. Confirming these details before the crate leaves the factory eliminates that delay entirely.
Getting a Stocked Unit Running on Day One
When an automatic edge banding machine in stock arrives at a small workshop, the priority is shortening the gap between uncrating and first good panel. This unit ships partially assembled, which keeps the crate footprint manageable for smaller receiving bays. The 220V single-phase configuration means most joinery shops can connect it without commissioning a dedicated three-phase line, though verifying local frequency remains essential before wiring begins.
What the Glue Pot and Conveyor Mean for Your Daily Run
The 4000 ml glue pot capacity allows sustained production runs without frequent stops for refills. Intelligent temperature control keeps the adhesive viscosity stable as ambient workshop conditions shift through the day. Silicone conveyor material with double rows of pressure wheels grips MDF and particleboard without marking the substrate surface — a detail that matters when you are running pre-finished boards where any scuff becomes a reject [NEED_CITE: substrate surface protection during panel conveying].
Reading the Specs That Actually Matter on the Floor
The 0–35 mm edge band height range and 0.5–2.5 mm thickness range define what this machine can handle on a daily basis. PVC edge banding in the 1 mm to 2 mm range at common cabinet heights sits well within those limits. Pneumatically controlled edge strip cutting delivers a clean shear at each panel end, reducing the manual trimming that slows output on manual stations. Dual high-speed trimming motors work top and bottom in one pass, so you are not feeding panels through twice to finish both edges. The integrated pressure beam with adjustable handle accommodates varying board thicknesses without a tool change between batches. Total power draw at 4200W stays within reach of a standard workshop circuit, though a dedicated breaker rated above the machine’s draw is always the correct installation approach.
What Happens When You Skip Pre-Shipment Verification
Ordering an edge bander without a test record on your actual panel material is a gamble you only discover at assembly. Panels that leave the machine with visible glue lines or uneven trimming may not show the problem until they reach the hinge boring station or final assembly jig. A tolerance issue caught at the factory costs a re-test; the same issue caught on your floor costs a production day [NEED_CITE: quality verification practices in woodworking machinery export]. Pneumatic systems that have not been exercised before packing can develop seal issues in transit that only appear under sustained cycling.
Why This Warehouse Ships Differently
Every stocked automatic edge banding machine in stock is verified against the buyer’s stated voltage and frequency before the crate is sealed. The pre-shipment test covers glue application, trimming, and polishing on the panel material you specify, not a generic test board. Operation and maintenance documentation is provided in the language your operators will actually read, avoiding the stall that occurs when a control panel and manual arrive in a language the floor team cannot parse. Spare parts lists ship with the machine so you can plan consumable reordering before the first glue pot needs refilling. Configuration recommendations come from engineers rather than sales staff, and a formal quotation follows within one working day of a confirmed specification.
Documentation & Verification
- CE declaration of conformity matched to the machine’s export configuration
- Factory test record on your specified panel material and edge banding thickness before dispatch
- Electrical schematic confirming 220V wiring and circuit protection requirements
- Operation and maintenance manual in your agreed language
- Spare parts list with part numbers for glue pot components and trimming blades
- Packing photographs documenting crate condition prior to handover
Installation, Commissioning & Support
- Requires a level floor capable of supporting 245 kg concentrated load across the 207 cm footprint
- Dedicated 220V circuit rated above 4200W total draw with appropriate breaker protection
- Partially assembled on arrival — pressure beam, conveyor, and polishing heads need final alignment
- Pneumatic line connection required for edge strip cutting device at workshop supply pressure
- First-run calibration of glue temperature and trimming motor depth on your panel stock
- Silicone conveyor belt inspection and pressure wheel adjustment before sustained production begins
Before You Request a Quote
To match the right stocked configuration to your floor, we need your panel material and typical board thickness, the edge banding material you plan to run, your workshop voltage and frequency, and your preferred language for the control interface and documentation. If you have existing upstream saws or downstream boring stations, share their feed height so we can confirm compatibility.
Frequently Asked Questions
Q: Is this automatic edge banding machine in stock and what is the dispatch lead time?
A: This model is held in ready stock, and dispatch lead time depends on your destination and chosen shipping method. Before release from the warehouse, every unit undergoes voltage verification and a test run on your specified panel material, which adds a short verification window before the crate is sealed for transport.
Q: Will the voltage and plug type match my workshop electrical supply?
A: We confirm your local voltage and frequency before the machine is released. This unit is rated at 220V, and we verify compatibility with your supply specification before dispatch. If your workshop runs a different standard, alternative configurations are available — the confirmation step ensures the correct unit ships.
Q: Can I see a sample edge banding run on my panel material before ordering?
A: Yes. Send us your panel type, thickness, and preferred edge banding material, and we run a test on a stocked unit before dispatch. The test covers glue adhesion, trimming quality, and polishing finish. We share the results so you can evaluate edge quality before committing to shipment.
Q: What spare parts and consumables should I order alongside the machine?
A: The included spare parts list covers high-wear items such as trimming blades, polishing wheels, and glue pot seals. For workshops running daily production, ordering a first set of consumables with the machine avoids downtime waiting for replacement parts to arrive by separate shipment.
Q: Do you handle door-to-door shipping and customs documentation?
A: We provide customs documentation support and packing photographs for every shipment. Shipping method and door-to-door arrangements depend on your destination port and local forwarding preferences. We confirm all documentation requirements before the crate leaves the warehouse so clearance proceeds without delays.
