Description
Ready to Ship — Every stocked ZDSF400 leaves our Ningjin warehouse only after a voltage confirmation matched to your grid, preventing the three-week transformer delays that stall on-site furniture installations.
Technical Specifications
| Parameter | Value |
|---|---|

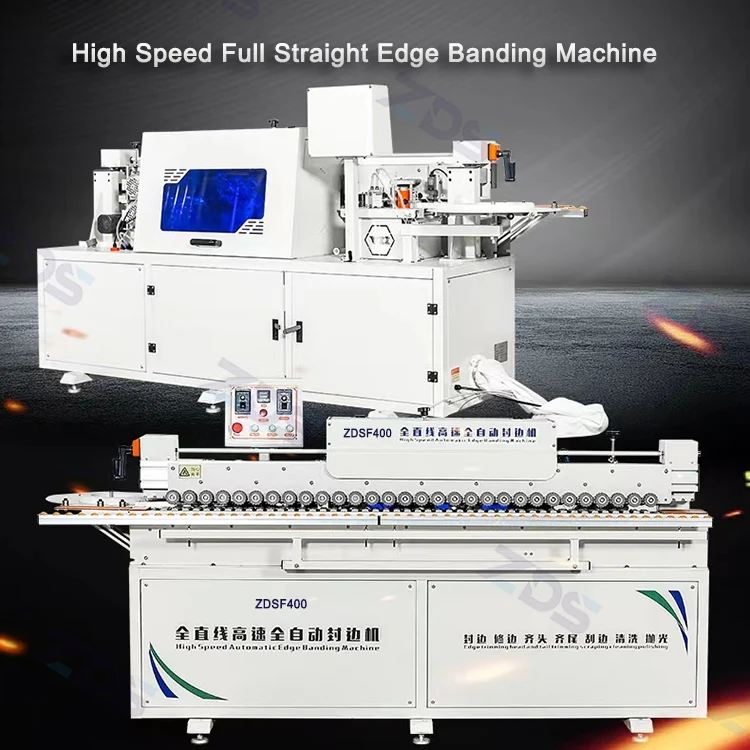

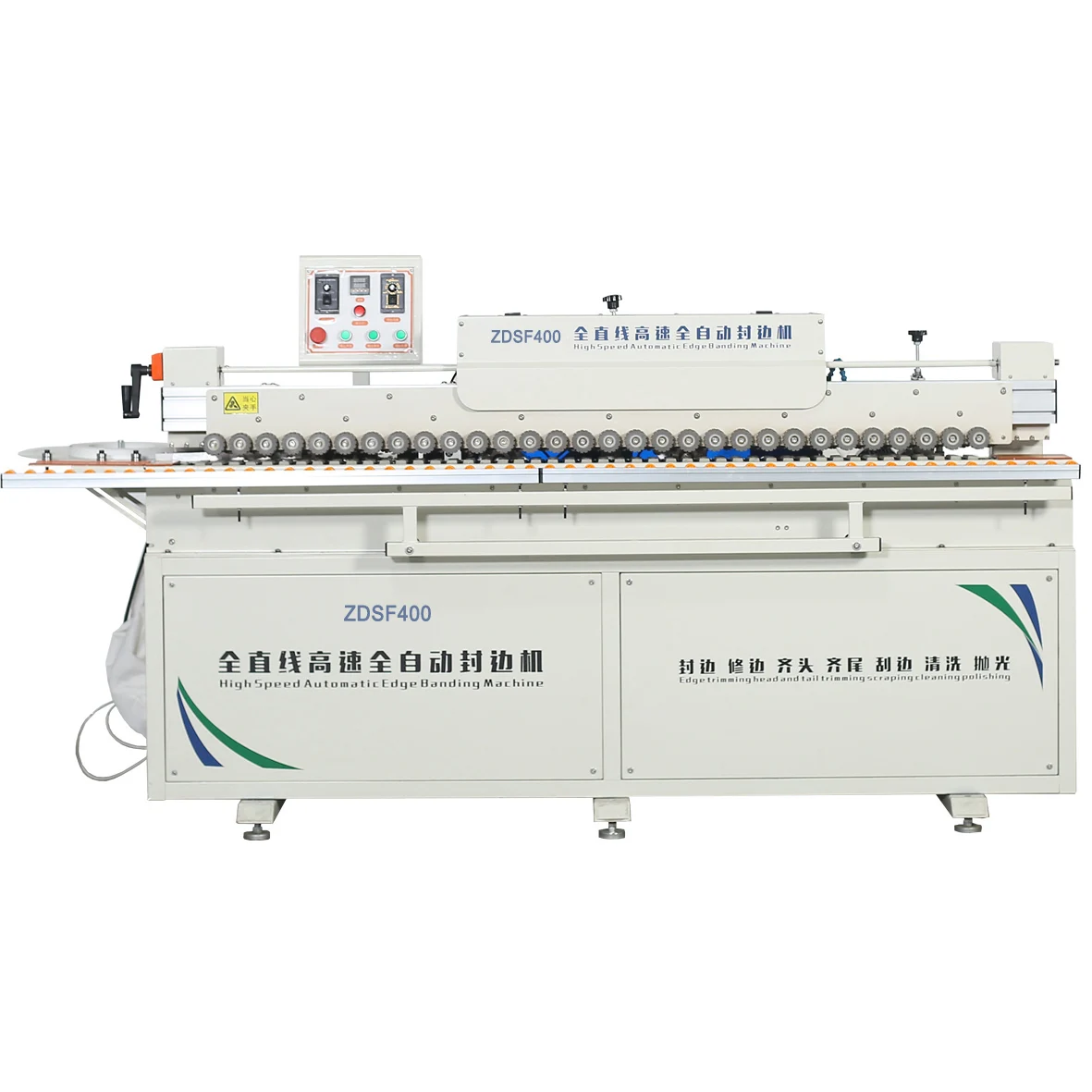

| Model | ZDSF400 |
| Product Type | Automatic Edge Banding Machine |
| Edge Type | Straight line |
| Function | Gluing, end cutting, trimming, scraping, polishing, vacuuming |
| Rated Voltage | 220V |
| Rated Power | 3kW |
| Rated Air Pressure | 0.4-0.6MPa |
| Strip Thickness | 1-3mm |
| Sheet Thickness | 10-55mm |
| Feed Speed | 0-14m/min |
| Glue Capacity | 1000ml |
| Heating Power | 800W (5-10min heat-up) |
| Trimming Power | 800W×2 (24000rpm) |
| Polishing Power | 180W×2 (5500rpm) |
| Suction Power | 550W |
| Overall Dimensions | 240×70×120cm |
| Machine Weight | 370kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Home decoration cabinet installations | MDF, particleboard, plywood with PVC or veneer strips |
| Small joinery workshop straight-line processing | Particleboard and MDF shelving panels |
| Furniture startups first automated edge finishing | Substrates requiring 1-3mm edge banding |
Why the Voltage Question Must Precede the Price
Confirming 220V single-phase compatibility with your local grid before the order prevents a delivered machine from sitting idle while a transformer is sourced.
When I coordinated the dispatch of a compact edge bander to a contractor overseas, we shipped a unit wired for a frequency the destination grid did not support. The machine tripped its breaker the moment the operator engaged the heating element. The site foreman lost three weeks waiting for a local electrician to install a step-up transformer and rewire the dedicated circuit. [NEED_CITE: voltage and frequency standards by export market] An automatic edge banding machine in stock is only useful if the electrical specification actually matches the facility it will sit in.
Stock Availability and Dispatch Timing
The ZDSF400 is maintained as a stocked configuration, meaning a single-unit order can be released for dispatch without waiting for a custom production run. This suits contractors who need an automatic edge banding machine in stock for an upcoming installation project and cannot absorb a multi-week manufacturing lead time.
Verifying Configuration Before Loading
Before any stocked unit leaves the warehouse, the dispatch team cross-checks the rated 220V electrical configuration against the buyer’s confirmed local voltage and frequency. A confirmation document travels with the shipping paperwork. [NEED_CITE: CE machinery directive requirements for industrial equipment] This step exists because a compact 3kW machine is often plugged into existing workshop circuits where voltage variance is common.
Reading the Specifications for Actual Output

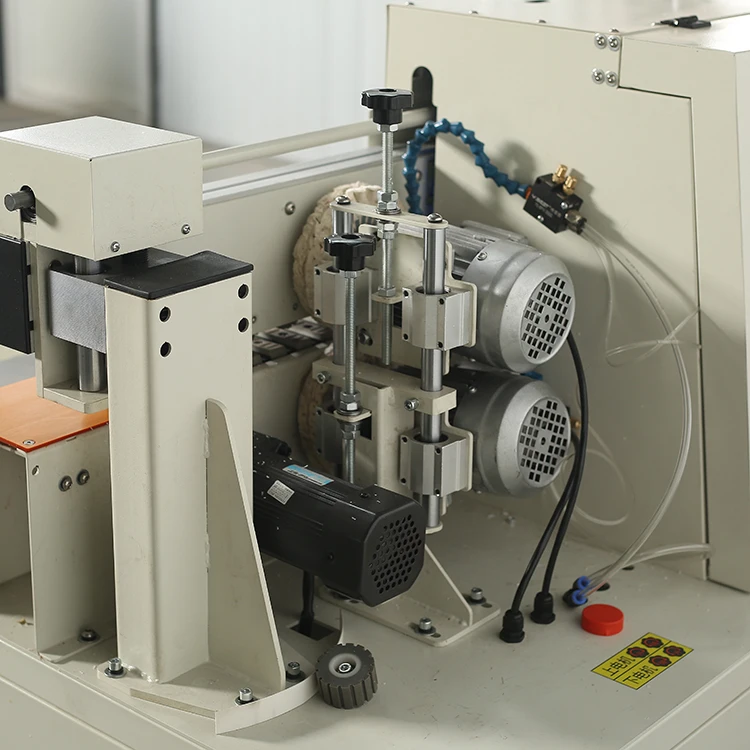

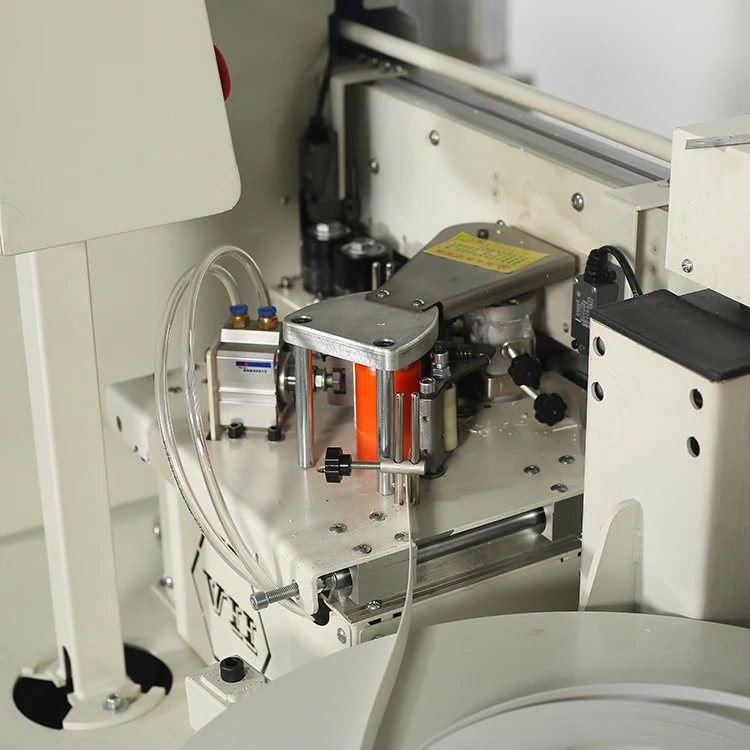

The 10-55mm sheet thickness range defines which panel substrates the conveyor belt can physically support without binding. The 0-14m/min feed speed range allows an operator to slow the feed when running 3mm veneer strips that require longer contact time with the 800W glue pot. The 24000rpm trimming motors at 800W each provide adequate cutting speed for PVC and thin veneer but should not be expected to mill solid wood edge stock. The 1000ml glue capacity means the pot requires refilling during a full production day, which is typical for machines of this footprint.
The Cost of Skipping Dispatch Verification
Buying a machine purely on listed price and lead time often hides downstream costs. A unit that arrives without language-matched documentation leaves the operator guessing at the control sequence, delaying the first good panel. Spare parts lists that arrive only in a language the maintenance technician cannot read turn a simple polishing wheel replacement into a week of email exchanges. [NEED_CITE: machinery documentation requirements for operator safety] These friction points accumulate faster than the time saved by choosing the fastest shipping option.
Why Procurement Teams Route Single-Unit Orders Here
Voltage and specification confirmation is treated as a mandatory dispatch step, not an optional courtesy. Every ZDSF400 undergoes a pre-shipment test record covering all six stations before loading. Documentation, including the operation manual, is prepared in the buyer’s agreed language before the crate is sealed. Spare parts lists for trimming blades and polishing wheels ship inside the crate, not buried in a follow-up email weeks later. The compact 240×70×120cm footprint and 370kg weight allow freight-forwarding as a single LCL unit without requiring specialized flat-rack arrangements.
Documentation & Verification
- Factory test record on your sheet thickness range before dispatch
- Voltage and frequency confirmation sheet matched to destination grid
- Operation and maintenance manual in agreed language
- Spare parts list for trimming blades and polishing wheels packed with unit
- Packing photographs taken at warehouse before crate sealing
Installation, Commissioning & Support
- Requires level concrete floor capable of supporting 370kg point load
- Dedicated 220V circuit required for 3kW total draw with compressor supply
- Arrives as single skid unit requiring only conveyor and dust-hose connection
- Heat-up cycle of 5-10 minutes should be verified on first commissioning
- Polishing wheels and trimming blades included as initial consumable set
- Glue pot cleaning required at end of each shift to prevent residue hardening
What We Need to Process Your Order Quickly
To match the right stocked configuration and prepare accurate freight documentation, please share your target panel materials and typical sheet thickness, the available workshop voltage and phase, and whether the operator requires documentation in a specific language. If you plan to run both PVC and veneer strips, note the strip thickness range so the glue temperature profile can be pre-set before dispatch.
Frequently Asked Questions
Q: Is the ZDSF400 currently in stock and what is the dispatch lead time?
A: The ZDSF400 is maintained as a stocked configuration for single-unit orders. Dispatch lead time depends on the destination port and whether a pre-shipment voltage verification is required for your grid. We confirm availability and loading date at the point of order confirmation rather than quoting a generic timeline.
Q: Can the 220V configuration be confirmed for my country’s grid before ordering?
A: Yes. Before any unit leaves the warehouse, we cross-check the 220V rated configuration against your local voltage and frequency standard. A written confirmation document is prepared and travels with the shipping paperwork so the receiving electrician can verify the circuit requirements on arrival.
Q: What panel materials and edge banding strip types does this model handle?
A: The ZDSF400 processes MDF, particleboard, and plywood panels in the 10-55mm thickness range. It handles PVC and veneer edge banding strips between 1-3mm thickness. The 24000rpm trimming motors are configured for these material types and are not intended for solid wood edge stock.
Q: How is the machine packaged and shipped for single-unit orders?
A: The 370kg machine is secured on a single skid within a crate measuring approximately 240×70×120cm. It ships as standard LCL freight. Packing photographs are taken at the warehouse before sealing, and the operation manual plus spare parts list are placed inside the crate.
Q: What spare parts are included and how do I order replacements?
A: Each unit ships with an initial set of trimming blades and polishing wheels along with a full spare parts list. Replacement components for the glue pot, conveyor belt, and suction system are available through the same order channel. The included parts list specifies part numbers for reordering.
