Description
Verified Dispatch Readiness — FX-20 ships with voltage, plug type, and control language confirmed for your market before it leaves the factory.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FX-20 |
| Product Type | Small Mini Edge Banding Machine |
| Total Power | 2500W |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 250 mm |
| Minimum Sheet Width | 100 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Power | 650W × 2 |

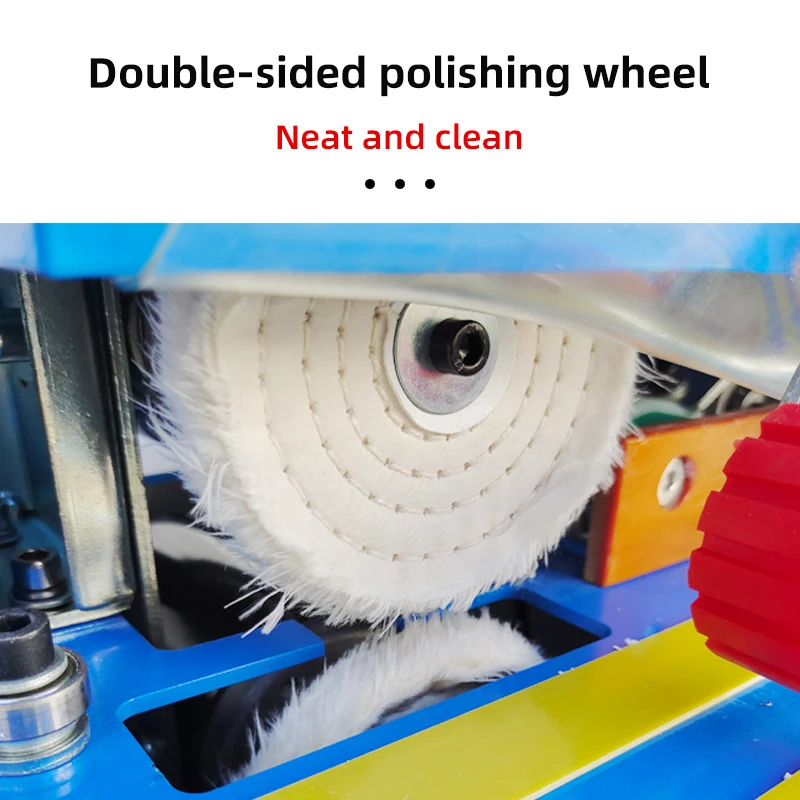

| Polishing Power | 180W × 2 |
| Edge Power | 20W |
| Air Source Pressure | 0.5–0.8 MPa |
| Voltage Options | 220V / 380V / customizable |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese, English standard; Spanish and others customizable |
| Machine Dimensions | 1000 × 460 × 410 mm |
| Machine Weight | 44 kg |
| Key Features | Curved and straight edge banding, trimming, polishing, manual push plate |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC or veneer banding |
| Small-batch furniture production | Plywood and ecological board panels |
| Home decoration joinery | Solid wood boards up to 50 mm thickness |
| Workshop trial and prototyping runs | Mixed substrates with curved and straight profiles |
| On-site installation finishing | Compact panels for built-in shelving and wardrobes |
Why Voltage Confirmation Must Happen Before You Pay
Every FX-20 mini edge banding machine in stock ships only after your local voltage, frequency, and plug type are verified in writing.
I spent years on installation sites across Latin America, and the pattern was always the same: a machine arrives, the electrician opens the terminal box, and the voltage does not match the workshop supply. The machine sits idle while transformers are sourced locally, sometimes for weeks. One shipment to Chile arrived with a Chinese-language control panel; the operator could not read a single label, and commissioning stalled on day one [NEED_CITE: voltage and frequency standards by export market]. The FX-20 is configured before dispatch — 220V or 380V, with the correct plug and control language — so it runs the moment it is uncrated.
Stock Availability and Fast Dispatch for Small Workshops
When a workshop takes on a rush order or replaces a failed machine, waiting weeks for production is not an option. This mini edge banding machine in stock is held ready for immediate dispatch, covering both curved and straight edge sealing in a single compact unit. The 44 kg footprint means it can be positioned against a wall or moved between workstations without special rigging.
Curved and Straight Capability Without a Second Machine

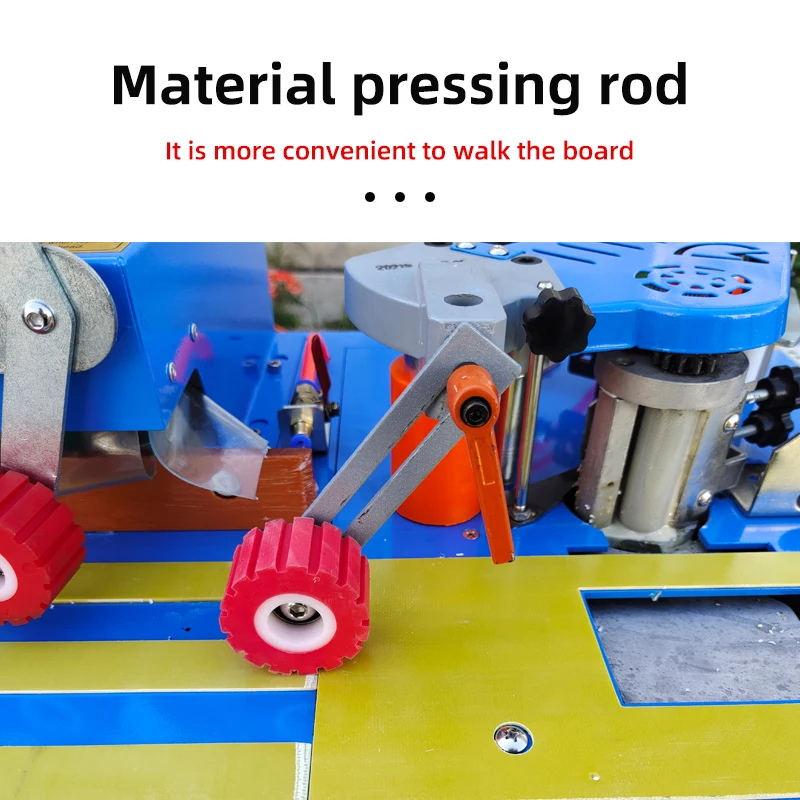

Most small workshops cannot justify separate machines for curved and straight edges. The FX-20 handles both profiles on the same table, switching between them without tooling changes. The manual push plate gives the operator direct control over feed pace, which matters when working with fragile veneer banding on curved cabinet components [NEED_CITE: edge banding adhesion requirements on curved substrates].
Reading the Specifications That Matter in Daily Use
The 0.3–3 mm edge banding thickness range covers standard PVC, melamine, and thin veneer tapes used in cabinet production. Going below 0.3 mm risks tape tear at the trimming station; above 3 mm, the glue pot and roller pressure may not achieve full contact on the substrate edge. The 1000 ml glue pot supports continuous small-batch runs without frequent refills, which keeps the glue temperature stable and avoids cold-start adhesion failures. Trimming at 650W per side provides enough torque to cleanly remove overhang on particleboard without chipping the banding edge. The 0.5–0.8 MPa air pressure requirement is standard for most workshop compressors, so no dedicated air supply upgrade is needed.
The Real Cost of Skipping Pre-Shipment Checks
When voltage is assumed rather than confirmed, the consequences go beyond a tripped breaker. Motors wound for 380V running on 220V draw excessive current, overheating windings within hours and shortening motor life noticeably. Control boards designed for 50 Hz may behave unpredictably on 60 Hz supply, causing timing errors in the trimming and polishing sequence. An operator facing a control panel in an unfamiliar language will either guess at settings or refuse to run the machine at all — both outcomes waste production time and erode confidence in the equipment [NEED_CITE: CE machinery directive requirements for industrial equipment].
What Makes Ordering From This Store Different
Voltage and plug configuration are locked in during the order process, not left to assumption. The control panel language is set to your operator’s requirement before the crate is closed. Every FX-20 undergoes a pre-shipment test run on actual panel stock, and the test record is included in the documentation package. Wooden case packing with recorded dimensions allows accurate freight quoting before the machine leaves the floor. Spare parts and a maintenance manual in the agreed language ship inside the crate, so commissioning begins the day the machine is unboxed.
Documentation & Verification
- Factory test record on your specified panel thickness and banding material before dispatch
- Electrical schematic confirming voltage, phase, and frequency matched to your supply
- Operation and maintenance manual in the agreed control panel language
- Spare parts list with part numbers matching the units shipped
- Packing photographs and crate dimensions for freight forwarder reference
Installation, Commissioning & Support
- Requires a dedicated 220V or 380V circuit matching the confirmed configuration, with appropriate breaker rating for the 2500W total draw
- Compressed air supply at 0.5–0.8 MPa from existing workshop compressor, no dedicated line required
- Machine arrives fully assembled; position on a level surface and connect power and air
- First-run parameter setting for glue temperature and trimming depth guided by the included manual
- Trimming and polishing consumables included for initial commissioning runs
What to Share When Requesting a Quote
To match the correct configuration, provide your workshop supply voltage and frequency, the plug type used locally, and the language your operators read. Let us know the primary panel materials you work with — MDF, particleboard, plywood, or solid wood — and the edge banding thickness you typically use. If you have an existing production line, mention the upstream and downstream equipment so we can confirm workflow compatibility.
Frequently Asked Questions
Q: What voltage and plug options are available, and how is local frequency confirmed?
A: The FX-20 is available in 220V and 380V configurations with EU, USA, AU, or UK plugs. Frequency must be confirmed at the order stage — 50 Hz and 60 Hz affect motor and control timing. We verify your local supply standards and lock in the correct configuration before the machine ships.
Q: Is this mini edge bander in stock and how soon can it ship?
A: The FX-20 mini edge banding machine in stock is held for fast dispatch. Once voltage, plug, and language are confirmed, the unit goes through a pre-shipment test and is crated for immediate freight. Typical dispatch follows within a short window after order confirmation.
Q: Can the control panel language be changed before shipment?
A: Yes. Chinese and English are standard, and Spanish or other languages can be configured at the factory. This is confirmed during the order process so your operators can read every label and setting from the first day of use.
Q: What panel and banding thickness does this unit handle?
A: The FX-20 handles edge banding heights from 0 to 50 mm and banding thickness from 0.3 to 3 mm. Minimum sheet size is 250 mm long by 100 mm wide, covering most cabinet and furniture components produced in a small workshop.
Q: How do I order a single unit and what spare parts are included?
A: Single-unit orders are accepted with the same pre-shipment testing and documentation as larger orders. A starter spare parts set ships inside the crate, and the included parts list allows you to reorder consumables as needed.
