Description
Fast Dispatch, Confirmed Compatibility — Every ST-30 hand held edge banding machine ships only after voltage, plug type, and control language are verified in writing against your workshop’s actual power supply.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Hand Held Edge Banding Machine |
| Total Power | 1000W |
| Voltage Options | 220V / 380V / Custom Configuration |
| Edge Banding Height Range | 0–50mm |
| Edge Banding Thickness Range | 0.3–3mm |
| Glue Pot Capacity | 1000ml |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 3cm |
| Edge Trimming Power | 20W |
| Required Air Source Pressure | 0.5–0.8MPa |
| Overall Dimensions (L×W×H) | 38×35×35cm |
| Net Weight | 12kg |
| Compatible Edge Materials | ABS, PVC, Melamine, Veneer |
| Plug Options | EU, USA, AU, UK |
| Control Panel Language | Chinese, English, customizable (Spanish, French, others on request) |
| Edge Profile Capability | Straight and Curved |
| Certifications | ISO 9001, CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet on-site edge finishing | MDF and particleboard panels with PVC or ABS tape |
| Small joinery workshop production | Plywood and blockboard with melamine edge banding |
| Furniture repair and retrofit work | Solid wood panels with veneer edge strips |
| Interior fit-out and installation jobs | Curved and shaped panel components requiring portable edge banding |
| Prototype and sample piece fabrication | Mixed substrates with thin to medium thickness edge tape |
Why the Voltage Question Must Come Before Anything Else
A machine that cannot plug into your workshop’s power supply is not a machine — it is dead weight in a crate.
I once oversaw the dispatch of a portable edge bander to a Southeast Asian furniture shop. The order paperwork listed 380V three-phase, the same as our domestic standard. Nobody asked what the customer actually had on the floor. When they uncrated it and connected power, the motor burned out within seconds — the workshop ran on 220V single-phase. That single oversight cost the customer weeks of downtime and us a replacement shipment plus freight. Since then, every hand held edge banding machine in stock we prepare for export goes through a written voltage and plug confirmation before it leaves the factory [NEED_CITE: voltage and frequency standards by export market]. The ST-30 is available configured for 220V or 380V, with plug types matched to EU, USA, AU, or UK outlets, and we document that confirmation alongside the shipping paperwork.
Stock Availability and Dispatch Timing
Workshops buying a single portable unit usually need it working within days, not weeks. The ST-30 hand held edge banding machine in stock status means we hold finished units ready for final configuration — not bare frames waiting for assembly. Once your voltage, plug type, and control panel language are confirmed, the machine goes through a pre-shipment power-on test and is packed for dispatch. This approach eliminates the typical multi-week lead times that buyers encounter when ordering from catalogues where every unit is built to order.
What Ready Stock Actually Means for Your Order

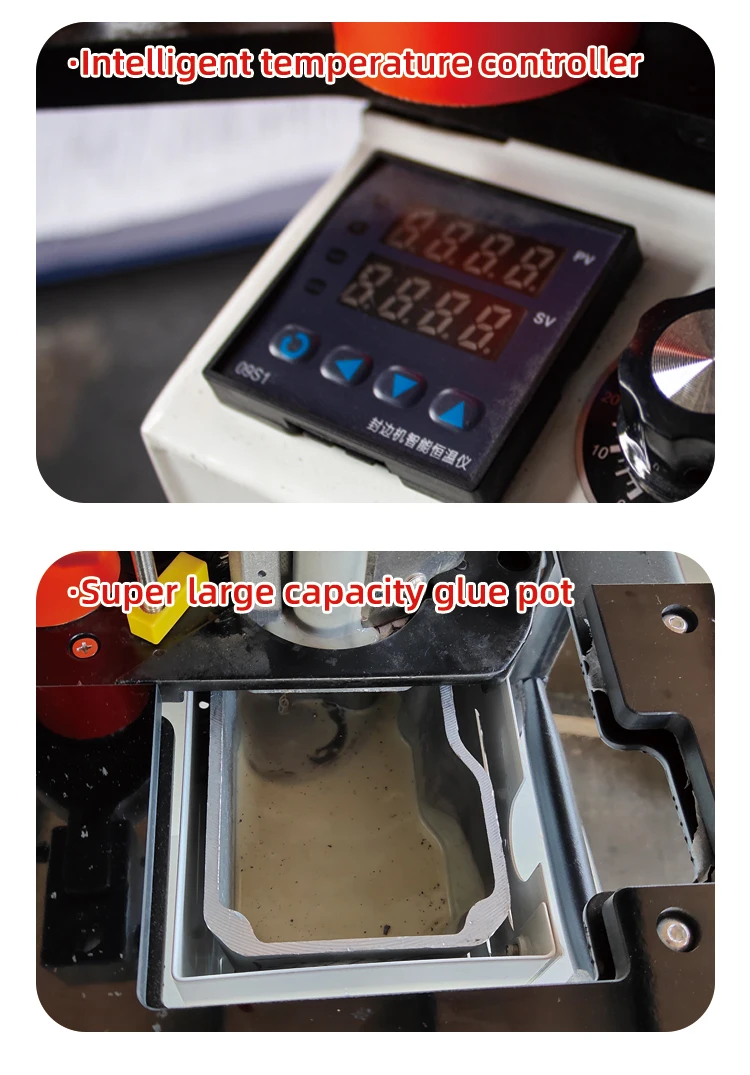

Not all "in stock" claims carry the same weight. Some suppliers hold unfinished assemblies that still require motor installation, wiring, and testing — adding days to what was promised as immediate dispatch. Our ready-stock inventory for this hand held edge banding machine in stock includes fully wired and assembled units that undergo a functional test with actual edge banding tape before packing. The glue pot is checked for proper heating cycle, the feed mechanism runs through straight and curved profiles, and the voltage output is measured at the plug [NEED_CITE: pre-shipment testing standards for export machinery]. You receive a machine that is operational on arrival, not one that needs an electrician before it can run.
Reading the Specifications Against Your Actual Work
The ST-30’s 1000W total power rating covers both the glue heating element and the edge trimming motor, which means the machine maintains consistent glue temperature while trimming simultaneously — a balance that lower-powered units struggle to sustain during continuous use. The 0.3–3mm edge banding thickness range covers the majority of PVC, ABS, and melamine tapes used in cabinet and furniture work, while the 0–50mm height capacity accommodates standard panel thicknesses from thin MDF shelving up to thicker plywood carcase components. The 1000ml glue pot provides enough adhesive volume for extended runs without frequent refills, which matters when you are edging multiple panels in a single session. Air pressure requirement of 0.5–0.8MPa means the unit connects to a standard workshop compressor — no dedicated high-pressure system needed.
The Real Cost of Skipping Configuration Checks
When a buyer purchases a portable edge bander without confirming voltage compatibility, the failure does not announce itself gradually. The motor either will not start or will draw excessive current and overheat — sometimes within the first minute of operation. Control panels shipped in a language the operator cannot read create a different kind of failure: the machine runs, but settings for glue temperature and feed speed are guessed rather than set, producing inconsistent edge adhesion across panels [NEED_CITE: common commissioning failures in exported woodworking machinery]. These are not warranty issues — they are configuration oversights that no amount of after-sales support can resolve quickly across time zones.
What This Purchase Process Covers
Our four-stage quality control process applies to every unit, including single-piece orders from stock — incoming material inspection, in-process assembly checks, finished product testing, and pre-shipment verification with your confirmed specifications. Voltage and plug type are recorded on the dispatch checklist alongside the machine serial number. The operation manual ships in your agreed language, and the control panel interface is set before packing so the operator sees familiar text on first power-up. Our engineering team handles configuration recommendations directly, not through a sales intermediary, which means technical questions about your workshop’s power supply or edge banding materials are answered by someone who has wired these machines on the assembly floor.
Documentation & Verification
- CE declaration of conformity covering the ST-30 portable edge banding unit
- Voltage and plug type confirmation sheet matched to your destination country
- Pre-shipment test record showing glue heating and edge feed performance
- Operation and maintenance manual in your selected language
- Spare parts list with consumable glue pot and trimming blade references
Installation, Commissioning & Support
- Requires a dedicated circuit matching your confirmed voltage — no shared outlets with other 1000W equipment
- Connects to existing workshop compressor at 0.5–0.8MPa via standard pneumatic quick-connect fitting
- Ships fully assembled — no mechanical installation, just unbox, connect power and air, and load glue
- First-run guidance covers glue temperature setting for your specific PVC, ABS, or melamine tape
- Glue pot cleaning procedure documented to prevent adhesive curing between work sessions
Before You Request a Quote
To match you with the correct stock unit, we need your workshop’s supply voltage and frequency, the plug type standard in your country, and your preferred control panel language. Let us know which edge banding materials you work with most often — PVC, ABS, melamine, or veneer — so we can confirm compatibility and run a test with matching tape before dispatch.
Frequently Asked Questions
Q: What voltage and plug options are available, and how is compatibility confirmed?
A: The ST-30 is configurable for 220V or 380V with EU, USA, AU, or UK plug types. Before any hand held edge banding machine in stock ships, we require written confirmation of your local voltage, frequency, and outlet standard. This confirmation is documented and attached to your order file so the machine arrives ready to connect.
Q: Is the machine in stock, and what is the dispatch lead time for a single unit?
A: Finished units are held in stock for rapid configuration and dispatch. Once your voltage and language requirements are confirmed, the machine undergoes a pre-shipment functional test and is packed. We support single-unit orders without minimum quantity requirements, and typical dispatch follows within a short window after confirmation.
Q: Can the control panel language be set to English or another language?
A: Yes. The standard options include Chinese and English, with Spanish, French, and other languages available on request. The panel is configured to your chosen language before the machine ships, so your operator can read all settings and prompts immediately upon first use.
Q: What edge banding materials and thicknesses does this machine support?
A: The ST-30 handles PVC, ABS, melamine, and veneer edge banding tape in thicknesses from 0.3mm to 3mm, with an edge height capacity of 0–50mm. It processes both straight and curved profiles, making it suitable for shaped cabinet components and standard rectangular panels.
Q: How do I handle installation and first-time setup?
A: The machine ships fully assembled and requires only a power connection and compressed air supply at 0.5–0.8MPa. The included manual in your language covers glue loading, temperature settings for different tape materials, and first-run procedures. Our team remains available for remote guidance during your initial setup.
