Description
Dispatch-Ready Flexibility — ZDSF190 stock units ship out the same week you confirm voltage, with dual-purpose curve-and-straight capability eliminating the need to source two separate machines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Portable Automatic Curve and Linear Edge Banding Machine |

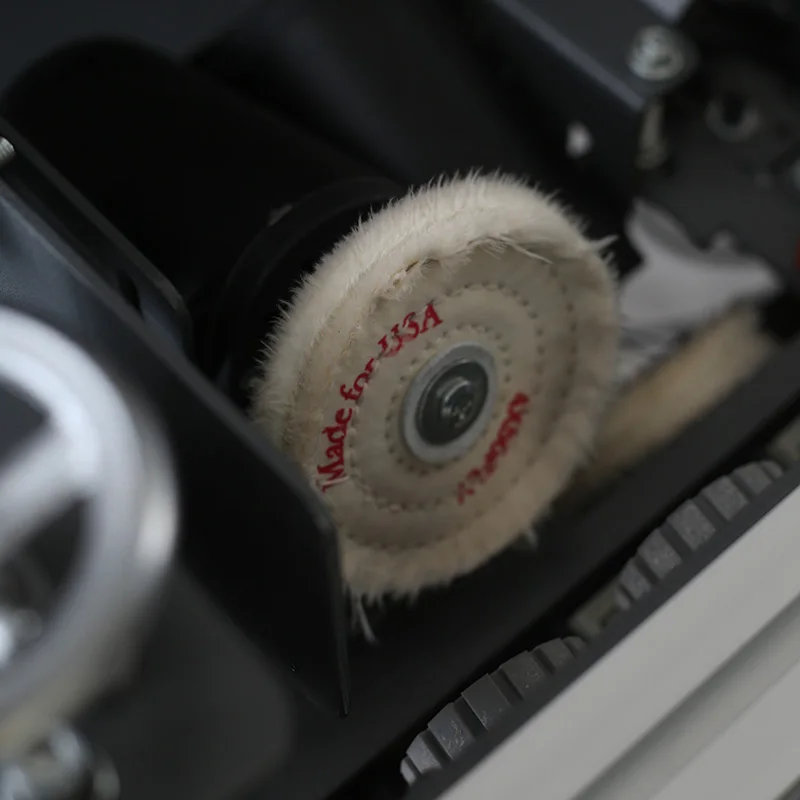

| Function | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper and lower trimming and polishing, curved and straight edge banding |
| Voltage & Frequency | 220V 50Hz (basis not stated in source — confirm if other voltages available) |
| Rated Power | 4kW |
| Suction Power | 1200W |
| Heating Power | 800W |
| Feed Speed | 0-14m/min |
| Sheet Thickness Range | 10-50mm |
| Strip Thickness Range | 0.5-2.5mm |
| Glue Pot Capacity | 1000ml |
| Overall Dimensions (L×W×H) | 1900×560×1300mm |
| Net Weight | 120kg |
| Trimming Stations | Upper and lower trimming with 4-blade alloy arc knife |

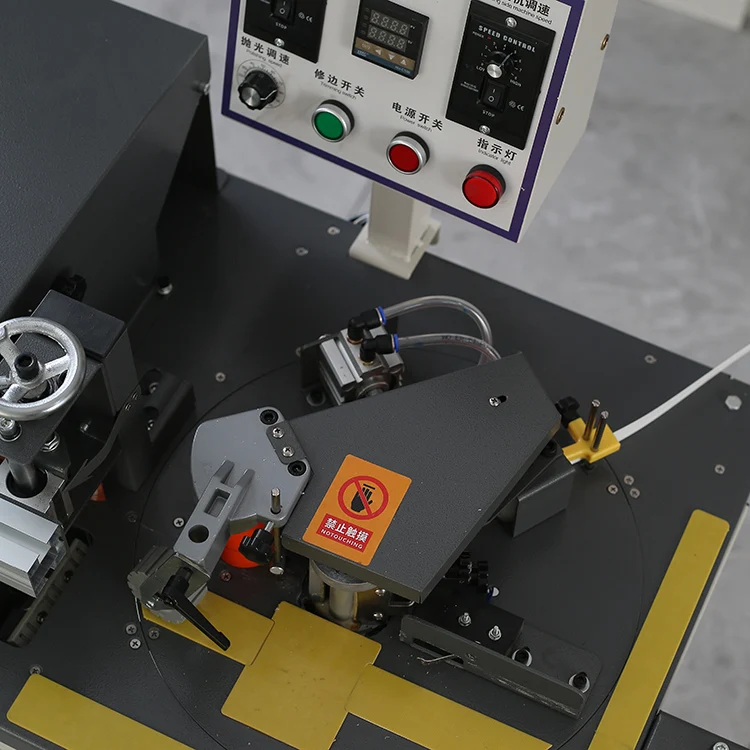

| Control System | Multi-function button operation panel |
| Pressure Beam | Adjustable aluminum alloy with double-row rubber pressure wheels |
| Conveyer Type | Steel rod slide rail crawler transmission |
| Dust Extraction | Large diameter surrounding vacuum (1200W) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet shops running short batches | MDF, plywood, and particleboard panels with mixed curved and straight edge profiles |
| Startup joinery workshops transitioning from hand trimmers | Solid wood panels and veneer banding up to 2.5mm thickness |
| On-site installation crews working in fitted furniture projects | PVC and melamine edge strips on pre-cut panels at installation locations |
| Small furniture factories requiring fast changeover | Alternating between curved radius corners and linear panel edges within the same shift |
Why the Voltage Question Should Come Before the Price
Ordering a Portable Automatic Edge Banding Machine in stock fast delivery without confirming local grid compatibility is the single most common reason a machine sits idle on arrival.
Voltage mismatch is the leading cause of day-one commissioning failure for exported woodworking machines. I have watched a workshop sit idle for days because a 380V unit arrived at a facility wired for 220V single-phase, and the entire production line stopped while electricians reconfigured the supply. That experience is why every ZDSF190 order triggers a separate voltage confirmation step before it leaves the floor. The cost of rewiring a workshop or replacing a motor burns through any savings you thought you got from a lower machine price [NEED_CITE: voltage and frequency standards by export market]. The question is not whether this machine can run at your site — it is whether the configuration has been verified against your actual breaker panel.
Immediate Availability Without the Production Slot Wait
Small workshops rarely have the luxury of waiting weeks for a machine to be built to order. The ZDSF190 sits in the ready-stock pool specifically because it covers the highest-demand edge banding requirement in this size class — the ability to handle both curved and straight profiles without swapping machines. When your schedule demands a Portable Automatic Edge Banding Machine in stock fast delivery means the difference between hitting a cabinet installation deadline and explaining a delay to your client.
Compact Footprint That Fits Where Full-Size Machines Cannot

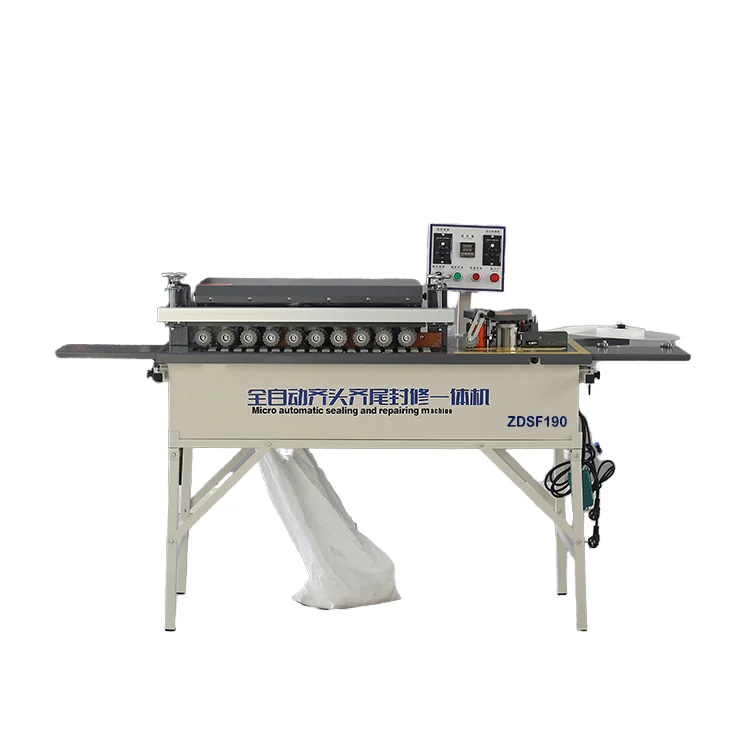

At 1900mm in length and 560mm wide, the ZDSF190 rolls through standard workshop doors and fits into tight production cells where a full-size stationary edge bander simply cannot go. The 120kg net weight keeps it movable by two operators without a forklift. For on-site joinery crews, this means the machine travels with the project and runs on 220V workshop-grade single-phase power, avoiding the need to request three-phase supply at a residential or commercial fit-out location.
Dual-Mode Switching Without Tooling Changeover

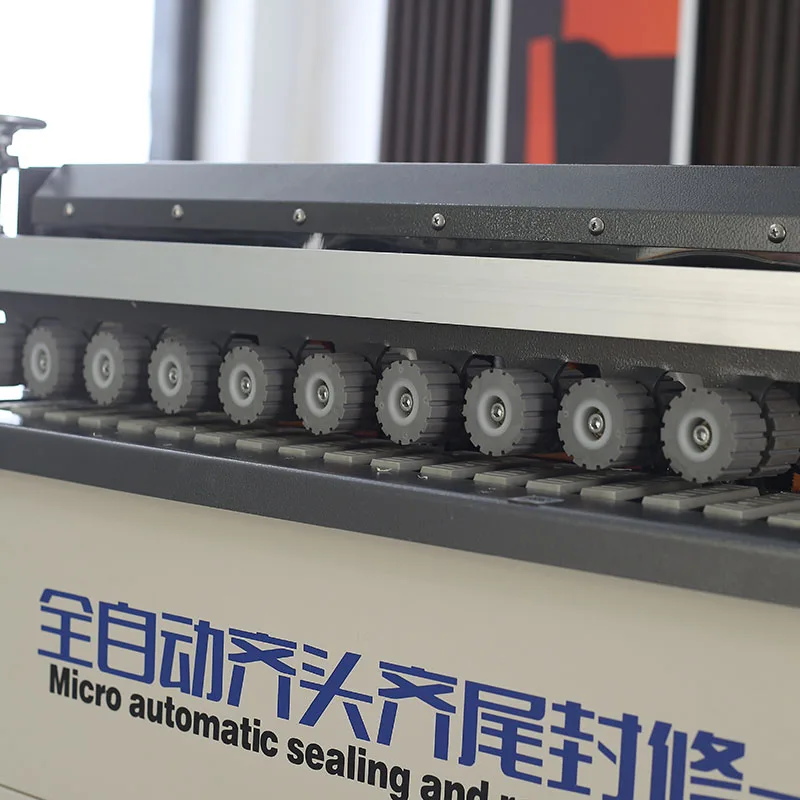

The machine rotates 180 degrees on its base to switch between curved and straight edge banding modes. Operators do not need to change trimming heads, swap glue rollers, or recalibrate the feed path between jobs [NEED_CITE: dual-mode edge bander setup procedures]. The adjustable aluminum alloy pressure beam and double-row rubber pressure wheels maintain consistent panel contact across both modes, which is where most dual-purpose machines lose accuracy on curved profiles.
Reading the Numbers That Actually Matter in Production

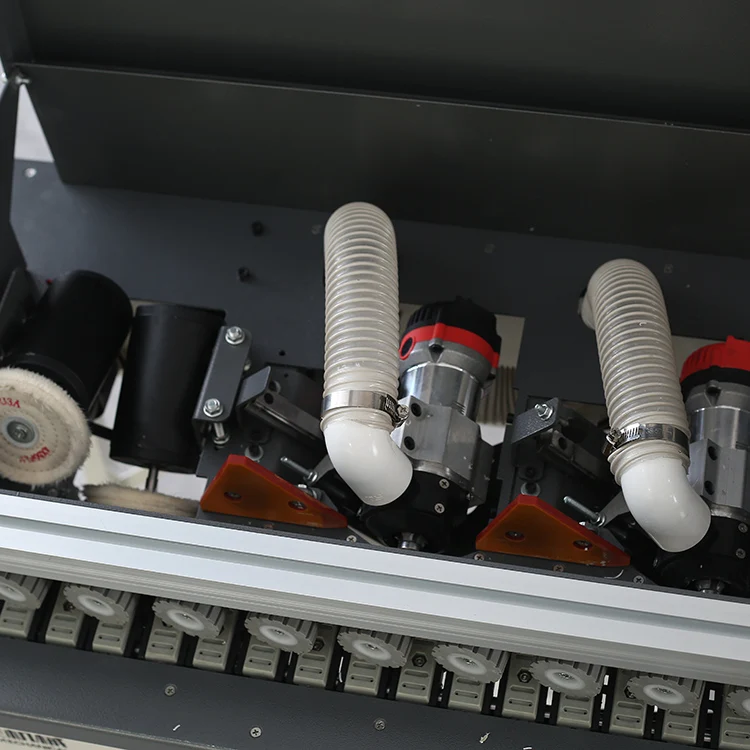

The 10-50mm sheet thickness range covers everything from 10mm MDF shelf panels up to 50mm solid wood worktops, which defines the scope of projects this machine can realistically handle. Feed speed at 0-14m/min gives operators fine control when working fragile veneer strips at the lower end, while still keeping pace with standard PVC and melamine banding runs. The 4-blade alloy arc knife trimming heads produce a clean radius on curved edges that typically requires a second hand-trimming pass on cheaper single-blade setups. Dust extraction at 1200W through the large diameter surrounding vacuum port keeps the trimming zone clear of chip buildup, which directly affects trim consistency over a full shift — a clogged extraction path leaves debris between the knife and the panel edge. The 1000ml glue pot capacity is sized for batch work rather than continuous high-volume production, which matches the profile of workshops running short custom runs [NEED_CITE: glue pot sizing and batch edge banding workflow].
What Happens When a Single-Purpose Machine Meets a Mixed-Profile Job
Buying a straight-only edge bander and then outsourcing curved work adds handling time, transport cost, and quality inconsistency every time a curved panel leaves your shop. Conversely, buying a dedicated curve machine that sits idle half the week ties up capital in equipment that does not earn its floor space. The hidden cost shows up as duplicated setup time, mismatched glue lines between the two machines, and the inevitable moment when a client asks for a shaped panel on a day when the curve machine is booked [NEED_CITE: workflow inefficiency from single-purpose edge banding equipment].
What Makes This Stock Unit Different From a Generic Listing
In-house manufacturing with patented cutting mechanisms means the ZDSF190 is not a relabelled commodity unit — the trimming accuracy traces back to verified mechanisms on the production floor. Voltage customization from 110V to 440V is available as a pre-ship configuration rather than an after-arrival modification, which is how most voltage-related failures actually happen. Four-stage QC with pre-shipment verification means each stock unit has been run on actual panel material and photographed before crating. Engineer-led configuration recommendation ensures your feed speed and glue temperature settings are matched to the strip material you will actually be running, not a generic default. Factory visits are welcome if you want to see the machine run on your substrate before it ships.
Documentation & Verification
- CE declaration of conformity covering the ZDSF190 portable edge bander
- Electrical schematic with your confirmed voltage and frequency annotated before dispatch
- Factory test record on your specified panel thickness and edge strip material
- Operation manual in your operator’s language covering dual-mode changeover procedures
- Spare parts list with part numbers for trimming knives, glue rollers, and feed wheels
Installation, Commissioning & Support
- 1900×560mm footprint requires a level concrete floor section with 220V dedicated 20A circuit
- 4kW rated power demands a single-phase supply verified against local breaker capacity before uncrating
- Machine ships assembled — connect dust extraction hose and verify pressure beam alignment on first run
- 0-14m/min feed speed calibration against your specific strip thickness during initial commissioning
- 1000ml glue pot flush and refill procedure included in the operator manual for adhesive changeover
What We Need From You to Confirm the Right Configuration
Tell us the panel materials you run most often — MDF, plywood, particleboard, or solid wood — along with the thickness range that covers the majority of your jobs. Confirm your workshop voltage and frequency at the breaker panel, not just what the national standard says. Let us know if your operators need the control panel and manual in a specific language, and whether you want us to run a sample on your actual edge strip material before the machine leaves our floor.
Frequently Asked Questions
Q: Is this machine in stock and what is the dispatch lead time?
A: The ZDSF190 is held in ready-stock inventory specifically for fast-dispatch orders. Once voltage and control language are confirmed, the unit goes through pre-shipment testing on your specified substrate and is crated for export within a short turnaround. Typical dispatch windows depend on destination port and shipping route, but the machine itself does not require a production build cycle.
Q: Can the voltage be customized for 110V/60Hz or 380V markets before shipping?
A: Yes. The ZDSF190 is configurable across 110V to 440V at various frequencies. Voltage customization is completed on the factory floor before dispatch, not after arrival. We require a voltage confirmation document signed against your actual site supply before the machine leaves our facility, which prevents the most common day-one failure we see in exported woodworking equipment.
Q: What edge banding strip materials and thicknesses does the ZDSF190 handle?
A: The machine handles strip thicknesses from 0.5mm to 2.5mm, covering PVC, melamine, veneer, and ABS edge banding materials. The double-sided gluing system and adjustable pressure beam accommodate both thin veneer strips that require gentle pressure and thicker PVC strips that need firm contact through the trimming stations.
Q: Does the machine ship fully assembled or does it require on-site setup?
A: The ZDSF190 ships in assembled state. On-site work is limited to connecting the dust extraction hose to your workshop vacuum system, verifying the 220V power supply matches the confirmed configuration, and running the first test panel to calibrate feed speed and trimming depth against your specific strip material.
Q: What spare parts and consumables are included, and how are replacements ordered?
A: Each unit ships with a spare parts list covering trimming knives, glue rollers, feed wheels, and pressure beam components. The initial package includes consumables matched to your first production run. Replacement parts are ordered directly through our supply channel with part numbers from the documentation provided at delivery.
