Description
Voltage Verified Before Dispatch — every ZDSF802 leaving our Ningjin warehouse carries a signed voltage confirmation sheet matched to the destination grid, so the machine you receive is the machine you can run.
Technical Specifications
| Parameter | Value |
|---|---|

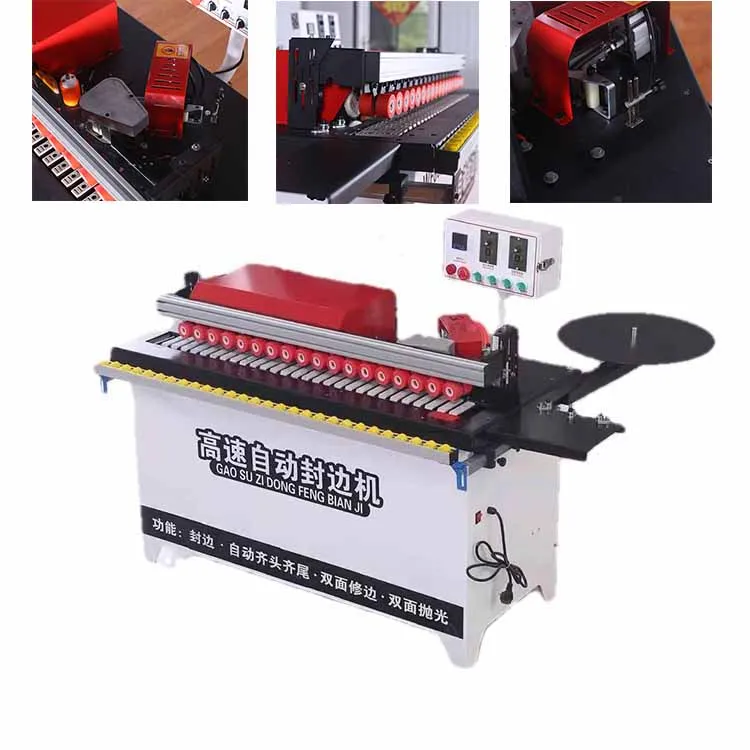

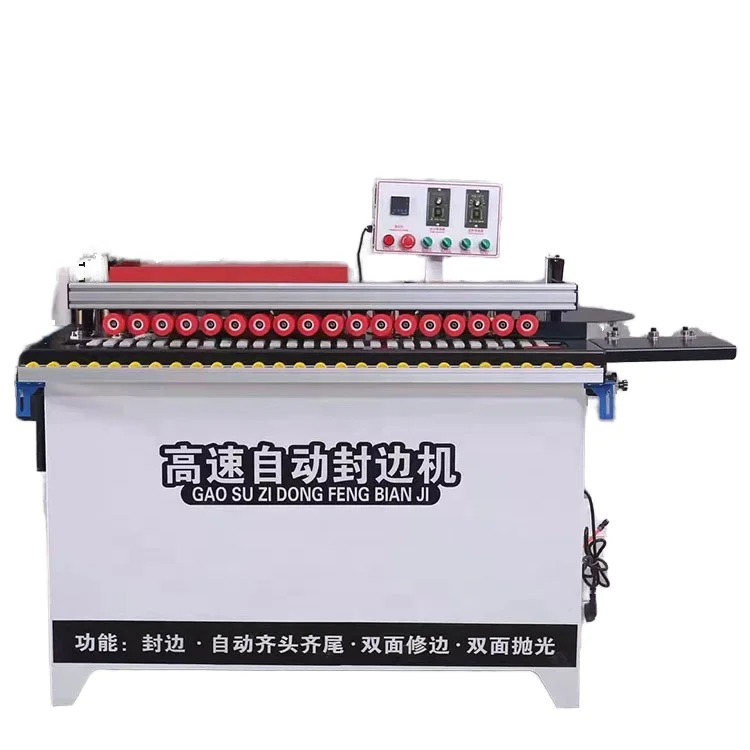

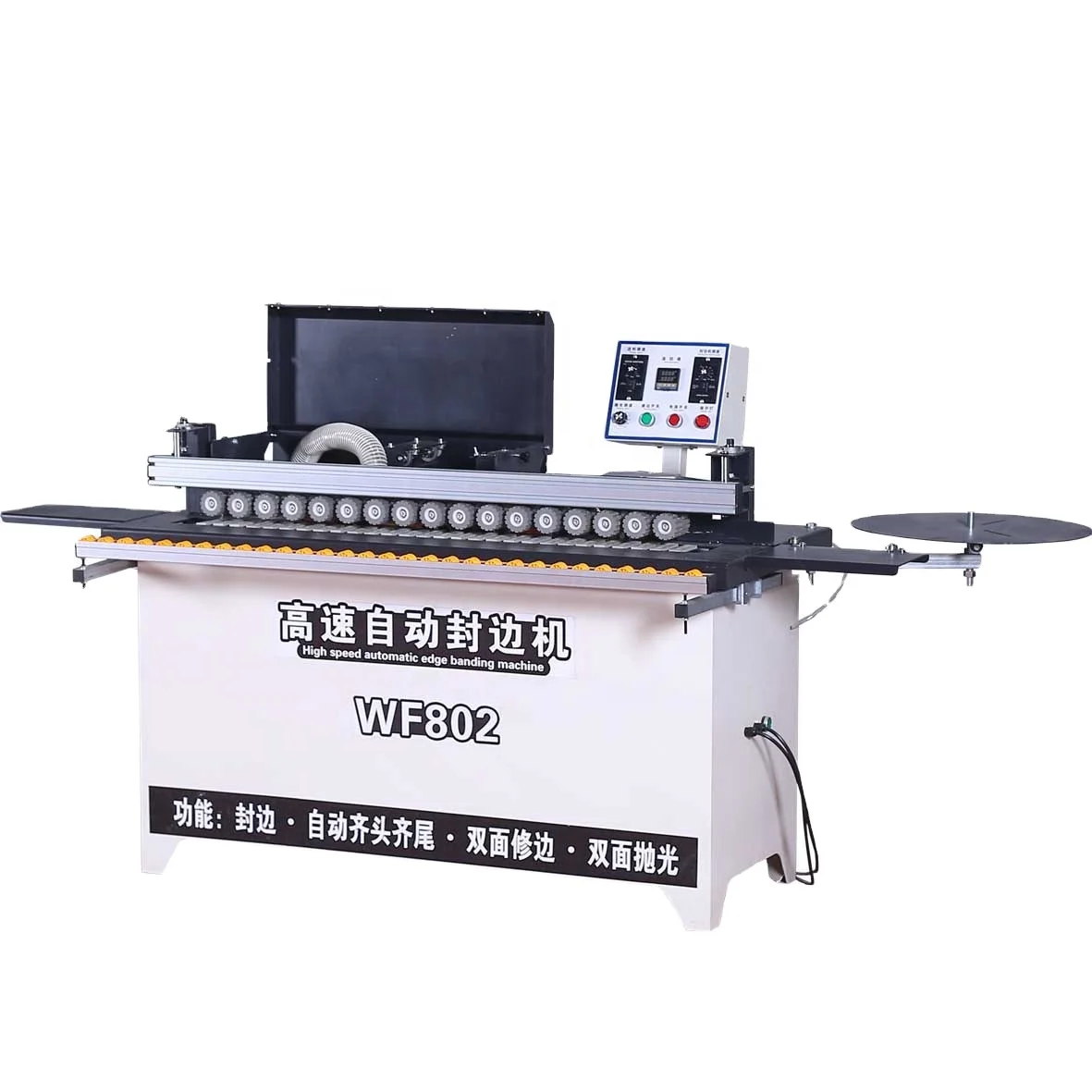

| Model | ZDSF802 Full-line Auto Edge Banding Machine |
| Product Type | Full-line Automatic Edge Banding Machine |
| Function Sequence | Gluing, End cutting, Trimming, Vacuuming, Buffing |
| Rated Voltage | 220V (other voltages available on request) |
| Rated Power | 4 kW |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Rated Air Pressure | 0.6–0.8 MPa |
| Glue Pot Capacity | 4000 ml |
| Overall Dimensions | 190 × 60 × 130 cm |
| Machine Weight | 150 kg |
| Pressure Beam | Integrated beam, double rows of silicone pressure wheels |
| Trimming Unit | Double high-speed motors, up-and-down trimming |
| Polishing Unit | Up-and-down dual polishing motors |
| Extendable Support | Fluent strips for oversized panel sealing |

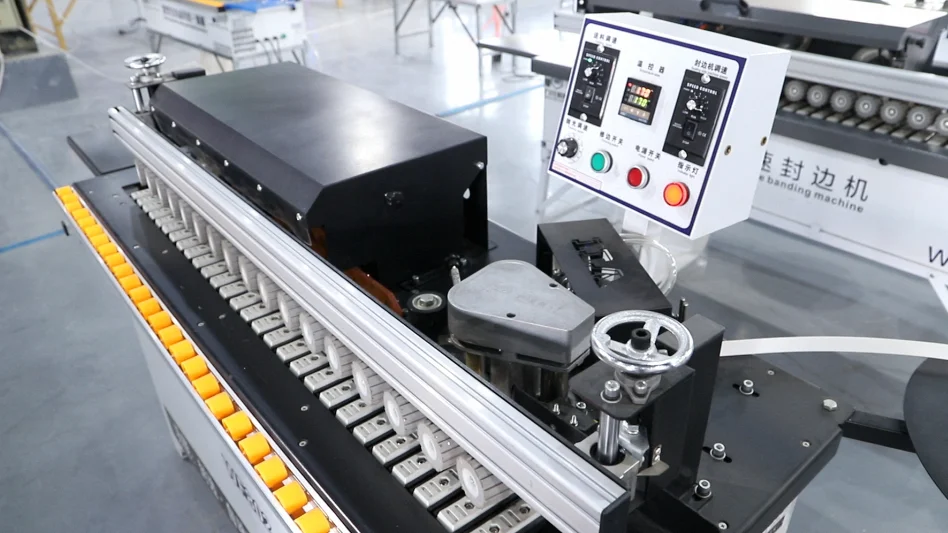

| Control Panel | Digital glue pot temperature display, independent switches |
| Conveyor Belt | Silicone material |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and melamine-faced particleboard, 10–50 mm thick |
| Plywood shelving edge banding | Plywood panels with PVC or veneer strips up to 2.5 mm |
| Small-batch furniture components | Solid wood panels requiring glue-and-trim in one pass |
| Workshop upgrade from manual edge work | Mixed wood-based panels for interior furniture production |
Why the Voltage Question Should Come Before the Price
An automatic edge banding machine in stock is only useful if it matches your local power supply.
I once cleared a unit for Southeast Asian dispatch without a signed voltage confirmation. The workshop ran 415 V three-phase; the machine arrived wired for 380 V. The buyer waited three weeks for a step-down transformer while production stood still. Since that day, I check every outgoing ZDSF802 order against the destination grid standard before the crate is closed. Most buyers focus on feed speed and trim quality, yet an incorrect voltage renders those advantages irrelevant on the shop floor [NEED_CITE: voltage and frequency standards by export market]. Confirming supply compatibility at the quotation stage avoids costly delays after the container has already sailed.
Stock Availability and Dispatch Timing
The ZDSF802 is held as an automatic edge banding machine in stock at our Ningjin facility, meaning lead time is measured in days rather than the typical multi-week production cycle. Once an order is confirmed and the pre-shipment voltage and language panel checks are complete, the unit moves to crating. For buyers running tight project timelines or replacing a failed machine mid-season, this availability removes the scheduling uncertainty that custom-build orders introduce.
Single-Unit Ordering Without Minimums
Workshops moving from manual edge work rarely need a full container load on the first purchase. The ZDSF802 can be ordered as a single unit, shipped via LCL or dedicated pallet, and expanded upon later as throughput grows. I coordinate each individual dispatch with the same pre-shipment test protocol used for bulk orders — glue pot temperature stability, trim motor alignment, and conveyor belt tracking are all verified before the machine leaves the floor. This means a first-time buyer receives the same validated equipment as a repeat distributor [NEED_CITE: pre-shipment inspection standards for woodworking machinery exports].
How Feed Speed and Panel Thickness Shape Edge Quality
The ZDSF802 handles sheet thickness from 10 to 50 mm, which covers the full spectrum of cabinet panels and shelving stock. At slower feed rates, the glue has more open time to penetrate porous substrates like particleboard, improving bond strength on rough-cut edges. When processing thinner MDF panels at higher conveyor speeds, the double-row silicone pressure wheels maintain consistent contact without marring the surface. The 4000 ml glue pot reduces refill interruptions during longer production runs, keeping thermal equilibrium stable — a factor that directly affects glue viscosity and, consequently, the visibility of the glue line on finished edges.
The Cost of Skipping Pre-Shipment Verification
I have seen edge banders of this class arrive at overseas workshops with control panels printed in a language the operator cannot read, stalling commissioning for days while translated manuals are sourced. In other cases, machines were dispatched without confirming air pressure requirements, and the buyer’s undersized compressor could not sustain the 0.6 MPa minimum, causing inconsistent trimming pressure and ragged edge finishes. These are not manufacturing defects — they are configuration oversights that a structured pre-shipment check would have caught [NEED_CITE: common commissioning failures in imported woodworking equipment]. The ZDSF802 leaves our floor only after air pressure, voltage, and panel language have been confirmed in writing.
What We Verify Before Your ZDSF802 Ships
Every unit passes through a four-stage quality control sequence covering incoming material inspection, in-process assembly checks, finished-product functional testing, and pre-shipment verification. Our in-house manufacturing includes patented cutting mechanisms that hold tolerance within ±0.02 mm, verified during the final test run with your specified panel material. Voltage and frequency are matched to your local supply before wiring is finalized. Operation manuals are prepared in the language your operators will read, and spare parts lists are included so consumable reordering is straightforward. Factory visits are welcomed for buyers who want to witness the test run in person [NEED_CITE: CE machinery directive requirements for industrial equipment].
Documentation & Verification
- CE declaration of conformity covering the ZDSF802 edge banding assembly
- Factory test record on your specified panel thickness and strip material before dispatch
- Electrical schematic confirming voltage and frequency as wired at shipment
- Operation and maintenance manual printed in your operator’s agreed language
- Spare parts list with part numbers for trimming blades, polishing wheels, and conveyor belt
- Packing photographs documenting crating condition prior to container loading
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for at least 4 kW with proper grounding
- Air supply must sustain 0.6–0.8 MPa at the machine inlet; compressor sizing guidance provided
- Overall footprint of 190 × 60 cm allows placement against a standard workshop wall
- Extendable fluent strips need clearance on the infeed side for oversized panel support
- Glue pot digital temperature display calibrated during commissioning for your chosen adhesive type
- Silicone conveyor belt tracking adjusted on-site during the first production run
What to Share When You Request a Quote
To match the ZDSF802 to your workshop, send the panel materials you process most often, typical sheet dimensions, and your local voltage and frequency. Let us know the language your operators read so the control panel and manual are prepared accordingly. If you are integrating this unit into an existing line, share the upstream saw and downstream drilling station feed heights so throughput stays balanced.
Frequently Asked Questions
Q: Is the ZDSF802 currently in stock, and what is the dispatch lead time after order confirmation?
A: Yes, the ZDSF802 is held in stock at our Ningjin warehouse. After order confirmation and completion of the voltage and language panel verification, dispatch typically takes a few working days for crating and freight handover. Exact timing depends on shipping route availability and destination port scheduling.
Q: Can the voltage be changed from 220V to match my local power supply, and how does that affect delivery time?
A: Voltage can be configured to match your local supply before dispatch. Rewiring and testing add a short period to the standard stock dispatch timeline, as each reconfigured unit must pass the full pre-shipment functional test at the new voltage setting before crating.
Q: What panel materials and edge banding types does this machine handle?
A: The ZDSF802 processes MDF, plywood, particleboard, and similar wood-based panels from 10 to 50 mm thick. It handles PVC, veneer, and melamine edge strips in the 0.5 to 2.5 mm range, with glue pot temperature adjustable to suit each material’s bonding requirements.
Q: What spare parts are included in the box, and how do I order consumables?
A: Each shipment includes a spare parts list with part numbers for high-wear items such as trimming blades and polishing wheels. Consumables like glue and replacement belt sections can be ordered separately, and we provide specifications so you can also source locally where available.
Q: Do you provide installation guidance and video support for first-time setup?
A: Yes, installation guidance is provided after delivery, covering electrical connection, air supply setup, and initial parameter adjustment. Video support is available to walk your team through first-run procedures including glue pot heating, conveyor belt alignment, and trimming calibration.
