Description
Voltage-Verified Dispatch — every DW-3600GF leaves the floor with electrical schematics matched to your local grid standard before crating.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-3600GF |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage & Frequency | 380V Three-Phase Four-Wire (frequency to be confirmed for destination market) |
| Overall Dimensions (L×W×H) | 2200×650×1250 mm |
| Net Weight | 320 kg |
| Feed Speed | 0–14 m/min (basis to be confirmed) |
| Edge Band Height Range | 0–50 mm |
| Edge Band Thickness Range | 0.3–3 mm |
| Minimum Panel Length | 200 mm |
| Trimming Speed | 24000 r/min |
| Trimming Power | 800W×2 |
| Polishing Power | 400W×2 |
| Transmission Power | 180W |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Standard Functions | Gluing, Trimming, Front and Rear Trimming, Scraping, Polishing, Vacuuming |
| Language Options | Chinese, English (other languages customizable) |
| Plug Options | EU, USA, AU, UK |
| Edge Banding Type | Straight Edge Banding |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet panel edging | MDF and particleboard with PVC banding 0.3–3 mm |
| Short-run furniture production | Plywood panels requiring straight edge finishing |
| Workshop transition from manual banding | Standard board stock in joinery and fit-out work |
| Secondary or backup edge bander | Intermittent production runs on mixed panel substrates |
Why the Voltage Question Should Come Before the Price on an Edge Banding Machine in Stock
Confirming your local supply before ordering eliminates the most common commissioning failure we see on imported woodworking equipment.
I spent years sourcing machinery for furniture plants across the Middle East. A cabinet factory in Dubai once ordered an edge bander without verifying the site supply. The machine arrived wired for 380V while the facility ran on 440V. They waited over twenty days for a step-down transformer while the entire line sat idle. That kind of delay costs far more than the transformer itself — it costs production schedules and client deadlines [NEED_CITE: voltage and frequency standards by export market]. Every DW-3600GF order now starts with a written voltage and frequency confirmation against the buyer’s local electrical standard before the machine is released from the floor.
Stock Availability Without the Guesswork

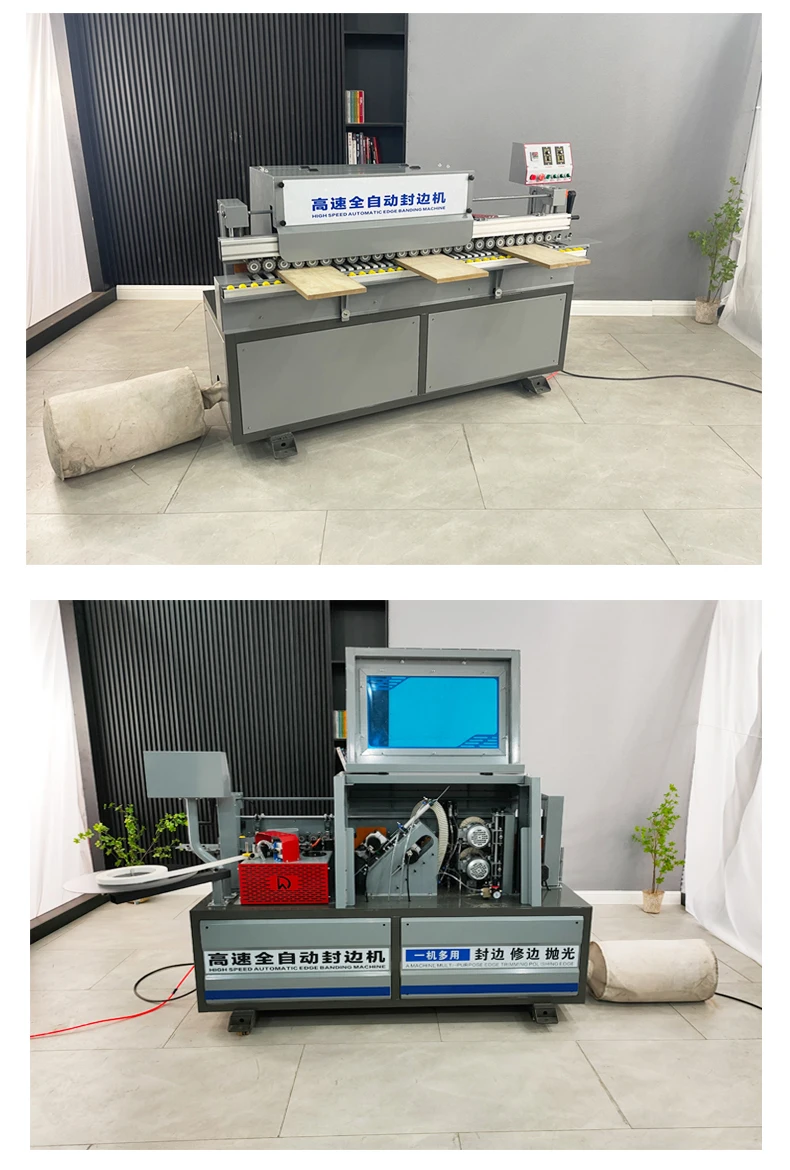

When a workshop needs an edge banding machine in stock, the conversation usually starts with lead time. The DW-3600GF is held as a complete, tested unit — not a skeleton frame waiting for final assembly. Gluing, trimming, scraping, and polishing stations are all mounted and wired before the machine is listed as available. This means the gap between order confirmation and dispatch shrinks to the verification and crating stages rather than a full production cycle.
Dispatch Readiness Tied to Electrical Verification
Fast shipping means little if the machine cannot run on arrival. The dispatch process for this edge banding machine in stock includes matching the plug type to your market — EU, USA, AU, or UK — and documenting the wiring configuration in the electrical schematic that travels with the crate. The 4.9 kW total power draw requires a dedicated three-phase circuit, and that requirement is flagged in the pre-shipment documentation so your electrician can prepare the drop before the machine arrives [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Station Layout Means for Your Panels

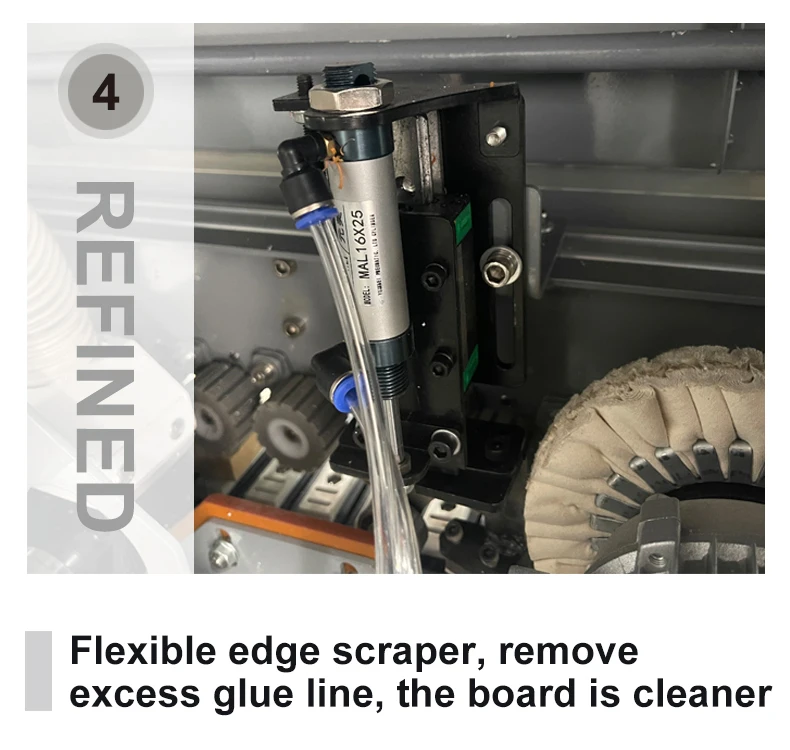

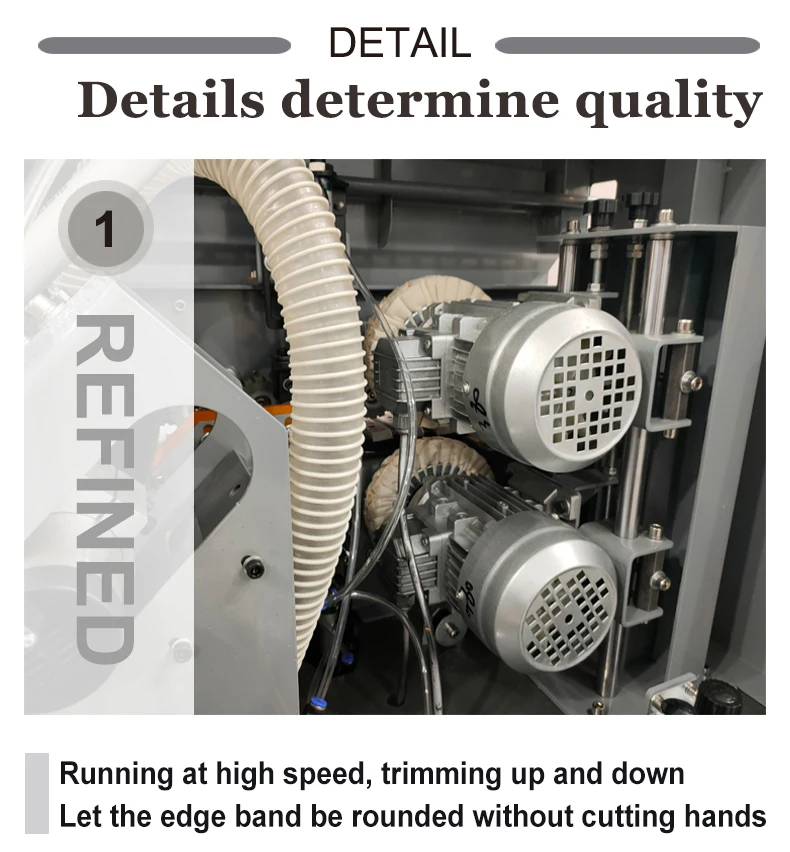

The DW-3600GF packs six functions into a 2200 mm frame: gluing, front and rear trimming, scraping, polishing, and vacuuming. For a small workshop moving away from hand-applied banding, having trimming and scraping on the same pass removes the need for secondary bench work. The 24000 r/min trimming speed is sufficient for clean cuts on standard PVC stock in the 0.3–3 mm range, leaving a finish that typically requires only the built-in polishing stage to close out. The 0.4–0.6 MPa air pressure requirement is consistent with standard workshop compressors, so no dedicated high-pressure line is needed.
Feed Speed and Panel Handling in Practice

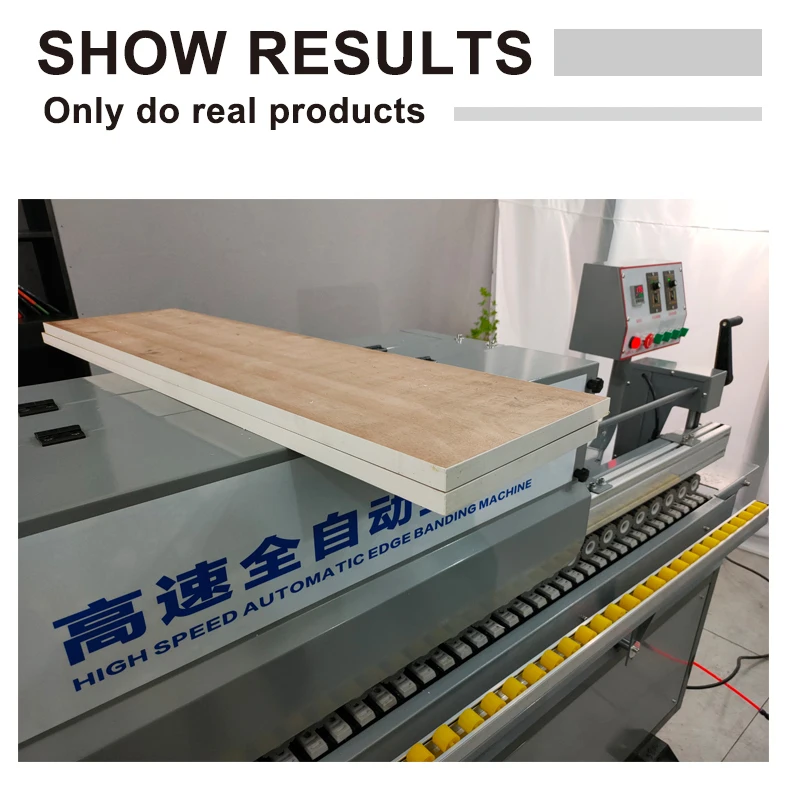

The adjustable feed speed from 0 to 14 m/min lets operators match the pace to the material and their own skill level. Running MDF at the upper end of the range works when the edge band thickness sits below 1 mm and the panel surface is uniform. Thicker PVC stock or plywood with surface irregularities calls for a slower feed to let the glue pot maintain consistent adhesion and to give the trimming cutters time to engage cleanly. The 200 mm minimum panel length keeps the feed rollers engaged on smaller offcuts, which matters in custom cabinet shops cutting varied panel sizes throughout the day [NEED_CITE: woodworking feed rate and material adhesion guidelines].
The Cost of Skipping Electrical Due Diligence
Buying a machine on availability alone, without locking down voltage and frequency in writing, creates a failure pattern that repeats across markets. The machine arrives, the electrician opens the terminal box, and the mismatch is discovered on day one. Return shipping is rarely practical. A local transformer becomes a stopgap that adds heat, noise, and a single point of failure to the line. In humid workshop environments, that transformer also introduces a condensation risk inside its housing. All of this is avoidable when the specification conversation happens before the order is placed [NEED_CITE: common causes of commissioning delays on imported machinery].
Why Source This Unit Through This Channel
In-house manufacturing means the DW-3600GF is built and tested on the same floor where it is stocked, so the unit you receive matches the test record. Voltage customization from 110V to 440V is handled as a standard configuration step, not a special request that adds weeks. A four-stage quality check — incoming material, in-process, finished product, and pre-shipment — runs on every unit before it is released. Engineer-led configuration means the station setup and feed parameters are matched to your stated panel materials before dispatch. Factory visits are open if you want to see the machine run on your own stock before it ships.
Documentation & Verification
- CE declaration covering this specific edge banding model
- Electrical schematic confirming voltage, frequency, and plug type for your site
- Factory test record run on your stated panel thickness and edge band material
- Operation and maintenance manual delivered in your agreed language
- Spare parts list covering consumable and wear items for the first production cycle
- Packing photographs taken before crate closure for shipment verification
Installation, Commissioning & Support
- Dedicated three-phase circuit rated for the 4.9 kW total draw with proper earth bonding
- Floor space of at least 2800×1200 mm to allow panel infeed and operator clearance around the 2200 mm frame
- Compressed air supply regulated to 0.4–0.6 MPa with a moisture trap installed upstream
- Feed speed and trimming depth set to your primary panel material during first-run commissioning
- Wear items for trimming cutters and polishing wheels identified in the included spare parts list

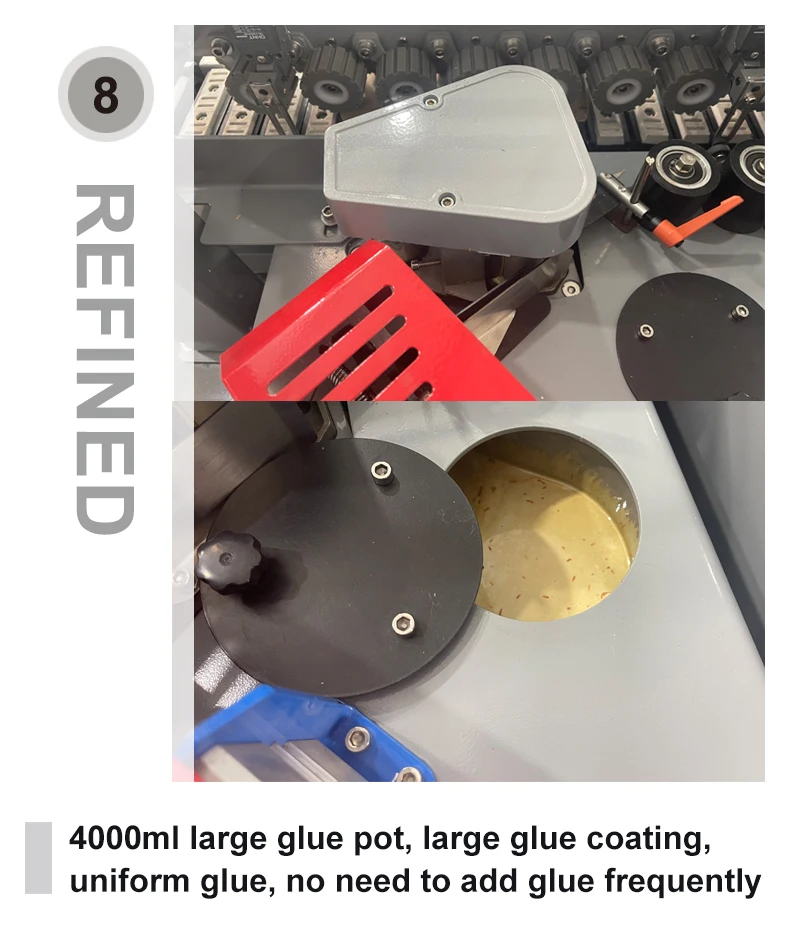

- Glue pot cleaning schedule aligned with your daily production volume and adhesive type
What to Share When Requesting a Quote
To match the DW-3600GF to your workshop, we need your primary panel material and thickness range, the edge band type and thickness you run most often, and your site voltage and frequency. Let us know your preferred control language and whether your compressor already meets the 0.4–0.6 MPa requirement. If you are integrating this unit into an existing line, share the upstream and downstream equipment so feed heights and throughput can be aligned.
Frequently Asked Questions
Q: Is the DW-3600GF in stock and how quickly can it ship?
A: This model is held as a fully assembled and tested unit. Once voltage, frequency, and plug type are confirmed in writing against your local supply, the machine moves to crating and dispatch. This verification step typically takes one to two business days, after which the unit is released for shipment without waiting for a new production run.
Q: How do you confirm voltage and plug type for my country?
A: We request your site electrical specification — voltage, phase configuration, and frequency — before finalizing the order. The machine is then wired and fitted with the matching plug option, EU, USA, AU, or UK. An electrical schematic confirming the configuration ships inside the documentation pack with the machine.
Q: What panel sizes and edge band materials can this machine handle?
A: The DW-3600GF accepts panels from 200 mm in length and applies PVC edge banding from 0.3 to 3 mm thick, up to 50 mm in height. The adjustable feed speed from 0 to 14 m/min lets operators dial in the right pace for MDF, particleboard, or plywood substrates.
Q: Can I order a single unit or is there a minimum quantity?
A: Single-unit orders are standard for this model. There is no minimum order quantity requirement. Each unit ships with its own test record, documentation set, and spare parts list regardless of order size.
Q: What spare parts and consumables are included with the first shipment?
A: The initial shipment includes a spare parts list covering trimming cutters, polishing wheels, and other wear items identified for the first production cycle. This lets you plan reorder timing based on your actual usage rather than waiting for a breakdown to source replacements.
