Description
Voltage-Verified Dispatch — Every DW802 portable edge bander ships only after matching your facility’s exact frequency and plug configuration, preventing the three-week transformer delays I have seen stall job-site starts.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Portable Edge Bander |
| Total Power | 1000W |
| Voltage & Frequency | 220V/380V/customization (frequency to be confirmed per destination) |
| Edge Banding Height | 0-50mm |
| Edge Banding Thickness | 0.3-3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 3cm |
| Glue Pot Capacity | 1000ml |
| Air Source Pressure | 0.5-0.8 MPa |
| Edge Trimming Power | 20W |
| Suitable Tape Materials | ABS, PVC, Melamine, Veneer |
| Edge Type | Straight and curved |
| Language Options | Chinese and English standard; Spanish and other languages customizable |
| Product Dimensions | 38 × 35 × 35 cm |
| Product Weight | 12 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Small furniture workshop edge banding | MDF and particleboard panels with PVC or ABS tape |
| Interior decoration on-site finishing | Plywood and blockboard with melamine or veneer tape |
| Cabinet maker curved panel processing | Shaped MDF and plywood edges with flexible PVC tape |
| Repair and rework edge banding | Replacement tape on existing furniture panels |
| Joinery startup production | Small-batch solid wood and composite panel edging |
Why the Voltage Question Should Come Before the Price
A portable edge bander in stock means nothing if it cannot connect to your local supply on arrival.
I remember a job-site contractor who ordered a compact banding unit without specifying frequency. The machine arrived, sat unpowered for three weeks while a transformer was sourced and installed. The crew was idle, the installation deadline slipped, and the contractor absorbed both rental and penalty costs. A portable edge bander in stock should mean ready to run, not ready to sit. Voltage and frequency mismatches remain one of the most common reasons small woodworking equipment sits unused after international delivery [NEED_CITE: voltage and frequency standards by export market]. Confirming these details at order stage is a small step that eliminates weeks of avoidable downtime.
Dispatch Readiness From a Stocked Inventory
Keeping a portable edge bander in stock allows us to move from order confirmation to dispatch within a short lead time, which matters when you are mid-project and a manual edge banding bottleneck is slowing your entire output. Each DW802 unit reserved from inventory is pulled, inspected, and matched to your confirmed electrical specification before crating. This means the portable edge bander in stock you see listed is the same configuration you receive at your workshop door.
Matching the Unit to Your On-Site Reality

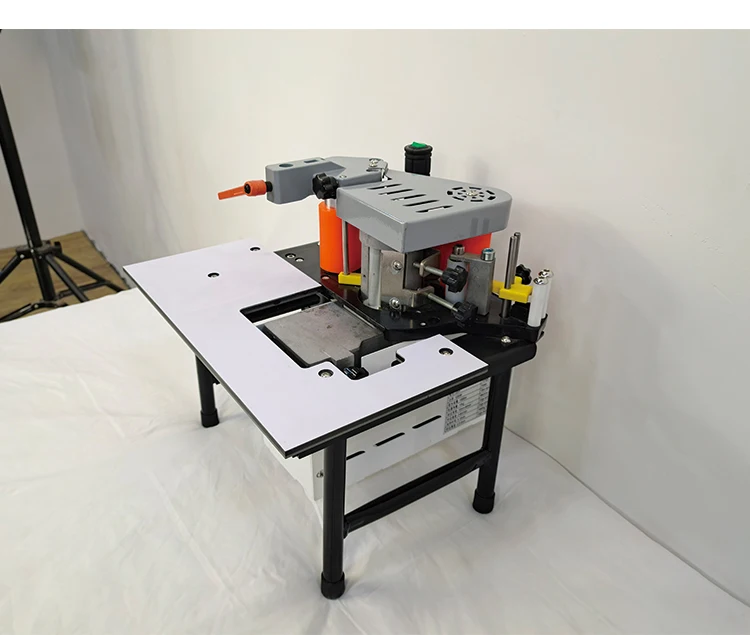

A portable edge bander in stock is most valuable when it fits the physical and operational constraints of your workspace. The DW802 weighs 12 kg and occupies a 38 × 35 × 35 cm footprint, small enough to sit on a bench in a tight joinery shop or to be carried to an interior fit-out location. The 1000ml glue pot provides enough adhesive for continuous small-batch work without frequent refills, and the unit handles tape thicknesses from 0.3mm to 3mm across ABS, PVC, melamine, and veneer materials. For contractors who move between sites, this portability removes the need to invest in a full-size stationary machine [NEED_CITE: portable woodworking machinery demand in interior fit-out sector].
Reading the Specifications That Matter on the Job Site
The 0.5-0.8 MPa air pressure requirement means you need a small compressor on site, but not a high-capacity industrial unit. The glue pot capacity of 1000ml is sufficient for edging multiple panels before a refill, which keeps workflow steady during short production runs. Edge banding height range of 0-50mm covers standard panel thicknesses used in cabinet and furniture production, from 3mm MDF up to thicker plywood and blockboard. The minimum sheet dimensions of 25cm length and 3cm width allow you to band narrow components such as drawer sides and small shelving brackets that larger machines cannot feed. Straight and curved edge capability in one portable unit eliminates the need for separate tooling when a project includes shaped panels, and the 1000W total power keeps the unit within standard single-phase circuit capacity in most workshops.
What Happens When Configuration Details Get Skipped
Skipping voltage confirmation is not the only specification oversight that turns a fast delivery into a slow problem. Operators who receive a machine with a control panel in an unreadable language stall during commissioning, unable to set glue temperature or adjust feed parameters. I have seen workshops attempt to band 3mm veneer tape on a machine configured for thin PVC only, resulting in poor adhesion and visible glue lines on every curved section. These are not machine defects but configuration mismatches, and each one costs time and material on a job that was already on a tight schedule [NEED_CITE: common commissioning issues with imported woodworking machinery].
Why Sourcing This Portable Unit Through Our Stock Channel Works
Our Ningjin facility manufactures the DW802 in-house, so stocked units come directly from the production line rather than a third-party warehouse. Each unit undergoes a four-stage quality check covering incoming components, in-process assembly, finished product testing, and pre-shipment verification before it enters inventory. Voltage and plug customization is confirmed at order stage, not guessed at dispatch, which eliminates the transformer delays that plague unverified shipments. Operation manuals are supplied in your agreed language, so your operator can set parameters and begin banding on day one. The DW802 sits within our broader edge banding range, meaning you can add a full-size pre-milling machine later without changing supplier or retraining your team on a different control system.
Documentation & Verification
- CE declaration of conformity for the DW802 portable edge bander
- Factory test record run on your specified tape material and panel thickness
- Electrical schematic with confirmed voltage and plug type for your country
- Operation and maintenance manual in your agreed language with illustrated setup steps
- Spare parts list with recommended glue pot and trimming blade consumables
- Packing photographs showing crate condition before dispatch
Installation, Commissioning & Support
- Requires a single-phase circuit matching confirmed 220V or 380V supply with dedicated breaker
- Air compressor delivering 0.5-0.8 MPa connected to the unit’s inlet before first run
- Arrives fully assembled; place on a stable bench at working height for operator comfort
- Glue pot filled with compatible adhesive and temperature set per tape material before first panel
- Straight and curved edge test pieces run to verify trim quality and glue bond strength
- Spare trimming blades and glue pot seals included for early-stage maintenance needs
What We Need to Prepare Your Shipment
To move quickly from inquiry to dispatch, share your local voltage and frequency, the plug type standard in your country, and the primary tape materials and panel thicknesses you will be banding. If your production includes curved edges, send us a sample panel drawing so we can confirm the minimum radius the DW802 handles comfortably. Let us know the control panel language you need and whether you want a sample processing test on your material before the unit ships.
Frequently Asked Questions
Q: Is the DW802 portable edge bander currently in stock and how fast can it ship?
A: Yes, this model is kept in our ready-stock inventory for fast dispatch. Once your voltage, plug type, and language preferences are confirmed, the unit goes through pre-shipment testing and is crated for shipping. Typical dispatch lead time is short because the base machine is already built, with only the electrical configuration and documentation customized per order before it leaves our Ningjin facility.
Q: Which voltage and plug options are available for international shipment?
A: The DW802 can be configured for 220V or 380V supplies, and we confirm both voltage and frequency with you before shipping. Plug types including EU, USA, AU, and UK standards are available. This confirmation step prevents the situation where a machine arrives at your facility and cannot be powered on until a transformer or adapter is sourced, which can add weeks of delay to your project start date.
Q: Can I order a single unit for international delivery?
A: Single-unit orders are standard for this portable edge bander. Each unit is packed in a wooden crate for safe international transit, and we handle the customs documentation support. The compact 38 × 35 × 35 cm size and 12 kg weight keep shipping volume low, making single-unit international orders practical for workshops and contractors who need one machine rather than a full production line.
Q: What tape materials and thickness range does this portable bander accept?
A: The DW802 handles ABS, PVC, melamine, and veneer edge banding tape in thicknesses from 0.3mm to 3mm. This range covers most standard furniture and cabinet edging applications, from thin decorative PVC on MDF panels to thicker veneer tape on plywood and blockboard. The unit processes both straight and curved edges, so shaped panels for custom furniture and interior fit-out work are within its capability.
Q: Do you provide a sample processing test before I commit to the order?
A: Yes, we can run a sample processing test on your specific panel material and tape combination before the unit ships. You send us a sample panel and your preferred tape, and we edge band it on the DW802 from our stocked inventory. This lets you verify glue adhesion, trim quality, and edge finish on your exact material before committing to the purchase, removing uncertainty about how the machine performs on your workpieces.
