Description

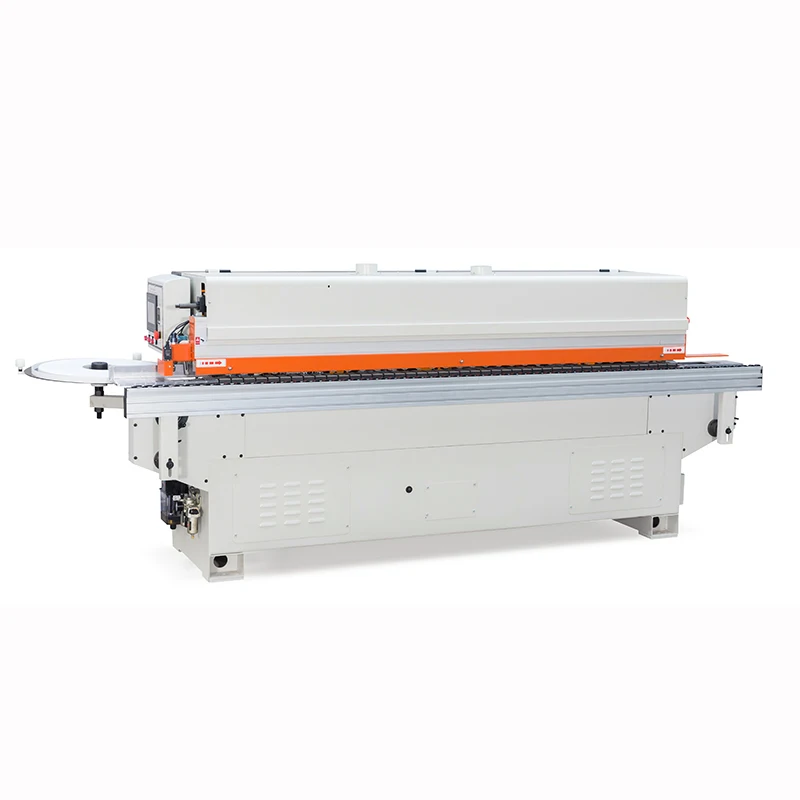

Ready-to-Ship Reliability — the ZDS-280 Automatic Straight Edge Banding Machine ships from stock with voltage pre-confirmed and a full pre-dispatch test record, so it arrives ready to run on your workshop floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS-280 Automatic Straight Edge Banding Machine |
| Product Type | Automatic Straight Edge Banding Machine |
| Main Functions | Gluing, End Trimming, Fine Trimming, Scraping, Cleaning, Buffing |
| Working Pressure | 0.65 MPa |
| Voltage | 380V, 3-phase (configurable from 110V to 440V) |
| Conveyor Belt Speed | 9–12 m/min |
| Rated Power | 9 kW |
| Min. Panel Width | 60 mm |
| Min. Panel Length | 120 mm |
| Panel Thickness Range | 10–60 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Net Weight | 860 kg |

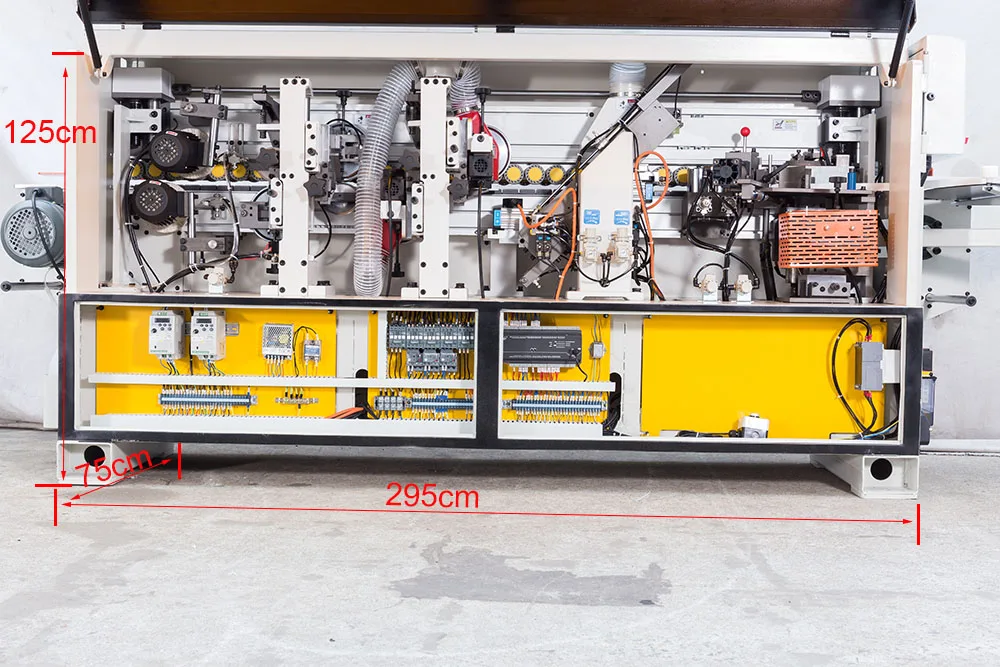

| Overall Dimensions (L×W×H) | 3000 × 750 × 1270 mm |
| Control System | Taiwan Delta PLC with Touch Screen and Frequency Converter |
| Electrical Components | Schneider Electric Contactors |
| Glue Pot | Teflon-coated with anti-carbonization design |
| Pressing Unit | Pneumatic double-wheel with adjustable stroke |
| Buffing Motors | 0.37 kW × 2 |
| Assembly State | Fully assembled |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and carcass edge banding | MDF and particleboard with PVC edge banding |
| Furniture panel finishing for small workshops | Plywood and solid wood panels with veneer banding |
| Panel processing for built-in wardrobes and shelving | Melamine-faced chipboard with ABS or PVC edges |
| Joinery shops transitioning from manual to automated banding | Mixed substrate batches in batch-of-one production |
Why the Voltage Question Should Come Before the Price on an Automatic Edge Banding Machine in Stock
Confirming local voltage and frequency in writing before dispatch prevents a machine from arriving as dead weight.
A common frustration among importers of woodworking machinery is watching a newly delivered edge bander sit idle because the motor winding does not match the local three-phase supply. Workshops in regions with 220V three-phase systems, 380V networks, or 440V industrial feeds all require different internal configurations. When an Automatic Edge Banding Machine in stock is ordered without this confirmation step, the cost of rewinding motors or replacing transformers often exceeds the shipping savings. I have seen importers wait weeks for a replacement contactor panel because the original unit was built for a supply frequency that does not exist in their country [NEED_CITE: voltage and frequency standards by export market].
Dispatch Speed Without Configuration Guesswork
The ZDS-280 is held in stock as a complete, fully assembled unit — not a kit requiring on-site mechanical alignment. For a small cabinet shop replacing a failed machine or a workshop adding its first automated edge bander, this means the gap between order confirmation and production-ready installation narrows considerably. The Taiwan Delta PLC and touch screen interface arrive configured in the language you specify during the order process, eliminating the commissioning delays that occur when operators cannot read the control panel.
Single-Unit Ordering With Full Verification
Many woodworking machinery suppliers set minimum order quantities that make sense for distributors but block individual workshops from purchasing. This Automatic Edge Banding Machine in stock is available as a single-unit order with the same pre-shipment test protocol applied to larger batches. Each unit undergoes a factory test run using panel stock within the thickness range you confirm, and the test record ships with the machine [NEED_CITE: pre-shipment inspection standards for woodworking machinery exports].

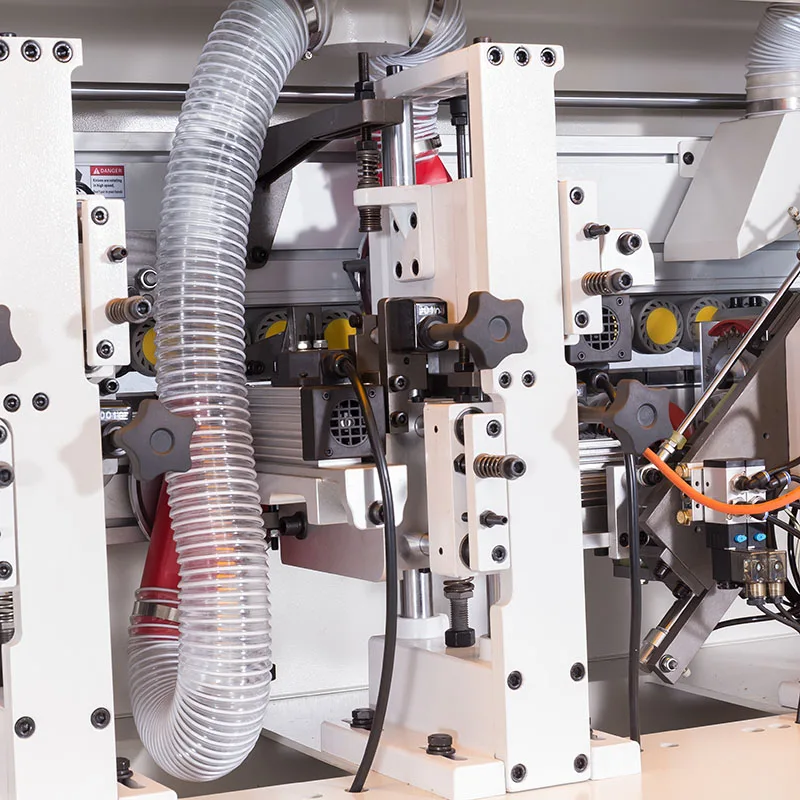

How Six Processing Stations Map to Edge Quality

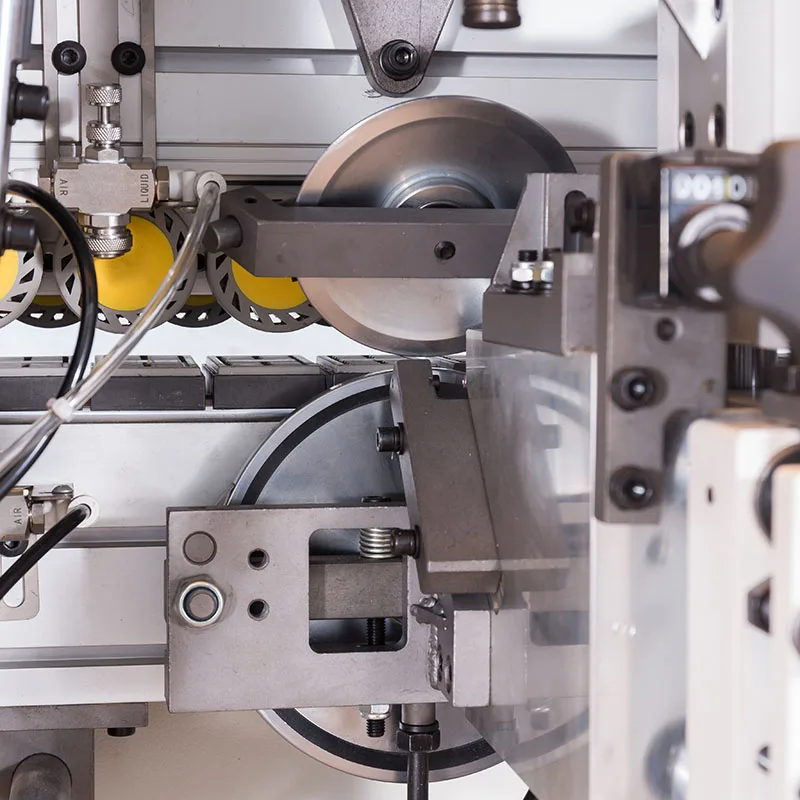

The ZDS-280 sequences six stations — gluing, end trimming, fine trimming, scraping, cleaning, and buffing — within a single 3,000 mm frame. The panel thickness range of 10–60 mm and edge thickness range of 0.3–3 mm cover the majority of furniture and cabinet substrates. The Teflon-coated glue pot with anti-carbonization design maintains consistent glue viscosity across extended runs, which directly affects bond strength on porous substrates like particleboard. The pneumatic double-wheel pressing unit adjusts stroke to match edge thickness, preventing the uneven pressure that leaves visible glue lines on thinner PVC banding. At a conveyor speed of 9–12 m/min, the machine processes panels at a pace suited to small and mid-scale workshops running batch production rather than continuous high-volume lines.
What Happens When Specification Confirmation Gets Skipped
Ordering an edge bander on price alone, without locking in the voltage, control language, and edge material compatibility, tends to surface problems only after installation. A workshop running 0.4 mm PVC banding on particleboard may discover that a machine configured for thicker veneer edges leaves excessive glue residue that the scraping station cannot fully remove. Operators handed a control panel in a language they cannot read will bypass safety interlocks or run the frequency converter outside its intended parameters. These are not manufacturing defects — they are configuration mismatches that a pre-dispatch confirmation step would have prevented [NEED_CITE: common commissioning failures in imported woodworking machinery].
Why Source This Machine From Ready Stock
The ZDS-280 ships from inventory with engineer-led configuration rather than generic catalog selection. Voltage, frequency, and control panel language are confirmed in writing before the machine leaves the factory. Every unit carries a pre-shipment test record showing performance on your specified panel thickness and edge material. The four-stage quality control process — covering incoming material, in-process assembly, finished product inspection, and pre-shipment verification — applies to stock machines identically to built-to-order units. Schneider Electric contactors and the Taiwan Delta PLC are standard across all units, meaning replacement components are commercially available in most markets. Single-unit orders receive the same documentation package as container-load shipments.
Documentation & Verification
- CE declaration of conformity covering the ZDS-280 edge banding machine
- Factory test record on your specified panel thickness and edge material before dispatch
- Electrical schematic confirming your local voltage and frequency configuration
- Operation and maintenance manual written in the language you select at order
- Spare parts list with part numbers matching Schneider and Delta components
- Packing photographs taken at the factory before crate sealing
Installation, Commissioning & Support
- Requires a dedicated 3-phase circuit rated for at least 9 kW with your confirmed voltage
- 3,000 × 750 mm footprint needs level concrete flooring with clearance for panel infeed and outfeed
- Arrives fully assembled — no mechanical re-alignment of the six stations required on site
- First-run parameter setup covers conveyor speed, glue temperature, and trimming offsets for your material
- Pneumatic supply must deliver stable 0.65 MPa to the pressing and trimming units
- Buffing and scraping consumables included in the initial spare parts kit
What to Share Before Ordering
To match the ZDS-280 Automatic Edge Banding Machine in stock to your workshop, provide the panel substrates you process most often, the edge banding materials and thickness range you use, and your local three-phase voltage and frequency. Confirm the control panel language your operators need, and note whether the machine will run standalone or feed into an existing production sequence. If you have specific panel dimensions outside the standard width and length minimums, share those so compatibility can be verified before dispatch.
Frequently Asked Questions
Q: What models are currently in stock and what is the dispatch lead time?
A: The ZDS-280 Automatic Straight Edge Banding Machine is held in ready stock as a fully assembled unit. Dispatch lead time depends on the configuration steps required — voltage confirmation, control language setup, and pre-shipment testing on your material specifications. Once these are finalized, the machine ships without a production queue delay.
Q: How do I confirm the correct voltage and frequency for my workshop before ordering?
A: During the inquiry process, you provide your local three-phase voltage and frequency. The engineering team confirms the motor winding, transformer specification, and contactor configuration in writing before dispatch. The electrical schematic reflecting your supply standard ships with the machine documentation.
Q: Can I order a single unit, or is there a minimum order quantity?
A: The ZDS-280 is available as a single-unit order from stock. There is no minimum order quantity requirement. Single-unit purchases receive the same pre-shipment test record, documentation package, and spare parts kit as larger orders.
Q: What shipping options are available and is door-to-door delivery supported?
A: Shipping is arranged based on your destination port or delivery address. The machine ships in a fully assembled state inside a protective crate. Door-to-door delivery can be quoted depending on your location and local logistics infrastructure.
Q: What documentation and spare parts come with the machine on arrival?
A: Every ZDS-280 ships with a CE declaration, factory test record, electrical schematic, operation manual in your chosen language, spare parts list, and packing photographs. An initial consumable kit for the scraping and buffing stations is included.
