Description
In-Stock Readiness — this unit is warehoused and prepared for fast dispatch, avoiding typical multi-week production delays common with custom-ordered woodworking machinery.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 910H |

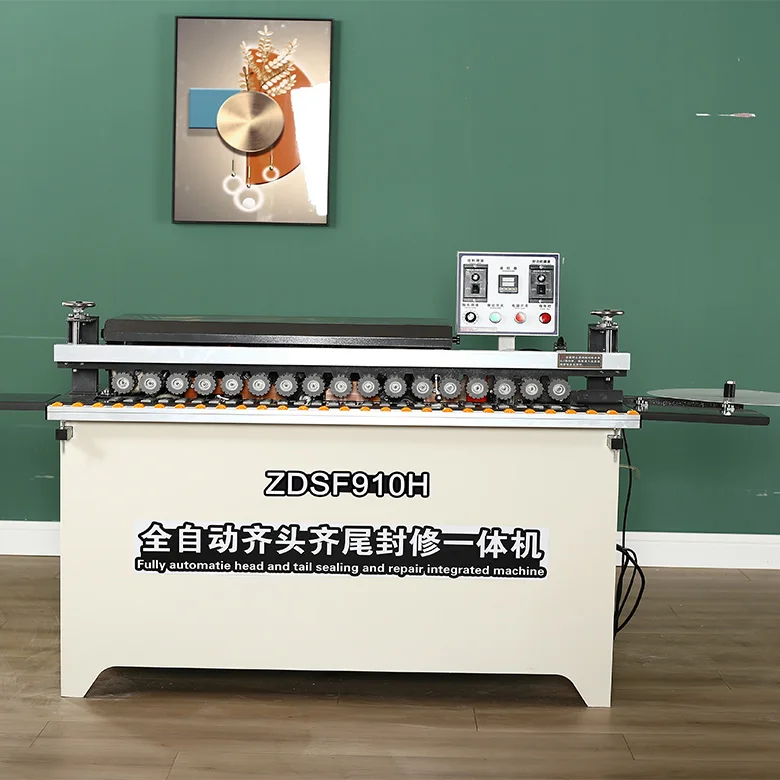

| Product Type | Automatic Curved and Straight Edge Banding Machine |
| Function | Automatic plate feeding, double-sided gluing, polishing, head/tail trimming |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz (verify local compatibility before order) |
| Rated Power | 4kW |
| Rated Air Pressure | 0.4-0.6 MPa |
| Suction Power | 1200W |
| Sheet Thickness Range | 10-50mm |
| Strip Thickness Range | 0.5-2.5mm |
| Glue Capacity | 1000ml |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 140kg |

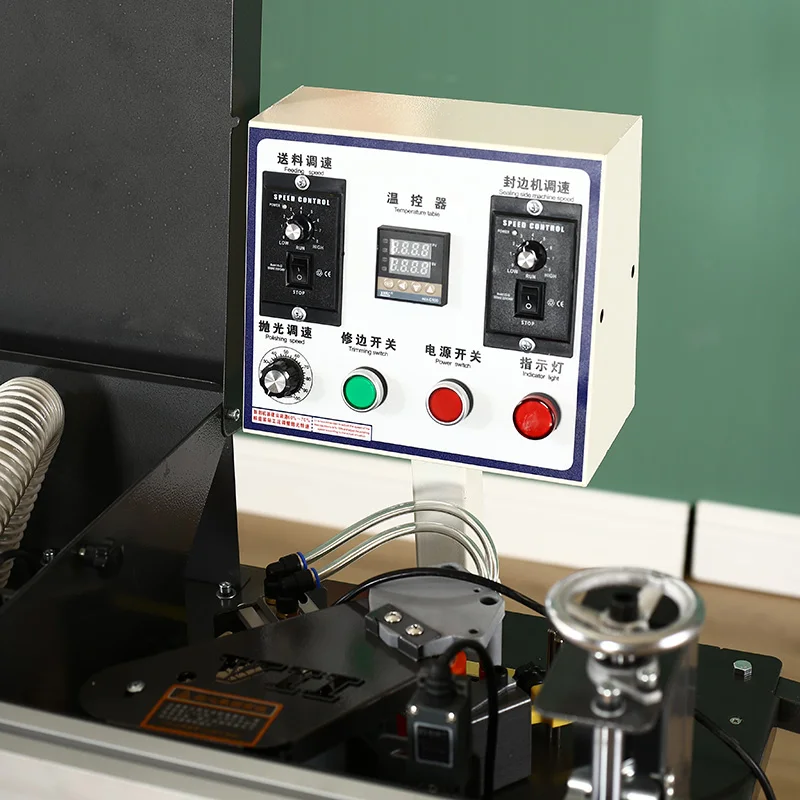

| Control System | Multi-function button operation panel |

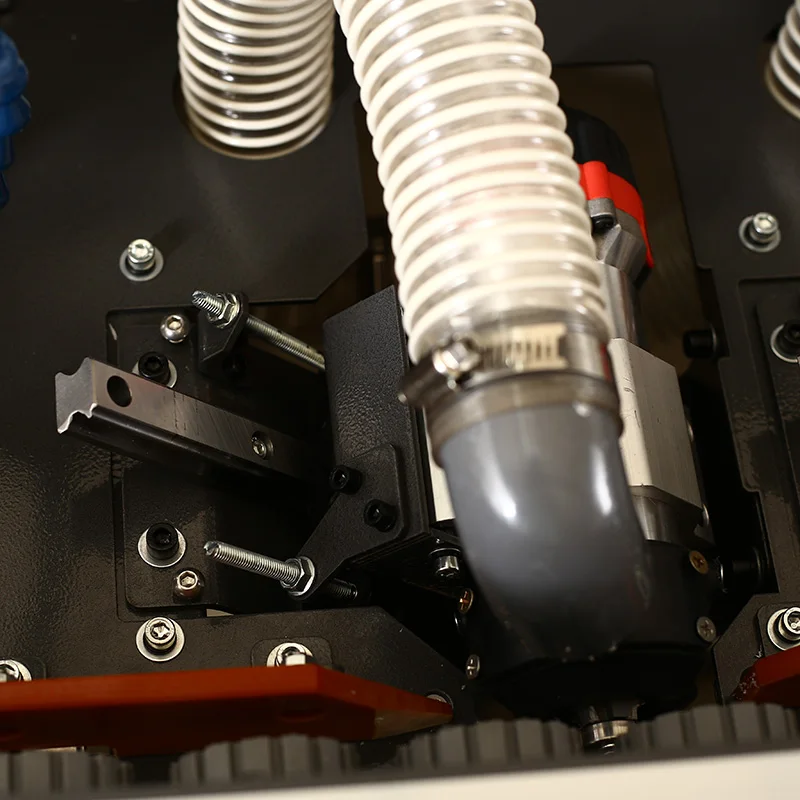

| Trimming Stations | 2 high-speed motors with 4-edge arc alloy cutter |

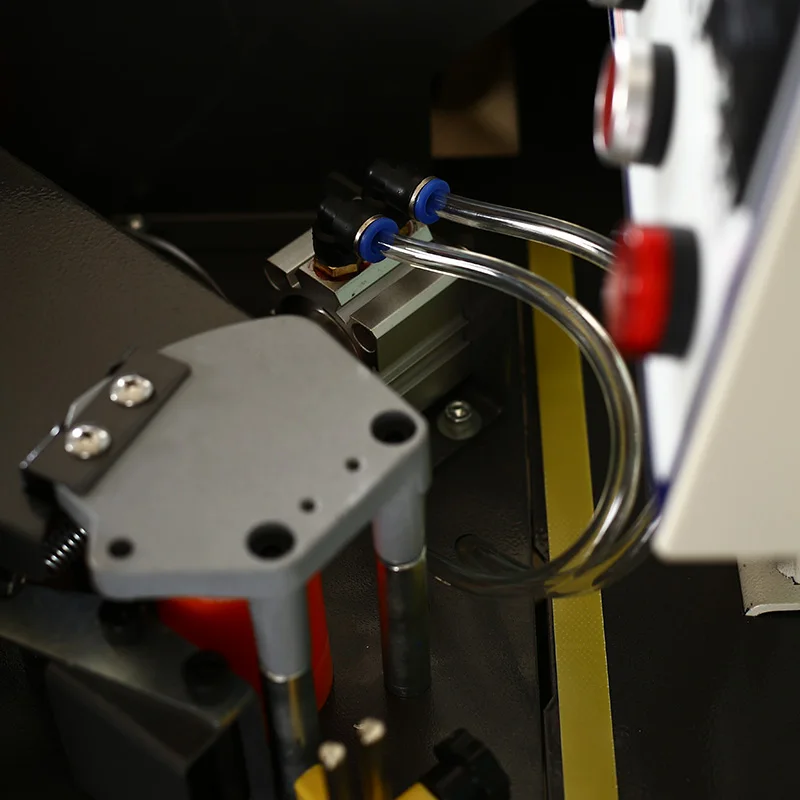

| Feed Mechanism | Crawler transmission with steel rod slide rails |
| Assembly State | KD packing (some assembly required) |
Application Suitability
| Application | Material or Output |
|---|---|
| Small joinery workshops | MDF, particleboard, plywood edge finishing |
| Custom furniture makers | PVC and veneer banding on curved and straight profiles |
| Cabinet shops with limited space | Compact dual-purpose edge processing for low-to-medium volume |
| Startup workshops | Transitioning from manual banding to semi-automatic production |
Why Voltage Confirmation Must Happen Before You Order
An automatic edge banding machine in stock at the wrong voltage is effectively a paperweight until replacement parts arrive.
I have seen workshops lose weeks of production because the electrical supply was assumed rather than verified. The 910H ships configured at 220V 50Hz, but regional grids vary significantly. A mismatch between machine rating and site supply can damage control boards and heating elements immediately upon startup [NEED_CITE: voltage and frequency standards by export market]. Confirming your local specification before dispatch takes minutes and prevents costly downtime.
Dual Curved and Straight Capability in One Footprint
Most compact edge banders force a choice between straight profiles and curved work. This model handles both by rotating the feed assembly, eliminating the need for two separate machines. For shops producing custom furniture with rounded corners alongside standard panels, this dual capability keeps floor space requirements minimal.
Stock Availability Versus Built-to-Order Lead Times
Ordering an automatic edge banding machine in stock means your production upgrade can ship within days rather than waiting through a full manufacturing cycle. The KD packing format requires some on-site assembly, but the trade-off is significantly faster delivery compared to fully assembled units that require specialized freight handling [NEED_CITE: typical lead times for woodworking machinery].
How Specifications Translate to Workshop Results
The 10-50mm sheet thickness range covers most furniture-grade panels, from thin shelving stock to thick countertop substrates. The two high-speed trimming motors with 4-edge arc alloy cutters produce clean edges that reduce downstream sanding work. The crawler transmission with double-row rubber pressure wheels maintains consistent feed pressure across varying board widths, which directly affects glue bond quality. Adjustable aluminum alloy pressure beams accommodate different panel thicknesses without manual recalibration between jobs.
The Cost of Buying Machines That Cannot Scale
Workshops often purchase entry-level equipment based on current volume, then discover the machine cannot handle production growth. When throughput demands increase, machines designed for light duty begin showing inconsistent edge quality and feed slippage. I have watched cabinet makers replace equipment within a year because the original purchase could not keep pace with order volume. Selecting a unit with adequate capacity margins prevents this costly cycle [NEED_CITE: equipment replacement patterns in small manufacturing].
Why Procurement Through This Channel Works
Ready inventory means you can inspect specifications and confirm compatibility before committing, rather than waiting weeks to see what arrives. Voltage customization remains available for markets outside the standard 220V 50Hz configuration. Pre-shipment testing verifies trimming accuracy and feed mechanism function on actual panel samples. Documentation packages include electrical schematics matched to your confirmed supply specification. Single-unit orders are supported without minimum quantity requirements that only suit large distributors.
Documentation & Verification
- Factory test record demonstrating edge quality on your specified panel thickness
- Electrical schematic confirming voltage and frequency match your site supply
- Operation manual in your preferred language with KD assembly instructions
- Spare parts list with order codes for consumable cutter heads and pressure wheels
Installation, Commissioning & Support
- Dedicated 220V circuit required for the 4kW rated power draw
- KD assembly requires basic mechanical tools and follows video guidance provided
- Pneumatic connection needs 0.4-0.6 MPa clean dry air supply
- Initial commissioning includes pressure beam adjustment for your panel range
- 1200W dust extraction connection recommended for workshop air quality
Before You Request a Quote
Provide your typical panel materials and thickness range so we can confirm this model matches your production profile. Share your local voltage and frequency specification to ensure the machine ships configured correctly for your facility. Let us know if you need documentation in a specific language for your operators.
Frequently Asked Questions
Q: Is this automatic edge banding machine in stock and what is the dispatch lead time?
A: Yes, this model is currently warehoused and ready for dispatch. Lead time depends on your destination and shipping method selected. KD packing format allows faster freight compared to fully assembled units. Confirm your voltage requirement before ordering to avoid delays from reconfiguration needs.
Q: Can you confirm 220V 50Hz works in my country or do I need different voltage?
A: The standard configuration is 220V 50Hz, but you must verify this matches your local supply before ordering. Voltage customization is available for different regional standards. Operating a machine at incorrect voltage will damage electrical components and void warranty coverage.
Q: What edge banding materials does this model handle?

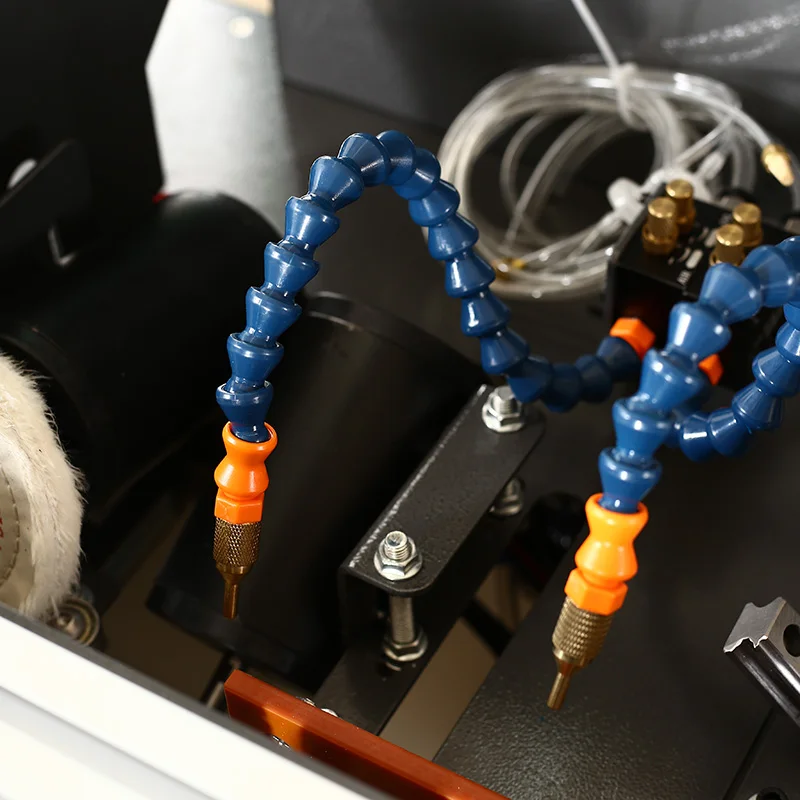

A: This machine processes PVC and veneer edge banding in the 0.5-2.5mm thickness range. The double-sided gluing system and adjustable temperature heating element accommodate different adhesive requirements. Confirm your specific banding material compatibility when requesting documentation.
Q: How do I switch between curved and straight edge banding?
A: The feed assembly rotates to accommodate curved profiles while maintaining the same trimming and polishing stations. The adjustable pressure beam and double-row rubber pressure wheels adapt to different curve radii. Video instruction is provided showing the changeover procedure.
Q: What spare parts are included and how do I order replacements?
A: The spare parts list included with your order covers consumable items like cutter heads and pressure wheels. Replacement orders can be placed using the part codes provided. We recommend ordering high-wear items with your initial purchase to minimize future downtime.
