Description
Ready stock dispatch — ZDSF190 automatic edge bander ships from inventory with verified voltage configuration, eliminating production wait times for workshops needing immediate curved and straight edge processing capability.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Automatic Edge Banding Machine |
| Edge Type | Curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4kW |
| Feed Speed | 0-14 m/min |
| Panel Thickness Range | 10-50 mm |
| Strip Thickness Range | 0.5-2.5 mm |
| Glue Capacity | 1000 ml |
| Suction Power | 1200W |
| Trimming Power | 800W × 2 |

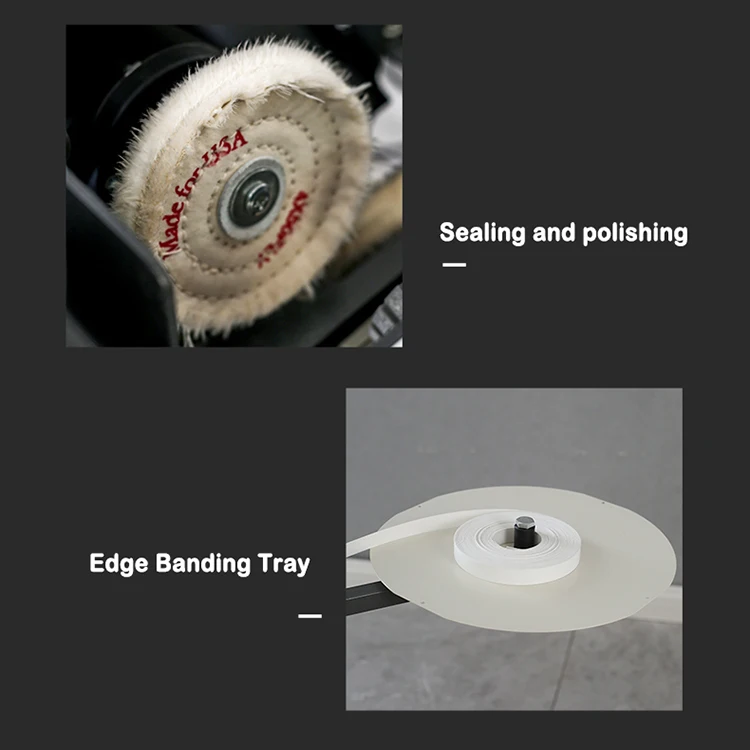

| Polishing Power | 180W × 2 |
| Heating Power | 800W |
| Transmission Power | 120W |
| Belt Power | 25W |
| Rated Air Pressure | 0.4-0.6 MPa |
| Control Panel | Multi-function button operation |
| Pressure Beam | Adjustable aluminum alloy |
| Trimming Cutter | 4-edge arc-shaped alloy cutter head |
| Conveyer System | Steel rod slide rails with double-row rubber pressure wheels |
| Dust Collection | Dual large-diameter vacuum collectors |

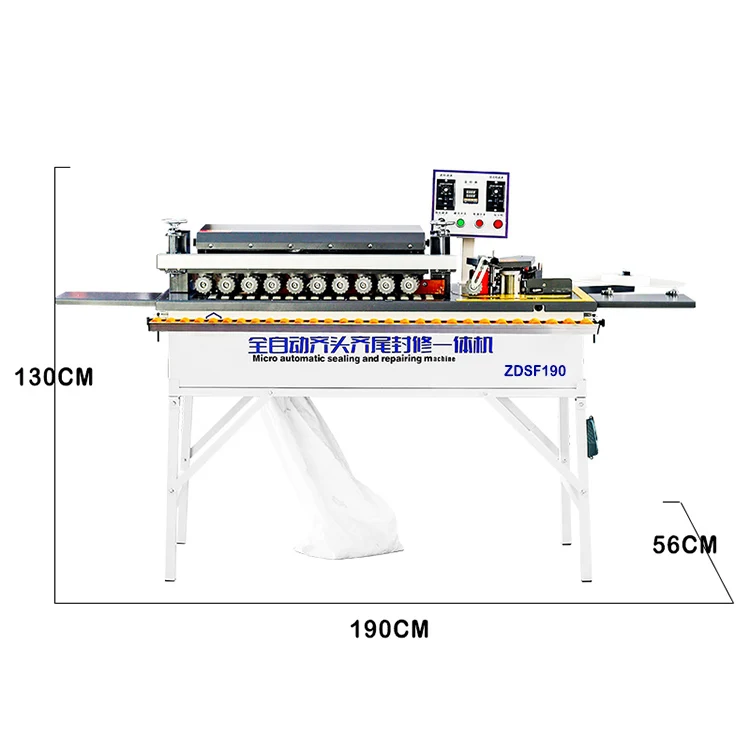

| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood panels with PVC or veneer edge banding |
| Curved furniture component processing | Solid wood panels requiring arc profile edge treatment |
| Small-batch panel production | Particleboard and MDF for joinery workshops |
| One-off furniture pieces | Mixed panel materials with varying edge profiles |
Why Voltage Confirmation Matters More Than Lead Time
This Automatic Edge Banding Machine in stock ships at verified 220V/50Hz with electrical documentation matched to your local supply standard.
I remember a shipment to a workshop where the machine arrived with control interfaces the operators could not read, and the voltage did not match their facility supply. The equipment sat idle while electricians and translators were called in. For a small operation, that downtime represents lost production days that compound into missed delivery commitments. The ZDSF190 ships with voltage and frequency confirmation completed before dispatch, and the multi-function button panel can be configured in your operator’s language. [NEED_CITE: voltage and frequency standards by export market]
Stock Availability Without Configuration Guesswork
The ZDSF190 sits in our ready inventory with specifications verified and documented. When you need an Automatic Edge Banding Machine in stock for immediate workshop deployment, this unit eliminates the typical multi-week production queue. The dual curved and straight capability means one machine handles both edge profiles through 180° rotation of the processing head, removing the need for separate dedicated units taking up floor space.
Compact Footprint for Limited Workshop Space
At 1900 × 560 × 1300 mm and 120 kg net weight, this Automatic Edge Banding Machine in stock fits into workshops where larger automated lines cannot operate. The steel rod slide rails with double-row rubber pressure wheels maintain panel stability during feed without requiring extensive floor anchoring. Small joinery operations and custom cabinet makers benefit from equipment that delivers automated edge processing while remaining repositionable as workshop layouts evolve. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Spec Interpretation for Production Reality
The 10-50 mm panel thickness range and 0.5-2.5 mm strip thickness range determine what materials this unit can process effectively. Panel thickness below 10 mm risks insufficient surface contact for the adjustable aluminum alloy pressure beam to maintain consistent feed, while panels above 50 mm exceed the trimming cutter reach. The 4-edge arc-shaped alloy cutter head provides clean finishing on curved profiles where standard straight cutters leave visible witness marks. The 0-14 m/min feed speed range allows operators to slow down for difficult grain patterns on solid wood or increase throughput on uniform MDF substrates. The 1000 ml glue capacity supports sustained production runs without frequent refill interruptions, while the 800W heating element maintains consistent adhesive viscosity across varying ambient workshop temperatures.
What Happens When Configuration Gets Overlooked
Workshops that purchase edge banders without confirming local electrical standards face installation delays that cascade into project timelines. Machines arrive, electricians discover supply mismatches, and production schedules slip. Control interfaces in unfamiliar languages mean operators make input errors during setup, resulting in wasted panels and edge banding material. These issues do not reflect machine quality failures but rather configuration oversights during the procurement process. [NEED_CITE: common commissioning failures in imported industrial machinery]
Why Procurement Through This Channel
This unit ships from verified inventory with pre-dispatch testing completed on panel samples matching your specified thickness range. Voltage and frequency are confirmed against your facility’s electrical supply documentation before the crate closes. The operation and maintenance manual arrives in your agreed language alongside the electrical schematic and spare parts list. Factory test records demonstrate edge quality output on materials matching your production requirements. Engineer-led configuration support ensures the machine you receive matches your workshop’s actual processing needs rather than generic specifications.
Documentation & Verification
- Factory test record showing edge quality on your specified panel thickness and material type
- Electrical schematic with voltage and frequency confirmation matching your local supply standard
- Operation and maintenance manual in operator’s language with illustrated control panel reference
- Spare parts list with item numbers for consumable cutters and pressure wheel replacements
- Packing photographs documenting machine condition and accessory completeness before crating
- CE declaration of conformity for customs clearance and regulatory compliance
Installation, Commissioning & Support
- 220V single-phase dedicated circuit required; verify workshop breaker capacity for 4kW continuous draw
- 1900 × 560 mm footprint requires level floor surface; adjustable feet compensate for minor unevenness
- Machine ships fully assembled; position and connect power and 0.4-0.6 MPa air supply
- Initial commissioning includes glue temperature calibration for your specific edge banding material
- Multi-function button operation training provided in operator language with panel feed technique guidance
- 4-edge arc-shaped trimming cutters and rubber pressure wheels listed as consumable spare parts
What We Need From Your Inquiry
To confirm this Automatic Edge Banding Machine in stock matches your production requirements, provide your typical panel materials and thickness range, the edge banding strip materials and thicknesses you process, and your local voltage and frequency standard. Specify the control panel language your operators require and whether you need sample processing tests on your actual materials before shipment confirmation.
Frequently Asked Questions
Q: Is this model in stock and what is the dispatch lead time?
A: The ZDSF190 is held in ready inventory with verified specifications. Dispatch occurs after pre-shipment testing on your specified panel materials and voltage confirmation. Typical lead time from order confirmation to shipment is measured in days rather than weeks, depending on sample test requirements and documentation preparation for your destination market.
Q: Can the voltage be customized for my local supply standard?
A: The ZDSF190 ships configured for 220V 50Hz as standard. Voltage customization from 110V to 440V is available with confirmation of your local supply specifications before production scheduling. Electrical documentation and schematics reflect your confirmed voltage and frequency requirements.
Q: What edge banding strip materials and thicknesses does it handle?
A: The machine processes 0.5-2.5 mm strip thickness in PVC, veneer, and other standard edge banding materials. The 1000 ml glue pot with 800W heating maintains consistent adhesive application across material types. Specific material compatibility can be verified through pre-shipment sample testing.
Q: How do I switch between curved and straight edge banding modes?
A: The processing head rotates 180° to switch between curved and straight edge profiles. The 4-edge arc-shaped trimming cutter handles curved profiles while maintaining clean finishing. Mode changeover requires manual repositioning rather than automated switching.
Q: What spare parts are included and how do I order replacements?
A: Shipment includes a spare parts list identifying consumable items including trimming cutters and pressure wheels. Replacement parts are available through direct order with item numbers from your documentation. Lead times for spare parts vary by item availability and shipping method selected.
