Description
Voltage-Verified Dispatch — Every DW-3600 unit ships with electrical parameters matched to your facility’s grid, confirmed before the crate closes so the machine runs on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-3600GF |
| Product Type | Compact Automatic Edge Banding Machine |
| Voltage & Frequency | 380V Three-Phase Four-Wire |
| Total Power | 4.9 kW |
| Overall Dimensions (L×W×H) | 2200×650×1250 mm |
| Net Weight | 320 kg |
| Edge Banding Type | Straight Edge Banding |
| Edge Band Height Range | 0–50 mm |
| Edge Band Thickness Range | 0.3–3 mm |
| Minimum Panel Length | 200 mm |
| Feed Speed | 0–14 m/min |
| Trimming Motor Power | 800W×2, 24000 r/min |
| Polishing Motor Power | 400W×2 |
| Transmission Power | 180W |
| Gluing Unit Power | 160W |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Standard Functions | Gluing, Trimming, Front and Rear Trimming, Scraping, Polishing, Vacuuming |
| Control Panel Language | Chinese and English (customizable to Spanish or other languages) |
| Plug Options | EU / USA / AU / UK |
| Assembly State | Fully assembled, wooden box packed |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard with PVC edge banding |
| Small-batch shelving and carcass panels | Plywood with melamine or veneer banding |
| Joinery workshop transition from manual to automated | Solid wood panels up to 50 mm band height |
| Short-run furniture components | Panels as short as 200 mm in length |
Why the Voltage Question Should Come Before the Price
A Compact Automatic Edge Banding Machine in stock means nothing if it cannot connect to your workshop’s electrical supply on day one.
I learned this the hard way years ago. A Middle East customer ordered a unit rated for 380V three-phase, and the machine arrived at their facility only to sit idle for three weeks — their grid was 440V and the transformer had to cross two borders. The entire production line waited on a single electrical mismatch [NEED_CITE: voltage and frequency standards by export market]. That mistake reshaped how every order is now handled: before any Compact Automatic Edge Banding Machine in stock leaves the floor, the buyer sends a photo of their distribution panel and we cross-check every parameter. Frequency, phase count, plug type — none of it is assumed.
Stock Availability Meets Electrical Readiness
The DW-3600GF is held as a Compact Automatic Edge Banding Machine in stock, meaning the mechanical build is complete and tested. The final electrical configuration — plug format and control panel language — is set during the order confirmation stage. EU, USA, AU, and UK plug options are standard, and the multilingual control panel prevents the operator standstill that happens when a machine arrives with labels nobody on the shop floor can read.
Straight Edge Banding in a Compact Footprint

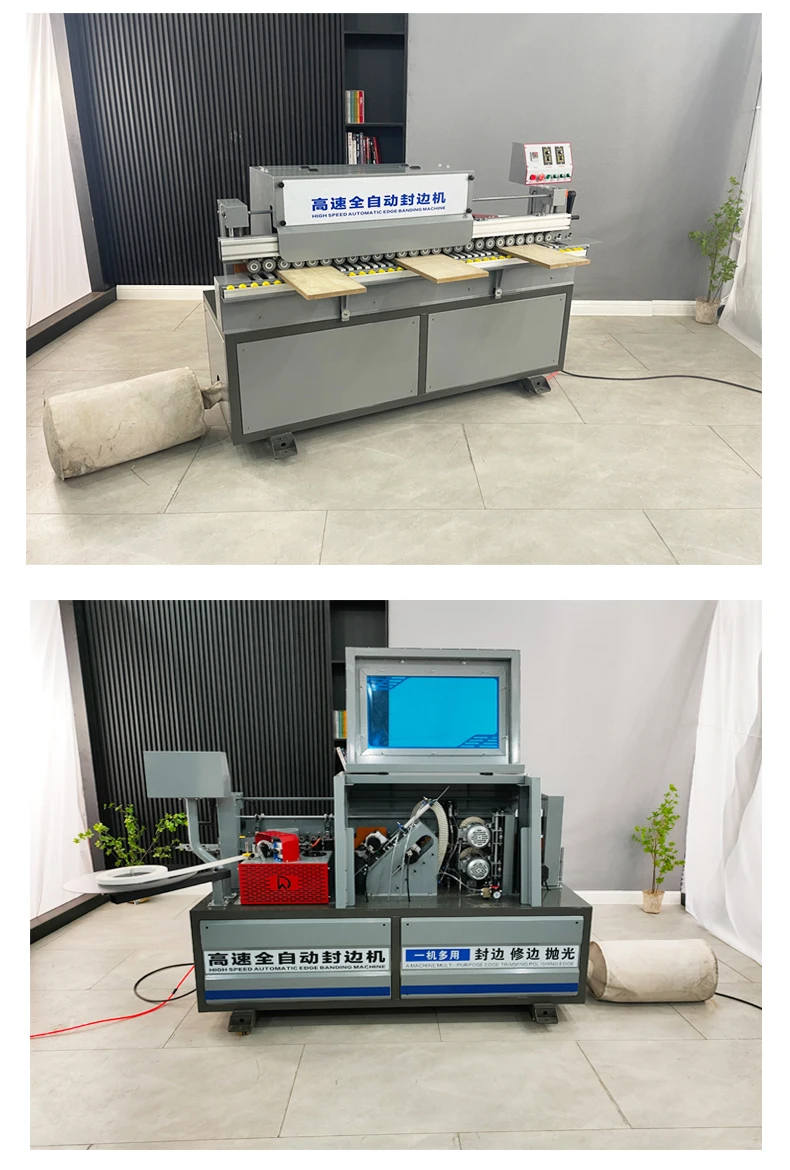

At 2200 mm long and 320 kg, the DW-3600GF fits into workshops where floor space determines what equipment is even possible. The integrated station sequence — gluing, dual trimming, front and rear trimming, scraping, polishing, and vacuuming — delivers a full edge finish without requiring separate pass-through machines. For a small cabinet shop running MDF carcass panels one morning and plywood shelving the next, this single-pass arrangement eliminates the handling time between stations [NEED_CITE: CE machinery directive requirements for woodworking equipment].
What the Numbers Mean on the Shop Floor

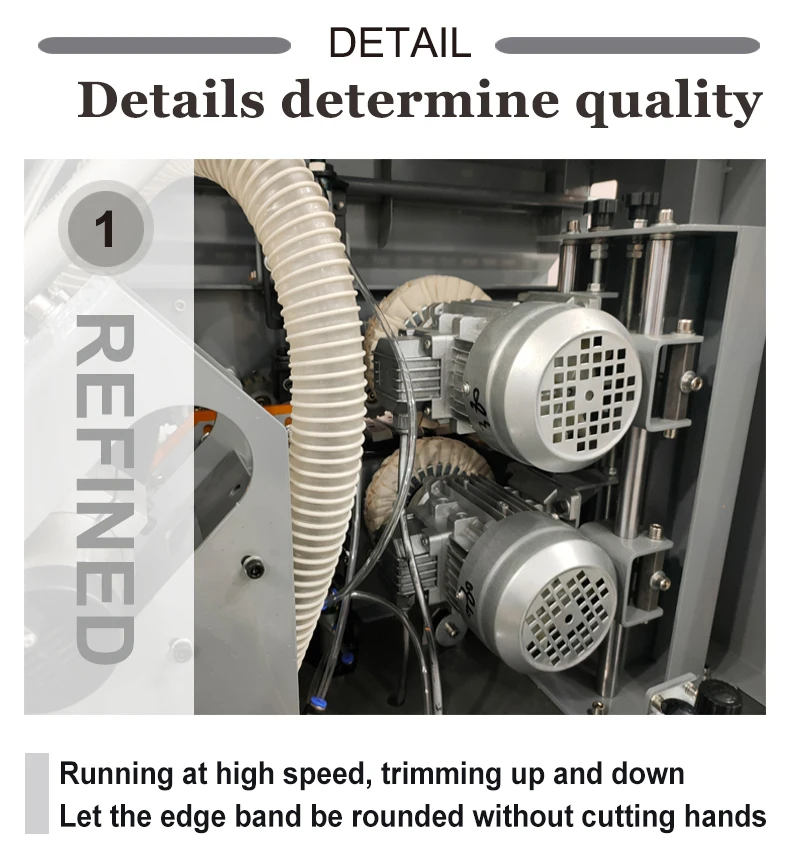

The 0.3–3 mm edge band thickness range covers PVC, melamine, and thin veneer without requiring tooling swaps between common materials. Trimming motors at 24000 r/min produce a clean shear cut on PVC that avoids the micro-chipping visible at lower spindle speeds, which matters when cabinet doors are inspected at close range by the end customer. Feed speed adjustable from 0 to 14 m/min gives the operator control when switching between long carcass sides and short components near the 200 mm minimum panel length. The 0.4–0.6 MPa air pressure requirement aligns with the compressors already installed in most small to mid-size furniture workshops, so no additional pneumatic infrastructure is needed to bring the machine online.
The Hidden Cost of Skipping Configuration Checks
When an edge bander arrives with the wrong plug or an unreadable control panel, the delay is never just about the machine. Cabinet orders ship late, installers reschedule, and the workshop absorbs the cost of idle labor while waiting for a transformer or a translated manual. These compounding losses far exceed the machine price itself, yet they trace back to a single unchecked field on the order form [NEED_CITE: common causes of commissioning delays in imported woodworking machinery]. Confirming voltage, frequency, language, and plug type before dispatch eliminates this entire failure chain.
Why Source the DW-3600GF Through This Channel
Every unit undergoes a factory test across all six function stations — gluing through polishing — before crating, and the test record ships with the machine so you can verify performance against your own panel stock. Voltage and plug configuration are locked at order stage rather than assumed by region. The control panel language is confirmed with the buyer, not defaulted to a single option. Spare parts lists and operation manuals arrive in the agreed language alongside the machine, not as afterthoughts. Single-unit orders are accepted, so a workshop can evaluate the DW-3600GF on its own production before scaling to additional stations.
Documentation & Verification
- CE declaration of conformity included with each DW-3600GF shipment
- Factory test record covering all six stations before dispatch
- Electrical schematic matching your confirmed voltage and plug type
- Operation manual in your agreed language with maintenance schedules
- Spare parts list with wear-item part numbers for quick reordering
Installation, Commissioning & Support
- 2200×650 mm footprint requires a level floor with clearance for panel infeed and outfeed
- 4.9 kW total draw needs a dedicated three-phase circuit at the confirmed voltage
- Machine ships fully assembled; connect power, air supply at 0.4–0.6 MPa, and begin test runs
- Feed speed and trimming motor settings calibrated during first commissioning session
- Scraping and polishing station adjustments documented in the provided manual
- Wear items on the spare parts list identified for first reorder cycle
What to Prepare Before Requesting a Quote
To move quickly, have your panel material type and typical thickness range ready, along with the edge banding material you plan to run — PVC, melamine, or veneer. Confirm your workshop voltage and frequency from the distribution panel, and note the plug standard your electricians use. If your operators speak a language other than Chinese or English, specify it so the control panel and manual are set before production. Share your available floor space so we can confirm the 2200 mm machine length fits your layout with room for material handling on both sides.
Frequently Asked Questions
Q: Is the DW3600 in stock and how fast can it ship to my country?
A: The DW-3600GF is held as a Compact Automatic Edge Banding Machine in stock and prepared for dispatch once electrical and language configurations are confirmed. Shipping timelines depend on destination port and whether sea or air freight is selected. We provide the estimated dispatch date at quotation stage after your specifications are locked.
Q: Will the machine arrive with the correct voltage and plug for my workshop?
A: Yes. Before production is finalized, we require a photo of your distribution panel to verify voltage, phase, and frequency. The correct plug — EU, USA, AU, or UK — is installed before crating. The machine arrives ready to connect without adapters or external transformers.
Q: Can I get the control panel in English or another language?
A: The standard control panel includes Chinese and English. Spanish and other languages are available upon request at order stage. The operation and maintenance manual is also produced in your chosen language to ensure your operators can commission the machine independently.
Q: What is included in the shipment — manual, spare parts, and tooling?
A: Each shipment includes the fully assembled DW-3600GF, an operation manual in the agreed language, a spare parts list with wear-item references, packing photographs for customs, and the factory test record. Standard tooling for trimming and scraping stations is installed on the machine.
Q: How do I order a single unit for testing before committing to a larger purchase?
A: Single-unit orders are standard on this channel. You specify your electrical requirements, panel materials, and language preference, and we provide a formal quotation. The unit ships with full documentation so you can evaluate it on your own production before planning additional equipment.
