Description
In-stock readiness confirmed before payment — the DW802 is held in our dispatch warehouse with configurable voltage and plug type, so we can ship a single unit within days rather than asking buyers to wait through a full production cycle.
Technical Specifications
| Parameter | Value |
|---|---|

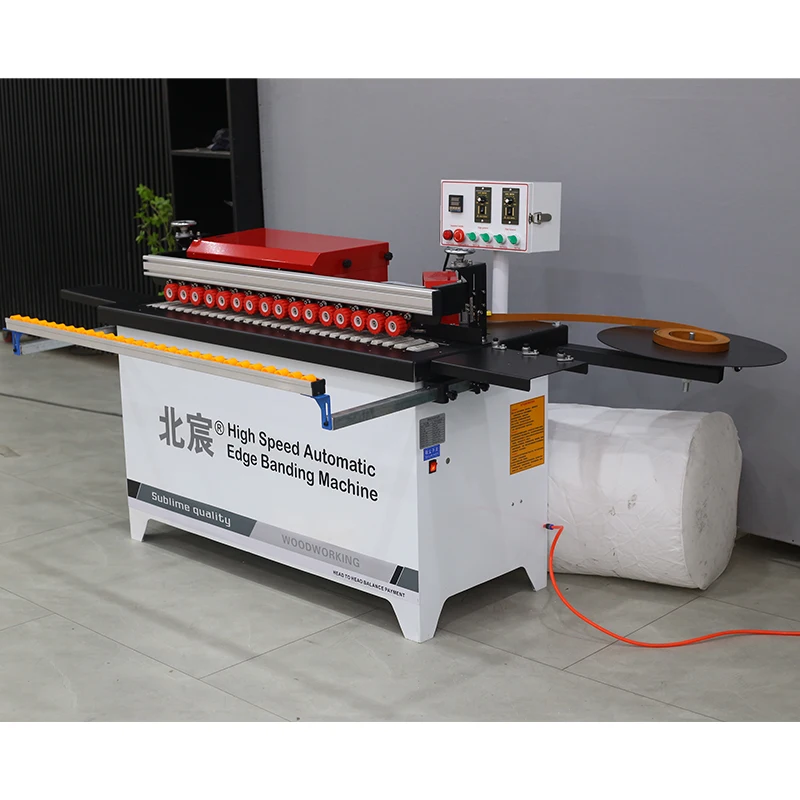

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V/380V/customization (frequency and phase to be confirmed per destination) |
| Glue Pot Capacity | 4000ml |
| Minimum Sheet Length | 25CM |
| Minimum Sheet Width | 10CM |
| Edge Banding Height | 0-50MM |
| Edge Banding Thickness | 0.3-3MM |
| Edge Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W x 2 |
| Polishing Power | 180W x 2 |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4-0.8Mpa |
| Product Size | 130 x 60 x 95CM |
| Product Weight | 135KG |
| Feed Speed | (basis not stated in source — confirm m/min) |
| Panel Thickness Range | (basis not stated in source — confirm max panel thickness) |
| Control System | (basis not stated in source — confirm PLC / button panel / touchscreen) |
| Language Options | Chinese and English standard; Spanish or other languages customizable |
| Plug Options | EU, USA, AU, UK |

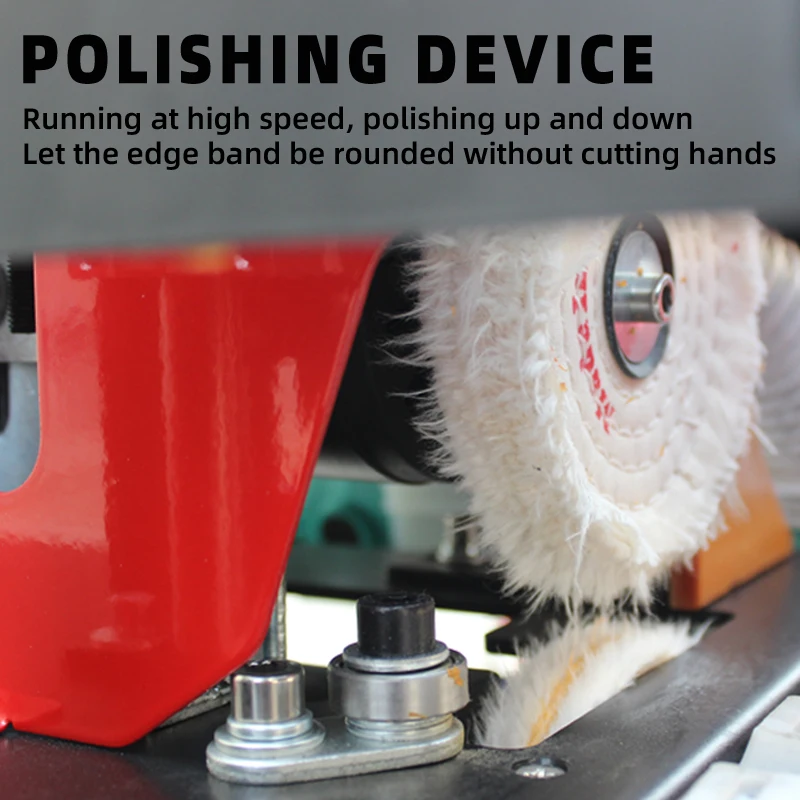

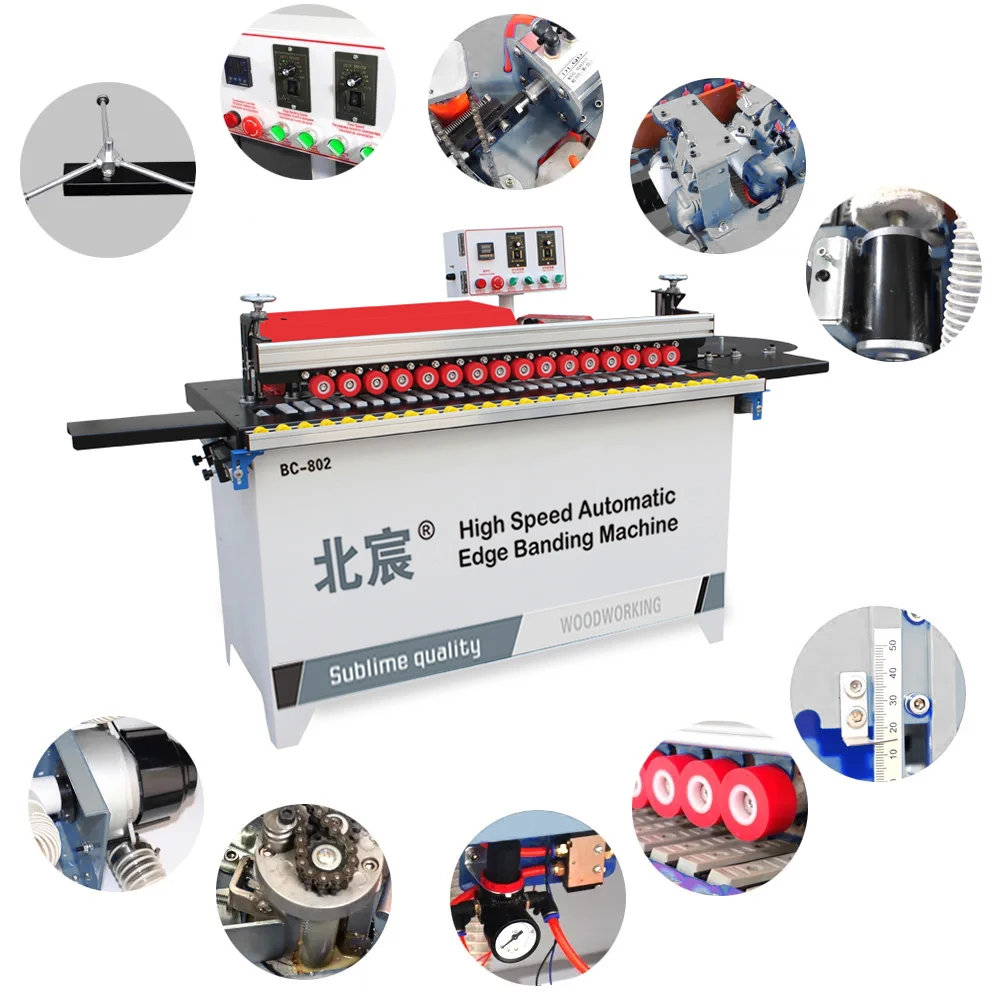

| Key Features | Edge banding, trimming, polishing, automatic head and tail cutting, integrated vacuum |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge sealing | MDF and particleboard panels for kitchen and wardrobe carcasses |
| Home decoration panel finishing | Ecological board and plywood for interior fit-out components |
| Small workshop furniture production | Solid wood board and veneer-faced substrates for bespoke furniture runs |
| Replacement unit for existing line | Boards within 0.3-3MM banding thickness across common panel thicknesses |
Why Voltage Confirmation Must Come Before Dispatch
An Automatic Edge Banding Machine in stock means nothing if it arrives with the wrong electrical configuration. The first thing I ask every buyer to send is a photo of their workshop’s distribution panel nameplate.
Too often a buyer receives a machine wired for 380V/50Hz only to find their site runs 220V/60Hz, and the local electrician cannot adapt it without a dedicated transformer. That delay stalls an entire workshop while production orders pile up [NEED_CITE: voltage and frequency standards by export market]. I once watched a batch of corner-trimming units sit idle in a Middle Eastern factory for three weeks because the 380V/50Hz configuration did not match the available supply. The DW802 ships with pre-confirmed voltage, so that scenario does not repeat.
Dispatch Timing Without the Production Wait
When a workshop needs an Automatic Edge Banding Machine in stock, the real pressure is getting it running on-site before current orders fall behind. The DW802 sits in our dispatch-ready inventory, which means we are not building from scratch after your payment clears. Voltage configuration and plug type are set during the pre-shipment preparation stage, not during a multi-week build cycle.
Single-Unit Orders Are the Norm Here
Many small furniture workshops and joinery shops only need one edge bander, not a container load. We process single-unit orders for the DW802 as standard practice. The ordering flow is straightforward: confirm your voltage and frequency, choose your plug type and control panel language, and we prepare the machine for dispatch with its factory test record and documentation package. No minimum order negotiation required.
How the DW802 Specs Translate to Daily Production

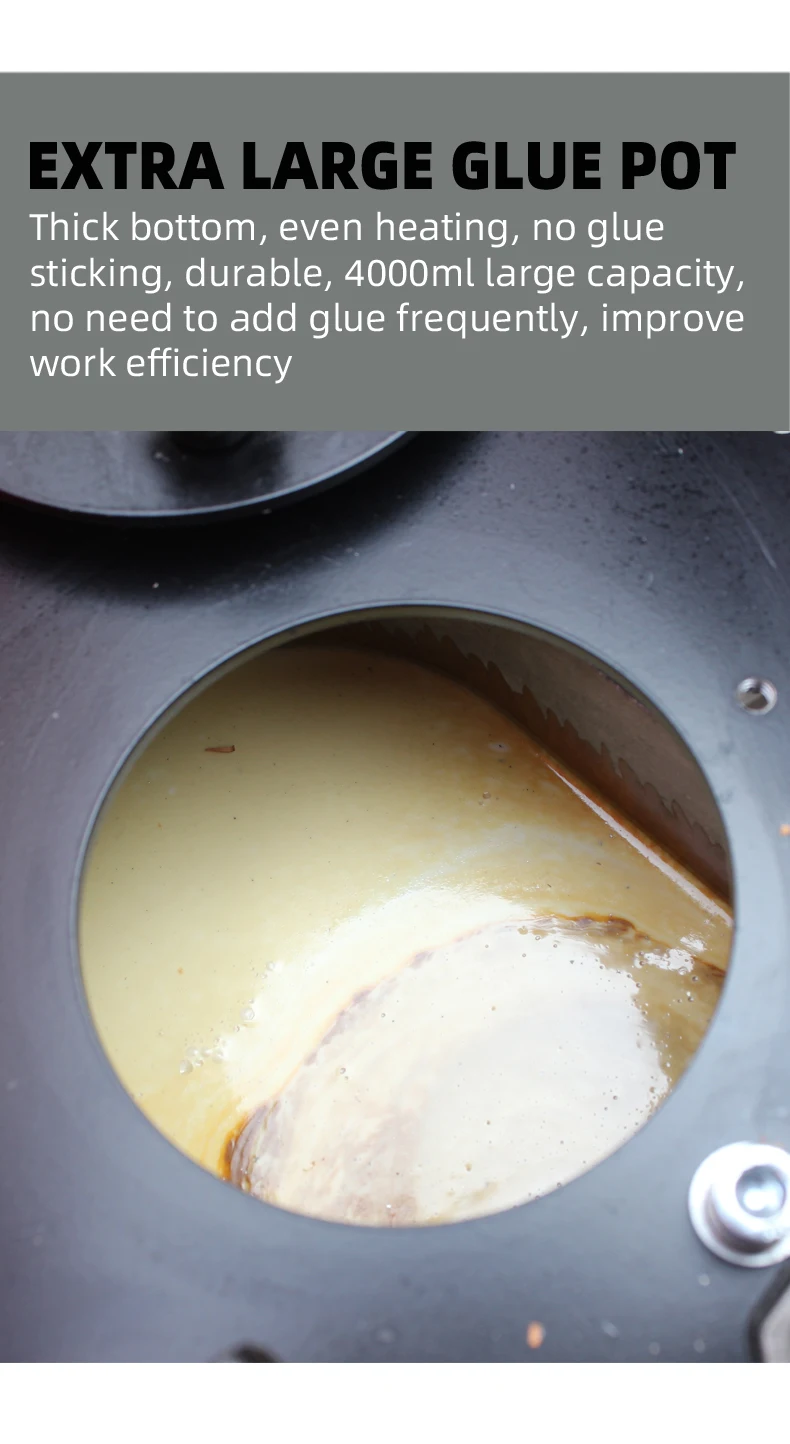

The 4000ml glue pot capacity matters when you are running continuous edge banding through a full shift — smaller pots demand frequent refills that interrupt feed flow and create cold-start glue inconsistencies on the next panel. The 1200W integrated vacuum means dust and offcut debris are captured at the source without needing a separate extraction system plumbed in, which keeps the 130 x 60 x 95CM footprint practical in tight workshops. Dual 800W trimming motors handle both top and bottom edge trimming in a single pass, while the 0.3-3MM banding thickness range covers PVC, ABS, and veneer strips common in custom furniture work. The 0-50MM edge banding height accommodates standard panel thicknesses used in cabinet and shelving production [NEED_CITE: typical panel thickness standards in furniture manufacturing].
What Happens When Electrical Details Are Skipped
A machine that arrives with mismatched voltage does not just sit idle — it blocks the workflow downstream. Panels cut on the sliding table saw pile up waiting for edge finishing, assembly benches go quiet, and delivery deadlines slip. The cost of that downtime is never visible on the original quotation. Rush-shipping a transformer or rewinding motors on-site introduces further risk [NEED_CITE: CE machinery directive requirements for industrial equipment]. Confirming voltage and frequency before the DW802 leaves our warehouse eliminates that entire chain of problems.
Why Buyers Source This Model Through Our Store
Holding the DW802 in ready stock means we can quote dispatch timelines measured in days, not production weeks. Voltage and plug customization happen during pre-shipment preparation rather than requiring a custom build slot. Each unit goes through pre-shipment verification before packing, so the machine you receive has already been run and inspected. The engineer who configures your voltage also prepares the electrical schematic, giving your local electrician a reference document before the crate arrives. Language on the control panel is set to your specification so operators can begin commissioning immediately.
Documentation & Verification
- Factory test record on your specified voltage and frequency before dispatch
- Electrical schematic confirming wiring configuration for your local grid
- Operation manual in your agreed language covering daily startup and adjustment
- Spare parts list matched to the DW802 for immediate reorder reference
- Packing photographs documenting machine condition at the time of shipment
Installation, Commissioning & Support
- Dedicated 4200W circuit required; confirm breaker rating matches the confirmed voltage configuration
- 130 x 60 x 95CM footprint needs a level floor with clearance for panel infeed and outfeed
- Machine ships assembled; connect power and 0.4-0.8Mpa air supply before first run
- Glue pot fill and temperature calibration required during initial commissioning
- Vacuum port connects to internal 1200W system — no external dust collector needed
- Spare trimming blades and polishing wheels included for early-stage maintenance
Before You Request a Quote
Send us your workshop voltage and frequency from the distribution board nameplate, along with the panel materials and edge banding thickness you run most often. If you have existing upstream saws or downstream boring machines, let us know their feed heights so we can confirm compatibility with the DW802 infeed. Tell us your preferred control panel language and plug type, and we will return a dispatch timeline.
Frequently Asked Questions
Q: What is the dispatch lead time for a stocked DW802, and does voltage customization affect it?
A: Stocked DW802 units are prepared for dispatch after voltage confirmation and pre-shipment testing. Selecting a non-standard voltage or plug type adds preparation time for wiring adjustment and verification, but this remains a pre-shipment step rather than a full production cycle. We confirm your specific dispatch date once your electrical details are received.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are standard for the DW802. We do not require container-load quantities or batch minimums. Each machine ships with its own documentation package, spare parts list, and factory test record, whether it is the only unit in the shipment or part of a larger order.
Q: How are shipping options and costs calculated for different destination countries?
A: The DW802 weighs 135KG with a compact footprint, so it fits standard LCL or FCL container loading depending on your order size. Shipping cost depends on your destination port and chosen Incoterm. We provide a freight estimate alongside the machine quotation so you see total landed cost before committing.
Q: Will the plug and control panel language match my local requirements on arrival?
A: Yes. We confirm plug type (EU, USA, AU, or UK) and control panel language during the order process. The control panel is set to your agreed language before the machine leaves our warehouse, so your operators can begin reading settings and menus from the moment the machine is powered on.
Q: What spare parts ship with the machine, and how quickly can I reorder consumables?
A: Each DW802 ships with a spare parts list and a starter set of consumables including trimming blades and polishing wheels. Reorder items are available through our parts desk with dispatch timelines quoted per item. Keeping the included spare parts list on file speeds up any future reorder.
