Description
Ready Stock Dispatch — DW802 units are pre-built and tested, allowing single-machine orders to ship without waiting for a production batch to fill.

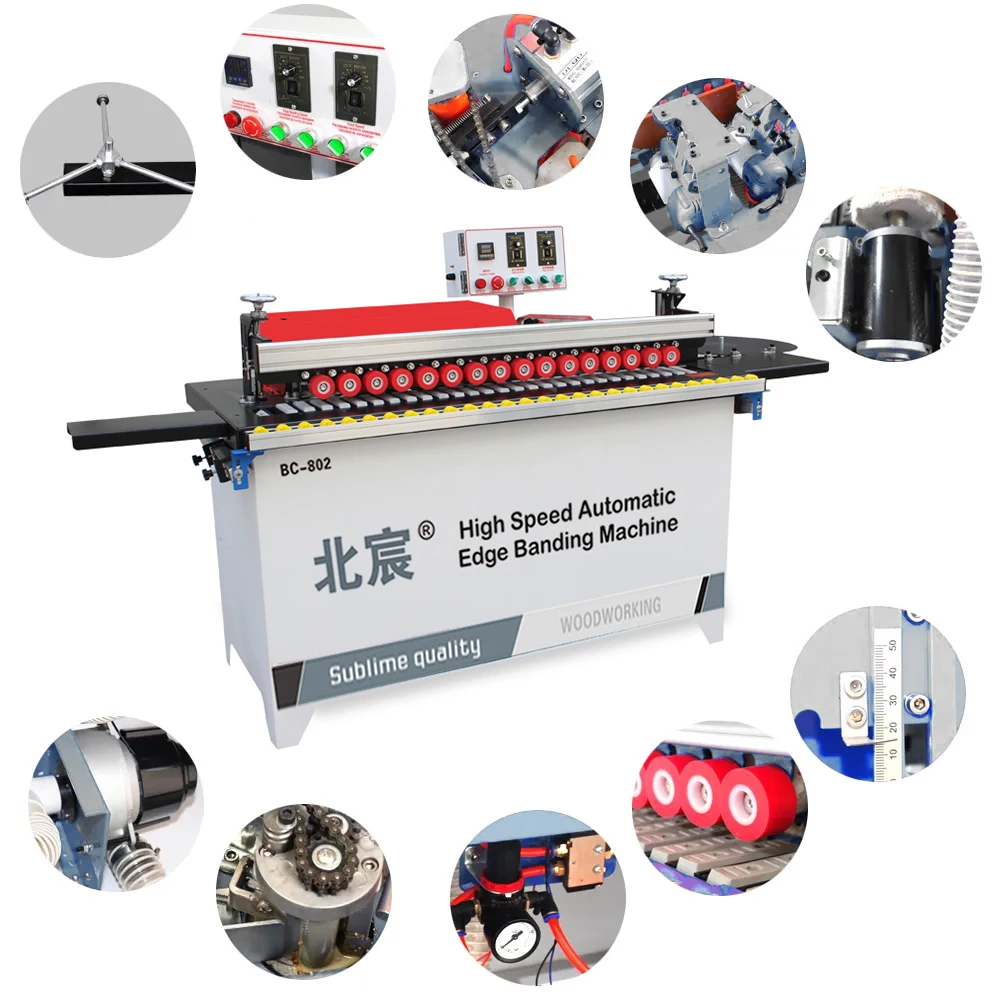

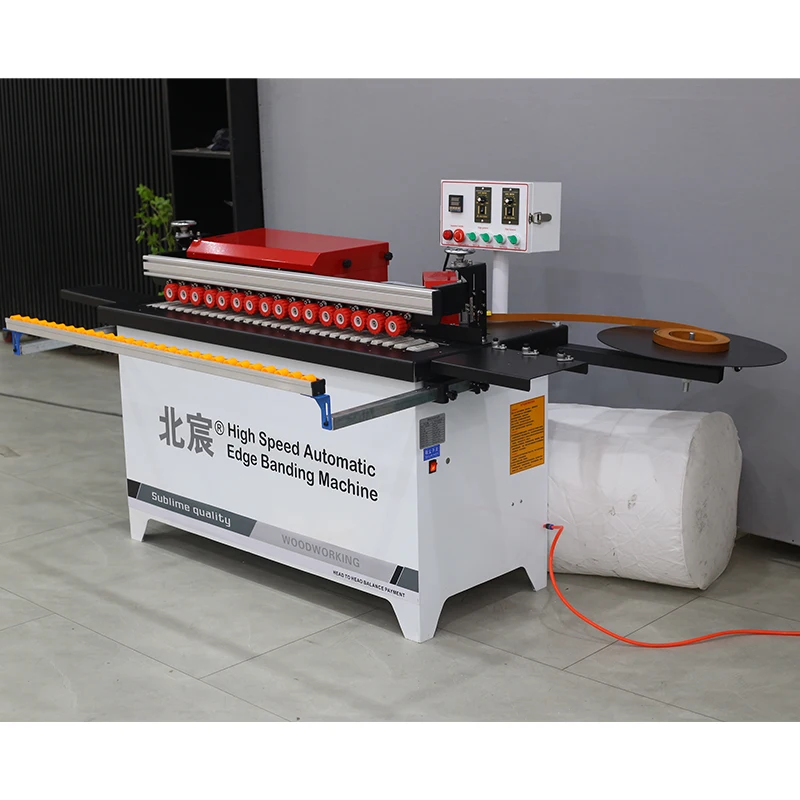

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage & Frequency | 220V / 380V, customizable (frequency to be confirmed) |
| Edge Banding Height Range | 0–50mm |
| Edge Banding Thickness Range | 0.3–3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 10cm |
| Edge Feed Motor | 140W |
| Transmission Motor | 140W |
| Trimming Motor | 800W × 2 |

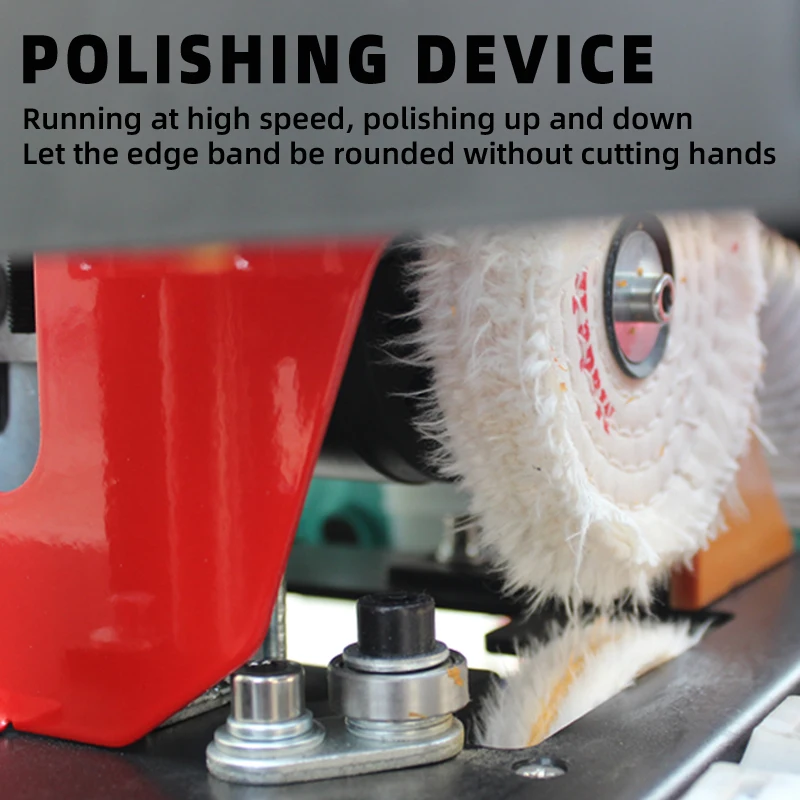

| Polishing Motor | 180W × 2 |
| Vacuum Motor | 1200W |
| Glue Pot Capacity | 4000ml |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Language Options | Chinese, English; other languages customizable |
| Key Features | Edge banding, automatic head-and-tail cutting, trimming, polishing, integrated vacuum extraction |
| Feed Speed | basis to be confirmed |
| Panel Thickness Range | basis to be confirmed |
| Control System | basis to be confirmed |
| Glue Pot Temperature Range | basis to be confirmed |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge sealing | MDF, particleboard, plywood |
| Cabinet and wardrobe board finishing | Ecological board, melamine-faced chipboard |
| Home decoration workshop straight-edge processing | Solid wood board, blockboard |
| Small-batch panel processing startup | PVC and veneer edge banding on panel substrates |
Why Voltage Confirmation Must Happen Before the Machine Ships
A machine wired for 380V/50Hz becomes dead weight if your workshop runs on 220V/60Hz.
I have watched containers arrive at overseas ports only for the buyer to discover the motor winding does not match their local grid. The Automatic Edge Banding Machine in stock fast delivery promise means nothing if the unit cannot power up on arrival. Voltage mismatches account for a significant share of commissioning failures in cross-border equipment trade [NEED_CITE: voltage and frequency standards by export market]. Confirming your local supply before dispatch eliminates a problem that otherwise costs weeks of downtime and return-shipping expense.
Stock Availability and Dispatch Timing
Ordering an Automatic Edge Banding Machine in stock fast delivery means the DW802 is already assembled, wired, and run through a pre-shipment test cycle. Rather than waiting for a production slot, your unit moves directly from the finished-goods floor to crating and container loading. This matters for workshops that have a backlog of panel orders and cannot absorb a multi-week build lead time.
Single-Unit Orders Without Minimums
Small furniture shops and home decoration contractors rarely need a full container of identical machines. The DW802 ships as a single unit when that is all your workshop requires. Mixed-model consolidation is also available if you are pairing this edge bander with a sliding table saw or boring machine from the same range, keeping your freight cost proportional to actual need.

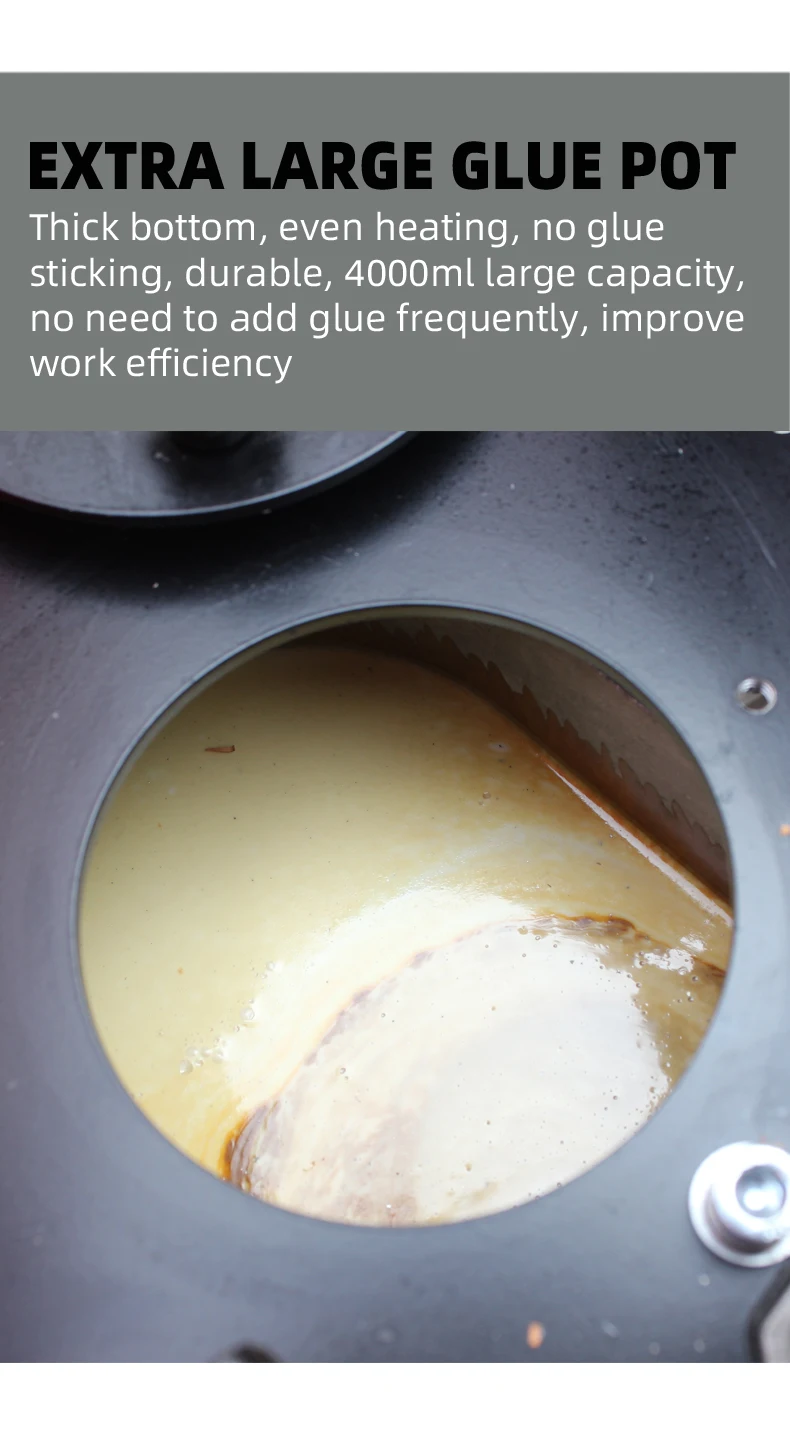

How the 4000ml Glue Pot and Dual Trimming Motors Shape Daily Output
The 4000ml glue pot capacity allows the DW802 to run continuous panel batches without frequent refill stops, which is practical for shops processing dozens of cabinet sides in a single session. The dual 800W trimming motors handle flush trimming on both top and bottom edges in one pass, removing the need to flip panels or run them through a second station. With an edge banding thickness range of 0.3–3mm, the machine covers thin PVC for visible surfaces and thicker veneer strips for structural panels. The integrated 1200W vacuum motor captures trim waste and dust at the source [NEED_CITE: dust extraction requirements in panel processing workshops], keeping the work area clear without requiring a separate floor-standing dust collector. Panel width starts at 10cm, so narrow drawer sides and shelf supports can be processed without auxiliary fixtures.
What Happens When Edge Banding Material Is Not Confirmed
I once handled a shipment where the buyer tested the machine using standard PVC edge banding at the factory, then switched to melamine tape back in their own shop. The glue temperature, feed pressure, and trimming speed all needed recalibration, and the machine sat idle for two days while an engineer adjusted parameters remotely. The DW802 handles PVC, veneer, and melamine within its 0.3–3mm thickness range, but each material demands different settings. Declaring your exact banding type before shipment ensures the pre-shipment test mirrors your actual production [NEED_CITE: substrate and edge banding compatibility in automated edge sealing].
Why Procure the DW802 Through This Channel
Pre-shipment test records are generated on your specified panel material and edge banding stock, not on a generic sample. Voltage and frequency are locked to your declared grid standard and documented in the electrical schematic before crating. Language on the control panel is set to your operator’s requirement, whether English, Spanish, or another agreed language. Every unit is backed by a four-stage quality check covering incoming components, in-process assembly, finished-product testing, and final pre-shipment verification. Engineer-led configuration is provided within one working day of inquiry, so you receive a formal proposal that matches your workshop’s actual processing scope rather than a generic catalogue quote.
Documentation & Verification
- CE declaration of conformity covering the DW802 edge banding unit
- Machine specification sheet confirming your selected voltage and frequency
- Electrical schematic with voltage confirmation document for local inspection
- Factory test record run on your declared panel thickness and edge material
- Operation and maintenance manual in your agreed operator language
- Packing photographs documenting crate condition before container loading
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply and the 4200W total power draw
- Compressed air line must deliver 0.4–0.8 MPa to support the pneumatic edge feed and cutting cylinders
- Footprint of 130 × 60 cm allows placement against a workshop wall with clearance for panel infeed
- Machine ships fully assembled; only air hose, power connection, and edge coil loading are required on arrival
- Glue pot temperature calibration performed during commissioning to match your specific banding adhesive type
- Spare wear parts list included with recommended reorder intervals for trimmer cutters and polishing wheels
What to Include in Your Inquiry
Provide the panel substrates you process most frequently, along with the edge banding material type and thickness range, so the pre-shipment test mirrors your daily workload. Confirm your local voltage, phase, and frequency to ensure correct motor winding. If your operators require a specific control panel language, state this at inquiry so it is configured before dispatch.
Frequently Asked Questions
Q: Is the DW802 currently in stock and what is the dispatch lead time?
A: The DW802 is maintained in ready-stock inventory and can be dispatched after pre-shipment testing is completed. Typical lead time from order confirmation to container loading spans several working days, depending on the configuration checks required for your voltage and language specifications.
Q: Can I order a single unit, and what are the shipping options?
A: Single-unit orders are accepted without minimum quantity requirements. Shipping options include LCL consolidation for one machine or FCL if you combine the DW802 with other equipment from the same product range. Transit time depends on destination port and carrier scheduling.
Q: Will the machine arrive configured for my local voltage and plug type?
A: Voltage is confirmed during the order process and set to your declared grid standard, either 220V or 380V, with frequency matched accordingly. The electrical schematic and voltage confirmation document ship with the machine for local electrical inspection compliance.
Q: What edge banding materials does the DW802 handle?
A: The machine processes PVC, veneer, and melamine edge banding within a thickness range of 0.3–3mm and a height range of 0–50mm. Declare your specific material at inquiry so glue temperature and feed parameters are calibrated before dispatch.
Q: What spare parts ship with the machine and how do I reorder?
A: A spare parts list is included in the documentation package, covering high-wear items such as trimmer cutters and polishing wheels. Reorders can be placed directly by referencing the part numbers in the list, and consumables are shipped separately from the main equipment crate.
