Description
Fast Dispatch Configuration — DW985 units ship with voltage, plug type, and control language verified against your facility specifications before leaving the Ningjin floor.

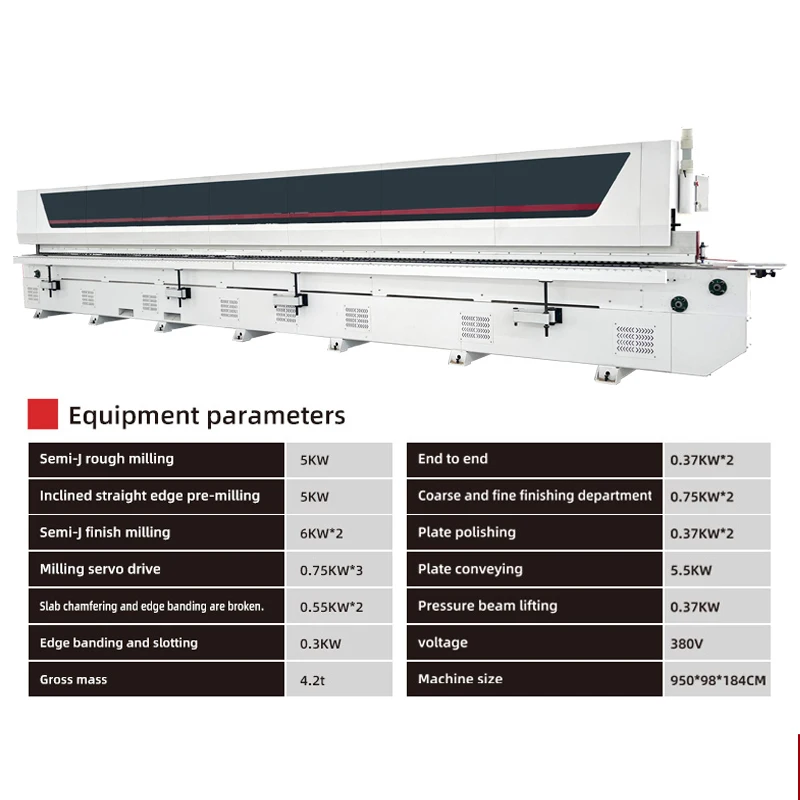

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW985 |
| Product Type | Automatic Edge Banding Machine with Soft Forming and Hidden-Handle Functions |
| Rated Power | Semi-J rough milling 5 kW; Inclined straight edge pre-milling 5 kW; Semi-J finish milling 6 kW × 2; Milling servo drive 0.75 kW × 3; Slab chamfering and edge banding break 0.55 kW × 2; Edge banding and slotting 0.3 kW; End to end 0.37 kW × 2; Coarse and fine finishing 0.75 kW × 2; Plate polishing 0.37 kW × 2; Plate conveying 5.5 kW; Pressure beam lifting 0.37 kW |
| Voltage & Frequency | 380 V (frequency to be confirmed — 50 Hz or 60 Hz per market) |
| Control System | Touch screen with remote upgrade capability and shape-switching operation keys |
| Overall Dimensions (L×W×H) | 950 × 98 × 184 cm (includes auxiliary stations; verify against layout drawing) |
| Gross Mass | 4.2 t |
| Feed Speed | 8–12 m/min (basis not stated in source — confirm panel material and edge band thickness) |
| Working Stations | 16 stations: Separate → Linear pre-milling → Milling → Rough mill → Inclined straight pre-milling → Finish milling → Finish milling 2 → Handle-free chamfer → Plate heating → Wash → Edge banding and slotting → Rubber coating → Heating system → Soft forming and pressing edge banding break → End to end → Rough repair → Truing → Online celebrity scraped edge → Copying chamfer → Wash → Polish |
| Trimming Stations | Rough repair, truing, scraping, copying chamfer, handle-free chamfer |
| Glue System | Rubber coating with heating system and plate heating station |
| Language Options | Chinese and English standard; Spanish and other languages available on request |
| Plug Options | EU / USA / AU / UK |
| Assembly State | Fully assembled, wooden box packed for shipment |
| OEM Capability | Custom logo printing and production per buyer drawings confirmed |
| Standards | CE referenced; ISO 9001 referenced (unit-level declaration to be confirmed for DW985) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door production with hidden-handle edge profiles | MDF and particleboard with PVC edge banding |
| Custom furniture requiring soft-forming edges | Plywood panels with veneer or PVC banding |
| Mid-to-high volume panel processing | MDF, particleboard, plywood with PVC or veneer |
| Workshop transition from semi-automatic to full automation | Solid wood panels and composite substrates |
Why the Voltage Question Should Come Before the Price
An edge banding machine in stock fast delivery promise means nothing if the machine arrives and cannot be powered on. We have seen orders where a 380 V unit landed in a 60 Hz market without anyone checking the frequency mismatch, and the motor overheated within the first production run. The DW985 carries multiple motor groups — the plate conveying motor alone draws 5.5 kW — so getting the electrical supply wrong is not a small oversight.
Every DW985 order goes through a voltage and frequency confirmation step before the electrical cabinet is wired.
When I was on the assembly floor, a customer received a machine with a fixed 50 Hz transformer configuration that could not handle their 60 Hz supply. The factory was mid-way through a cabinet door contract, and they waited weeks for an electrical retrofit. [NEED_CITE: voltage and frequency standards by export market]. Now, before any DW985 leaves our Ningjin facility, we verify the local supply, match the plug type — EU, USA, AU, or UK — and log the result on the pre-shipment test record.
Stock Availability and Dispatch Timing
The DW985 sits in our stocked configuration range, meaning the base machine is assembled and available for final electrical and language setup once your order is confirmed. For buyers searching for an edge banding machine in stock fast delivery, this reduces the typical multi-week lead time that comes with building from a bare frame.
Once you confirm voltage, plug type, and control panel language, we complete the final wiring, run sample panels through all 16 stations, and prepare the machine for crating. This workflow is what makes dispatch faster without skipping the verification steps that matter.
Configurable Voltage and Control Language as Standard

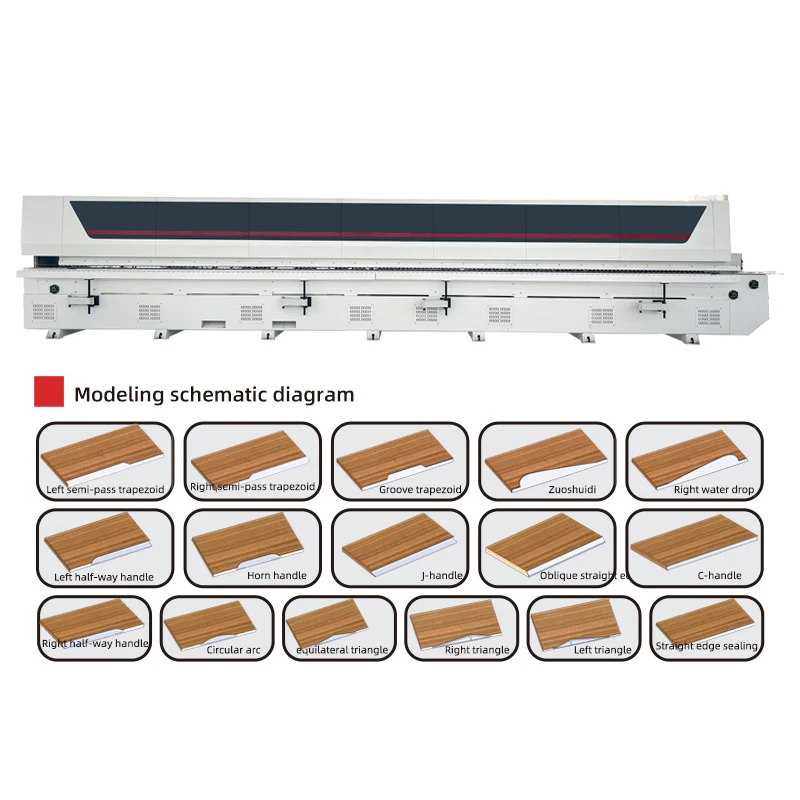

The touch screen control supports shape-switching keys for different hidden-handle profiles and carries a remote upgrade capability. We set the control panel to your preferred language before the machine ships — Chinese and English are standard, with Spanish and other languages available on request. A control panel your operator cannot read stalls commissioning on day one [NEED_CITE: industrial equipment operator interface language requirements].
The DW985 ships fully assembled in a wooden crate. There is no on-site mechanical assembly required; once the machine is positioned and connected to the confirmed power supply, you power on and begin test runs.
What the 16-Station Configuration Means for Edge Quality
The DW985 runs panels through a sequence that starts with linear pre-milling and moves through rough and finish milling, handle-free chamfering, plate heating, rubber coating with a dedicated heating system, soft forming, end cutting, rough repair, truing, scraping, copying chamfer, and final polishing. Each station addresses a specific stage of edge preparation and finishing.
The plate heating station warms the panel edge before glue application, which improves adhesion on MDF and particleboard where cold substrates can cause the glue to set unevenly. The dual finish milling stations (Finish milling and Finish milling 2) allow one to be set for standard PVC and the other for veneer, reducing changeover time when switching between materials. Feed speed reaches 8–12 m/min depending on panel and edge band specifications (basis not stated in source — confirm with your material profile).
What Happens When Electrical Specs Are Overlooked
A machine that arrives with the wrong voltage configuration does not just sit idle — it blocks downstream production. Panel cutting continues, but edges remain unfinished, and partially completed orders pile up on the factory floor. [NEED_CITE: production downtime costs in furniture manufacturing]. The cost of an electrical retrofit on-site often exceeds what a pre-shipment verification step would have prevented.
Buyers who source an edge banding machine in stock fast delivery on price alone, without locking in the electrical configuration, end up paying for the speed advantage in delayed commissioning. The DW985’s multi-motor setup makes this especially relevant: the milling servo drives alone account for three 0.75 kW motors, and each must operate within the correct frequency band.
Why Source the DW985 Through This Channel
The DW985 is backed by in-house manufacturing with proprietary cutting mechanisms that hold verified tolerances, so you receive a machine built and tested under one roof rather than assembled from third-party sub-contracts.
Voltage, plug type, and control language customization are built into the standard ordering process — not treated as optional extras that add lead time.
The 16-station configuration means a workshop can handle pre-milling, soft forming, hidden-handle profiles, and polishing on a single machine, reducing the need for auxiliary stations.
Pre-shipment testing includes running sample panels through the complete station sequence, with results logged and shipped as part of your documentation package.
Engineer-led configuration recommendations are provided within 24 hours of your inquiry, based on your panel materials, edge band type, and production volume.
Documentation & Verification
- CE declaration of conformity documentation for the DW985 unit
- Factory test record showing sample panel edge quality from all 16 stations
- Electrical schematic confirming voltage and frequency matched to your facility
- Operation and maintenance manual delivered in your agreed control panel language
- Spare parts list with station-specific consumables identified
- Packing photographs for customs inspection and receiving verification
Installation, Commissioning & Support
- Floor space of approximately 950 × 98 cm required with clearance for panel infeed and outfeed
- Dedicated 380 V circuit rated for the combined DW985 motor load, frequency confirmed pre-shipment
- Machine arrives fully assembled; position, level, connect power, and begin test runs
- Touch screen commissioning includes shape-switching key setup for your hidden-handle profiles
- Remote upgrade capability allows control software updates without on-site visits
- Spare parts list covers trimming cutters, glue pot components, and polishing wheels for each station
What We Need to Configure Your DW985
To move an edge banding machine in stock fast delivery from our floor to yours, we need to know your panel substrate types and thickness range, the edge banding materials you run (PVC, veneer, or both), and your local voltage and frequency. Tell us which language your operators need on the touch screen, and whether you require hidden-handle profile capability for cabinet door production.
Frequently Asked Questions
Q: Is the DW985 in stock and what is the dispatch lead time?
A: The DW985 is part of our stocked configuration range. The base machine is assembled and available; dispatch timing depends on the final electrical wiring, plug type configuration, and language setup you require. Once these are confirmed, we complete pre-shipment testing and prepare the machine for crating and shipment.
Q: How is voltage, frequency, and plug type confirmed before shipment?
A: We confirm your facility’s voltage and frequency during the order stage and configure the electrical cabinet accordingly. Plug type — EU, USA, AU, or UK — is matched to your market. The confirmation is logged on the electrical schematic and the pre-shipment test record that ships with the machine.
Q: What languages are available on the touch screen control panel?
A: Chinese and English are standard on the DW985 touch screen. Spanish and other languages are available on request. We set the language before dispatch so your operators can read all menus and shape-switching keys from the first production run.
Q: Can I order a single DW985 unit, and what are the shipping options?
A: Yes, single-unit orders are standard for this model. The DW985 ships fully assembled in a wooden crate. Shipping options and container requirements are quoted based on your destination port and delivery terms.
Q: What documentation ships with the machine for customs clearance and installation?
A: Each DW985 ships with a CE declaration of conformity, electrical schematic with voltage confirmation, factory test record with sample panel results, operation manual in your agreed language, spare parts list, and packing photographs for receiving inspection.
