Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS-468JJ |
| Product Type | Full Automatic Linear PUR Double Trimming Edge Banding Machine with Pre-milling |

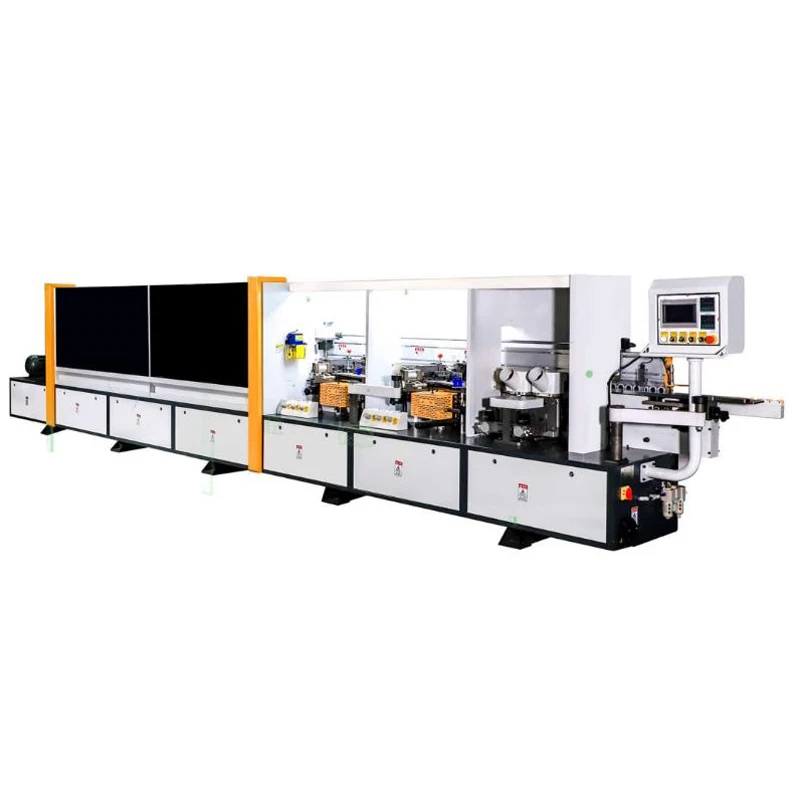

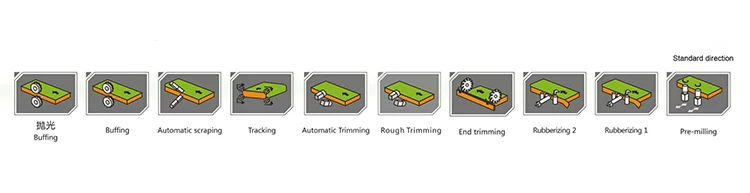

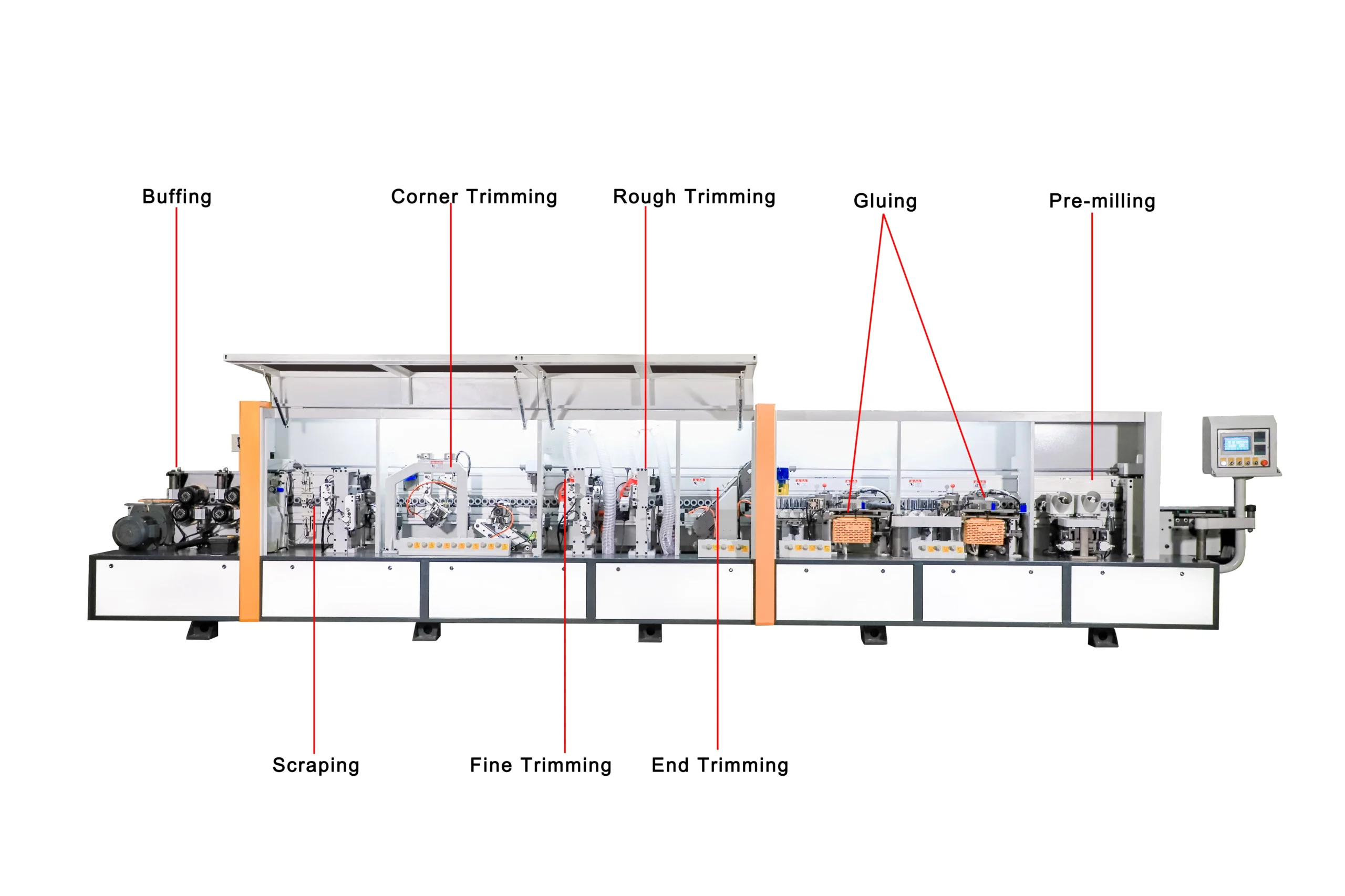

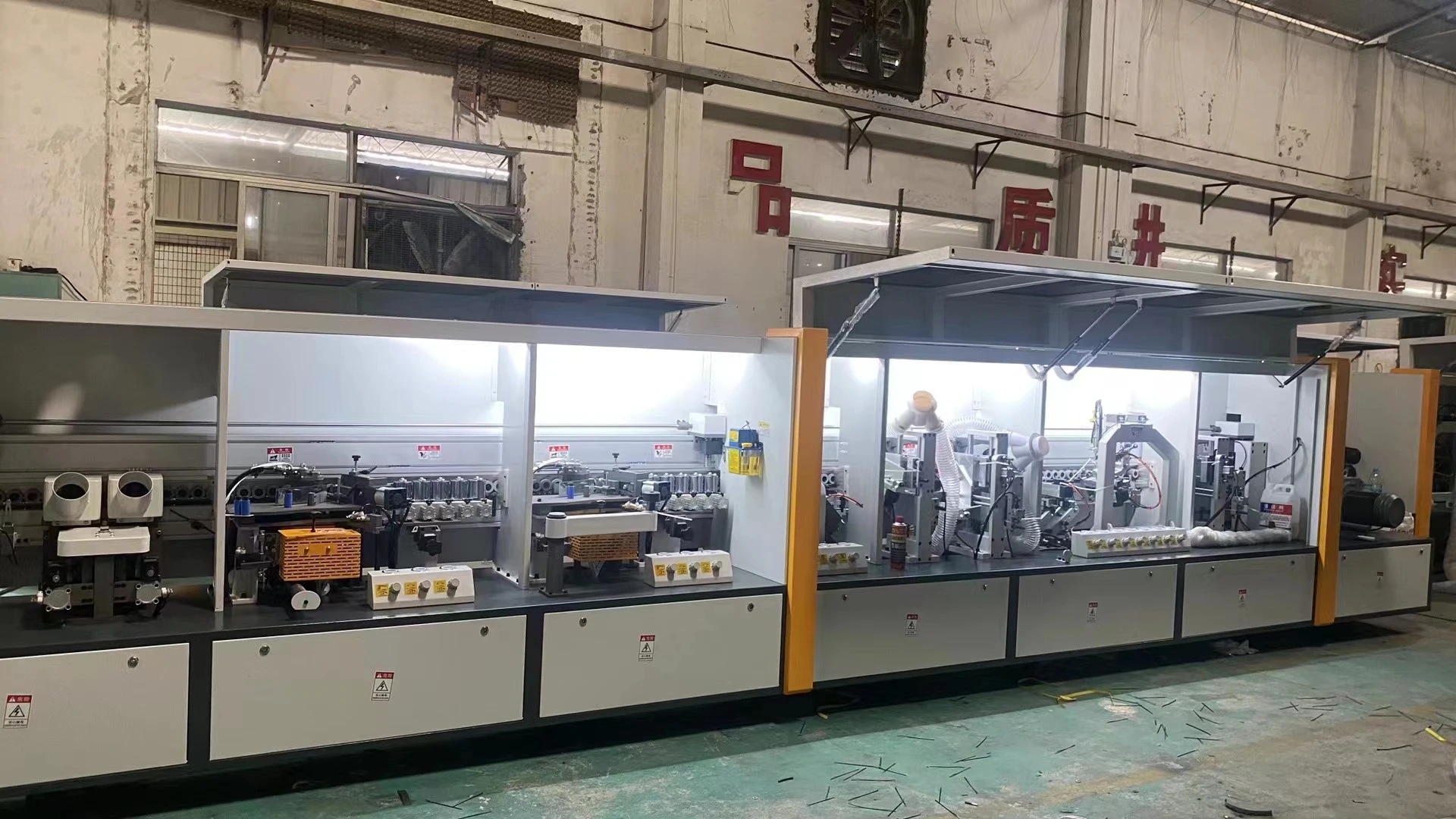

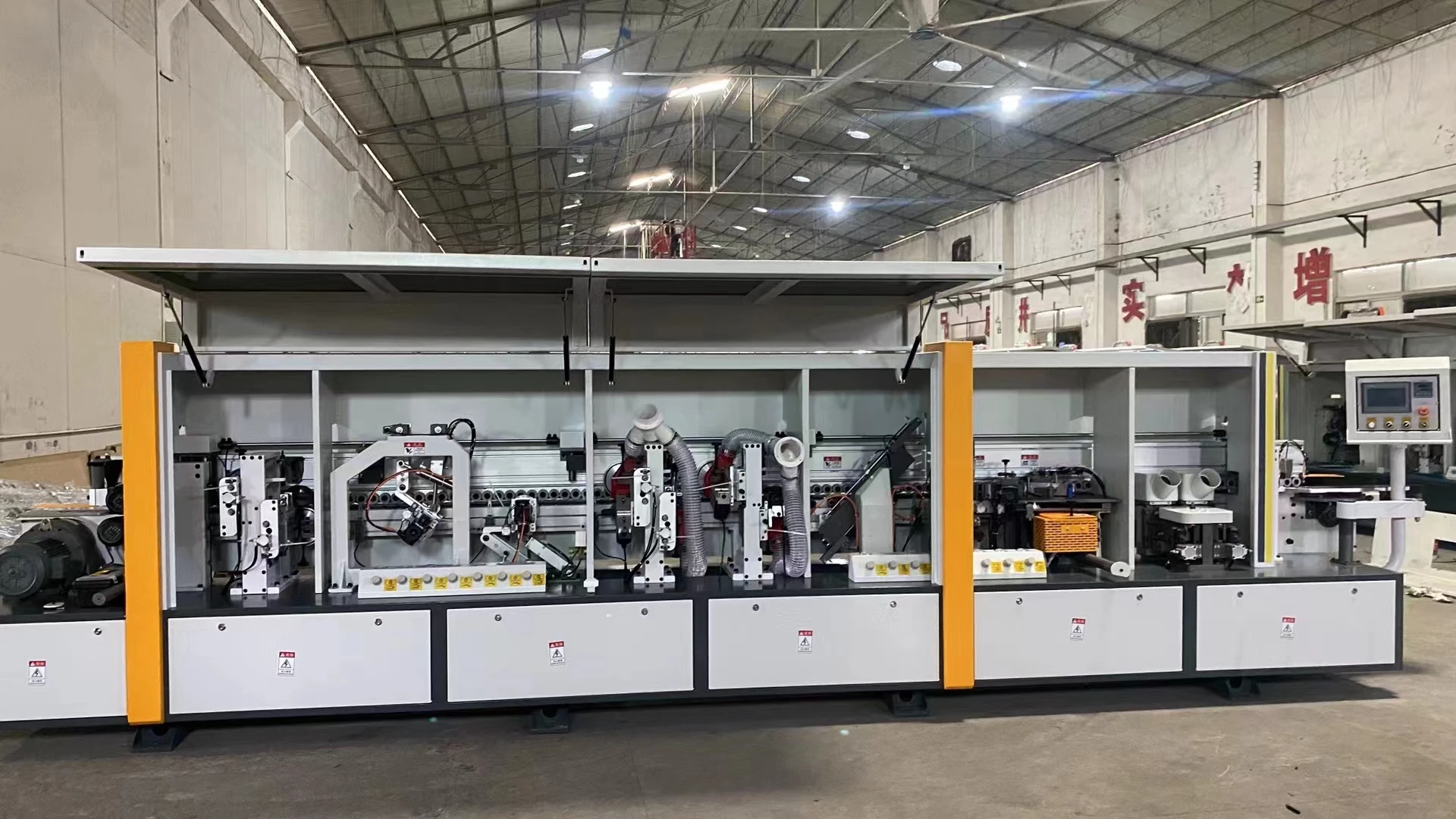

| Main Functions | Pre-milling, Gluing 1, Gluing 2, End trimming, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing 1, Buffing 2 |
| Rated Power | 18.5 kW |
| Voltage | 380V-3HP |
| Control System | PLC control system |
| Overall Dimensions | 8000×900×1600 mm |
| Net Weight | 2300 kg |
| Working Pressure | 0.6 MPa |
| Panel Thickness Range | 10–60 mm |
| Edge Band Thickness Range | 0.4–3 mm |
| Minimum Panel Size | 300×60 mm / 150×150 mm |
| Pre-milling Unit | Diamond cutters, 12000 rpm, 2×2.2 kW, max depth of cut 2 mm, cutter width 65 mm |
| Glue System | Double glue pot, optional PUR device, optional Quick Sol Unit |
| Pressing System | 6 sets of pressing roller wheels |
| End Trimming Unit | Two high frequency motors, 0.37 kW, 12000 rpm |
| Rough Trimming System | Two high frequency motors, 0.75 kW each, 12000 rpm, 2 pcs 6-tooth flat cutters |
| Fine Trimming System | Two high frequency motors, 0.75 kW each, 12000 rpm, 2 pcs 6-tooth R2 cutters |
| Corner Rounding | Four-motor profiling, tracking and trimming, 4 profiling effects including diamond corners |
| Edge Scraping | Electro-pneumatically controlled blowing |
| Buffing Unit | Double buffing (upper and lower) |
| Flexible Edge Scraping | Removes wave marks on edge banding tape |
| Narrow Plate Auxiliary Device | Stabilizes narrow plate edge sealing |
| Optional Features | Slotting device, Quick Sol Unit |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Furniture panel edge banding | MDF and particleboard substrates |
| Plywood processing for cabinet carcasses | Plywood panels with PVC or veneer edge banding |
| Custom joinery workshop production | Solid wood panels requiring pre-milling before edge application |
| High-volume factory panel finishing | Laminated boards with 0.4–3 mm edge band thickness |
Why the Voltage Question Should Come Before the Price
A full automatic edge banding machine in stock fast delivery means nothing if the motor cannot start on your shop floor.
I worked the assembly floor before moving into technical sales, and the most frustrating calls I take are from buyers who received a machine that will not power up. The ZDS-468JJ is configured at 380V-3HP as standard, but workshops in different export markets run on entirely different supply frequencies and phase arrangements [NEED_CITE: voltage and frequency standards by export market]. Confirming the local electrical specification before the machine leaves the warehouse prevents a situation where a unit sits idle for weeks while a transformer is sourced locally.
Stock Readiness and Dispatch Coordination
Holding a full automatic edge banding machine in stock fast delivery requires coordination between the warehouse and the freight forwarder. The ZDS-468JJ measures 8000×900×1600 mm and weighs 2300 kg, meaning container loading must be planned around its footprint and the 18.5 kW power draw dictates that electrical verification documents accompany the crate. Machines prepared for dispatch undergo a pre-shipment test cycle that confirms all ten functional stations operate within tolerance.
Confirming Configuration Before Crating
Every unit scheduled for dispatch has its PLC control system language, glue pot color setup, and optional PUR device status locked in before crating. The double glue pot system supports different adhesive colors, and buyers who require the Quick Sol Unit with upper melt and dual pre-melt system must confirm that option while the machine is still accessible in the warehouse [NEED_CITE: PUR adhesive temperature requirements for wood panel edge banding]. Once a machine is bolted to the container floor, changing a configuration means uncrating at the destination.
What the Pre-milling Stage Means for Panel Quality
The pre-milling unit uses diamond cutters running at 12000 rpm with a maximum depth of cut of 2 mm across a 65 mm cutter width. This stage removes saw marks and sizing imperfections from the panel edge before adhesive is applied, which directly affects how cleanly the edge band bonds to substrates like MDF and particleboard. Without pre-milling, visible glue lines appear on porous materials, and the downstream fine trimming and scraping stations cannot fully compensate for a poorly prepared edge surface. The 10–60 mm panel thickness range means the machine handles everything from thin cabinet shelf stock to thick worktop panels, and the 6 sets of pressing roller wheels maintain consistent contact pressure across that entire range. Corner rounding with four-motor profiling delivers diamond corners and three other edge profiles that furniture specifications increasingly demand.
The Cost of Skipping the Electrical Survey
Machines shipped without a confirmed voltage and frequency match account for a significant share of commissioning delays in export markets. The ZDS-468JJ draws 18.5 kW and requires a dedicated three-phase supply; installing it on an undersized circuit causes thermal overload trips that operators mistake for machine faults [NEED_CITE: CE machinery directive requirements for industrial equipment]. The working pressure requirement of 0.6 MPa also needs verification against the workshop compressor capacity, because insufficient air pressure causes the electro-pneumatic scraping unit and narrow plate auxiliary device to behave inconsistently.
Why Buyers Source This Machine Here
In-house manufacturing with patented cutting mechanisms means the pre-milling unit on the ZDS-468JJ is built and tested under the same roof where final assembly occurs. Four-stage quality control covering incoming material through pre-shipment verification catches tolerance drift before the machine reaches the warehouse floor. Voltage, control panel language, and specification customization are confirmed at the order stage rather than treated as an afterthought. An engineer reviews each configuration proposal against the buyer’s actual panel sizes and edge band materials, and factory visits are available for buyers who want to witness a test run on their own substrate before the machine is crated.
Documentation & Verification
- CE declaration of conformity matching the ZDS-468JJ serial number
- Factory test record run on buyer-specified panel thickness range before dispatch
- Electrical schematic confirming 380V-3HP wiring and circuit protection ratings
- Operation and maintenance manual in the operator’s agreed language
- Spare parts list covering diamond cutters, trimming motors, and pressing rollers
Installation, Commissioning & Support
- Floor space of at least 9 meters length required to accommodate the 8000 mm machine body with infeed and outfeed clearance
- Dedicated 380V three-phase circuit rated for the 18.5 kW total draw with appropriate breaker sizing
- Machine arrives as a single unit on a reinforced pallet; forklift capacity must exceed 2300 kg for unloading
- First power-on includes PLC system language verification and parameter loading for local panel thickness range
- Compressed air line at 0.6 MPa minimum must be connected before pneumatic scraping and pressing systems are activated
- Diamond pre-milling cutters and high-frequency trimming motors require scheduled inspection intervals per the maintenance manual
What to Include in Your Inquiry
Provide the panel materials you run most frequently, the edge band thickness range your products require, and the local voltage and frequency at your facility. Confirm the control panel language your operators read and whether you need the optional PUR glue system or the slotting device fitted before dispatch.
Frequently Asked Questions
Q: Can the glue system handle PUR adhesive for moisture-resistant panels?
A: The ZDS-468JJ offers an optional PUR device alongside the standard double glue pot. PUR adhesive requires a sealed melt system to prevent moisture reaction, and the optional Quick Sol Unit provides upper melt with dual pre-melt capability. Confirm PUR compatibility at the inquiry stage so the correct glue pot configuration is installed before the machine leaves stock.
Q: What happens if my workshop voltage does not match 380V-3HP?
A: Voltage must be confirmed before dispatch because the 18.5 kW motor set and PLC control system are configured for a specific supply. If your local grid differs, the machine can be built to an alternative voltage specification. Installing a machine on the wrong voltage causes immediate motor damage and voids warranty coverage on electrical components.
Q: How narrow a panel can the machine process reliably?
A: The minimum panel size is 300×60 mm for rectangular panels or 150×150 mm for square panels. The narrow plate auxiliary device stabilizes edge sealing on panels at the lower end of this range, preventing the panel from shifting against the pressing rollers during feed.
Q: Does the corner rounding unit require manual profile changes?
A: The four-motor profiling system tracks and trims automatically, supporting four different profiling effects including diamond corners. Profile selection is managed through the PLC control system, so operators switch between corner styles without physically adjusting the rounding motors between panels.
Q: What documentation ships with the machine?
A: Each ZDS-468JJ ships with a CE declaration of conformity, electrical schematic confirming the voltage configuration, a factory test record, an operation manual in the agreed language, and a spare parts list. Customs documentation support is provided to assist with import clearance at the destination port.
