Description

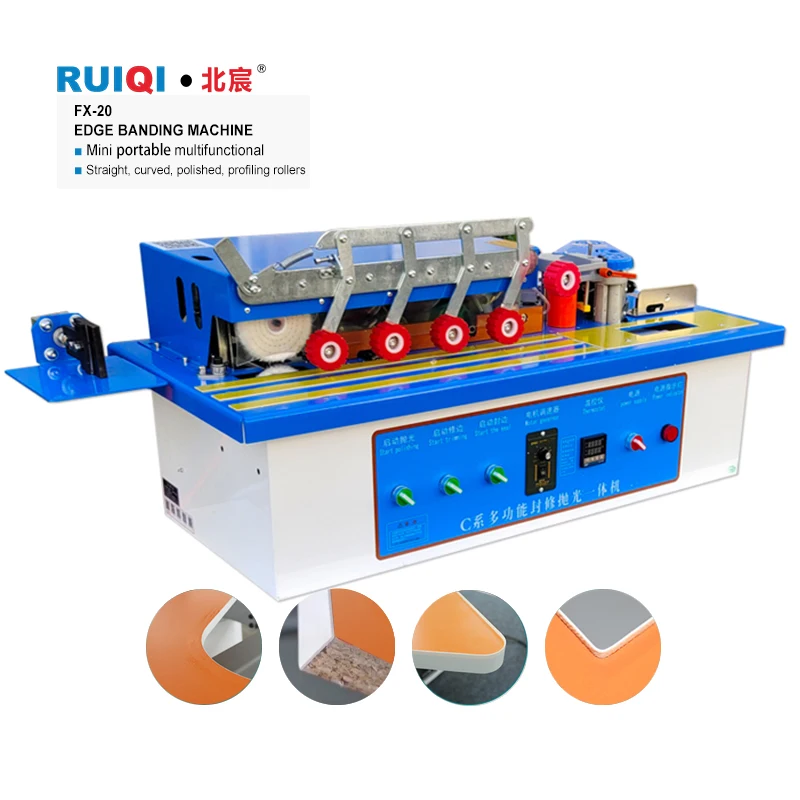

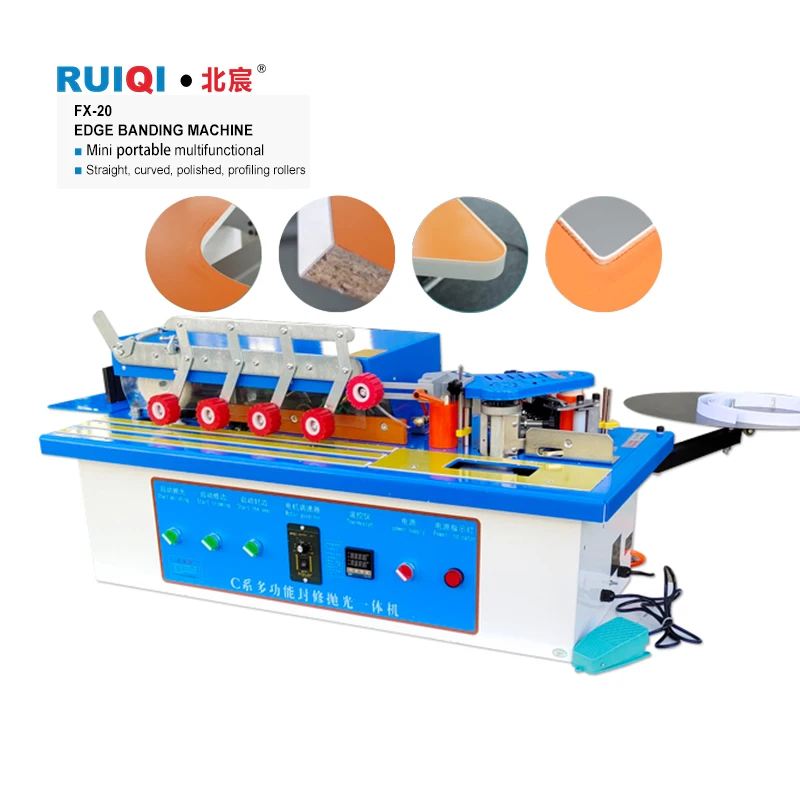

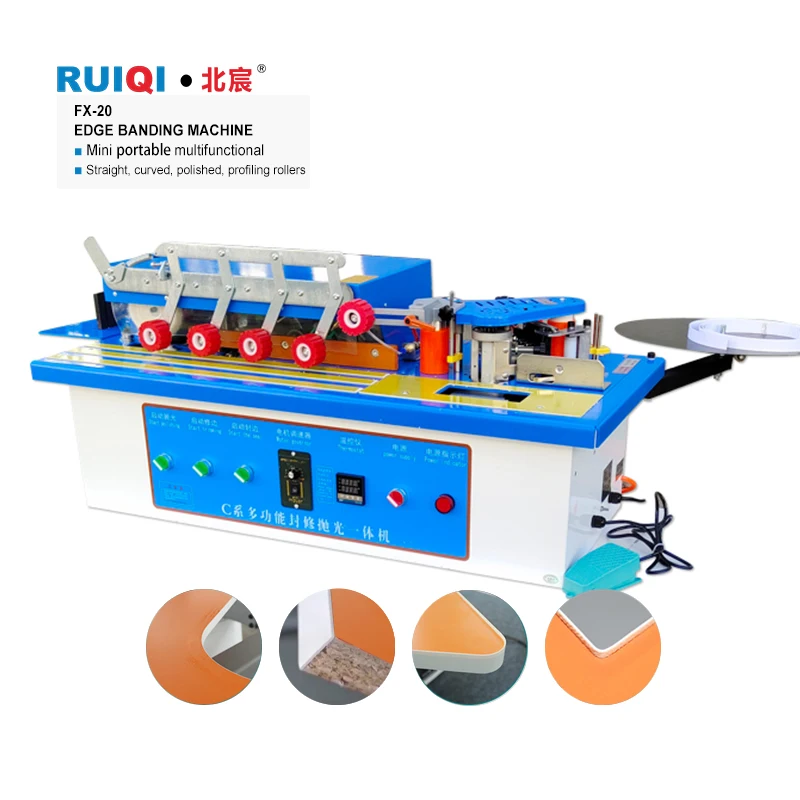

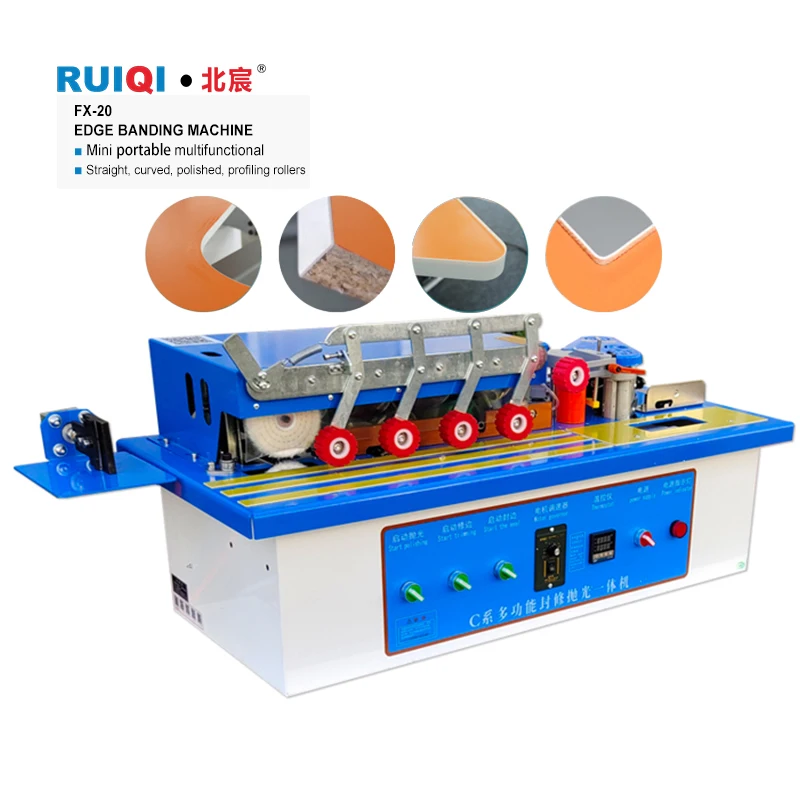

Ready to Ship, Ready to Run — voltage, plug type and control language confirmed in writing before the FX-20 leaves our Ningjin warehouse.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FX-20 |
| Product Type | Mini Edge Banding Machine |
| Rated Power | 2500W |
| Voltage & Frequency | 220V / 380V / custom; 50Hz or 60Hz available |
| Control System | Manual push plate operation |
| Overall Dimensions (L×W×H) | 100 × 46 × 41 cm |
| Net Weight | 44 kg |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Standard Functions | Curved and straight edge banding, trimming, polishing |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Edge Feed Power | 20W |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Assembly State | Fully assembled |
| Language Options | Chinese / English default; Spanish and other languages customizable |
| Plug Options | EU / USA / AU / UK |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and shelf edge sealing | MDF, particleboard, plywood |
| Small-batch furniture workshop production | Solid wood board, ecological board |
| Home decoration on-site panel finishing | MDF and plywood panels for built-in wardrobes and shelving |
| Joinery startup transitioning from hand edging | PVC and veneer edge banding on flat and curved profiles |
Why Voltage Confirmation Matters Before You Click "Order"
A machine wired for the wrong grid is a 44 kg paperweight until a transformer arrives.
I once shipped a 2500W edge bander to a workshop in the Middle East without double-checking the local frequency standard. The unit was rated for 50Hz, the site ran 60Hz, and the motor overheated within the first hour. The customer waited over two weeks for a replacement motor to clear customs. Now, every order I handle starts with a written voltage and frequency confirmation — including the FX-20 mini edge banding machine in stock — because a three-minute email exchange prevents a multi-week standstill [NEED_CITE: voltage and frequency standards by export market]. Small workshops rarely have backup machines sitting idle, so a mismatch does not just delay one job; it stalls the entire order book.
Dispatch Timing That Matches Your Production Schedule
Stock availability is the reason buyers come to this store, and the FX-20 is kept in inventory specifically for single-unit orders that cannot wait for a production run. Once your voltage, plug type, and control panel language are confirmed, the machine moves to pre-shipment testing and then straight to the shipping line. This matters most for workshops taking on a new contract and needing edge banding capability within a tight window rather than a typical multi-week lead time.
One Machine, One Pallet, One Straightforward Delivery
The FX-20 arrives fully assembled at 44 kg and 100 × 46 × 41 cm, meaning it fits through a standard workshop door and can be positioned by two people without a forklift. There is no foundation pouring, no anchor bolting, and no multi-day rigging operation. You uncrate, connect the air supply at 0.5–0.8 MPa, plug into the confirmed voltage circuit, and begin trimming test panels the same afternoon [NEED_CITE: compressed air requirements for small-scale edge banding equipment].
Reading the Specs That Actually Affect Your Panels
The 0.3–3 mm banding thickness range covers the two materials you will use most often: thin PVC for melamine cabinet components and real wood veneer for visible furniture faces. Running 0.3 mm PVC at the correct glue temperature produces a nearly invisible glue line, while 3 mm veneer demands a hotter pot and slower feed to ensure full adhesive penetration. The 1000 ml glue pot is sized for intermittent small-batch work; it holds enough adhesive for a full morning of panel edging without the waste and scorching you get from leaving a large pot heated all day. Trimming at 650W per motor gives clean cuts on both straight and curved profiles, and the dual 180W polishing units remove the residual burr that would otherwise show up as a rough edge when the customer runs a hand across the finished shelf. Minimum sheet dimensions of 25 cm length and 10 cm width mean you can edge-band small drawer fronts and narrow filler strips that larger automatic machines simply cannot grip [NEED_CITE: edge banding adhesive behavior across PVC and veneer substrates].
What Happens When You Skip the Configuration Conversation
Ordering a mini edge bander without confirming plug type and language seems harmless until the machine arrives with a three-pin UK plug in a workshop wired for US NEMA outlets, and the control labels are in a language the operator cannot read. Commissioning stalls. The electrician improvises an adapter that may not handle the 2500W load safely. The operator guesses at trimming adjustments and ends up chipping veneer on the first batch of panels. These are not catastrophic failures, but they eat days of productive time and erode confidence in the machine before it has run a single paid job [NEED_CITE: electrical safety standards for imported machinery].
Why Buyers Source This Machine Through This Store
Pre-shipment testing on the FX-20 includes a live edge banding run on the panel material you specify, so the test record you receive shows actual trim quality on your board thickness rather than a generic pass stamp. Voltage and plug configurations are set at the order stage and documented in the electrical schematic that ships with the machine. Language customization on the control panel is available for Spanish, Arabic, and other languages beyond the default Chinese and English. Every unit ships with a spare parts list referencing the exact trimming blades, polishing wheels, and glue pot seals you will eventually need. Engineers respond to configuration inquiries within one working day, so the back-and-forth on voltage confirmation does not drag into a second week.
Documentation & Verification
- CE declaration of conformity covering the FX-20 electrical and mechanical safety requirements
- Electrical schematic confirming your ordered voltage, frequency, and plug configuration
- Pre-shipment test record showing trim and polish results on your specified panel thickness
- Operation and maintenance manual supplied in your chosen language
- Spare parts list with part numbers for trimming blades, polishing wheels, and glue pot seals
Installation, Commissioning & Support
- Requires a dedicated 220V or 380V circuit matching the confirmed order specification; no shared line with welders or compressors
- Air compressor must deliver 0.5–0.8 MPa at sufficient flow for continuous trimming actuation
- Arrives fully assembled; uncrate, position on level floor, and connect power and air before first run
- First commissioning includes glue pot temperature calibration for your chosen PVC or veneer banding thickness
- Trimming and polishing adjustments walked through via video call using your actual panel material
- Spare blades and polishing wheels included for initial reorders without waiting for international shipping
Tell Us What You Need So We Ship the Right Unit
Send us your local voltage and frequency, the plug type in your workshop, and the primary panel material and thickness you will be edging. If you are running both PVC and veneer, let us know which one dominates your workload so we can set the glue pot temperature curve accordingly. Mention the control panel language your operators read, and we will match it before dispatch.
Frequently Asked Questions
Q: Is the FX-20 mini edge banding machine in stock and how fast can it ship?
A: The FX-20 is held in ready stock for single-unit orders. After you confirm voltage, plug type, and control language, the unit goes through pre-shipment testing and is handed to the freight forwarder. Actual transit time depends on your destination port and chosen shipping method, but the machine leaves our warehouse without waiting for a production slot.
Q: Can I order a single unit, or is there a minimum order quantity?
A: You can order one FX-20 with full configuration support. Single-unit orders receive the same voltage confirmation, language customization, and pre-shipment test record as larger batches. There is no minimum quantity requirement, and spare parts lists are included with every machine regardless of order size.
Q: How do I confirm the correct voltage and plug type before ordering?
A: Tell us your country and the electrical standard in your workshop. We cross-reference with our voltage configuration sheet and send you a written confirmation showing the exact voltage, frequency, and plug type that will be built into your FX-20. The electrical schematic ships with the machine so your electrician can verify the circuit before first power-on.
Q: What is included in the box when the machine arrives?
A: Each FX-20 ships fully assembled with an operation manual in your chosen language, an electrical schematic, a pre-shipment test record, a spare parts list, and an initial set of trimming blades and polishing wheels. Packing photographs are taken before crating so you can verify condition on arrival against the dispatch record.
Q: What after-sales support is available once the FX-20 is installed?
A: We provide remote commissioning guidance via video call, walking through glue temperature setup, trimming alignment, and polishing adjustment on your actual panel material. The spare parts list shipped with the machine allows you to reorder consumables directly. Technical questions are handled by the same engineering team that configured your unit.
