Description
Ready From Warehouse — DW3000 fully automatic 45 degree edge banding machine in stock, configured for your local voltage and dispatched within days, not weeks.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW3000 |
| Product Type | Fully Automatic 45 Degree Oblique Straight Edge Banding Machine |
| Total Power | 11 kW |
| Voltage | 380V / 415V (frequency to be confirmed before dispatch) |
| Feed Speed | 0–12 m/min |
| Minimum Sheet Length | 300 mm |
| Minimum Sheet Width | 150 mm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Pre-milling Motor | 2.2 kW |
| Heating Power | 2.2 kW × 2 (double heat gun) |
| Edge Feeding Power | 160 W |
| Transmission Power | 180 W |
| Trimming Power | 2.2 kW × 2 (spindle trimming, 3 spindle motors total) |
| Polishing Power | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4,000 ml |
| Air Source Pressure | 0.5–0.7 MPa |

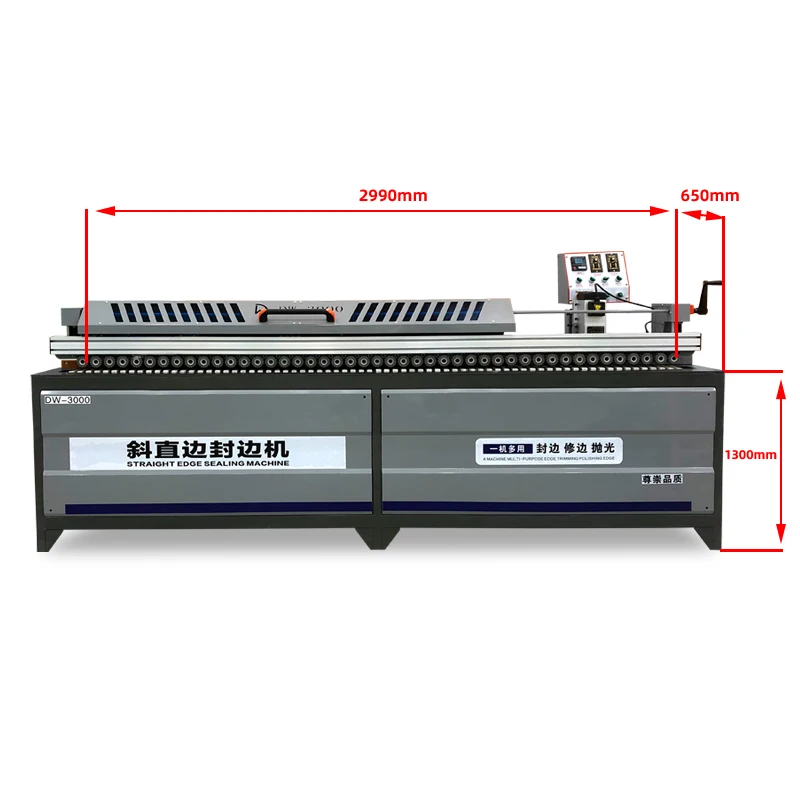

| Overall Dimensions (L×W×H) | 2,990 × 650 × 1,300 mm |
| Net Weight | 430 kg |
| Oblique Pressure Wheels | 8 groups, adjustable 30°–90° |
| Feeding Belt | Double cylinder |
| Control Panel Language | Chinese and English (configurable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
| Key Features | Plate pre-milling, 30°–90° oblique and straight edge banding, spindle trimming, flexible edge scraping, polishing, high-power vacuuming |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC banding, straight and bevel profiles |
| Wardrobe panel edge banding | Plywood and melamine-faced board with 0.3–3 mm veneer or PVC |
| Oblique-edge furniture components | Solid wood panels and MDF requiring 30°–90° bevel edge treatment |
| Small-batch bespoke joinery | Mixed panel materials where quick changeover between straight and angled edges is needed |
Why the Voltage Question Must Come Before the 45 Degree Edge Banding Machine in Stock Ships
Every dispatch is held until your local voltage, frequency, and plug type are confirmed in writing.
I once watched a workshop in Vietnam sit idle for three weeks because an edge bander arrived wired for a supply the factory did not have. The transformers were sourced locally, the cabinet maker missed a custom kitchen deadline, and the relationship was damaged before the machine even ran its first panel. That is not a risk worth taking on any piece of production equipment, let alone one you ordered for speed. When you are sourcing a 45 degree edge banding machine in stock, the conversation about electrical compatibility has to happen before the crate leaves the loading bay [NEED_CITE: voltage and frequency standards by export market].
Stock Availability and Dispatch Timing
The DW3000 is held in the warehouse as a complete, tested unit — not a semi-assembled frame waiting for final configuration. Once your electrical specifications and language preference are locked in, the machine moves through a pre-shipment verification and is released for dispatch. For buyers running tight project timelines or replacing a machine that has gone down mid-production, having a 45 degree edge banding machine in stock shortens the gap between order and first panel output to days rather than a multi-week production lead.
Oblique and Straight Edges on One Platform
Most workshops running custom furniture face a recurring problem: a job calls for a bevel edge on one cabinet run and a clean square edge on the next. Purchasing two dedicated machines for this is rarely justifiable at small-to-medium volume. The DW3000 handles both profiles through eight groups of oblique pressure wheels adjustable from 30° to 90°, meaning operators switch between angled and straight edge banding without leaving the machine [NEED_CITE: CE machinery directive requirements for industrial woodworking equipment]. This single-machine flexibility is exactly what makes it practical for a cabinet shop producing varied orders week to week.
Feed Speed, Panel Thickness, and Trim Quality
The 0–12 m/min feed speed range matters because edge banding quality is directly tied to how long the heated glue spends in contact with the panel edge at a given speed. Run PVC banding too fast and adhesion suffers on colder workshop mornings; run veneer too slowly and heat bleeds into the substrate. The double heat gun configuration (2.2 kW × 2) compensates by maintaining consistent glue temperature across the application zone. Panel thickness from thin 150 mm-wide stock up to 50 mm edge height is accommodated by the double cylinder feeding belt, which keeps the workpiece flat against the fence without chatter. The three spindle motors driving the trimming stage remove excess banding in one pass, and the flexible edge scraper follows up to clean residual glue lines — a sequence that reduces or eliminates hand-finishing on the bench afterward.
The Cost of Skipping Pre-Shipment Electrical Verification
Ordering any edge banding machine without confirming local supply conditions introduces a chain of delays that compounds quickly. The machine arrives, the electrician opens the panel, and the voltage does not match. Sourcing a transformer takes time the production schedule does not have. Panels pile up unfinished, downstream CNC boring stations sit idle, and delivery commitments to end customers slip. This is not theoretical — it is a pattern I have documented across multiple shipments to Southeast Asian and South American markets where industrial supply standards vary between regions [NEED_CITE: industrial voltage compatibility challenges in export markets]. The DW3000 ships only after your electrical schematic and local supply conditions have been cross-referenced and documented.
Why Source This Machine Here
The DW3000 is backed by a four-stage quality control sequence covering incoming material inspection, in-process checks, finished product testing, and pre-shipment verification — each unit is run on actual panel stock before it is crated. Voltage, plug type, and control panel language are confirmed per order, not left to chance. A formal quotation with engineer-led configuration guidance is issued within 24 hours of inquiry. The machine carries CE and ISO 9001 certification, and factory visits are welcomed for buyers who want to see the assembly floor and test run their own material. Spare parts lists and operation manuals are provided in the buyer’s agreed language, not as generic afterthoughts.
Documentation & Verification
- CE declaration of conformity matched to the DW3000 machine serial number
- Electrical schematic with your confirmed voltage, frequency, and plug type
- Factory test record showing edge banding results on your specified panel thickness
- Operation and maintenance manual written in your chosen language
- Packing photographs taken after final crating for your records
Installation, Commissioning & Support
- The 11 kW total power draw requires a dedicated 3-phase circuit at your confirmed 380V or 415V supply
- Overall footprint of 2,990 × 650 mm requires a level concrete floor with clearance on both feed and exit sides
- Machine ships fully assembled; connect power, compressed air at 0.5–0.7 MPa, and load edge banding material to begin
- First-run parameter setup covers glue temperature, feed speed, and pressure wheel angle for your material
- Spare parts list included identifies consumables: trimming blades, scraper inserts, feed belt wear parts
- Routine maintenance schedule covers glue pot cleaning intervals and polishing wheel replacement
What to Include With Your Inquiry
To move from inquiry to dispatch quickly, share your panel material types and the range of thicknesses you run, your local voltage and frequency, and the language your operators need on the control panel. If you are running existing upstream saws or downstream boring machines, noting their feed heights helps confirm the DW3000 fits your line without modification.
Frequently Asked Questions
Q: What is the typical dispatch lead time for a stocked DW3000?
A: Once your voltage, frequency, plug type, and control panel language are confirmed, the machine goes through pre-shipment testing and is released for dispatch. Stocked units avoid the multi-week production lead of built-to-order machines. Actual transit time depends on your destination port and chosen shipping method.
Q: How do I verify the correct voltage and plug type before ordering?
A: Share your facility’s supply specifications — voltage, phase, and frequency — at inquiry stage. An electrical schematic is prepared and sent to you for cross-referencing with your local electrician before the machine ships. This step is non-negotiable on every order to prevent on-site incompatibility.
Q: Can the control panel be set to a language other than Chinese or English?
A: Yes. The DW3000 control panel supports Spanish and other languages by request. Confirm your operator language during the specification review so the panel is configured before dispatch, not updated on-site during commissioning.
Q: What spare parts ship with the machine, and how are consumables reordered?
A: A spare parts list is included with every DW3000 delivery, identifying wear items such as trimming blades and scraper inserts. Consumables can be reordered directly; keeping a small on-site inventory of high-wear parts prevents unplanned downtime between shipments.
Q: Is a single-unit order possible, and what shipping options exist?
A: Single-unit orders are standard. The DW3000 ships as a complete machine crated for sea freight or air freight depending on your timeline. Shipping options and transit estimates are quoted once your destination and preferred Incoterms are confirmed.
