Description
Voltage-Confirmed Dispatch — every 802 unit leaves our warehouse with a photographed voltage nameplate and matching electrical schematic, preventing the on-site commissioning failures that stall production lines.
Technical Specifications
| Parameter | Value |
|---|---|

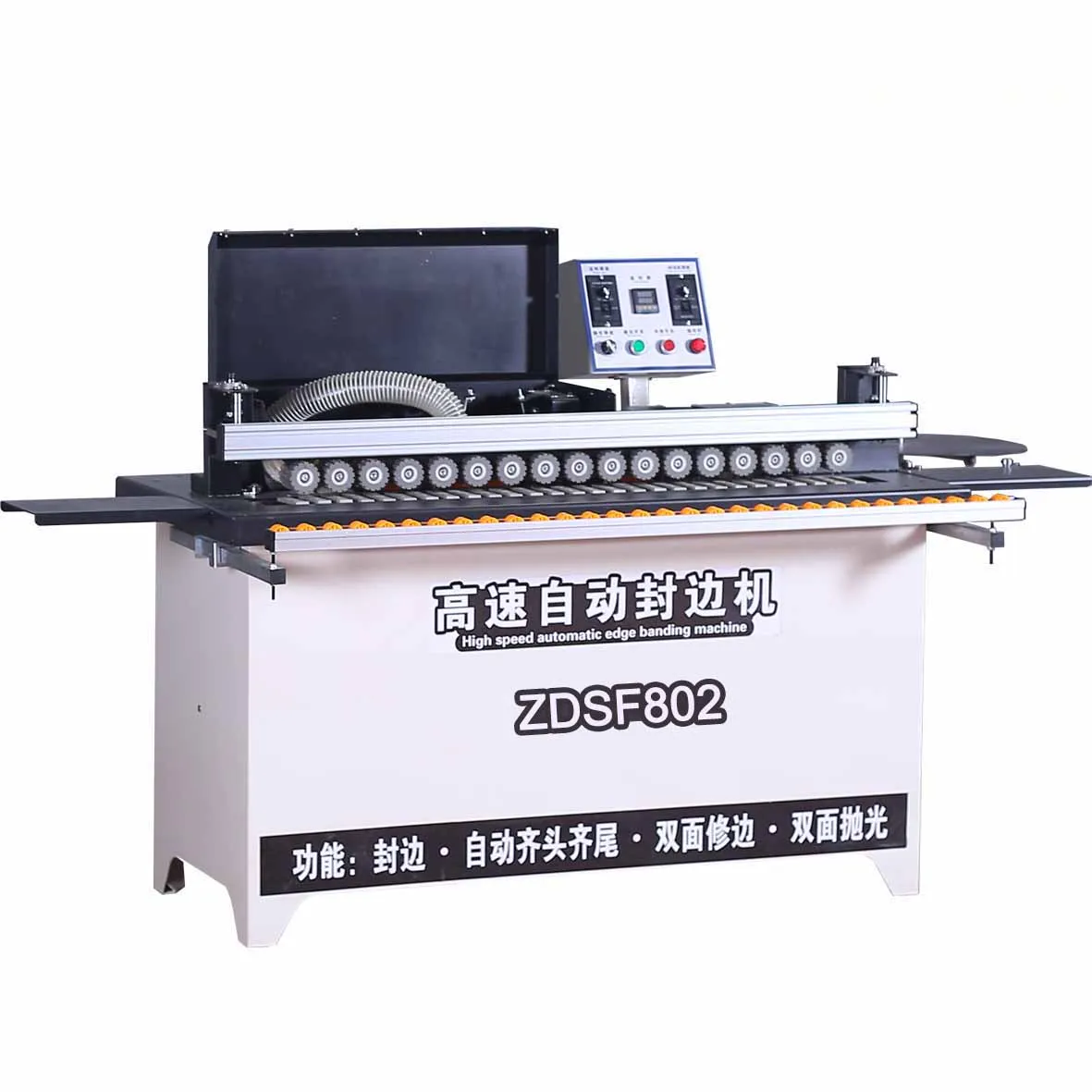

| Model | 802 |
| Product Type | Automatic PVC Edge Banding Machine |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W (heat-up 5–10 min) |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Control Panel | Digital display for glue pot temperature, independent switches |

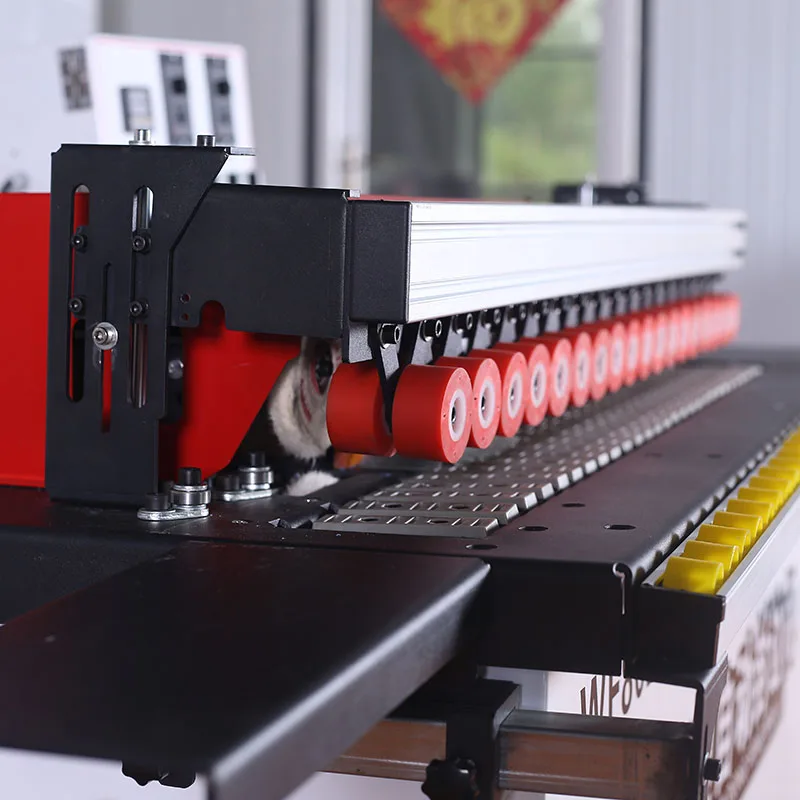

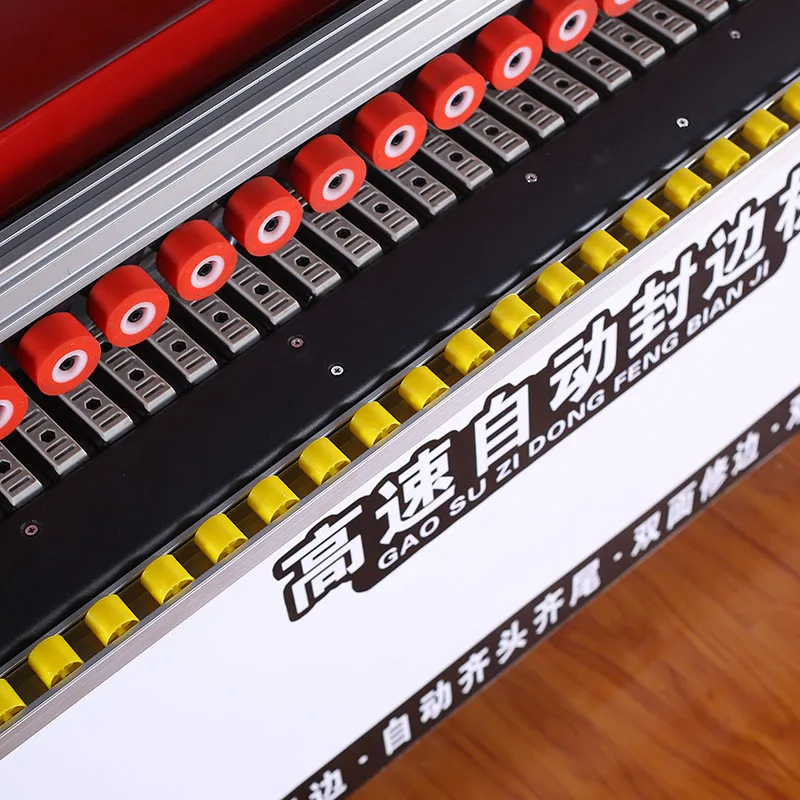

| Pressure Beam | One-piece integrated, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Auxiliary Feature | Extendable fluent strips for large plate support |
| Assembly State | KD packing with assembly required |
Application Suitability
| Application | Material or Output |
|---|---|
| Small-to-medium custom furniture workshops | MDF, particleboard, and plywood panels with PVC edge banding |
| Cabinet makers requiring straight-line edge finishing | Standard panel substrates with 0.5–2.5 mm PVC strips |
| Joinery operations upgrading from manual edging | Sheet thickness 10–50 mm with consistent banding quality |
| Panel processing plants handling batch runs | MDF and plywood boards requiring trimming and polishing |
Why the Voltage Question Must Come Before the Order
Confirming local voltage and frequency before dispatch is the single most important step for any Automatic Edge Banding Machine in stock purchase.
I learned this the hard way on an early shipment. A buyer needed an edge bander urgently, so we dispatched a stocked unit immediately — only to discover their workshop ran on 440V/60Hz while our inventory was wired for 380V. The machine tripped the breaker on first power-up, and their entire line sat idle while we reconfigured the electrical system. Since that incident, every stocked unit ships only after voltage confirmation is documented and the nameplate is photographed. [NEED_CITE: voltage and frequency standards by export market]
Ready Stock Means Faster Commissioning, Not Just Faster Shipping
When a workshop is scaling from hand-held edge banding to a stable machine process, waiting weeks for a built-to-order unit means lost production days. The model 802 Automatic Edge Banding Machine in stock is configured for immediate dispatch, reducing the gap between order placement and first panel output. The 220V rated configuration suits a wide range of single-phase workshop supplies, and the English-language digital control panel ensures operators can begin setup without translation delays.
Compact Footprint for Workshops With Limited Floor Space
Not every joinery startup has the square meters for a full-size edge banding line. At 130 × 65 × 75 cm, this machine fits into tighter production areas while still accommodating sheet thicknesses from 10 to 50 mm. The extendable fluent strips provide additional support when processing larger panels, and the silicone conveyor belt maintains grip without marking workpiece surfaces. For a small cabinet shop, this footprint means the machine can be positioned alongside existing saws and boring equipment without rearranging the entire floor layout. [NEED_CITE: workshop layout planning for small furniture manufacturers]
How Core Parameters Translate to Daily Production

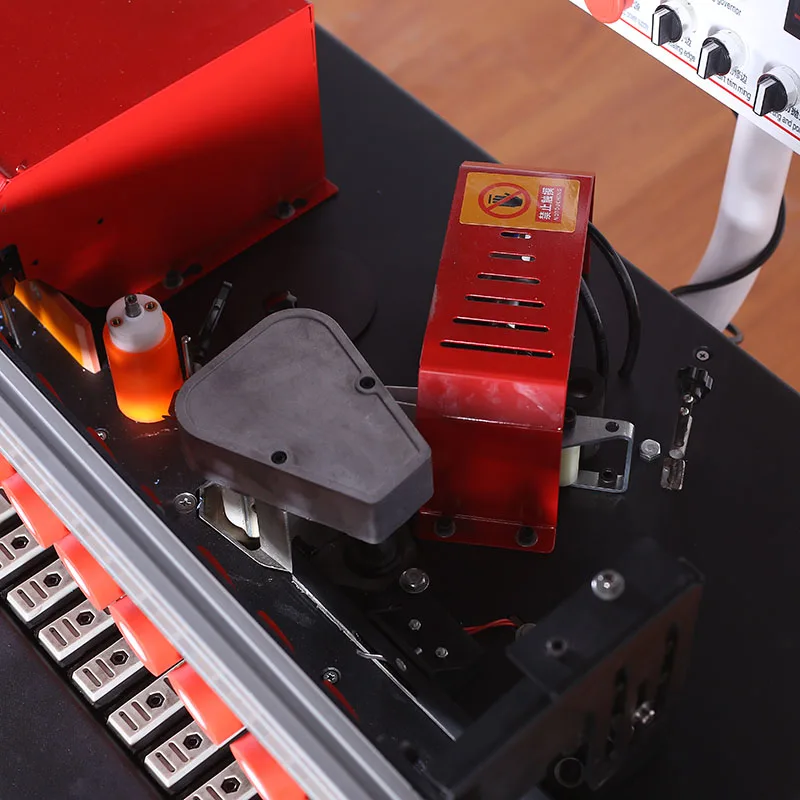

The 4000 ml glue pot capacity allows extended continuous runs without frequent refilling interruptions — a practical advantage when processing batch orders of cabinet panels. The double high-speed trimming motors at 800W each handle both upper and lower edge trimming in a single pass, which directly affects edge finish consistency on PVC strips between 0.5 and 2.5 mm thick. The integrated 1200W dust extraction system captures trimming debris at the source, maintaining visibility around the feed zone and reducing post-operation cleanup. Feed speed ranges from 0 to 10 m/min, giving operators control over throughput depending on panel complexity and edge material behavior.
The Hidden Cost of Skipping Specification Verification
Buying a stocked machine without confirming the air pressure requirement can lead to underperforming pneumatic functions — the belt breaking mechanism and pressure beam both depend on a stable 0.4–0.6 MPa supply. Workshops running older compressors may find the pneumatically controlled strip cutoff inconsistent, resulting in ragged edges that require manual rework. Similarly, skipping the voltage confirmation step risks motor damage or control board failure that voids warranty coverage. These issues rarely appear in quotation comparisons but surface within the first week of operation. [NEED_CITE: common commissioning failures in imported woodworking machinery]
Why Sourcing This Machine Through Our Stock Channel Works
Every stocked 802 unit undergoes pre-shipment testing with actual panel material before crating, so you receive a verified test record rather than a generic factory certificate. Voltage and frequency are confirmed against your local supply documentation before the machine leaves the warehouse — not after it arrives at your dock. The KD packing format with required assembly keeps shipping dimensions manageable, and our team provides assembly guidance via video call if your technicians need support during setup. Spare parts for high-wear items like trimming blades and polishing wheels are identified in the included parts list, making reorders straightforward.
Documentation & Verification
- Factory test record run on your specified panel thickness range before dispatch
- Electrical schematic confirming 220V wiring matched to your local supply
- Voltage nameplate photographed and archived prior to crating
- Operation and maintenance manual provided in your agreed language
- Spare parts list covering trimming blades, polishing wheels, and conveyor belt segments
- Packing photographs documenting crate condition before shipment
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for 4 kW continuous draw with appropriate breaker sizing
- KD packing means on-site assembly; allow clear floor space of at least 200 × 120 cm for uncrating
- Pneumatically controlled functions need a stable 0.4–0.6 MPa air supply connected before first run
- Glue pot requires 5–10 minutes heat-up at 1000W before PVC strip feeding begins
- Digital control panel walkthrough provided via video call during initial commissioning
- Silicone conveyor belt tension adjustment covered in the included maintenance manual
What We Need to Move Your Order Forward
To ensure the stocked unit matches your workshop conditions, provide your local voltage and frequency specification along with the panel materials and thicknesses you process most frequently. If your facility uses a specific edge banding material beyond standard PVC, share the strip thickness and brand so we can verify feed compatibility. Let us know your preferred language for the operation manual and whether you require door-to-door shipping or port delivery.
Frequently Asked Questions
Q: Is the model 802 currently in stock and how quickly can a single unit ship?
A: The 802 Automatic Edge Banding Machine in stock is available for single-unit dispatch. Once voltage confirmation and shipping details are finalized, the unit undergoes pre-shipment testing and crating. Typical dispatch from warehouse takes several business days depending on destination port scheduling and documentation preparation requirements.
Q: Can the 220V rated voltage be adjusted to match a different local power supply?
A: The stocked 802 units are configured at 220V. If your workshop operates on a different voltage or frequency, we can discuss available configurations before confirming your order. Voltage customization is arranged at the factory level, and lead times will differ from ready-stock dispatch windows.
Q: What shipping methods are available and can delivery go directly to my workshop?
A: Shipping options include sea freight to your nearest port or arranged door-to-door delivery depending on destination. The KD packing format keeps crate dimensions manageable for standard freight handling. We provide packing photographs and customs documentation support to facilitate smooth import clearance at your end.
Q: Which spare parts are included and how do I order replacements later?
A: Each shipment includes a spare parts list identifying consumable items such as trimming blades, polishing wheels, and conveyor belt segments. Replacement parts can be reordered directly through our stock channel using the part numbers in your documentation, ensuring compatibility with your specific machine configuration.
Q: Is installation support available after the machine arrives at my facility?
A: Assembly guidance is provided through video-based support covering KD unpacking, mechanical assembly, electrical connection verification, and first-run parameter setup. The included operation manual in your agreed language documents the full commissioning sequence for your technicians to reference during and after initial installation.
