Description
Fast Dispatch Readiness — every F802 unit leaves our Ningjin floor only after voltage, language, and control logic are confirmed against your local grid and operator needs, so commissioning starts on day one, not week three.
Technical Specifications
| Parameter | Value |
|---|---|

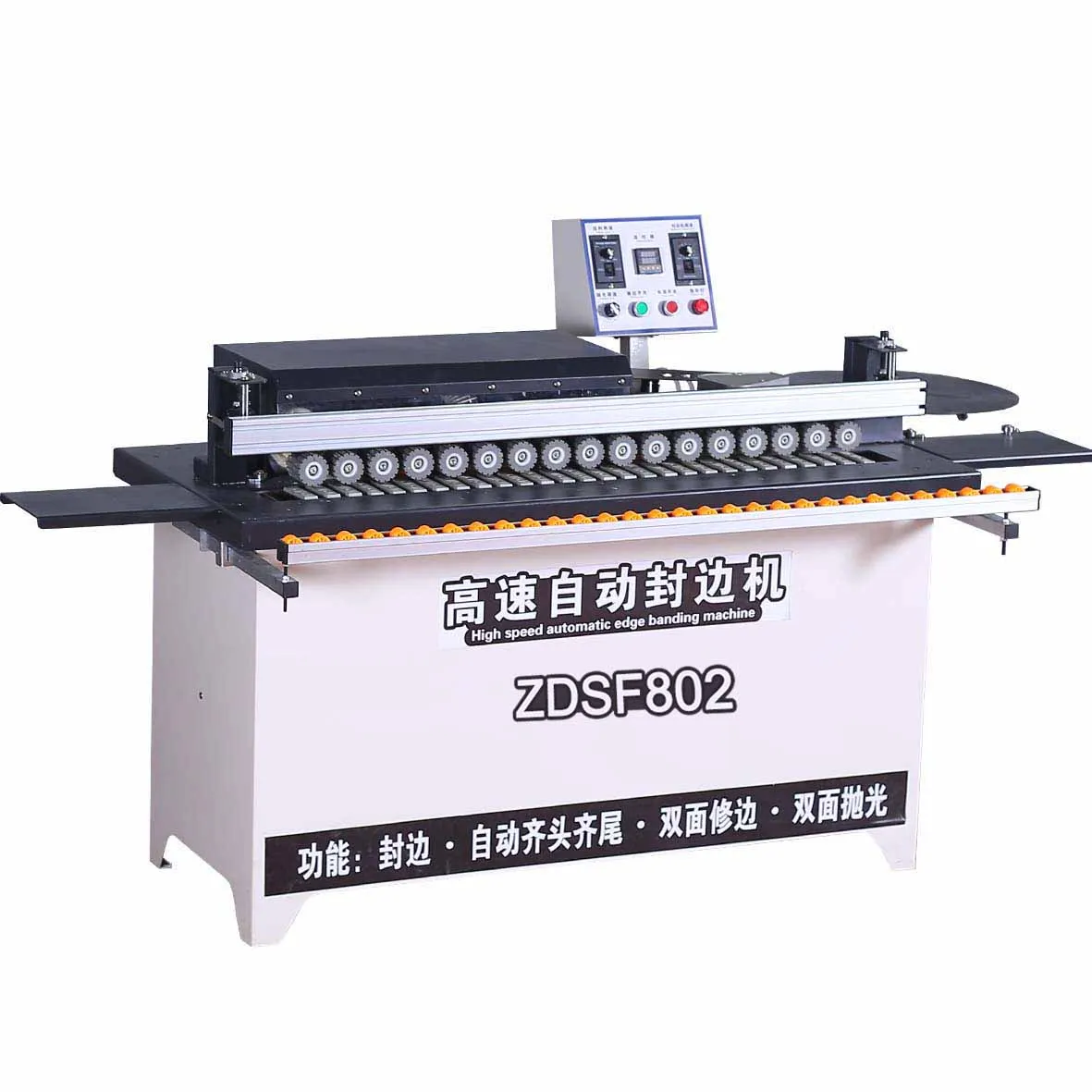

| Model | F802 |
| Product Type | Automatic Edge Banding Machine |
| Function Stations | Automatic plate feeding, end cutting, trimming (head & tail), upper & lower polishing, dust collection |
| Edge Type | Straight line |
| Rated Voltage | 220V (configurable from 110V to 440V on request) |
| Rated Power | 4 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Glue Pot Capacity | 4000 ml |
| Heating Power / Warm-up | 1000 W (5–10 min) |
| Trimming Power | 800 W × 2 (double high-speed motors, up & down) |

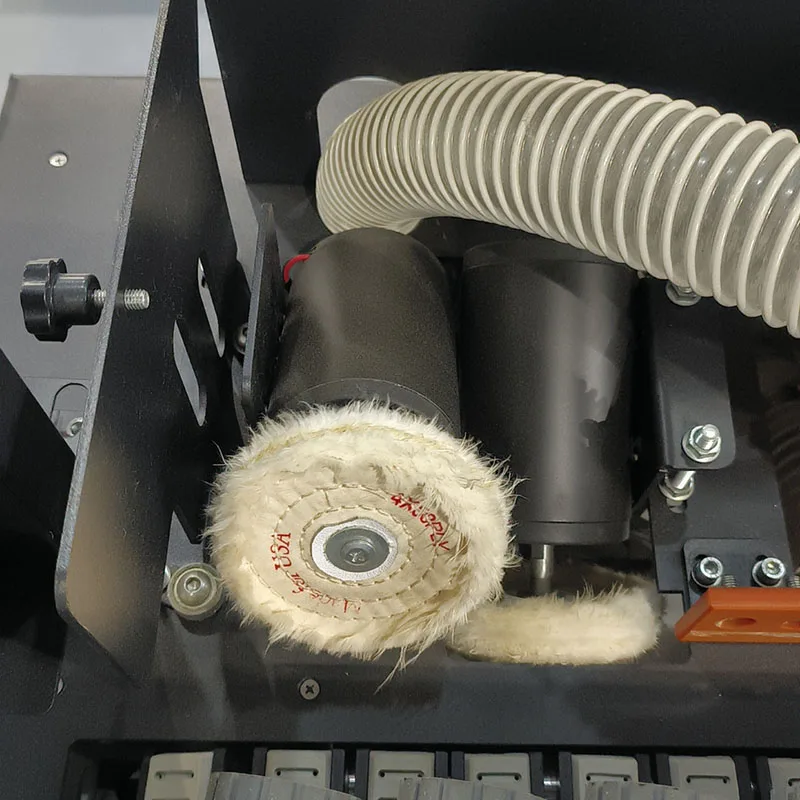

| Polishing Power | 180 W × 2 (up & down) |
| Suction Power | 1200 W (integrated dust collector) |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |

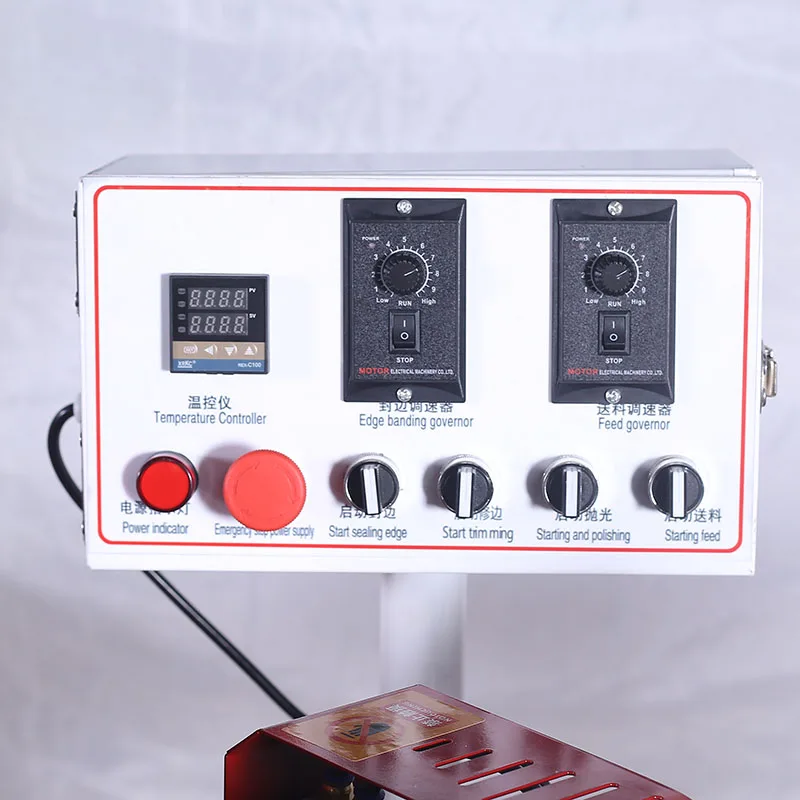

| Control Panel | Digital glue pot temperature display, independent switches |

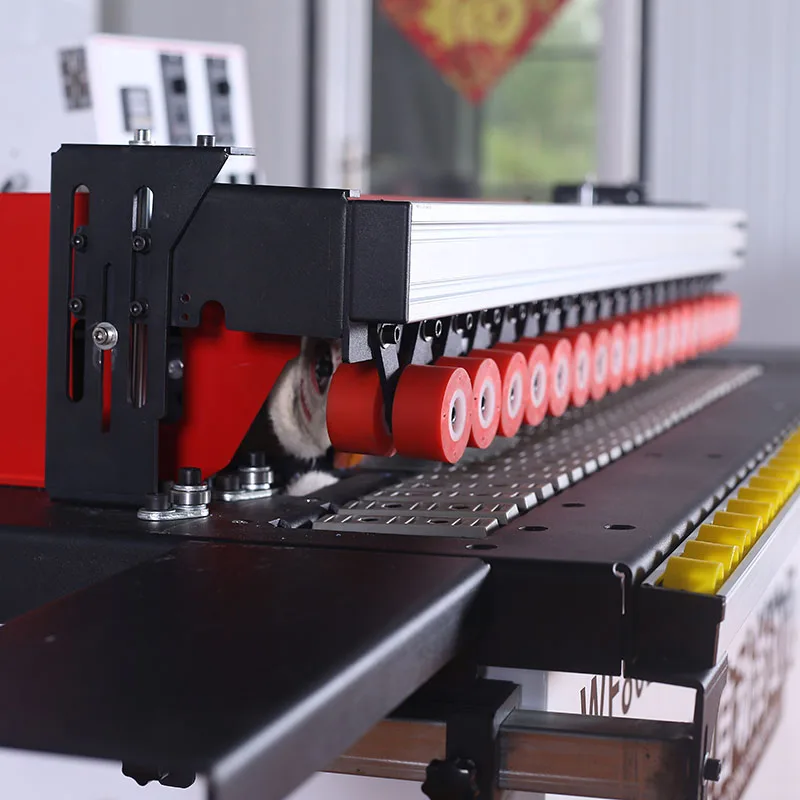

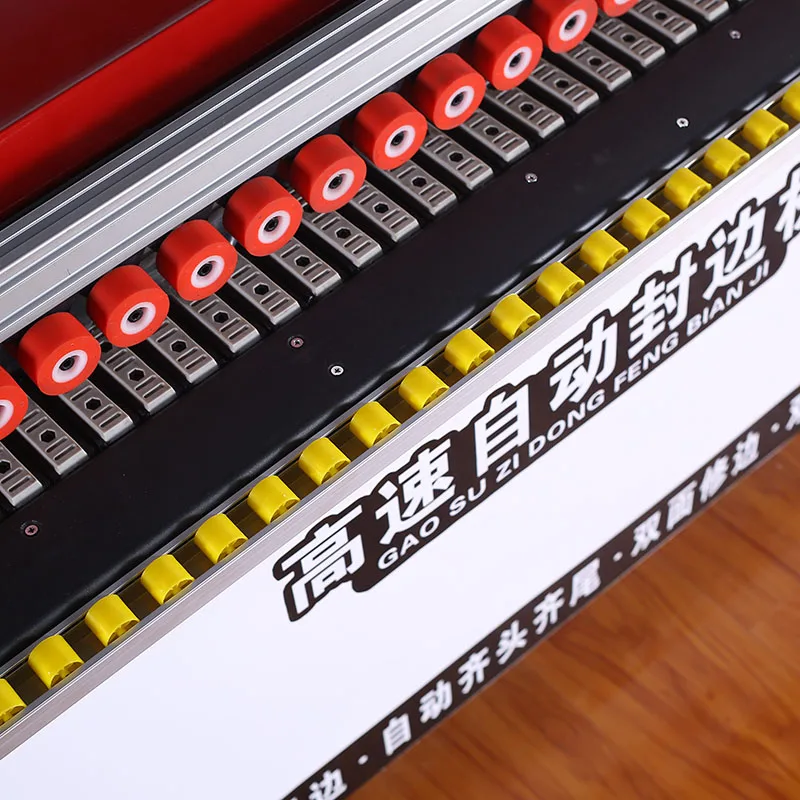

| Pressure Beam | One-piece integrated, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Extendable Support | Fluent strips for large plates |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge banding | MDF and particleboard with PVC strips 0.5–2.5 mm |
| Small-batch wardrobe panel finishing | Plywood panels 10–50 mm thick, veneer or PVC edge |
| Joinery workshop scale-up from manual banding | Straight-line MDF and plywood components |
| Regional distributor stock model | Compact automatic edge banding machine in stock for quick fulfillment |
Why the Voltage Question Must Precede the Shipment Date
A 220V machine wired into a 440V supply burns its transformer before the first panel is edged — and the replacement cycle stalls a workshop for weeks.
I watched that exact scenario unfold with a batch of automatic edge banders shipped overseas before the site voltage was confirmed in writing. The customer lost production days waiting for a new transformer and control board. Since then, every unit I prepare for dispatch — including this automatic edge banding machine in stock — goes through a three-point verification: rated voltage matched to the buyer’s grid, frequency confirmed at 50 Hz or 60 Hz, and plug or terminal type documented before the crate is sealed [NEED_CITE: voltage and frequency standards by export market]. Skipping that step saves one day in the warehouse and costs a fortnight on the factory floor.
Dispatch Speed Without Configuration Guesswork
Stock availability only matters if the machine you receive actually runs on your power supply and speaks your operator’s language. The F802 is held in inventory with its core mechanical assemblies complete, yet the final electrical configuration and control-panel labels are confirmed against each purchase order before dispatch. This approach keeps the lead time short while eliminating the silent mismatch that turns a fast order into a long problem. Buyers sourcing a single automatic edge banding machine in stock benefit from the same verification loop as those ordering a container load.
Single-Unit Orders Deserve the Same Pre-Shipment Audit
Many workshops are replacing one manual station at a time, which means a single edge bander must integrate cleanly with existing saws and drills already on the floor. The F802’s 75 cm working height and 130 cm footprint are measured against your line layout before the unit ships. Feed height, conveyor direction, and dust-extraction port orientation are noted on the packing photograph set so your installation team knows what to expect when the crate opens [NEED_CITE: typical workshop material flow planning for small furniture factories].
Reading the Numbers That Actually Matter on the Shop Floor
The 4000 ml glue pot sets the interval between refills during a continuous run; on 2 mm PVC at 10 m/min feed speed, that capacity sustains a long shift segment without operator interruption. The double high-speed trimming motors — 800 W each, positioned up and down — remove head and tail overhang in a single pass, which directly affects whether the next station receives a square edge or a rework ticket. Sheet thickness coverage from 10 to 50 mm means the same machine handles thin cabinet shelving and thicker worktop cores without a belt change. The integrated 1200 W dust collector pulls trim waste at the source, keeping the silicone conveyor surface clean and reducing the adhesive contamination that causes skip-gluing downstream.
What Happens When a Machine Arrives Without Local Verification
A control panel printed in a language your operator cannot read does not just slow the first day — it invites parameter mistakes during every subsequent setup change. Glue pot temperature set five degrees too high degrades the adhesive and leaves visible glue lines on lighter PVC; set too low and the bond fails during assembly. Pneumatic pressure dialed outside the 0.4–0.6 MPa window causes either belt slip or strip crush, and the operator blames the machine rather than the unmarked regulator [NEED_CITE: common edge banding defects linked to control panel misinterpretation]. These issues are preventable when language, voltage, and pressure markings are locked in before dispatch.
Why Buyers Source This Model Through Our Dispatch Channel
In-house manufacturing of the F802 means stock levels reflect actual production output, not third-party allocations, so the availability we quote is the availability we ship. Voltage and language customization is treated as standard configuration, not an upcharge negotiation, keeping the ordering conversation focused on your site conditions. A four-stage QC sequence — incoming material, in-process, finished product, pre-shipment — runs on every unit regardless of order size, and the pre-shipment test uses panel thickness and strip type specified by the buyer. Formal quotations with confirmed lead times are issued within 24 hours of receiving your processing requirements, and factory visits are open for buyers who want to witness the test run in person.
Documentation & Verification
- CE declaration of conformity referencing the F802 edge bander assembly
- ISO 9001 certificate covering manufacturing and dispatch processes
- Electrical schematic confirming your confirmed voltage and frequency
- Factory test record run on your specified panel thickness and strip material
- Operation manual in the language agreed at order placement
- Spare parts list with part numbers matching the shipped configuration
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated above 4 kW with earth continuity verified
- Overall 130 × 65 cm footprint needs 50 cm clearance on the infeed side for fluent-strip support
- Silicone conveyor belt tension checked after first thermal cycle at operating glue pot temperature
- Pneumatic line must deliver stable 0.4–0.6 MPa with inline filter installed before the regulator
- Digital temperature display calibrated against manual probe reading during commissioning visit or video call
- Trimming motor alignment verified on buyer’s own panel stock before production handover
Before You Request a Quote
Send us your target panel material and thickness range, the edge strip type and thickness you run most often, and the local voltage and frequency at your facility. If you are slotting the F802 into an existing line, share the infeed and outfeed heights of neighboring machines so we can confirm conveyor alignment. Let us know the control-panel language your operators prefer, and we will return a configuration proposal with confirmed dispatch timing within one working day.
Frequently Asked Questions
Q: What is the current stock status and fastest dispatch window for the F802?
A: Core assemblies are held in inventory at our Ningjin facility, and final electrical and language configuration is completed after order confirmation. Dispatch typically follows within a short window once voltage and panel specifications are verified. Share your destination port and we will quote the packing and freight timeline together.
Q: My workshop runs on a voltage other than 220V — can the F802 be configured accordingly?
A: Yes. The machine is configurable across a wide voltage range on request. We confirm the exact voltage and frequency of your site before production finalization so the transformer, motor wiring, and control components match your grid. No unit ships without this written confirmation.
Q: Will the control panel and operation manual be available in my local language?
A: Control-panel labels and the operation and maintenance manual can be produced in the language you specify at order placement. We confirm the language version during the specification review so your operators can read temperature settings and fault codes from the first day.
Q: Is single-unit ordering supported, and does it affect quality checks?
A: Single-unit orders receive the same four-stage QC sequence as production runs, including a pre-shipment test on your specified panel thickness and strip material. Ordering one machine does not reduce the documentation package or the verification steps before dispatch.
Q: Will the F802 arrive assembled, and how is installation handled?
A: The machine ships in a near-complete state requiring utility connections rather than mechanical reassembly. We provide installation guidance covering electrical hookup, pneumatic supply setup, and first-run parameter tuning, supported by video call or on-site arrangement depending on your location.
