In Stock Automatic Edge Banding Machine for MDF and PVC

Description

Stocked Inventory — ZDSF802 units are tested on your actual panel material and voltage before dispatch, shipping from ready inventory for fast workshop deployment.

Technical Specifications

Application Suitability

Why Voltage Confirmation Must Happen Before the Order Ships

An Automatic Edge Banding Machine in stock fast delivery is only useful if it actually runs when it arrives at your workshop.

I once watched a container get unloaded in the Middle East where the buyer assumed 220V/50Hz was universal. The machine powered on, but the heating element could not reach glue melting temperature at their local frequency. Two days of remote video calls followed while we rewired the control panel and swapped contactors. [NEED_CITE: voltage and frequency standards by export market] That unit is the reason every ZDSF802 leaving our floor now gets a voltage confirmation call before the crate is nailed shut. An Automatic Edge Banding Machine in stock fast delivery means nothing if it sits idle on your shop floor.

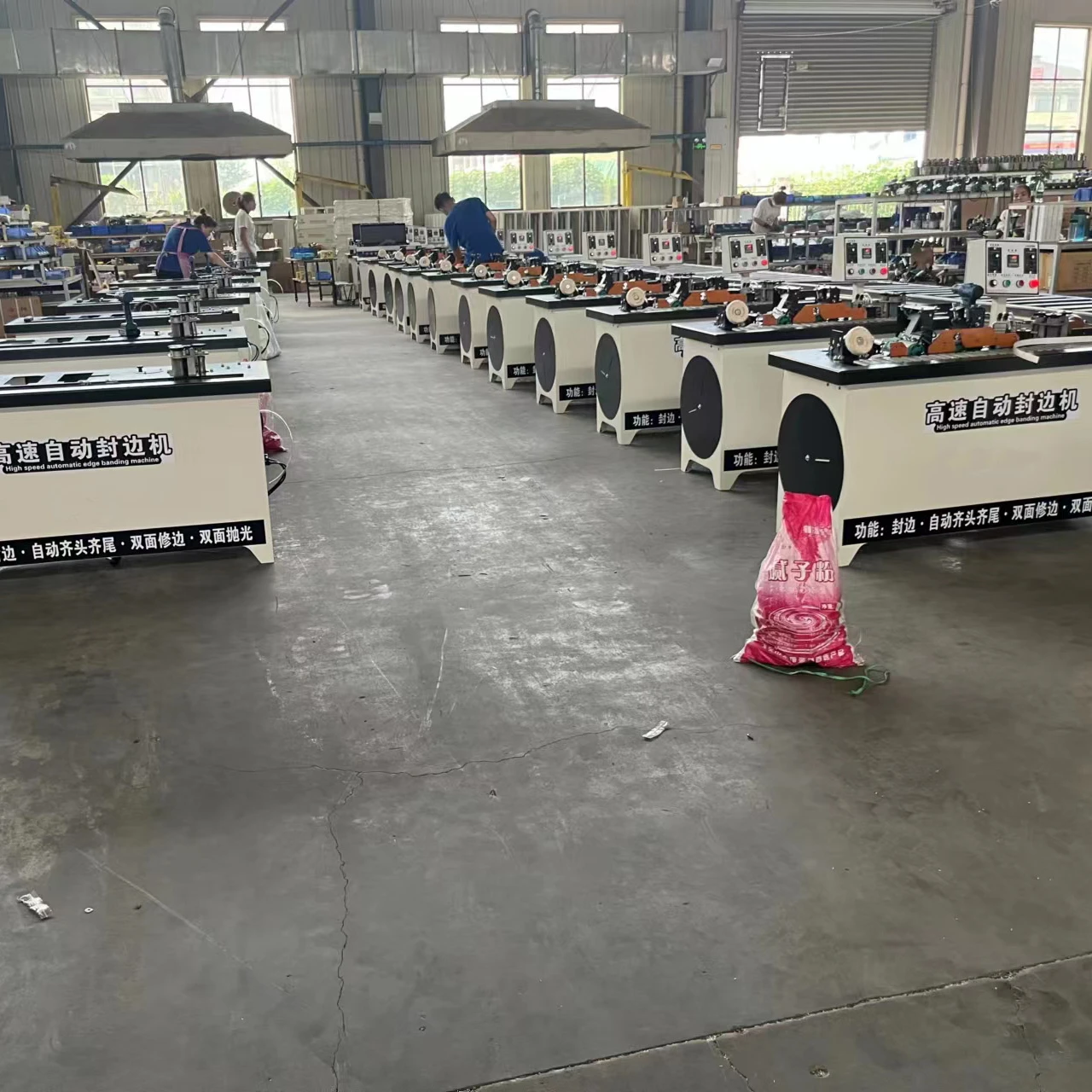

Dispatch Without the Wait

Workshops scaling from manual edge banding rarely have months to wait on custom builds. The ZDSF802 sits in ready inventory so your line gains capacity within days, not weeks. Single-unit orders ship without minimum-quantity hurdles, and shipping options are quoted upfront so you know the landed timeline before committing.

Stocked Units Still Get Individual Verification

Inventory on the floor does not mean untested. Before any ZDSF802 is crated, we run your specified panel material through a full gluing-to-polishing cycle. Feed speed, glue temperature, and trimming depth are recorded on a factory test sheet that ships inside the crate. [NEED_CITE: pre-shipment verification practices for woodworking machinery exports]

How the Glue Pot and Feed Path Handle Real Workshop Conditions

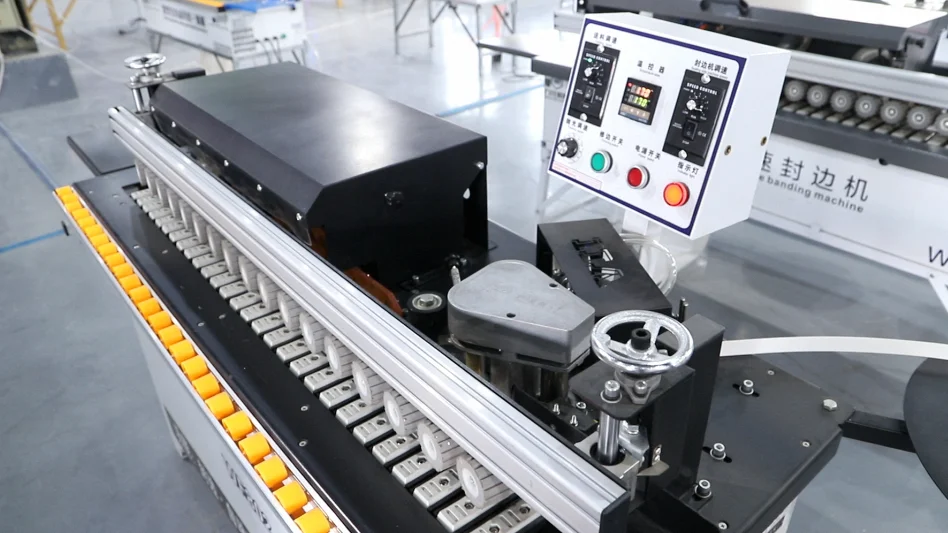

The 4000 ml glue pot capacity means fewer refill interruptions during continuous runs on batch cabinet orders. The 1000W heating element brings EVA adhesive to working temperature within minutes, and the digital temperature display on the independent switch panel lets operators confirm melt consistency before the first panel enters. The one-piece integrated pressure beam with double-row pressure wheels keeps sheets flat against the silicone conveyor belt, which prevents the micro-slip that causes uneven glue transfer on thinner MDF substrates.

Trimming, Polishing, and What Tolerance Means Downstream

Two 800W trimming heads handle the end-cut and flush-trim passes, followed by 180W polishing motors that clean residual adhesive from the panel face. The pneumatically controlled belt breaking mechanism cuts the strip precisely at the panel end, reducing manual touch-up. When trimming holds close to the panel edge, downstream boring and assembly stations do not inherit cumulative error from oversized banding overhang.

What Happens When a Machine Is Never Meant for Your Volume

Entry-level edge banders sold into continuous production shifts overheat glue pots and wear pressure wheels past their service window long before scheduled maintenance. [NEED_CITE: duty cycle mismatches in small woodworking machinery] Operators compensate by slowing feed speed, which then creates a bottleneck that ripples back to the panel saw and forward to the boring station. The entire line throughput drops, and the workshop blames the wrong machine.

Why Purchasing Here Reduces Commissioning Risk

Stocked ZDSF802 units are matched to your voltage and panel specifications before dispatch, not after arrival. Factory test records travel with the machine, so your operators see the baseline parameters the moment the crate opens. Spare parts lists are tailored to this model, and operation manuals are printed in the language your floor team reads. Engineering support is available from the team that assembled the unit, not a call center reading from a script.

Documentation & Verification

• CE declaration of conformity matched to the ZDSF802 serial number
• Factory test record run on your panel thickness and edge strip material before dispatch
• Electrical schematic confirming 220V wiring and configurable voltage options
• Operation and maintenance manual in your specified workshop language
• Packing photographs showing crated machine and included spare parts
• Spare parts list covering first-year consumables for glue pot, trimming blades, and polishing wheels

Installation, Commissioning & Support

• Requires a dedicated 4 kW circuit with correct amperage breaker for the 220V supply
• Arrives partially assembled; full setup guided by included manual and video
• Pneumatic belt breaking requires connection to workshop air supply at 0.4–0.6 MPa
• First-run calibration covers glue temperature, feed speed, and trimming depth
• Extendable fluent strip must be leveled to the conveyor belt height for large panels
• Silicone conveyor belt inspection recommended monthly to prevent feed slippage

What We Need From You to Release Your Unit

Confirm the panel materials you process daily, the PVC or veneer strip thickness range, and your workshop voltage and frequency. If your existing line has upstream saws or downstream boring machines, share their feed heights so the ZDSF802 conveyor aligns without manual transfer gaps.

Frequently Asked Questions

Q: Is the ZDSF802 currently in stock, and how quickly can it ship?
A: Yes, ZDSF802 units are held in ready inventory. Once your voltage and panel specifications are confirmed, dispatch preparation typically takes a few business days including a factory test run on your material. Shipping timelines depend on your destination port and chosen freight method, both quoted before you commit.

Q: Can you verify 220V compatibility for my country before I place the order?
A: We confirm your local voltage and frequency before any ZDSF802 leaves the factory. If your supply differs from the standard 220V configuration, engineering can adjust the wiring and control components across a 110V to 440V range. The electrical schematic reflecting your confirmed supply ships with the machine.

Q: What edge banding materials and thicknesses does this machine handle?
A: The ZDSF802 processes PVC and veneer edge strips from 0.5 mm to 2.5 mm thick on straight edges. It handles panel substrates including MDF, particleboard, plywood, and solid wood panels between 10 mm and 50 mm thick. Feed speed is adjustable up to 10 m/min depending on material and glue requirements.

Q: Do you provide shipping and customs clearance support for single-unit orders?
A: Single-unit orders ship without minimum-quantity requirements. We provide packing photographs, customs documentation, and freight options quoted upfront. Door-to-door delivery and customs clearance depend on your destination and chosen logistics partner, which we help coordinate before dispatch.

Q: What spare parts come with the machine, and how do I order replacements?
A: Each ZDSF802 ships with a spare parts list covering first-year consumables including trimming blades and polishing wheels. Replacement parts are available directly from the factory by referencing your machine serial number. The included maintenance manual specifies replacement intervals for each component.
