Description
Dispatch-Verified Stock — every ZDSDW3000 unit leaves our Shandong floor only after its electrical schematic is matched against your workshop’s confirmed supply voltage and frequency.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSDW3000 |

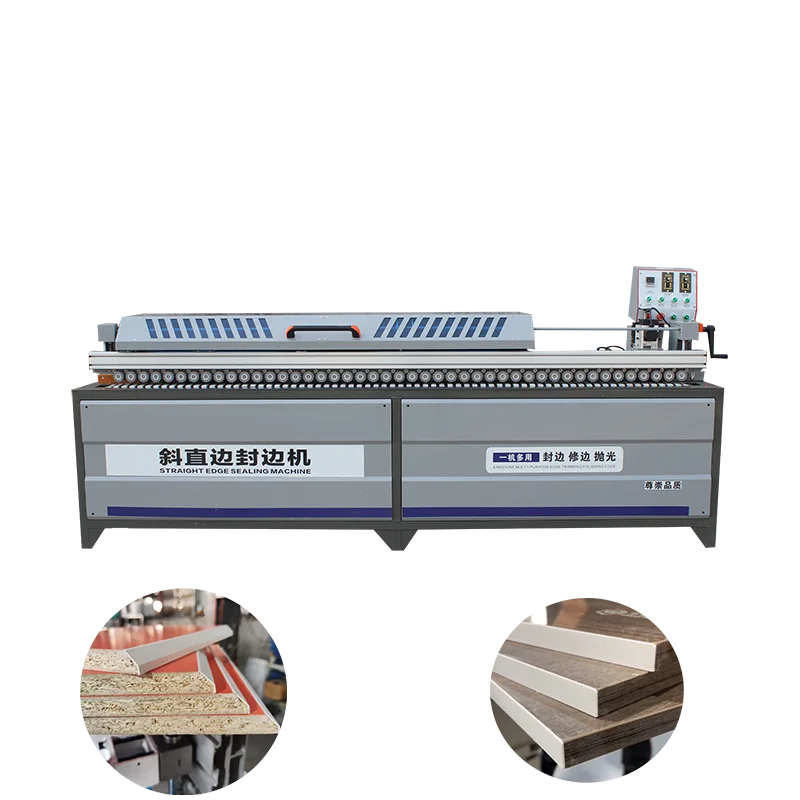

| Product Type | Oblique Straight Edge Banding Machine |

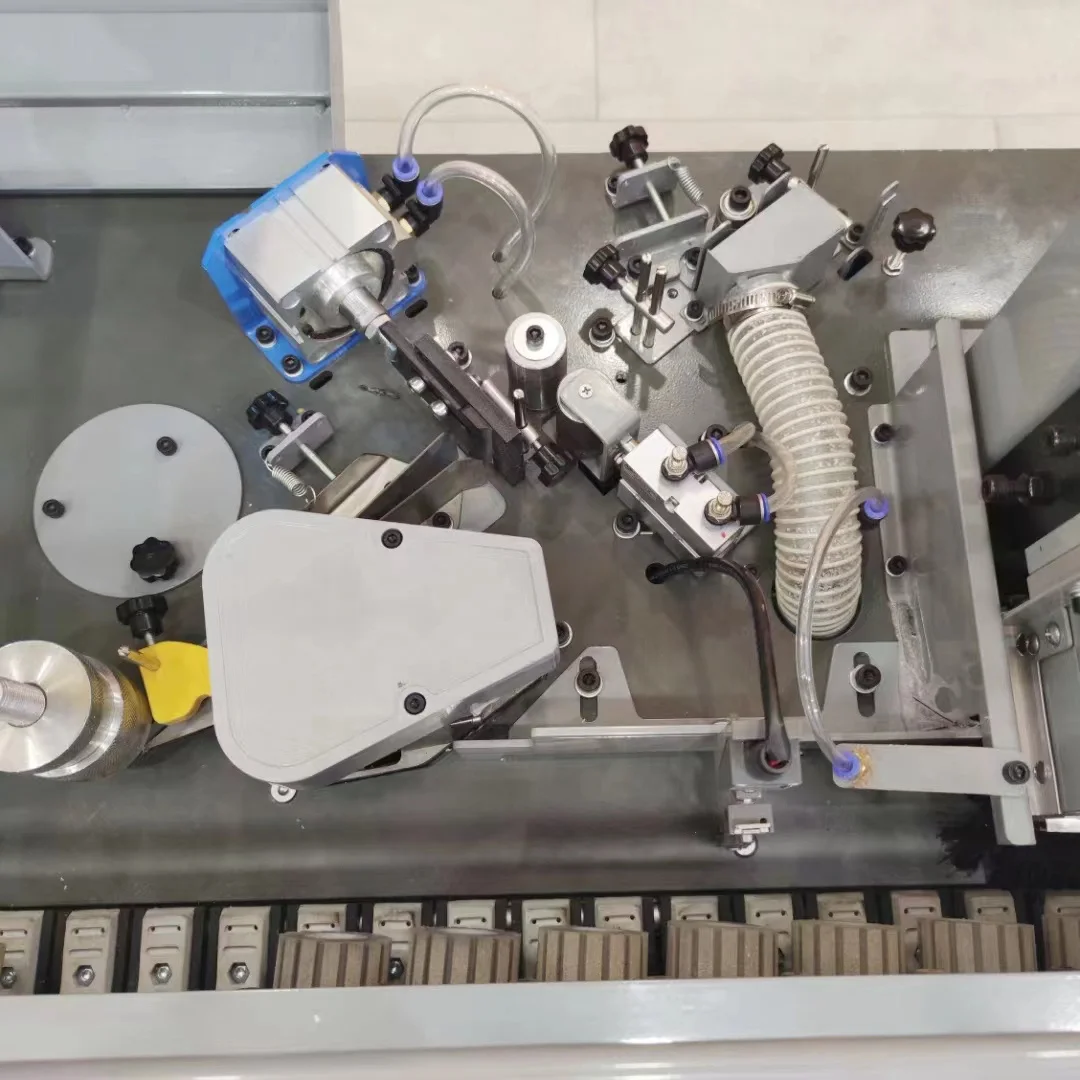

| Function Stations | Gluing, Fine Trimming, Rough Trimming, End Trimming, Scraping, Buffing |
| Pre-milling | Equipped with dedicated pre-milling motor |
| Bevel Pressing | 8 groups, adjustable 30°–90° |

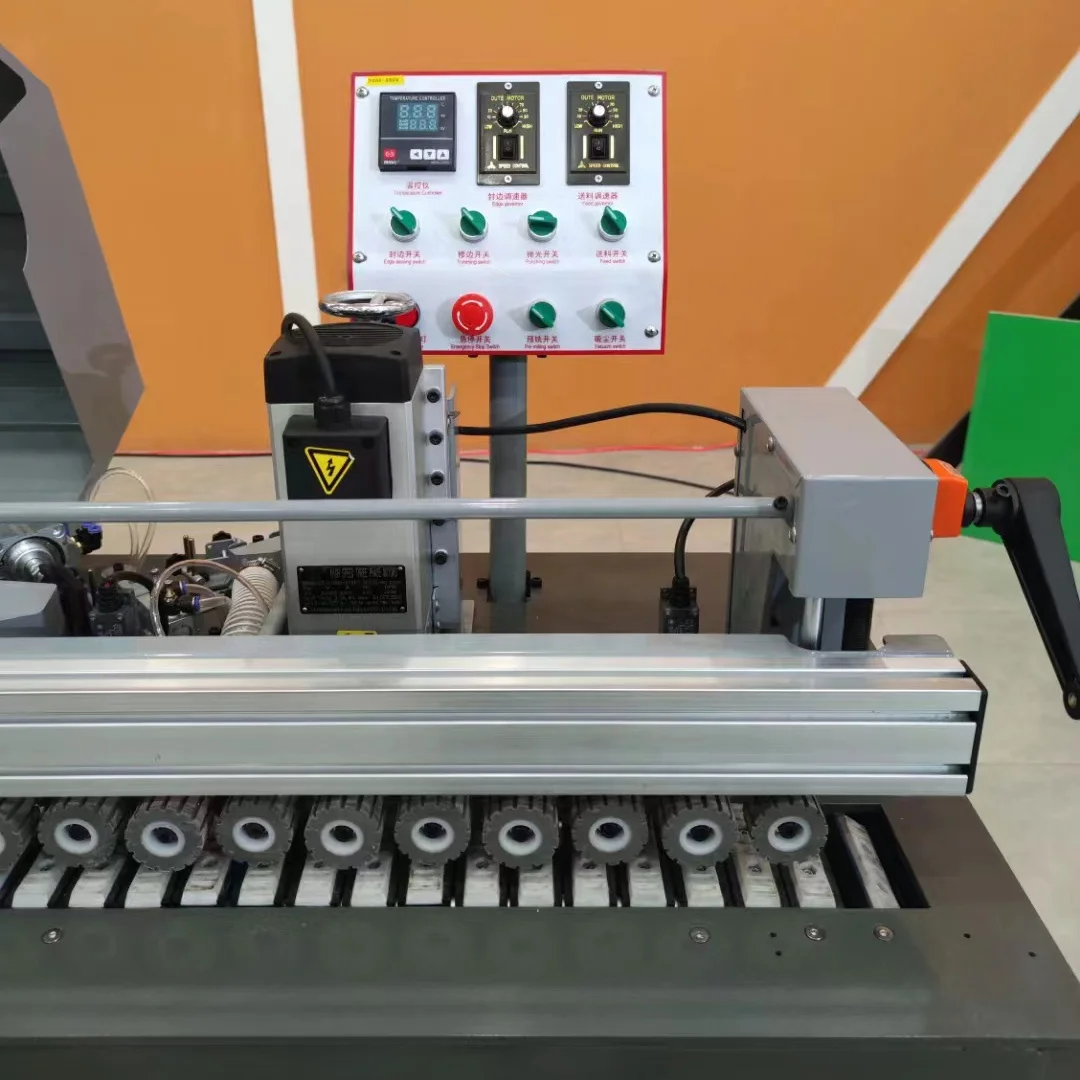

| Pressure Beam Height Adjustment | Digital display |

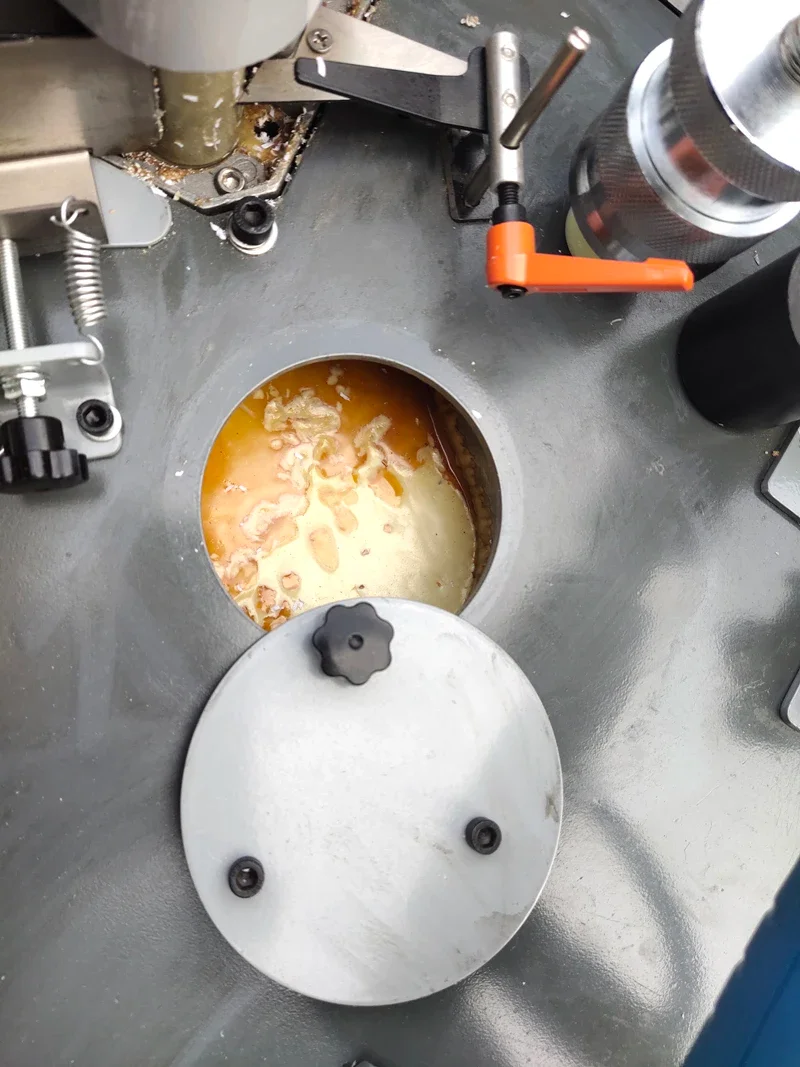

| Gluing Device | Enhanced contact design for edge-to-board adhesion |
| Buffing / Polishing | Dual motors, up and down polishing |
| Dust Extraction | Large-diameter suction tube |
| Overall Dimensions (L×W×H) | 2990 × 650 × 1300 mm |
| Voltage & Frequency | Configurable — confirm local supply before dispatch |
| Feed Speed | To be confirmed at quotation |
| Panel Thickness Range | To be confirmed at quotation |
| Rated Power | To be confirmed at quotation |
| Certification | CE status to be confirmed at quotation |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Straight-edge panel processing for furniture assembly | Plywood panels with melamine or veneer banding |
| 45° bevel edge profiles for decorative joinery | MDF and particleboard with PVC or ABS banding |
| Small-batch production runs in joinery workshops | Mixed board materials requiring quick changeover |
Why the Voltage Question Must Come Before You Click "Buy"
A ready-to-ship oblique straight edge banding machine in stock is worthless if it arrives wired for a supply your workshop does not have.
I spent years on the assembly floor before moving into order fulfillment here in Shandong. A few years back, a buyer in Southeast Asia received an edge bander configured for 440 V while their facility ran 380 V. The machine sat idle for three weeks waiting for a step-down transformer. That unit was not our brand, but the lesson stuck with me permanently. Every ZDSDW3000 that I release for dispatch now goes through a voltage and frequency cross-check against the buyer’s confirmed local electrical standard before the crate is sealed [NEED_CITE: voltage and frequency standards by export market]. The cost of getting this wrong is not just a transformer — it is lost production days, idle operators, and missed delivery commitments to your own customers.
Stock Availability and What "Ready to Ship" Actually Means
When you source an oblique straight edge banding machine in stock from our Shandong facility, the unit has already passed through incoming material inspection, in-process assembly checks, and a functional run test. The ZDSDW3000 is a designation-class machine that sits in our ready-dispatch area only after the full station sequence — pre-milling through buffing — has been verified on sample panels. We do not list machines as available if they still require major assembly or if critical components like the bevel pressing groups are pending calibration.
Lead Time Realities for International Buyers
Fast dispatch is the entire reason ruiqistore.com exists as a channel. For buyers who have confirmed their electrical requirements and shipping destination, the ZDSDW3000 oblique straight edge banding machine in stock can move from our warehouse to the port within a matter of days, not weeks. Sea freight transit remains the variable we cannot control, but the origin-side delay — the paperwork, the crating, the customs declaration — is where we concentrate our effort [NEED_CITE: typical sea freight transit windows from Qingdao port]. Buyers ordering single units benefit from the same dispatch process as those placing multi-machine orders.
What the Eight-Group Bevel Pressing System Changes for Your Output
The ZDSDW3000 carries eight adjustable pressing groups covering a 30° to 90° angle range. In practical terms, this means a single machine handles both standard straight-edge PVC banding and 45° bevel profiles that decorative cabinet work demands, without requiring a separate specialized unit. The digital display on the pressure beam lets operators dial in the correct height for different panel thicknesses rather than relying on manual shimming, which introduces inconsistency across a production run. Pre-milling ahead of the gluing station cleans up saw marks on the panel edge, giving the adhesive a smoother substrate to bond against — this matters most on particleboard where torn fibers at the cut line are common.
When a Machine Specified for Light Duty Meets Production Volume
One pattern I see repeatedly is workshops purchasing a compact edge bander for occasional use, then pushing it through eight-hour production shifts as order volume grows. The ZDSDW3000 is configured with a full six-station function sequence and pre-milling, which positions it for sustained furniture panel edge banding work. However, feed speed and daily throughput capacity must be matched to your actual panel volume before the order is finalized. Running any machine of this class beyond its designed duty cycle accelerates wear on trimming cutters and buffing wheels, and glue pot temperature stability becomes harder to maintain over extended runs [NEED_CITE: edge banding machine duty cycle and cutter wear patterns]. This is a configuration conversation, not a sales conversation — and it should happen before you commit.
Why Buyers Source This Machine Through Our Dispatch Channel
The ZDSDW3000 moves through our in-house manufacturing with the same four-stage quality control applied to our made-to-order lines: incoming material inspection, in-process assembly verification, finished product testing, and pre-shipment validation. Voltage and frequency are configured to your local supply as standard practice, not as a paid extra. The pre-milling mechanism uses our proprietary cutting design, which holds tight edge tolerances that matter when panels go into assembly jigs downstream. You receive a complete documentation package — not a generic brochure — tied to your specific unit. Single-machine orders receive the same engineer-led configuration review that larger production line projects get, because a machine that arrives misconfigured costs you the same downtime regardless of order size.
Documentation & Verification
- Factory test record run on your specified panel thickness and edge banding material before dispatch
- Electrical schematic confirming voltage and frequency match your workshop supply
- Operation and maintenance manual provided in your agreed operating language
- Spare parts list with part numbers matching the ZDSDW3000 unit you receive
- Packing photographs documenting machine condition at the point of crating
Installation, Commissioning & Support
- Confirm your workshop has a dedicated circuit matching the ZDSDW3000’s confirmed voltage and amperage before arrival
- The 2990 mm machine length requires clear floor space plus operator access on both long sides
- Digital display beam height must be calibrated to your actual panel thickness range on first power-up
- Pre-milling cutter alignment and all six trimming stations are verified during commissioning guidance
- Dust extraction large-diameter suction tube connects to your existing collection system or standalone extractor
- Buffing dual-motor up/down wheels and scraper blades are consumables covered in the initial spare parts kit
Before You Request a Quote
To match the right ZDSDW3000 configuration to your workshop, share your local voltage and frequency, the primary panel materials and thickness range you run, and whether you need straight-edge only or both straight and bevel edge capability. If you have existing upstream saws or downstream boring machines, noting their feed height and throughput helps us confirm the edge bander fits your line without creating a bottleneck.
Frequently Asked Questions
Q: Is the ZDSDW3000 currently in stock and how fast can it ship?
A: Availability of the ZDSDW3000 oblique straight edge banding machine in stock is confirmed at the point of inquiry. Once your voltage, frequency, and shipping destination are verified, dispatch from our Shandong facility typically takes a matter of days. Sea freight transit time to your port depends on destination and carrier scheduling, which we confirm at quotation.
Q: Will you confirm the voltage matches my country’s supply before shipping?
A: Yes. This is a non-negotiable step in our dispatch process. We require your workshop’s confirmed voltage and frequency before the machine is finalized for shipment. The electrical schematic is cross-checked against your local standard so the ZDSDW3000 arrives ready to connect, eliminating the transformer delays that plague unverified orders.
Q: What edge banding materials does the ZDSDW3000 handle?
A: The ZDSDW3000 is configured for PVC and veneer edge banding on MDF, particleboard, and plywood substrates. The pre-milling station and enhanced-contact gluing device support reliable adhesion across these material combinations. If you work with ABS or other specialty banding materials, specify this during quotation so we confirm compatibility.
Q: How is the machine packed and what shipping options exist?
A: The ZDSDW3000 is crated with protective packing at our Shandong facility, and packing photographs are provided before dispatch. Shipping options are quoted based on your destination port. We handle customs documentation and supply the full export paperwork package so your local clearing agent has everything needed on arrival.
