Description
Verified Electrical Readiness — Every ST-30 leaves the factory with a signed voltage and plug confirmation sheet, ensuring your portable edge banding machine powers up on arrival without transformer delays.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-30 |
| Product Type | Portable Edge Banding Machine |
| Rated Power | 1000W |
| Voltage & Frequency | 220V / 380V / customization (frequency to be confirmed at order) |
| Control System | Manual operation with motorized feed |
| Overall Dimensions (L×W×H) | 38×35×35 cm |
| Net Weight | 12 kg |
| Working Capacity Range | Straight and curved edge banding |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 3 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Edge Motor Power | 20W |
| Air Supply Requirement | 0.5–0.8 MPa |
| Glue Pot Capacity | 1000 ml |
| Language Options | Chinese, English; customizable to Spanish and other languages |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Portable, compact tabletop unit |
Application Suitability
| Application | Material or Output |
|---|---|
| Small furniture workshop edge finishing | PVC and ABS tape on MDF and particleboard panels |
| On-site interior decoration banding | Melamine and veneer tape on plywood for custom cabinetry |
| Curved profile edge treatment | ABS and PVC tape on shaped MDF and solid wood components |
| Startup joinery replacing manual edging | PVC and melamine tape on particleboard shelving and cabinet parts |
Why the Voltage Question Should Come Before the Price on a Portable Edge Banding Machine in stock
A machine that cannot run on your local grid is not a bargain — it is a liability sitting on your workshop floor.
I have stood in a furniture factory in West Africa watching a brand-new edge bander sit idle for weeks because the voltage was never confirmed before shipping. The local grid was 110V, the machine arrived wired for 220V, and the cost of the transformer plus lost production time far exceeded the machine price itself. When you order a portable edge banding machine in stock, the first question should always be about your local supply: single-phase or three-phase, 50 Hz or 60 Hz, and what plug standard your electricians use. [NEED_CITE: voltage and frequency standards by export market] Skipping this step means your operator is staring at a silent machine while you wait on international freight for a solution that should have been resolved at the quotation stage.
Dispatch Speed Without the Guesswork
The ST-30 is held in stock specifically so small workshops and on-site installers do not face typical multi-week lead times. When you need a portable edge banding machine in stock for an urgent cabinet job or a workshop expansion, the unit ships with your chosen plug type and voltage configuration already set. This eliminates the back-and-forth that usually stretches a simple order into a weeks-long project. The 12 kg tabletop footprint means it arrives in a single carton and can be running the same day it is uncrated, provided the electrical match was confirmed beforehand.
Straight and Curved Edges on One Compact Setup
Most small shops begin with straight-edge work, then discover that curved cabinet fronts and rounded shelving require a completely different tool. The ST-30 handles both profiles without reconfiguration, running edge banding thickness from 0.3 mm to 3 mm across ABS, PVC, melamine, and veneer tapes. For an installer working on-site at a client’s property, carrying one 12 kg unit that covers both geometries is far more practical than managing two separate tools. The 1000 ml glue pot supports continuous small-batch runs without constant refilling, keeping your workflow moving through a full set of cabinet doors or shelving units. [NEED_CITE: edge banding material compatibility guidelines for portable machines]

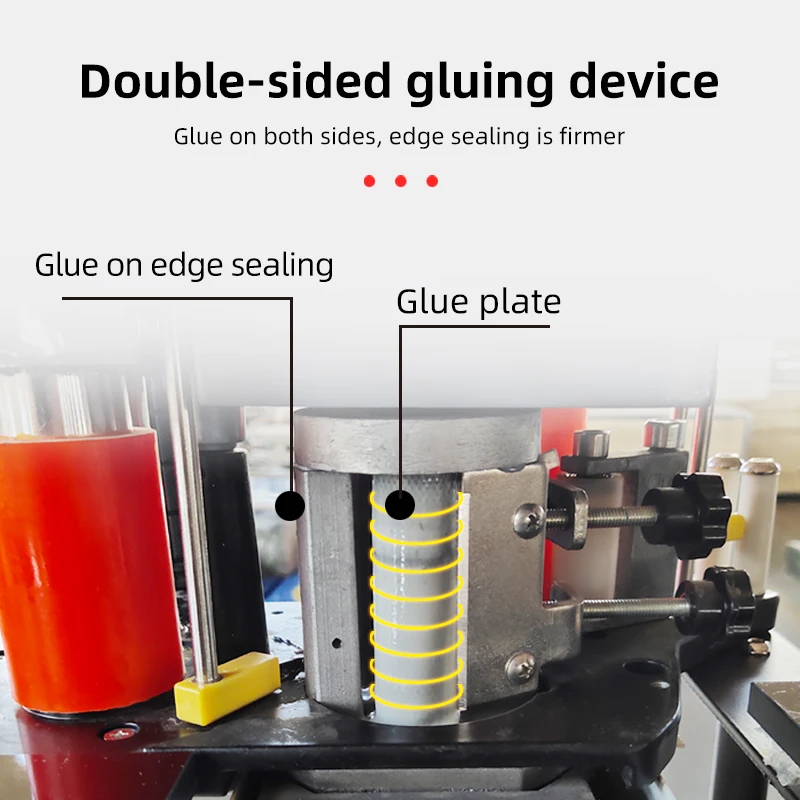

How Glue Pot Temperature and Banding Thickness Affect Your Finish
The glue pot on a portable unit operates within a temperature range suited to standard hot-melt adhesives used with PVC, ABS, and melamine tapes. If the temperature runs too low for the tape thickness you are applying, adhesion weakens at the leading and trailing edges of the panel. At the upper end of the 0.3–3 mm thickness range, the glue must fully penetrate the backing of thicker ABS stock before the tape meets the panel edge. The 0.5–0.8 MPa air supply requirement ensures consistent pneumatic pressure on the feed rollers, which keeps the tape pressed firmly against the substrate throughout the glue’s open time. For panels shorter than 25 cm, the motorized feed maintains steady movement that hand-application simply cannot match, producing a uniform bond line across the entire edge length.
The Hidden Cost of Ordering Without Confirming Local Electrical Standards
When a portable bander arrives with the wrong plug or an incompatible voltage, the consequences extend beyond a missing adapter. A workshop in South Asia once received a machine with a European plug and a control panel labeled only in Chinese — the operators could not identify the temperature dial or the feed switch, and commissioning stalled until a translated guide was sourced. The production delay compounded because the cabinet installation deadline was fixed and the client withheld payment until the edge finishing was complete. Every unit we ship includes an operation manual in your agreed language and a pre-shipment test record, so these gaps are closed before the crate leaves the factory. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Why Buyers Source This Portable Edge Banding Machine in stock From Here
Voltage and plug confirmation is documented on every order before production begins, drawn from our experience resolving grid mismatches across African and South Asian markets. The ST-30 ships with a factory test record that verifies glue pot heating, feed motor operation, and banding adhesion on your specified tape material. Language customization for the control panel and manual is handled at the order stage, not discovered as a problem on arrival. The four-stage QC process covers incoming component inspection, in-process assembly checks, finished-unit testing, and a final pre-shipment verification — all recorded and shipped with your documentation set.
Documentation & Verification
- Electrical schematic and voltage confirmation sheet matched to your local grid
- Operation and maintenance manual provided in your agreed language at dispatch
- Factory test record verifying glue pot and feed performance before shipment
- Spare parts list with part numbers for quick reorder
- Packing photographs for customs clearance and receiving inspection
Installation, Commissioning & Support
- Tabletop placement on any stable bench — no floor anchoring required for the 12 kg unit
- Single-phase 220V or three-phase 380V connection as confirmed on your order sheet
- Arrives fully assembled with glue pot and feed mechanism pre-mounted
- First-run guidance covers glue temperature setting and feed speed adjustment for your tape
- Wear items include glue pot heating element and feed roller surfaces, listed on the spare parts sheet
- Periodic cleaning of the glue pot after each batch extends element life
Preparing Your Inquiry
To move from inquiry to dispatch quickly, share your local voltage and frequency, the plug standard your workshop uses, and the primary edge banding tape material and thickness you plan to run. If your operation handles both straight and curved profiles, note the typical panel dimensions so we can confirm the ST-30 covers your range. Specify the language you need for the control panel and manual.
Frequently Asked Questions
Q: What plug and voltage options ship from stock, and how fast is dispatch?
A: The ST-30 ships with EU, USA, AU, or UK plug types and voltage set to 220V, 380V, or a custom configuration confirmed at order. Stock units dispatch promptly once your electrical specification is verified on paper. We do not ship until voltage and frequency are documented, because a mismatched machine helps no one.
Q: Can the ST-30 handle curved edges on the same setup as straight edges?
A: Yes. The ST-30 is designed to run both straight and curved profiles without retooling. The motorized feed and manual guidance allow you to follow curved contours on MDF, plywood, or particleboard. Edge banding thickness from 0.3 mm to 3 mm works across both geometries on the same glue pot setup.
Q: What edge banding materials and thicknesses are compatible out of the box?
A: The machine handles PVC, ABS, melamine, and veneer edge banding tapes in thicknesses from 0.3 mm to 3 mm. The glue pot temperature range covers standard hot-melt adhesives used with these materials. For specific tape brands or unusual backing compositions, confirm compatibility during the inquiry stage.
Q: How do I receive the manual and controls in my local language?
A: Specify your preferred language at the order stage. The ST-30 ships with Chinese or English as standard, and Spanish or other languages are available on request. The operation manual, maintenance guide, and control panel labels are all produced in your chosen language before dispatch.
Q: What spare parts ship with the machine, and how quickly can replacements arrive?
A: Each ST-30 includes a spare parts list covering wear items such as the glue pot heating element and feed roller surfaces. Replacement parts are available through the same ordering channel, and dispatch timing depends on your location and the part requested. We recommend ordering high-wear items with your initial machine shipment.
