Pur Glue Edge Banding Machine for PVC – In Stock

Description

Verified Electrical Match Before Dispatch — Every ZDSF210 unit leaves the floor only after its voltage and frequency are confirmed against your site supply, eliminating the transformer mismatches that stall workshops after arrival.

Technical Specifications

Application Suitability

Why the Voltage Question Must Come Before the Quotation

No ZDSF210 edge banding machine in stock ships until your local voltage and frequency are verified against the electrical schematic.

I have stood on the dispatch floor watching a PUR glue edge bander get crated for a Middle Eastern workshop, only for the client to call three weeks later saying the transformer on site could not match the machine. That delay cost the buyer an entire production cycle and eroded trust before the first panel was edged. Voltage mismatch is among the most common reasons imported woodworking equipment sits idle after delivery [NEED_CITE: voltage and frequency standards by export market]. With the ZDSF210, every unit bound for export goes through a final electrical check where the configured motor windings, heating element rating, and control transformer are matched line by line to the buyer’s confirmed supply specification.

Stock Availability Without the Production-Run Wait

Ordering a single edge banding machine in stock from a factory that normally runs batch production can mean weeks of waiting for your unit to enter the queue. The ZDSF210 is held as finished inventory, meaning your order triggers packing and dispatch rather than a new build cycle. For a joinery workshop replacing a failed machine mid-project or a cabinet maker with a tight installation deadline, this difference compresses the timeline from quotation to first edged panel considerably.

Compact Footprint That Fits Where Larger Banders Cannot

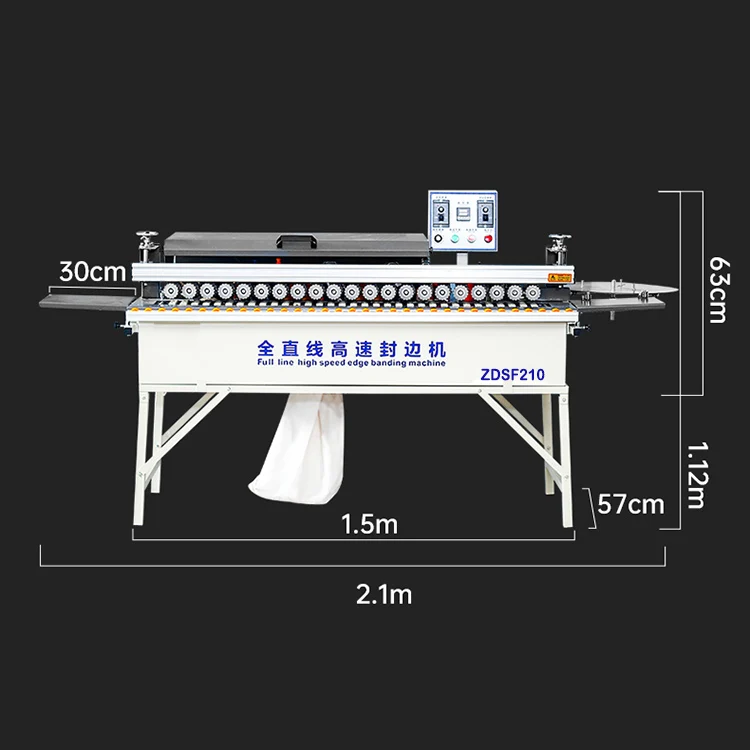

The ZDSF210 measures 1500×570×630mm and weighs 155kg, placing it in a footprint class that smaller workshops can accommodate without reconfiguring their floor layout. The frame type motor base keeps vibration contained during the banding cycle, which matters when the machine sits alongside manual assembly benches rather than inside an isolated production cell [NEED_CITE: workshop vibration isolation requirements for precision edge banding]. Buyers who need a capable edge bander without dedicating an entire room to it find this size practical for day-to-day operation.

What the Trimming and Scraping Stations Actually Do for Your Panels

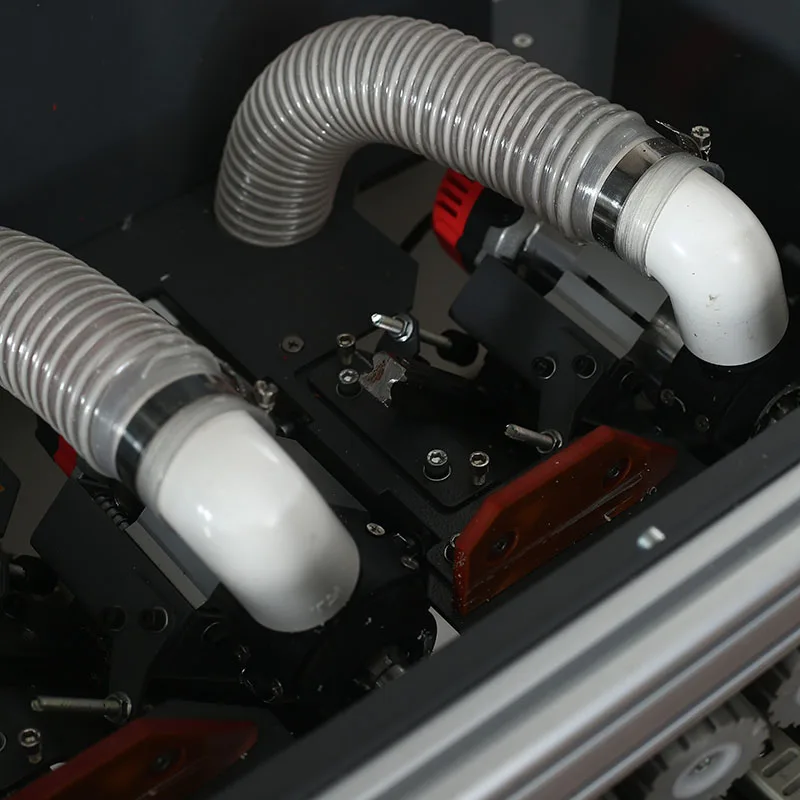

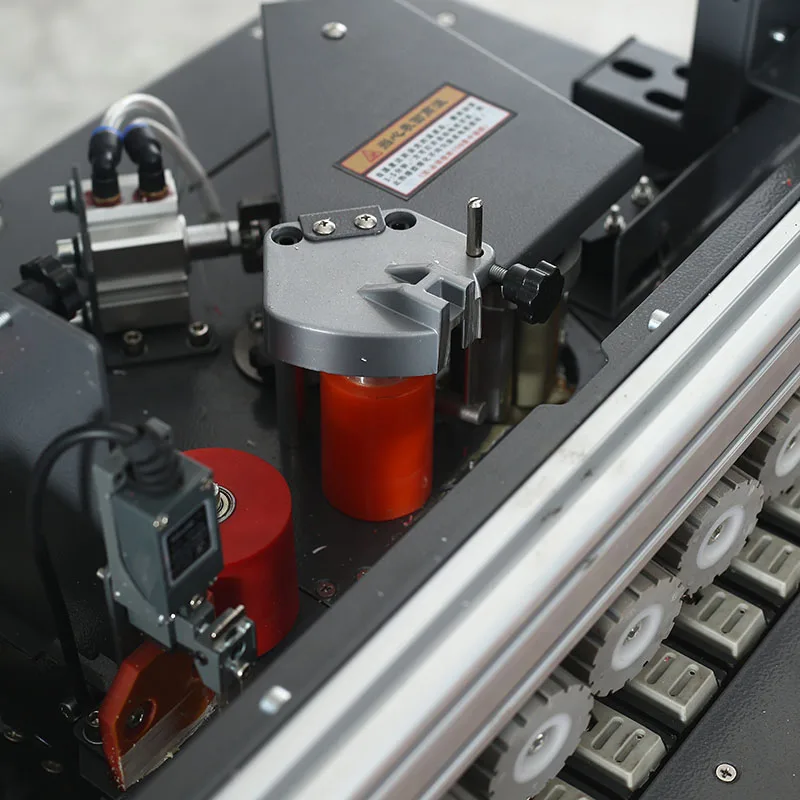

The ZDSF210 carries up, down, left and right profiling trimming driven by dual 800W motors, followed by flexible edge scraping and glue line cleaning, and finishing with cross polishing. In practice this sequence removes the excess banding material from all four edges of the workpiece, then the scraper takes off the residual glue ridge that trimming leaves behind, producing a smooth transition between band and panel face. The airtight dust collection system pulls trimmings and glue dust away during this process so they do not settle back onto freshly polished surfaces. For MDF and particleboard — materials that generate fine dust during trimming — this enclosed extraction keeps the edge finish consistent across a full day’s run.

The Cost of Skipping the Electrical Confirmation Step

When an edge bander arrives with a control panel voltage that does not match the workshop supply, the consequences extend beyond a blown fuse. Heating elements rated for the wrong frequency deliver inconsistent glue pot temperatures, which causes banding adhesion failures that only show up after furniture reaches the customer. Motors running outside their designed voltage range overheat during sustained trimming cycles, shortening bearing life. Control boards fed incorrect voltage may power on but produce erratic feed speed behaviour that operators cannot diagnose [NEED_CITE: motor and heating element failure patterns from voltage mismatch]. These failures are entirely preventable with a documented voltage confirmation step before the crate is sealed.

Why This Purchase Channel Works for Single-Unit Orders

The ZDSF210 is available without minimum order quantities, which matters when you are adding one machine rather than equipping an entire line. Pre-shipment test records and video outgoing inspection are standard for every unit, so you see your specific machine running before it leaves the factory. Voltage and frequency are confirmed with documentation rather than assumption. The operation manual is supplied in the language your operators actually read. And the spare parts list is finalized and photographed alongside the machine before packing, so you know exactly what is in the crate when it arrives.

Documentation & Verification

• Factory test record showing ZDSF210 profiling trimming on your specified panel material before dispatch
• Electrical schematic with confirmed voltage and frequency matching your local supply standard
• Operation and maintenance manual translated into your agreed operator language
• Pre-shipment video inspection of the actual unit being crated
• Spare parts list documented with packing photographs before the crate is sealed
• CE declaration of conformity included for customs clearance in regulated markets

Installation, Commissioning & Support

• 1500×570mm footprint requires a level floor area with clearance on both feed and discharge sides
• Dedicated circuit matching confirmed voltage rating must be in place before uncrating
• Frame type motor base should be leveled on arrival to eliminate vibration during trimming cycles
• Glue pot heating element needs initial temperature calibration against your banding material before first production run
• Steel rod guide rail requires lubrication per the maintenance manual schedule to maintain feed consistency
• Flexible scraping blades need periodic adjustment as they wear against PVC and veneer edges

What to Include With Your Inquiry

Tell us your panel material and the edge banding type you run most often — PVC, melamine, or veneer — so we can set the glue pot and trimming parameters before the ZDSF210 ships. Confirm your workshop voltage and frequency so the electrical system is built to match. Let us know if you need the control panel in a specific language for your operators.

Frequently Asked Questions

Q: What is the dispatch lead time for a single-unit ZDSF210 order?
A: The ZDSF210 is held as finished stock, so once your voltage and configuration are confirmed and payment is processed, the unit moves to pre-shipment testing and packing. This is considerably faster than ordering a machine that enters a production queue. Exact dispatch dates depend on the destination port and shipping option selected.

Q: Can voltage and frequency be confirmed to match my local supply before shipping?
A: Yes, this is a mandatory step before any ZDSF210 leaves the factory. You provide your local voltage and frequency, and the electrical schematic is verified against those values. The confirmed specification is documented and included with your shipment paperwork. This process was introduced specifically to prevent the transformer mismatches that have delayed other buyers.

Q: Does the machine ship assembled or require on-site assembly?
A: The ZDSF210 can ship in KD packing or assembled depending on your configuration preference and shipping method. KD packing reduces freight volume and cost, while assembled shipping means the machine is ready for electrical connection upon arrival. Discuss your preference during the order confirmation stage so the packing method matches your receiving capability.

Q: What spare parts and documentation are included in the package?
A: Every ZDSF210 ships with a documented spare parts list, packing photographs, an operation and maintenance manual in your agreed language, the confirmed electrical schematic, and a factory test record. The spare parts cover wear items like scraping blades and trimming cutters that you may need during the first year of operation.
