Description
Ready Stock Dispatch — ZDSF910H units are packed and verified at 220V/50Hz, waiting for your shipping instruction rather than waiting on a production slot.
Technical Specifications
| Parameter | Value |
|---|---|

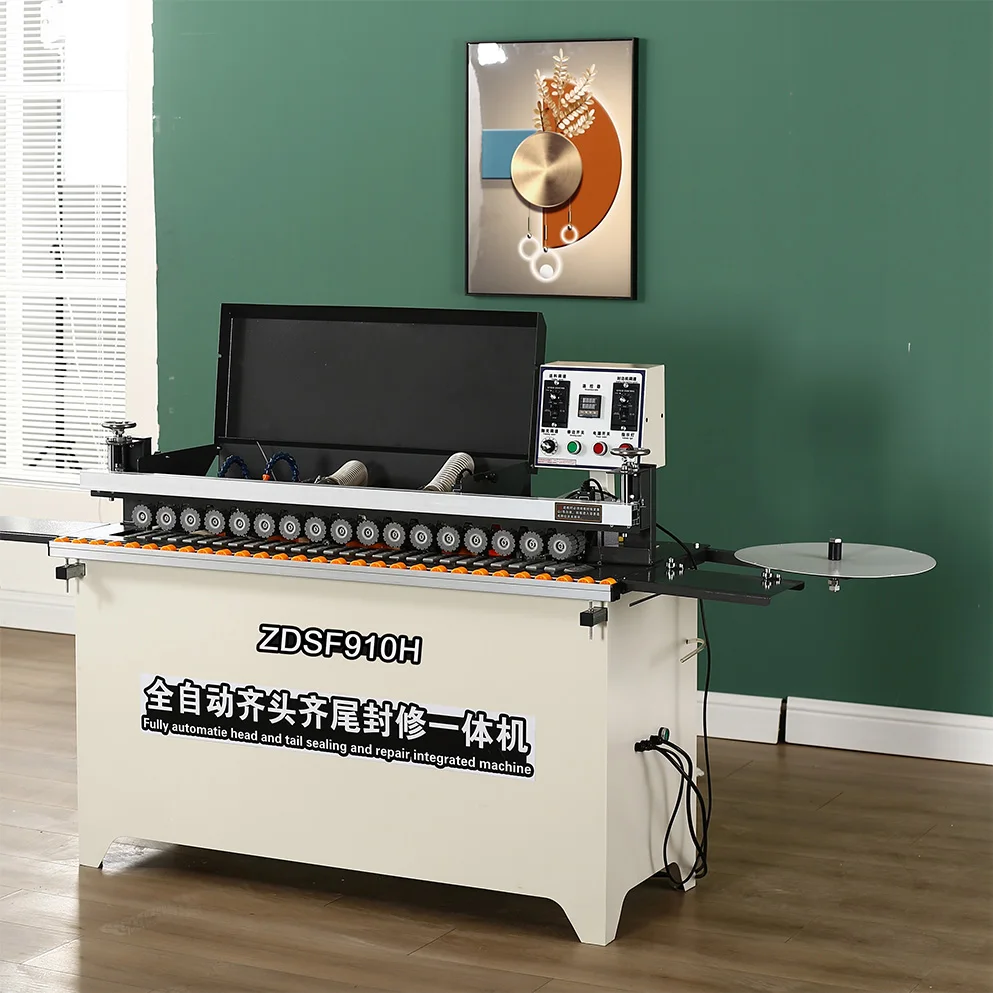

| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, Double-sided gluing, End cutting, Upper and lower polishing, Auto head and tail trimming |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800W |
| Polishing Power | 180W × 2 |
| Trimming Power | 800W × 2 |
| Suction Power | 1200W |
| Rated Air Pressure | 0.4–0.6 MPa |
| Panel Thickness Range | 10–50mm |
| Edge Strip Thickness Range | 0.5–2.5mm |
| Minimum Board Width | 2.5 cm |
| Glue Pot Capacity | 1000ml |
| Transmission Type | Steel rod slide rails with crawler transmission |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 185 kg |
| Dust Extraction | Built-in vacuum cleaner, dual large-diameter collectors |

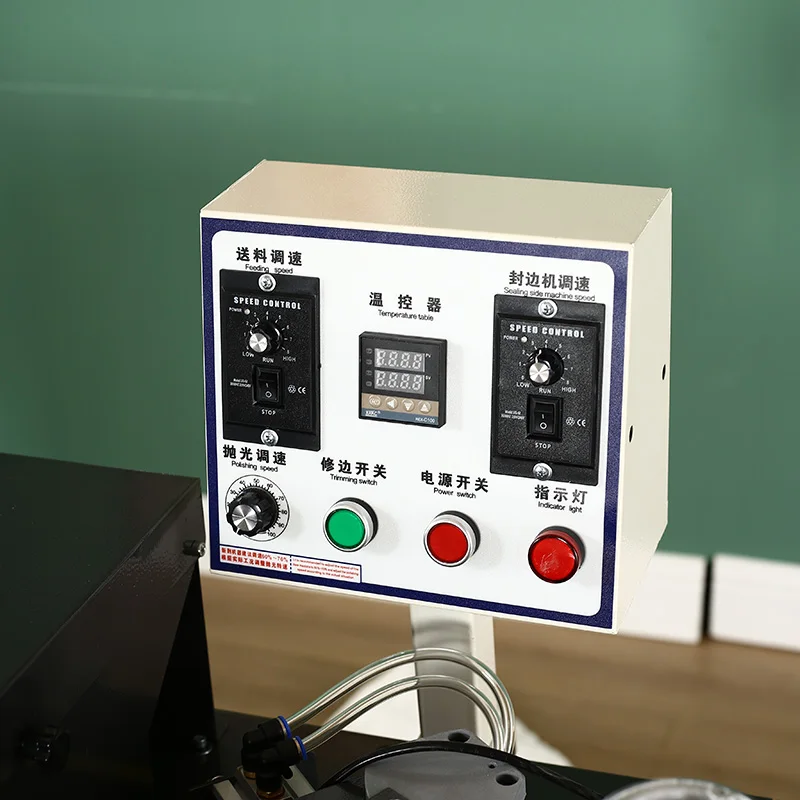

| Control Interface | Multi-function button operation panel |
| Assembly State | Fully assembled with integrated dust collector |
| Feed Speed | (basis not stated in source — confirm with supplier) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding 0.5–2.5mm |
| Small-batch plywood shelving production | Plywood panels 10–50mm thick with melamine or veneer strips |
| Joinery workshop upgrade from manual banding | Solid wood panels requiring double-sided glue application |
| Prototype and sample runs for furniture startups | Mixed substrate short runs with quick changeover between strip thicknesses |
Why the Voltage Question Must Come Before the Crate Is Nailed
Confirming local supply voltage on paper before dispatch is the single step that prevents a machine from sitting dead on a workshop floor.
I once watched a container of small edge banders get unloaded at a Vietnamese furniture factory, only for the electrician to discover the units were wired for 380V while the facility ran on 220V/60Hz. The entire line stood idle for two weeks waiting for a step-up transformer. That delay cost the buyer more in lost production than the machines themselves were worth. [NEED_CITE: voltage and frequency standards by export market]. When you source a Fully Automatic Edge Banding Machine in stock fast delivery, the promise of speed means nothing if the unit cannot power on the day it arrives. The ZDSF910H listed here is configured at 220V/50Hz and the voltage confirmation document is signed before the crate leaves the loading bay.
What Ready Stock Actually Means for Your Timeline
Ordering a Fully Automatic Edge Banding Machine in stock fast delivery removes the typical multi-week build lead from the equation. This ZDSF910H is assembled, tested, and crated in the warehouse, so dispatch follows payment clearance rather than a production queue. For a small workshop that just lost a manual banding operator or landed an unexpected cabinet contract, the difference between waiting eight weeks and shipping within days can determine whether you keep the client.
Double-Sided Gluing on a Compact Frame
Most compact edge banders in this footprint class apply glue to the strip only, leaving the panel edge to rely on transfer contact. The ZDSF910H runs double-sided gluing with a 1000ml pot, coating both the panel edge and the strip before the pressure zone. This matters when you work with porous MDF or rough-cut particleboard where single-sided application leaves starved glue lines. The integrated glue line cleaning function wipes excess before it cures, so finished panels move to assembly without hand-scraping. [NEED_CITE: edge adhesion standards for panel furniture manufacturing].
Reading the Spec Sheet Against Your Real Work
The 10–50mm panel thickness range covers everything from thin cabinet backs to thick workbench tops, but the lower limit of 10mm means very thin stock may require a sacrificial carrier board to maintain feed stability on the crawler belt. The 0.5–2.5mm strip range handles standard PVC comfortably; if you plan to run 3mm solid wood lipping, that exceeds the trimmer’s designed capacity. The imported 4-blade alloy arc knife profiles the edge in a single pass, which keeps the radius consistent across MDF and plywood alike. Dust extraction at 1200W through dual large-diameter collectors is sufficient for a small shop without a central system, though you will still need to empty the onboard bag regularly during full-day production runs.
The Hidden Cost of Buying a Machine That Cannot Plug In
A spec sheet rarely mentions what happens when the voltage is wrong. Motors overheat, contactors chatter, and thermal overloads trip continuously until the winding insulation breaks down. In my experience supervising deliveries across Southeast Asia, voltage mismatch is the leading cause of warranty disputes on small woodworking equipment. The buyer insists the machine arrived defective; the factory points to the nameplate showing 380V. Neither side is happy, and the machine sits while lawyers or agents argue. [NEED_CITE: common causes of warranty disputes in exported machinery]. Locking the voltage and frequency in writing before the ZDSF910H ships eliminates this entire class of problem.
Why Procurement Through This Channel Works
Stock availability is verified in real time, so you are not quoting against a production slot that may slip. Voltage and control language are confirmed on a formal document before the crate is sealed, not assumed from a catalog default. The ZDSF910H ships fully assembled with its integrated dust collector, meaning on-site setup is limited to leveling, power connection, and a test run. Pre-shipment verification includes a factory test record with photographs of the actual unit processing your specified panel and strip thickness. Spare parts lists ship inside the crate so consumables like trimming knives and glue pot seals can be reordered without waiting for a manual translation.
Documentation & Verification
- CE declaration of conformity matched to the ZDSF910H model and voltage configuration
- Factory test record showing actual edge banding on your specified panel thickness and strip material
- Electrical schematic confirming 220V/50Hz wiring and component ratings
- Operation and maintenance manual in the language agreed at order confirmation
- Spare parts list with OEM part numbers for trimming knives, glue pot seals, and feed belt sections
- Packing photographs documenting crate condition and accessory count before dispatch
Installation, Commissioning & Support
- Requires a dedicated 220V/50Hz circuit rated for at least 4 kW continuous draw with proper earth bonding
- Arrives fully assembled; position on a level floor within the 1300 × 560 mm footprint and lock casters
- Connect compressed air at 0.4–0.6 MPa using a filtered regulator to protect the glue pot solenoid valves
- First power-on includes glue pot heat-up to operating temperature and crawler belt tension verification
- Built-in 1200W dust collector ducts are pre-routed; attach collection bags before the first panel run
- Operator training covers button panel sequence, strip loading, and trimming knife change procedure
What to Share When Requesting a Quote
To match the right in-stock unit to your shop, confirm your local voltage and frequency, the primary panel materials and thickness range you run, and the edge strip type and thickness you use most often. Let us know whether your existing compressor can sustain 0.4–0.6 MPa continuously, and whether the control panel needs to display in a specific language for your operators.
Frequently Asked Questions
Q: Is the ZDSF910H in stock and how fast can it ship?
A: This Fully Automatic Edge Banding Machine in stock fast delivery is assembled and warehouse-ready. Once voltage confirmation and payment are settled, the crate can move to the port within days rather than weeks. Actual transit time depends on your destination and chosen freight method, but there is no factory build queue adding delay to the dispatch date.
Q: Will 220V/50Hz work in my country, or can the voltage be changed?
A: The unit listed here is set to 220V/50Hz, which matches many Southeast Asian, Middle Eastern, and European single-phase supplies. If your local grid runs on a different voltage or 60Hz frequency, confirm before ordering so a compatible configuration can be sourced or the unit adjusted prior to crating. Voltage confirmation is documented in writing before dispatch.
Q: What panel and edge strip thicknesses does this machine handle?
A: The ZDSF910H accepts panels from 10 to 50 mm thick and edge strips from 0.5 to 2.5 mm. This covers standard PVC and melamine strips on MDF, particleboard, and plywood used in cabinet and furniture work. Panels thinner than 10 mm or strips exceeding 2.5 mm fall outside the designed range and may require a different model class.
Q: What spare parts and consumables are included in the crate?
A: The machine ships with a spare parts list identifying wear items such as trimming knives, glue pot seals, and feed belt sections. An initial set of consumables adequate for commissioning is included. Replacements can be ordered using the OEM part numbers on the list, and most items are standard sizes available through local industrial suppliers as well.
Q: Does the machine arrive fully assembled or need on-site setup?
A: The ZDSF910H ships fully assembled with the integrated dust collector already mounted and ducted. On-site work is limited to uncrating, positioning on a level surface, connecting the 220V power supply and compressed air line, and running a test panel. No mechanical sub-assembly or alignment of separate modules is required at your facility.
