Description
Ready Dispatch Guarantee — every DW702 leaves the Shandong floor with voltage, plug and control language confirmed to your site before the crate is sealed.
Technical Specifications
| Parameter | Value |
|---|---|

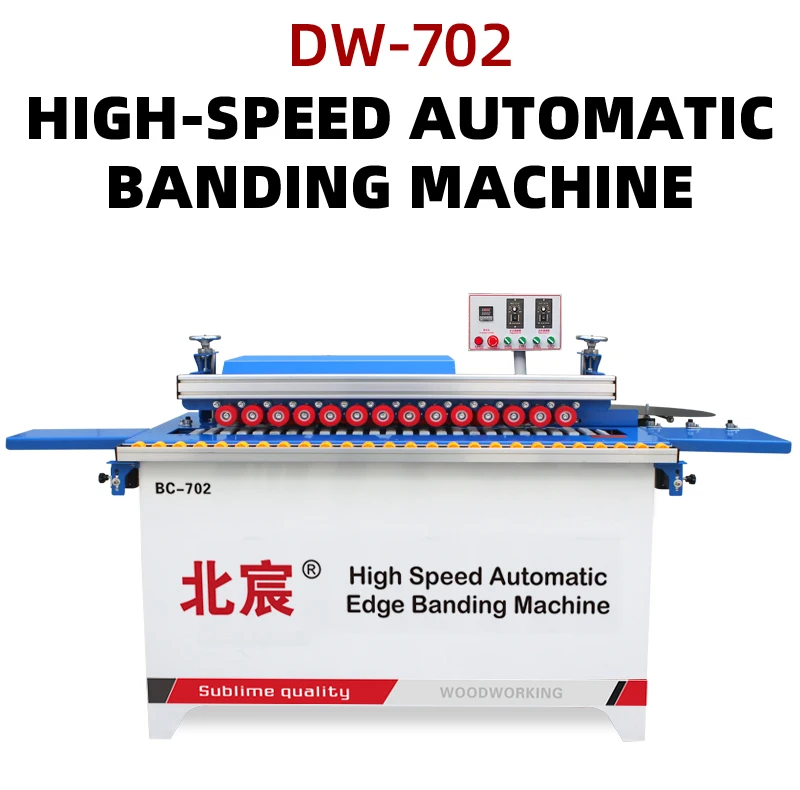

| Model | DW702 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage | 220V / 380V / customization |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 100mm |
| Edge Banding Height Range | 0–50mm |
| Edge Banding Thickness Range | 0.3–3mm |
| Glue Pot Capacity | 1000ml |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Transmission Power | 140W |
| Air Source Pressure | 0.4–0.8 MPa |
| Machine Dimensions | 1200 × 550 × 1100mm |
| Machine Weight | 105kg |
| Key Features | Edge banding, head-and-tail trimming, polishing, vacuum hold-down |
| Language Options | Chinese, English (other languages customizable) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | MDF and particleboard with PVC banding |
| Custom furniture panel edging | Plywood and blockboard with veneer strips |
| Small-batch joinery production | Solid wood panels up to 50mm thickness |
| Polymer door frame trimming | Polymer composite profiles |
| Workshop-scale shelving and drawer fronts | Melamine-faced chipboard |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine in Stock
A machine wired for the wrong frequency will trip breakers on day one, no matter how well it was built.
I have watched container-openings go silent when the electrician reads the motor plate and shakes his head. The glue pot never reaches temperature, the feed motor stutters, and the trimming spindles run hot within an hour. The exporter ships a replacement transformer weeks later, but the workshop has already lost its delivery window. Confirming voltage and phase at the quotation stage removes this entire failure class [NEED_CITE: voltage and frequency standards by export market]. With the DW702, the electrical schematic is locked to your local grid before production starts, so the machine you uncrate is the machine you plug in.
Stocked Configuration, Configured Before Dispatch
Ordering an Automatic Edge Banding Machine in stock usually means accepting whatever voltage the last batch was built for. The DW702 program works differently. Units are held at the Shandong facility in a base mechanical state — frame assembled, conveyor aligned, vacuum system tested — while the electrical cabinet and control panel remain open until the buyer’s grid details are confirmed. That way a 220V/60Hz order for the Americas and a 380V/50Hz order for Southeast Asia both leave the line with the correct transformer tap, contactor rating and plug moulding.
Compact Footprint Without Losing the Full Edge Cycle

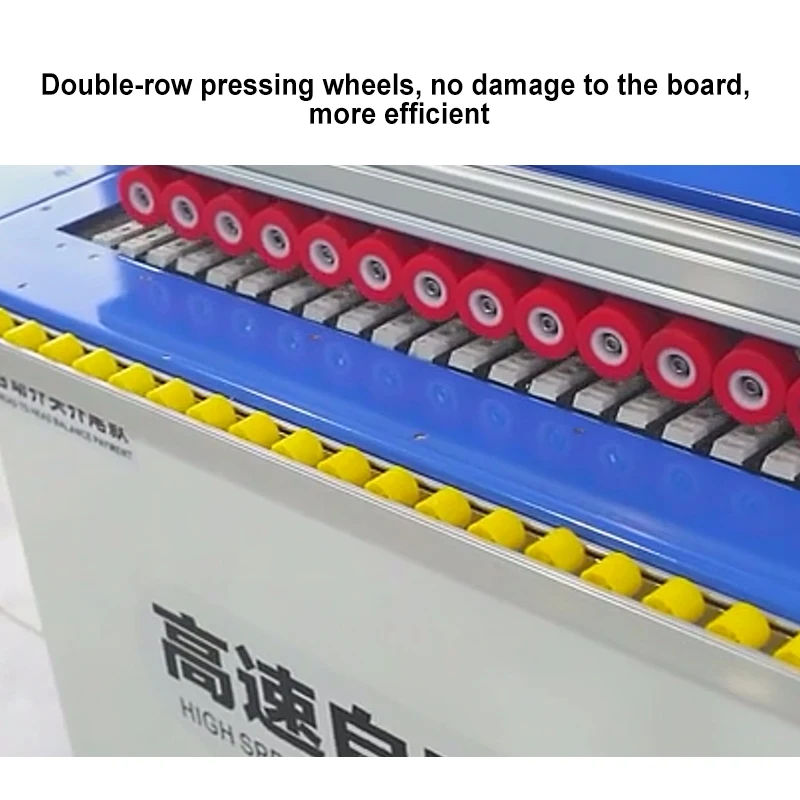

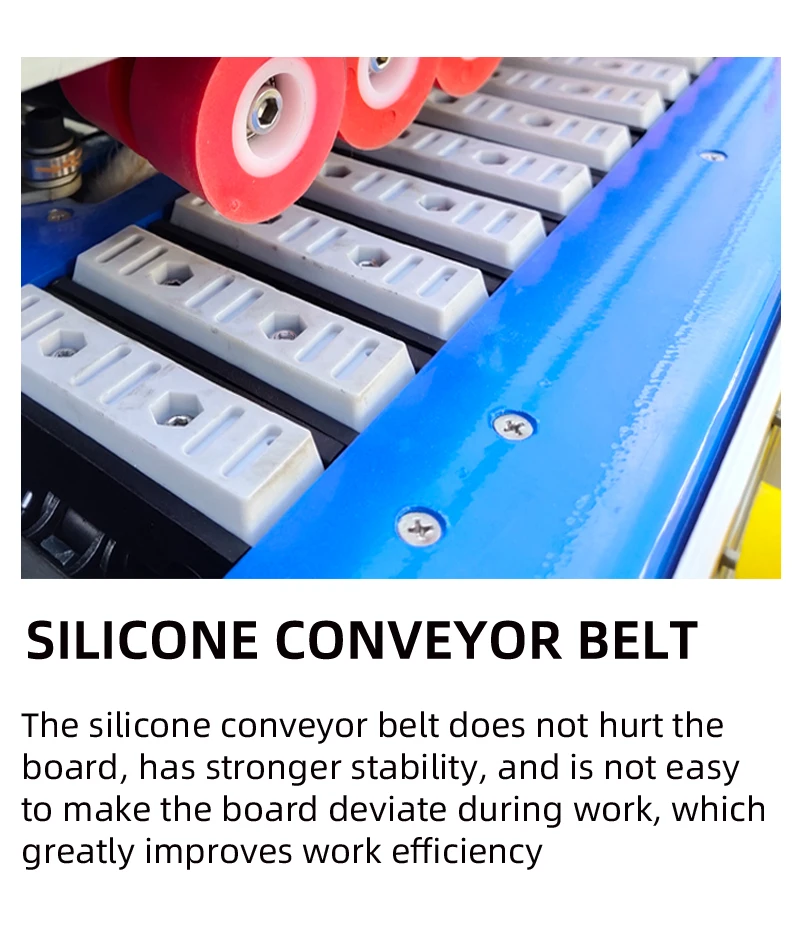

At roughly 1.2 metres long and 105kg, the DW702 fits through a standard workshop door and onto a flat concrete floor without special foundations. Despite that size it carries the complete sequence: glue application, pressure rolling, head-and-tail trimming, fine trimming and dual-spindle polishing. The vacuum hold-down belt keeps panels flat against the fence, so even the shortest 250mm off-cuts stay square through every station. This matters when a small joinery shop is producing drawer sides and cabinet dividers in the same shift [NEED_CITE: typical panel dimensions in custom cabinet production].
How the Numbers Translate at the Bench
The 0.3–3mm banding thickness range covers thin PVC foil for carcass work and thicker solid-wood lipping for exposed edges, handled in a single pass without a tool change. Two 800W trimming spindles remove the overhang cleanly; their combined torque prevents chatter marks on dense MDF edges that later show through laminate. The 1000ml glue pot holds enough hot-melt adhesive for sustained runs — operators are not stopping every few boards to top up — while the 0.4–0.8 MPa air requirement is within the reach of a standard piston compressor found in most small workshops. Polishing heads at 180W each burnish the band without generating enough heat to soften PVC in hot climates.
What Happens When the Specification Is Assumed Rather Than Confirmed
Skipping the material sample step often surfaces only after the machine is bolted down. A workshop running recycled-content PVC finds the band curls at the tail end because the glue temperature cannot overcome the material’s memory. Another shop feeds 3mm solid-wood lipping but the trimming cutters were set for 0.6mm foil, leaving visible step marks that require hand sanding — the very labor the machine was bought to eliminate. These mismatches are not warranty issues; they are configuration gaps that a sample test would have caught before the crate left the factory [NEED_CITE: material compatibility testing in edge banding operations].
Why Source This Machine Through the Stock Program
Inventory is physical, not allocated — a DW702 shown as available is sitting on the Shandong floor and can be inspected by video call before payment. Voltage, plug type and control language are confirmed line-by-line on the proforma invoice, not left to assumption. Each unit passes a four-stage inspection that includes a powered run with your specified banding material before the packing photographs are taken. The same product family scales upward if your volume later demands a pre-milling station or a second glue pot, meaning the next machine comes from the same engineering team and spare-parts catalog. Documentation is prepared in the agreed language at the factory, not assembled from generic templates after landing.
Documentation & Verification
- CE declaration of conformity matched to the DW702 serial number
- Electrical schematic reflecting your confirmed voltage and frequency
- Factory test record using your specified banding thickness and substrate
- Pre-shipment packing photographs showing crate condition and accessories
- Operation manual translated into your chosen language before dispatch
- Spare parts list with reorder codes for trimming cutters and glue rollers
Installation, Commissioning & Support
- Requires a level concrete pad and a dedicated 3800W circuit with correct breaker sizing
- 1200 × 550mm footprint allows placement against a wall with rear access for maintenance
- Machine ships fully assembled; only the dust extraction hose and air line need connection
- First-run parameter sheet included, covering glue temperature for 0.3–3mm banding range
- Operator training video provided in the selected control language at delivery
- Consumable kit with extra trimming inserts and polishing wheels ships inside the crate
Getting Your Configuration Right at the Enquiry Stage
To move from quotation to dispatch quickly, share the panel materials and edge banding brands you actually run on the shop floor, along with their thickness range. Confirm your workshop voltage, phase and plug type so the electrical cabinet is built correctly the first time. If you have a target daily panel count, mention the average board dimensions so the feed speed expectation can be discussed honestly rather than guessed.
Frequently Asked Questions
Q: Is the DW702 in stock and what is the dispatch lead time?
A: Units are held at the Shandong facility in a semi-finished state. Once your voltage, plug and language are confirmed on the proforma invoice, final electrical assembly and the pre-shipment test typically take a short period before the crate is sealed and handed to the freight forwarder.
Q: Can voltage and plug type be confirmed before shipping?
A: Yes. The electrical cabinet remains open until your local grid details are verified. The transformer tap, contactor rating and plug moulding are then matched to your standard, and the schematic is included in the documentation pack so your electrician can sign off on arrival.
Q: What edge banding materials and thicknesses does this machine handle?
A: The DW702 covers 0.3–3mm, which includes PVC foil, ABS, melamine paper and thin wood veneer. For thicker solid-wood lipping or unusual substrates, sending a material sample allows us to confirm glue temperature and trimming cutter settings before dispatch.
Q: How do I get a single unit ordered and shipped?
A: A single-unit order follows the same path as a bulk purchase: configuration confirmation, proforma invoice, production completion, pre-shipment test with photographs, then release to your chosen shipping line or air freight forwarder with full customs documentation.
Q: What spare parts ship with the machine and how do I reorder?
A: Each DW702 crate contains a starter kit of trimming cutter inserts, polishing wheels and glue roller covers. The spare parts list inside the manual carries reorder codes, and replacement sets can be shipped direct from the Shandong facility by express courier.
