Description
Fast Dispatch Guarantee — ZDS290 units held in ready inventory with confirmed voltage specifications, enabling small workshops to receive and commission edge banding equipment without extended production delays.
Technical Specifications
| Parameter | Value |
|---|---|

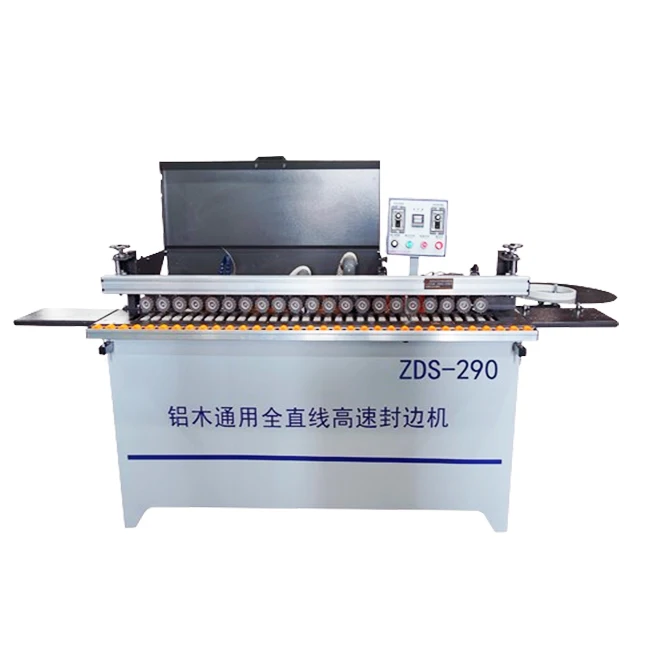

| Model | ZDS290 |
| Product Type | Automatic Edge Banding Machine |
| Rated Voltage | 220V (configurable from 110V to 440V) |
| Rated Power | 4165W |
| Edge Banding Speed | 6m/min (basis not stated in source — confirm material / thickness) |
| Conveying Motor Power | 180W |
| Strip Thickness Range | 0.5–2.5mm |
| Sheet Thickness Range | 10–50mm |
| Glue Pot Capacity | 1000ml |
| Glue Pot Heating Power | 800W (5–10min heat-up) |
| Trimming Power | 800W×2 |
| Polishing Power | 180W×2 |
| Vacuuming Power | 1200W |
| Rated Air Pressure | 0.6–0.8MPa |
| Machine Size | 150×57×96cm |
| Pressure Beam | Integrated thickened aluminum alloy |
| Pressure Wheel | Double-row inclined design |
| Board Thickness Display | Digital display |
| Glue Wheel | Concave-convex design |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF panels with PVC edge banding |
| Joinery workshop panel finishing | Plywood boards with veneer strips |
| Small-batch furniture manufacturing | Particleboard with melamine edge tape |
| Aluminum-wood hybrid joinery | Composite panels with aluminum edge profiles |
Why the Voltage Question Should Come Before the Price Quote
Confirm your local grid specifications before committing to any Automatic Edge Banding Machine in stock.
I spent years running quality control on the shop floor before moving into sales, and I can spot a mismatched machine the moment it comes off the truck. A few years back, a furniture factory in Dubai ordered an edge bander without double-checking their three-phase supply against the quoted unit. The machine sat on their floor for three weeks waiting for a transformer while the entire line stalled [NEED_CITE: voltage and frequency standards by export market]. Ready stock only matters if it matches your facility’s electrical infrastructure from day one.
Dispatch Timing and Stock Availability
Small workshops and cabinet makers cannot afford extended lead times when a machine goes down or capacity needs a quick boost. The ZDS290 Automatic Edge Banding Machine in stock status means confirmed inventory with documented specifications, not estimated build slots. Buyers receive formal quotation within 24 hours with voltage confirmation built into the process, reducing the chance of arriving at a dead machine on installation day.
Compact Footprint for Space-Constrained Facilities

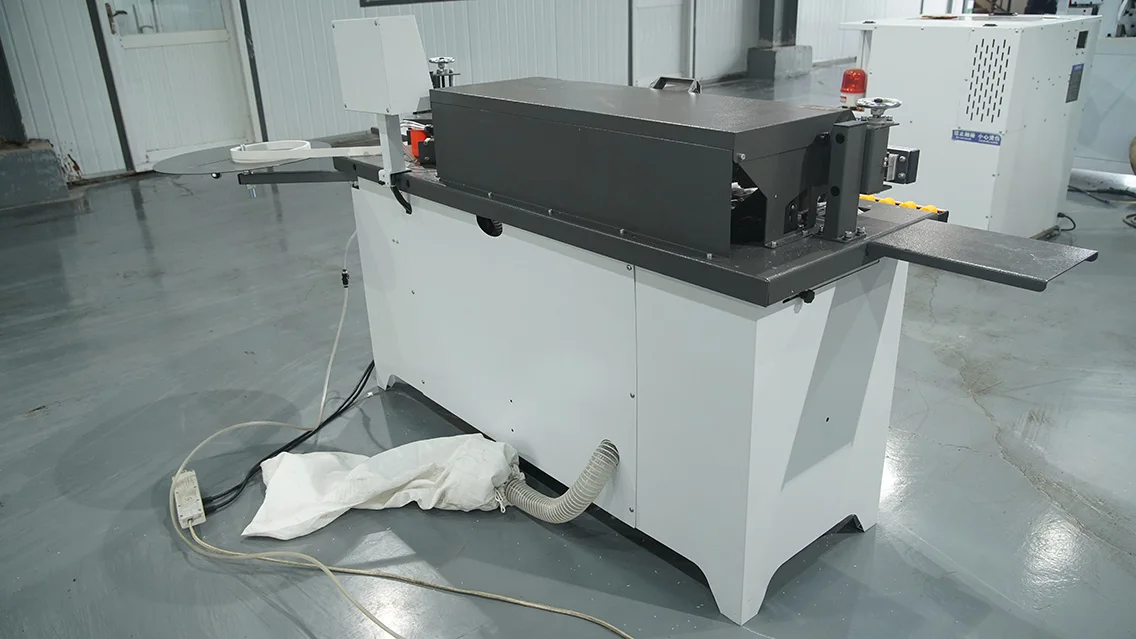

The 150×57×96cm dimensions place this unit in workshops where floor space dictates production layout. Unlike full-production-line edge banders that require dedicated zones, this model fits between a panel saw and assembly bench without disrupting material flow [NEED_CITE: workshop layout planning for small-scale furniture production]. The hand-crank pressure beam adjustment and digital board thickness display let a single operator switch between 10mm and 50mm sheet stock without hunting for tools or guessing clearances.
How Pressure Design and Glue Application Affect Edge Quality

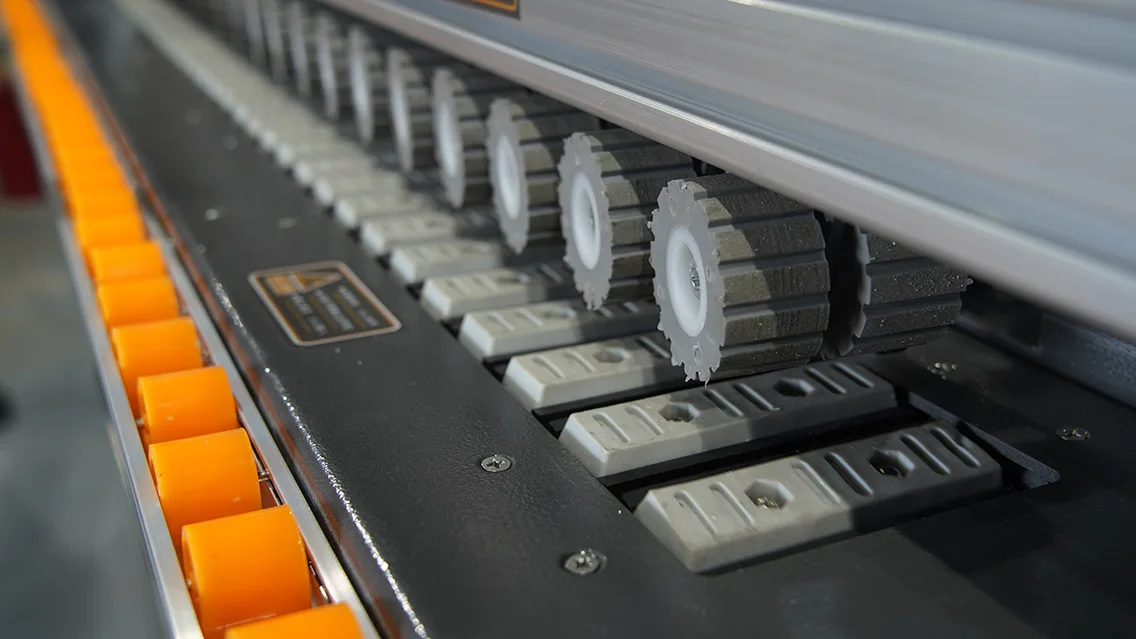

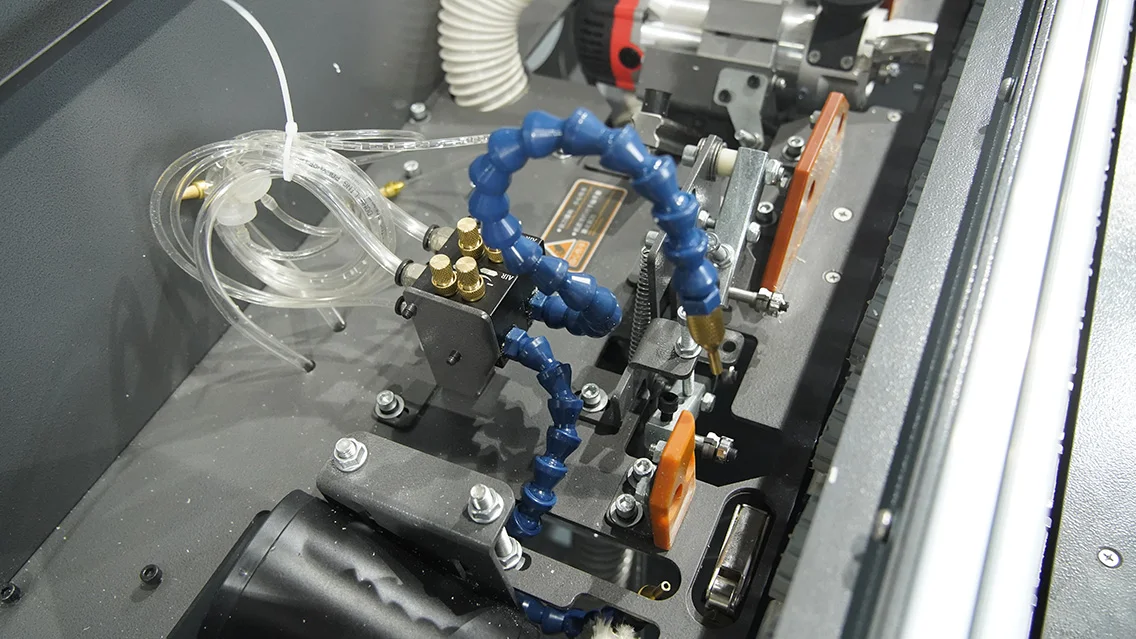

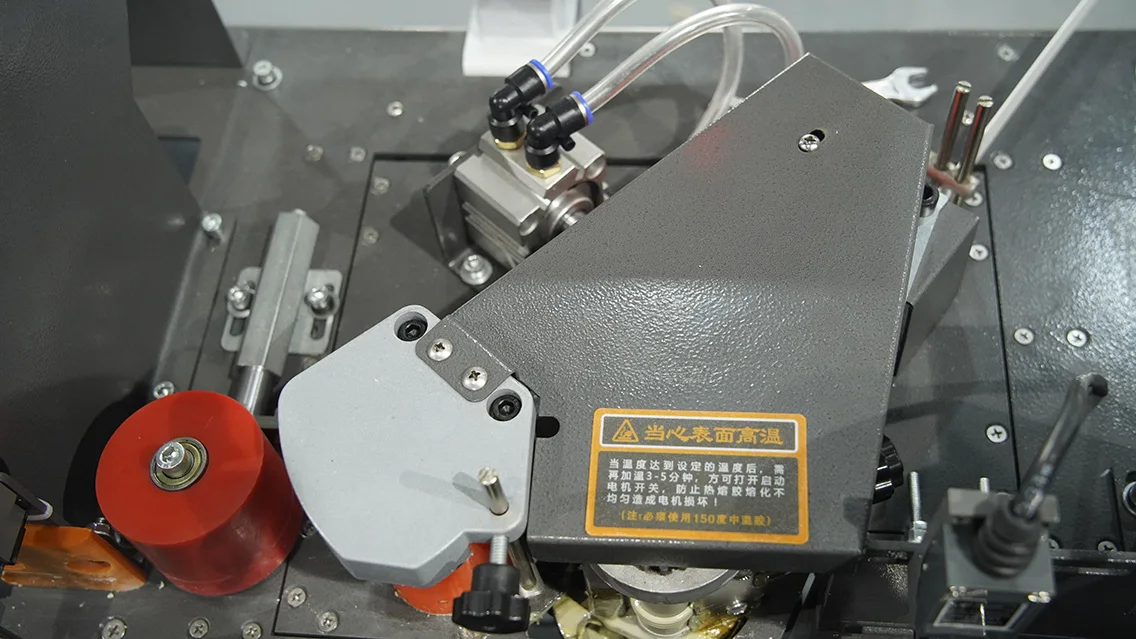

The integrated thickened aluminum alloy pressure beam paired with double-row inclined pressure wheels maintains consistent strip-to-substrate contact across the full panel width. This configuration prevents the uneven glue lines that appear when pressure distribution varies along the feed path. The concave-convex glue wheel design mimics pot-style application uniformity while keeping the glue capacity at 1000ml — sufficient for continuous runs without frequent refills. Secondary scraping and cleaning stations remove residual adhesive before it sets, delivering finished edges that move directly to assembly without manual touch-up. Trimming motors at 800W×2 handle the 0.5–2.5mm strip thickness range, and the 1200W vacuum system captures trim waste at the source rather than letting it accumulate on the conveyor.
What Happens When Configuration Gets Skipped
Ordering an edge bander without matching it to actual production volume and material mix leads to two failures. First, machines rated for intermittent duty get pushed into daily production schedules and wear through bearings and feed chains prematurely. Second, operators forced to work with control panels in an unreadable language make setup errors that show up as rejected panels downstream [NEED_CITE: operator interface language requirements for industrial machinery]. These problems surface weeks after delivery, long after the invoice is paid.
Why Source This Unit Here
Inventory is verified before listing — stock status reflects actual warehouse position, not estimated build dates. Voltage confirmation is mandatory in the quotation stage, with options from 110V to 440V documented on the electrical schematic before the order proceeds. Pre-shipment testing includes a factory test record run on your specified panel thickness and edge material. Operation manuals ship in the agreed language, and the spare parts list accompanies every unit so maintenance planning starts before the crate opens.
Documentation & Verification
- CE declaration of conformity for the ZDS290 edge banding unit
- Factory test record on your specified board thickness before dispatch
- Electrical schematic confirming voltage and frequency match
- Operation and maintenance manual in your requested language
- Spare parts list with consumable part numbers
Installation, Commissioning & Support
- Requires 0.6–0.8MPa compressed air supply with dedicated regulator
- 220V single-phase circuit with proper grounding for the 4165W total draw
- Machine arrives fully assembled at 150×57×96cm, positioned via pallet jack
- Glue pot reaches operating temperature within 5–10 minutes of first power-on
- Remote installation guidance provided after delivery confirmation
Requesting a Configuration Match
Provide your standard panel material, typical sheet thickness range, and local voltage with frequency so we can confirm the ZDS290 Automatic Edge Banding Machine in stock aligns with your production requirements. Let us know if your operators need a specific control panel language or if you require documentation for customs clearance in your destination country.
Frequently Asked Questions
Q: What is the dispatch lead time for stock units?
A: Stock units ship after pre-shipment verification and voltage confirmation are complete. The process includes factory testing on your specified material parameters and documentation preparation. Typical dispatch follows within several business days after order confirmation and specification sign-off, depending on destination port documentation requirements.
Q: Can the 220V stock configuration be changed to 380V or 440V?
A: Voltage is configurable from 110V to 440V as a standard option. Stock units carry confirmed voltage ratings, and any modification requires advance specification during the quotation stage. The electrical schematic reflects your confirmed voltage before production or reconfiguration proceeds.
Q: Which languages are available for the control panel?
A: Multilingual control panels are available as standard customization. Specify your required language during inquiry so the interface matches your operators’ needs. The operation manual ships in the same agreed language to maintain consistency across documentation and machine interface.
Q: What material and thickness combinations does this machine handle?
A: The ZDS290 processes strip thickness from 0.5mm to 2.5mm and sheet thickness from 10mm to 50mm. Suitable for MDF, plywood, and particleboard with PVC or veneer edge banding. Confirm your specific material combination during inquiry to verify feed speed settings and glue temperature parameters.
Q: Is remote installation support provided after delivery?
A: Installation guidance and commissioning support are included after the machine arrives at your facility. The 800W glue pot with 5–10 minute heat-up time and digital thickness display simplify first-day setup. Spare parts lists and maintenance schedules ship with the unit for ongoing operation.
