Description
Fast-Dispatch Readiness — the ZDSF210 ships from stocked inventory with voltage confirmed before packing, so a single-unit order arrives wired for your local supply and ready to run.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF210 Full Line High Speed Edge Banding Machine |
| Product Type | Automatic Edge Banding Machine |
| Edge Banding Speed | 6 m/min |
| Belt Feed Motor | 25 W |
| Board Feed Motor | 120 W |
| Trimming Motor | 800 W × 2 |
| Heating Motor | 800 W |
| Vacuum Fan | 1200 W |

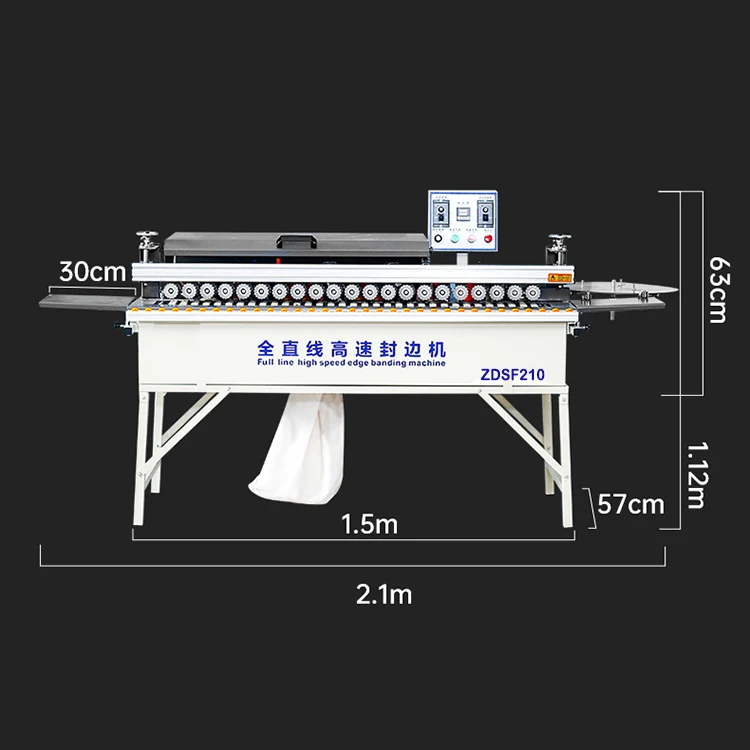

| Overall Dimensions (L×W×H) | 1500 × 570 × 630 mm |
| Net Weight | 155 kg |
| Glue Capacity | 1000 ml |
| Guide Rail Type | Steel rod guide rail |
| Trimming Stations | Up/down, left/right profiling trimming |

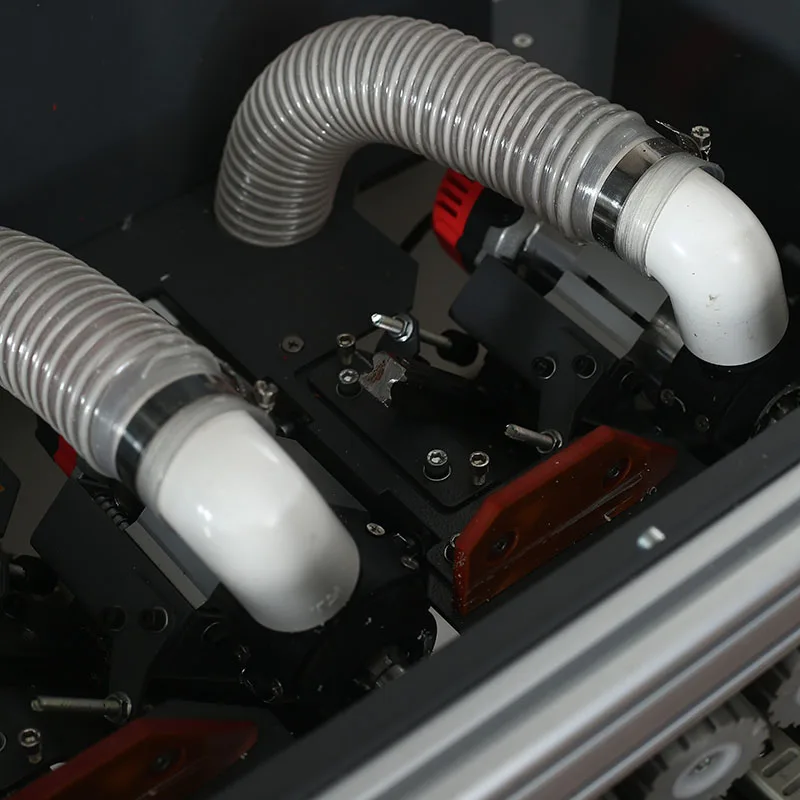

| Dust Extraction | Airtight dust collection with vacuum fan |
| Edge Scraping | Flexible scraping function |
| Polishing | Cross polishing station |
| Secondary Pressing | Elastic device secondary pressing |
| Motor Base | Frame type motor base |
| Assembly State | Partial assembly required (manual and video teaching provided) |
| Video Outgoing-Inspection | Provided before dispatch |
| Warranty | 1 Year |
| Voltage & Frequency | Configurable (confirm local voltage before ordering) |
| Control System & Language | Configurable (confirm requirements before ordering) |
| Panel Thickness Range | To be confirmed based on your panel stock |
| Certification | CE / ISO declarations available — confirm at inquiry |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF panels with PVC edge banding |
| Small-batch wardrobe panel production | Particleboard with standard PVC strips |
| Joinery workshop linear edge banding | Plywood panels for fitted furniture |
| Replacement of manual banding processes | Straight linear edges on flat panel stock |
Why the Voltage Question Must Come Before the Price
A machine wired for the wrong supply sits idle on your floor until an electrician rewires it — or worse, burns out on first power-up.
We see this repeatedly: a buyer compares quotes, picks the lowest, and the machine arrives configured for a voltage and frequency that does not match the workshop supply. The automatic edge banding machine in stock might be the right model, but without confirmed electrical specs it becomes a 155 kg paperweight. The ZDSF210 is configurable across common industrial and single-phase voltages, yet that configuration only works if the conversation happens before the crate is nailed shut [NEED_CITE: voltage and frequency standards by export market].
Stock Availability Without the Guesswork
Ordering an Automatic Edge Banding Machine in stock means the unit is physically built, tested, and sitting in the warehouse — not scheduled for a production slot weeks away. For a cabinet maker who just lost a machine to a bearing failure or a joinery shop that landed a contract with a tight deadline, that distinction matters. The ZDSF210 leaves the facility with a pre-shipment video inspection, so you see your specific unit running before it is crated.
Dispatch Speed Meets Configuration Accuracy
Speed only helps if the machine that arrives actually runs. Every ZDSF210 pulled from stock still goes through voltage confirmation, control language verification, and a test cycle on your specified panel material before packing. The outgoing video inspection documents the trim quality, glue line, and polishing result on the actual banding material you will use. This is where fast delivery and correct configuration meet — and where most stock-only suppliers cut corners [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Steel Rod Guide Rail Means for Your Panels
The ZDSF210 uses a steel rod guide rail rather than a flat conveyor bed. For panel feeding at 6 m/min, this keeps the board tracking straight through the glue pot, pressing zone, and trimming stations without lateral drift. The 800 W × 2 trimming motors handle up/down and left/right profiling, which is critical when PVC banding meets a MDF edge — any drift produces a visible step at the trim line. The elastic device secondary pressing maintains contact pressure through the cooling zone, reducing the hollow-sound failures that show up when panels reach the assembly bench.
The Cost of Skipping Material Verification
I spent years on the assembly floor before moving into equipment selection, and the most expensive lesson came from a small custom cabinet shop that ordered a compact edge bander, tested the sample with standard PVC strip, and then ran high-density ABS on their production floor. The glue temperature, feed speed, and trimming profiles were all wrong for that material, and it took two days of on-site adjustment to get acceptable results. The ZDSF210 handles PVC edge banding reliably, but if your operation uses ABS, melamine, or veneer strips, that must be stated before dispatch so the glue pot calibration and trimming setup match [NEED_CITE: edge banding material compatibility with glue pot temperature ranges]. Skipping this step does not damage the machine — it just produces scrap panels until someone figures out the mismatch.
Why Source This Model Here
The ZDSF210 sits within a full product family that ranges from entry-level to full-function pre-milling models, so a workshop can add capacity later without switching suppliers. Voltage from 110 V to 440 V and multilingual control panels are standard configuration options, not special requests. A four-stage quality check covers incoming material through pre-shipment verification, and the video inspection for each unit is recorded specifically for that machine. Engineer-led configuration recommendations and formal quotations are provided within 24 hours, which matters when you are working against a project deadline.
Documentation & Verification
- CE declaration of conformity matching the ZDSF210 model and configuration
- Machine specification sheet with confirmed voltage, frequency, and control language
- Factory test record showing trim quality on your specified PVC banding material
- Electrical schematic confirming wiring matches your local supply standard
- Spare parts list cross-referenced to the ZDSF210 component build
- Packing photographs documenting condition before crating
Installation, Commissioning & Support
- Footprint of 1500 × 570 mm fits standard workshop floors without special foundation work
- Partial assembly required on arrival with user manual and video teaching provided
- Dedicated circuit needed to support combined motor load including 1200 W vacuum fan
- First-run parameter setup guidance covering glue temperature for your PVC material
- Operation and maintenance manual supplied in the buyer’s agreed language
- Spare parts list included for first-year maintenance planning
What to Share When You Inquiry
To move quickly from inquiry to confirmed dispatch, provide your local voltage and frequency, the PVC edge banding thickness you run most often, and the MDF or particleboard panel thickness range in your production. If you have existing upstream saws or downstream boring machines, mention the feed height so we confirm the ZDSF210 integrates at the right transfer point. Let us know your preferred control panel language and whether you need a sample test cycle on your own panel stock before the machine ships.
Frequently Asked Questions
Q: Which voltage and frequency configurations are available for immediate dispatch?
A: The ZDSF210 is configurable across common industrial and single-phase voltages. We confirm your local supply specifications before the machine is pulled from stock and wired. This ensures the unit is plug-and-run compatible on arrival rather than requiring an on-site electrician to reconfigure the motor connections and control transformer.
Q: What panel thickness and edge banding material types does this machine support?
A: The ZDSF210 is configured for PVC edge banding on MDF, particleboard, and plywood panels. Exact panel thickness range depends on your stock, so we confirm compatibility before dispatch. If you use ABS, melamine, or veneer strips instead of PVC, tell us during inquiry so the glue pot calibration and trimming setup are adjusted accordingly.
Q: How quickly can a single unit ship from stock, and what are the shipping options?
A: As a stocked model, the ZDSF210 is available for fast dispatch once voltage and configuration are confirmed. The pre-shipment video inspection and packing photographs are completed before crating. Shipping options and transit timing are quoted upfront based on your destination port or delivery address.
Q: What assembly is required on arrival, and is installation guidance provided?
A: The ZDSF210 requires partial assembly on arrival. A user manual and video teaching materials are provided to walk your team through the setup process. The machine dimensions of 1500 × 570 × 630 mm and net weight of 155 kg mean it can be positioned with standard workshop handling equipment.
Q: Which spare parts should I order with the machine for first-year maintenance?
A: A spare parts list specific to the ZDSF210 component build is included with every shipment. We recommend ordering wear items for the trimming stations and glue pot system based on your expected production volume. Discuss your monthly panel output during inquiry so we suggest the right initial spare package.
