Description
In-stock readiness with voltage verification — every ZDSJC-780S unit undergoes electrical compatibility checks matching your workshop’s frequency and phase before dispatch, eliminating the transformer wait that stalls commissioning.

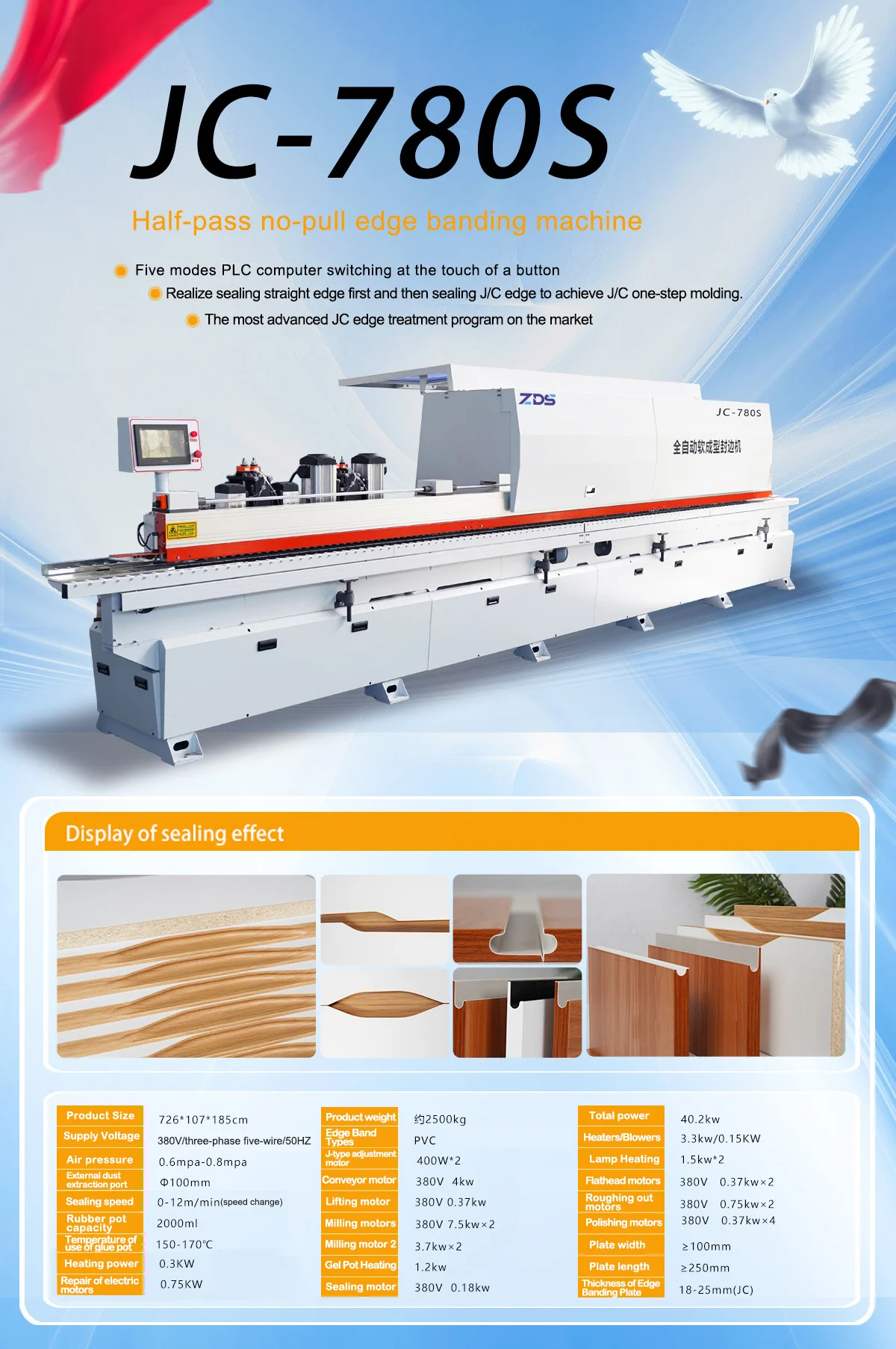

Technical Specifications
| Parameter | Value |
|---|---|

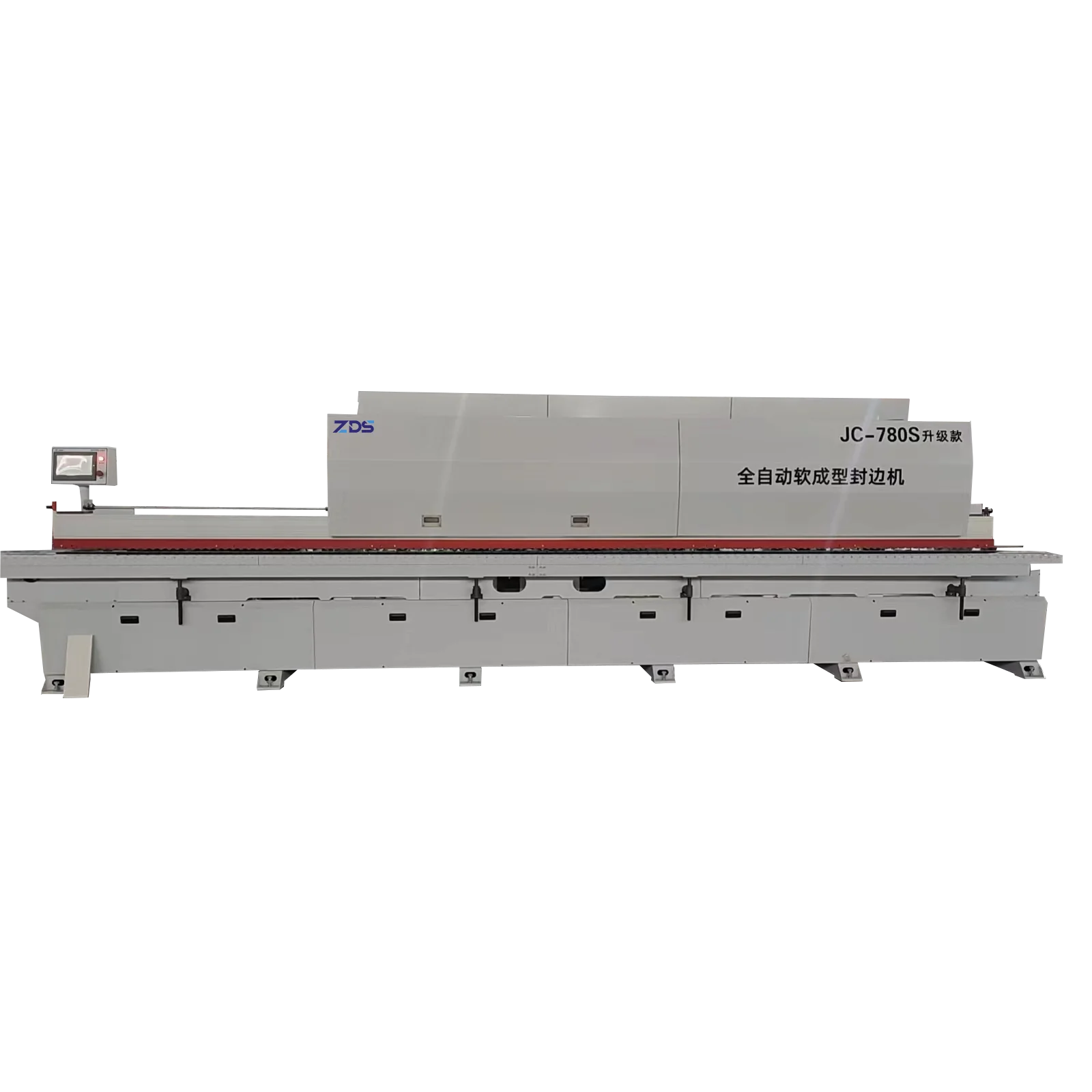

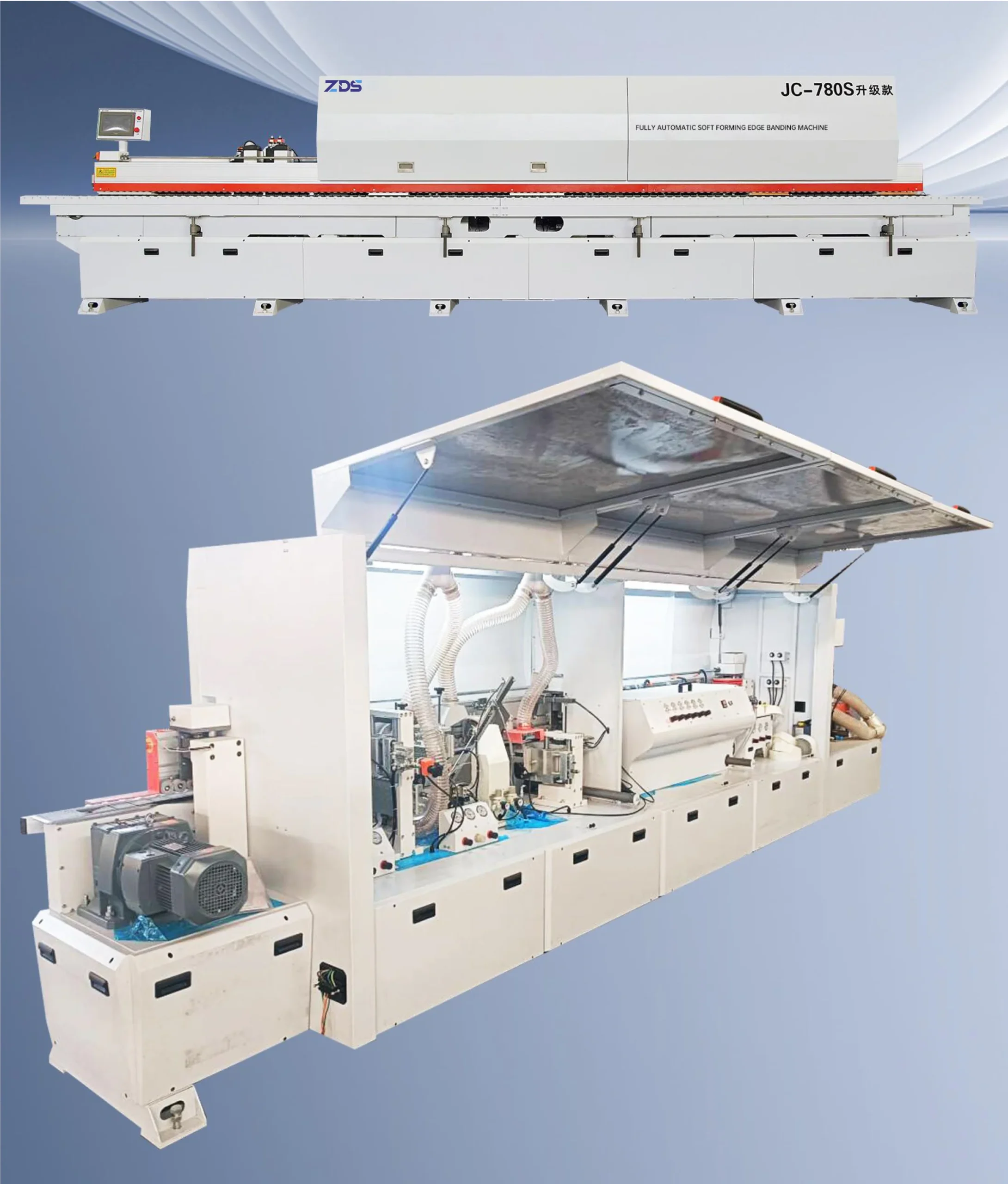

| Model | ZDSJC-780S |
| Product Type | Soft Forming Edge Banding Machine |
| Total Power | 41 kW |
| Voltage | 380V (frequency to be confirmed: 50Hz/60Hz) |
| Overall Dimensions (L×W×H) | 7.26 × 1.07 × 1.85 m |
| Net Weight | 2500 kg |
| Panel Thickness Range | 18–22 mm |
| Edge Banding Thickness | 0.5–0.8 mm |
| Edge Banding Width | 58 mm |
| Minimum Sheet Width | 150 mm |
| Minimum Sheet Length | 300 mm |
| Feed Speed | 6–8 m/min |
| Air Supply Requirement | ≥0.6 MPa |
| Vacuum Opening Size | Ф100 × 6 |

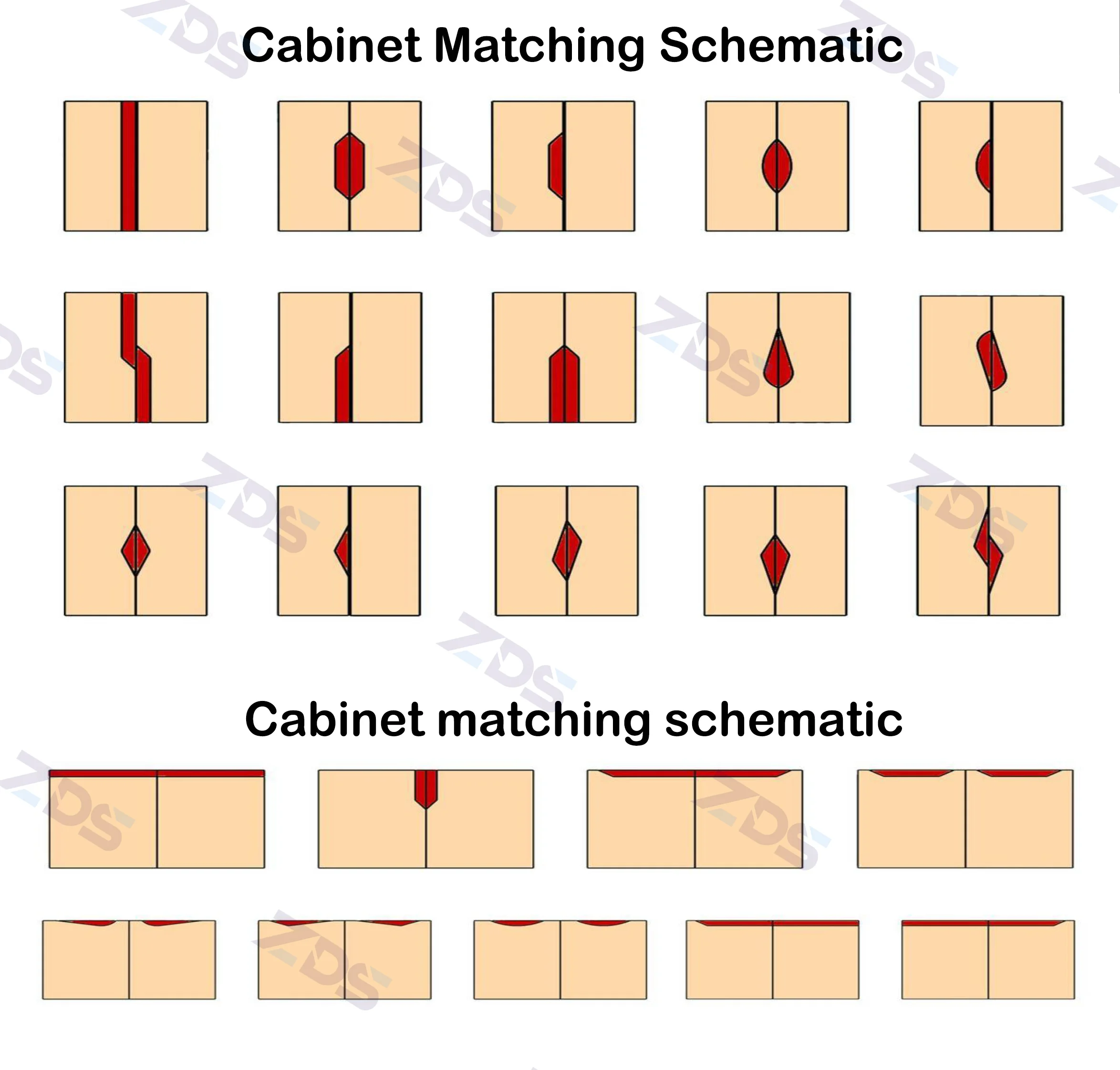

| Machining Shape Capability | 14 profiles including J type, C type, left/right half-pass, middle pass, concave, triangle, water drop |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge profiling | MDF and particleboard with PVC or veneer banding |
| Whole-house furniture component shaping | Plywood panels requiring J-shape or C-shape contours |
| Contoured edge banding for panel processing | Soft-forming profiles on 18–22 mm substrate stock |
| Joinery workshop production ramp-up | Shaped edge finishes replacing manual routing operations |
Why the Voltage Question Should Come Before the Price on a Soft Forming Edge Banding Machine in Stock
A machine that cannot power on is a machine that cannot produce, regardless of how fast it shipped.
I once watched an electrician stand idle for three weeks beside a soft-forming edge bander that arrived with a 380V/50Hz configuration going into a 60Hz workshop. The transformer retrofit cost more than the shipping savings the buyer thought they had secured. When sourcing a Soft Forming Edge Banding Machine in stock, confirming the electrical supply at your facility is the first checkpoint, not an afterthought tagged onto the installation manual [NEED_CITE: voltage and frequency standards by export market]. Frequency mismatches do not just prevent startup — they can damage motor windings and control boards before anyone realizes the problem.
Dispatch Speed Without the Configuration Guesswork
Stock availability means the ZDSJC-780S soft forming edge banding machine can leave the factory within days rather than weeks. For workshops adding contoured edge capability to an existing line, that timing difference matters when customer orders are waiting. The unit ships with 14 profile tooling positions pre-set, so J-shape, C-shape, and half-pass cuts are available from the first production run rather than requiring a separate tooling order.
Readiness Means More Than Crate and Ship

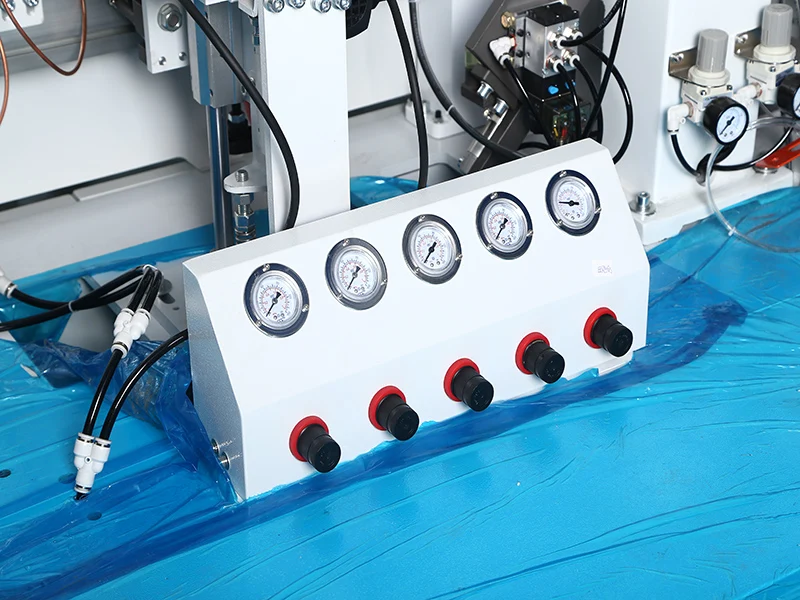

A Soft Forming Edge Banding Machine in stock still requires confirmation that the air supply at your facility meets the ≥0.6 MPa threshold and that your dust extraction can handle six Ф100 vacuum openings running simultaneously. These are not exotic requirements, but overlooking them turns a fast dispatch into a slow commissioning. Pre-shipment testing on your specified panel material and edge profile removes the largest variable before the crate closes [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Numbers That Actually Matter on the Shop Floor
The 18–22 mm panel thickness range covers the standard board stock used in cabinet and furniture production, meaning you will not need to source non-standard substrate to use this machine. Feed speed at 6–8 m/min reflects the reality that soft-forming profiles demand slower passes than straight edge banding to maintain contour fidelity — pushing beyond that range risks visible chatter marks on the finished edge. The 0.5–0.8 mm banding thickness window is suited to PVC and thin veneer materials typical in custom furniture work. Total power draw at 41 kW requires a dedicated circuit; sharing a breaker with other heavy machinery will cause voltage drops that affect glue pot temperature stability.
The Cost of Skipping the Specification Conversation
Ordering a soft-forming edge bander without verifying minimum sheet dimensions leads to discovering, on day one, that your narrow drawer fronts fall below the 150 mm width threshold. The operator then hand-feeds small pieces or abandons the machine for those components entirely. Similarly, assuming the control interface language matches your team — without confirming it in writing — adds days of guesswork during setup [NEED_CITE: operator interface language requirements for exported machinery]. These are preventable delays that erase any advantage gained from buying a stocked unit.
What Stocked Procurement Actually Delivers
The ZDSJC-780S ships from inventory, which shortens the gap between purchase order and production capability. Voltage and frequency confirmation happens at the order stage, not at the dock. Pre-shipment test records document the machine running your specified panel thickness and edge profile before crating. Documentation arrives in the language your operators read, covering operation, maintenance, and electrical schematics. Spare parts lists identify consumables specific to the 0.5–0.8 mm banding range so your first reorder is informed, not urgent.
Documentation & Verification
- Factory test record on your 18–22 mm panel stock and chosen contour profile before dispatch
- Electrical schematic confirming 380V configuration and frequency matched to your facility supply
- Operation and maintenance manual in the language agreed at order confirmation
- Spare parts list identifying consumables for 0.5–0.8 mm edge banding materials
- Packing photographs showing tooling positions and vacuum connections secured for transit
Installation, Commissioning & Support
- Dedicated 41 kW circuit required; confirm breaker rating with your electrician before delivery
- 7.26 m length requires clear floor path from dock to final position with overhead clearance above 1.85 m
- Six Ф100 vacuum openings must connect to extraction system capable of sustained suction across all ports
- ≥0.6 MPa air line with regulator and moisture trap installed upstream of the machine inlet
- First-run parameter setting covers feed speed adjustment within the 6–8 m/min range for your specific banding material
Before You Send the Inquiry
Provide your workshop voltage and frequency so the electrical configuration is locked before the order is confirmed. Specify which of the 14 profile shapes you will run most frequently — this determines which tooling positions get priority during pre-shipment testing. If your panels fall near the 150 mm minimum width or 300 mm minimum length boundaries, send sample dimensions so compatibility is verified before dispatch.
Frequently Asked Questions
Q: Is this soft forming edge banding machine currently in stock and what is the dispatch lead time?
A: The ZDSJC-780S is held in ready stock, allowing dispatch within days of order confirmation rather than a production build cycle. Lead time from payment to shipment depends on completing voltage verification and pre-shipment testing on your specified material. Once those checkpoints clear, the machine moves to crating and freight booking immediately.
Q: Which voltage options are available for immediate shipment?
A: The stocked unit is configured for 380V supply. Frequency must be confirmed as 50Hz or 60Hz to match your local grid before the machine leaves the factory. If your facility runs a different voltage entirely, configuration options are available but may adjust the dispatch timeline from immediate to a short reconfiguration period.
Q: What edge banding materials and thicknesses are compatible out of the box?
A: The machine handles 0.5–0.8 mm edge banding in PVC and veneer materials at 58 mm width. These cover the standard consumables used in custom furniture and cabinet production. Confirming your specific banding supplier and material type at order stage ensures the pre-shipment test uses representative stock.
Q: Can I order a single unit or is there a minimum order requirement?
A: Single-unit orders are accepted for this stocked model. There is no minimum quantity threshold. The sales process covers voltage confirmation, specification review, and pre-shipment testing for individual machines with the same verification steps applied to larger orders.
