Description
Ready Stock Dispatch — Single-unit orders of the WFS190 ship from our warehouse with voltage confirmed and manuals matched to your operator’s language before the crate is sealed.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | WFS190 |
| Product Type | Automatic Edge Banding Machine |
| Function | Automatic plate feeding, double-sided gluing, upper and lower polishing, automatic head and tail trimming, bending and straightening |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz (other voltages on request) |
| Rated Power | 4kW |
| Heating Power | 800W |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Belt Power | 25W |
| Transmission Power | 120W |
| Feed Speed | 0–14 m/min |
| Panel Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Capacity | 1000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 140 kg |
| Warranty | 1 year |
| Assembly State | KD packing, requires assembly with manual or video guidance |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and carcass edge banding | MDF and particleboard with PVC strip up to 2.5 mm |
| Small-batch curved furniture components | Plywood and shaped solid wood panels with veneer banding |
| Joinery workshop sample and prototype runs | Melamine-faced chipboard with ABS or PVC edging |
| Secondary backup edge bander for short production runs | Solid wood panels with thin veneer or thick PVC profiles |
Why Voltage Confirmation Must Happen Before You Pay
An Automatic Edge Banding Machine in stock is only useful on your shop floor if it actually runs on your local supply.
I once watched a joinery shop in Dubai unpack a brand-new edge bander, wire it up, and flip the breaker — only to find the glue pot would not reach melting temperature because the machine had been built for 380V three-phase and the workshop only had 220V single-phase. The heater element drew less than half its rated wattage, the EVA glue stayed viscous, and every panel that came off the feed belt had a cold, half-bonded edge. The entire first batch was scrapped before anyone realized the root cause was a voltage mismatch that should have been caught at the quotation stage. [NEED_CITE: voltage and frequency standards by export market]
When you order this WFS190, the 220V 50Hz single-phase configuration is confirmed in writing before dispatch. If your local grid runs on a different standard, the motor winding, heater element, and control transformer are swapped to match before the machine leaves the factory. No surprises on arrival.
How Single-Unit Ordering Works Here
Most machinery suppliers want you to commit to a container load before they quote shipping. On ruiqistore.com, the WFS190 Automatic Edge Banding Machine is listed with current stock levels and dispatch windows so you can order one unit and still receive a realistic delivery timeline. The compact 1900 × 560 × 1300 mm footprint and 140 kg weight mean a single crate fits into LCL sea freight or air cargo without needing a dedicated container.
Door-to-door shipping is available with customs-clearance support in selected countries. You receive tracking details once the crate leaves the warehouse, and the operation manual travels inside the crate in the language you specified at order time.
Lead Time Reality for Stocked Machines
A stocked edge bander should not take weeks of "production scheduling" before it moves. The emphasis here is on speed and simplicity: if the WFS190 shows available on the store page, it is physically in the warehouse, tested, and ready for crating. Dispatch lead time covers the final pre-shipment inspection, KD packing, and booking the freight — not manufacturing from scratch. [NEED_CITE: typical dispatch timelines for stocked woodworking machinery]
For buyers running a small workshop and needing a replacement machine quickly after an unexpected breakdown, this matters. Every day without an edge bander is a day your panel components pile up unfinished.
Reading the Feed Speed and Panel Thickness Numbers

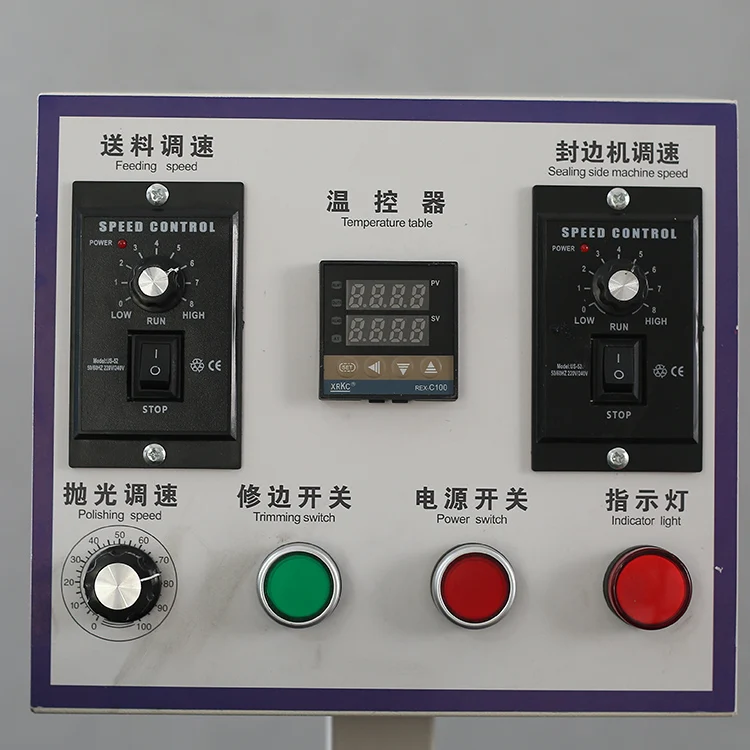

The 0–14 m/min variable feed speed is not just a throughput figure — it determines how long the glue stays open before the pressure roller bonds the strip to the panel edge. At lower speeds, thicker PVC strips up to 2.5 mm have more contact time with the heated glue film, producing a stronger bond on porous substrates like particleboard. At higher speeds, thin veneer strips on sealed melamine surfaces still bond reliably because less open time is needed.

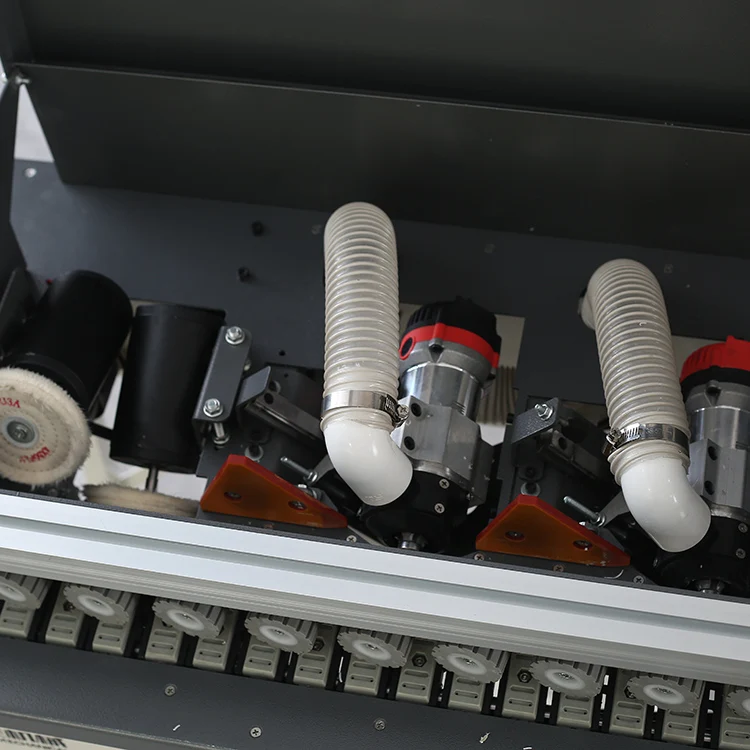

The 10–50 mm panel thickness range covers everything from thin drawer bottoms to thick worktop carcass sides. The double-sided gluing system applies adhesive to both the panel edge and the strip simultaneously, which matters when you run curved profiles where one-sided glue can starve the outer radius. The 800W × 2 trimming motors handle head-and-tail cuts cleanly, and the 180W × 2 polishing wheels leave an assembly-ready finish without secondary sanding.
What Happens When You Skip the Sample Test
I have seen edge banders of this class arrive at a workshop and immediately go into production without anyone running a test panel first. The operator loads PVC strip, feeds MDF panels, and by the end of the shift the glue line shows visible gaps on the curved pieces. The problem is not the machine — it is that the glue temperature, feed speed, and strip thickness were never matched to the specific material combination on the shop floor. [NEED_CITE: edge banding adhesion failure causes on curved profiles]
With the WFS190, the variable feed speed and adjustable glue pot temperature let you dial in the right combination, but only if you run your actual panels and strips through the machine during commissioning. Skipping that step turns a capable machine into a source of scrap.
Why Buyers Source This Machine Here
The WFS190 ships with voltage and frequency confirmed in writing for your destination market — no assumption that "standard" means the same thing everywhere.
An engineer reviews your panel material, strip type, and production volume before confirming the configuration, with a formal quotation returned within one working day.
Every unit undergoes pre-shipment testing on actual panel stock, and the test record travels with the machine so you can verify performance on arrival.
Single-unit orders are standard practice on this store, not an exception — LCL freight and air cargo options are quoted upfront alongside sea freight.
The one-year warranty covers factory-defect spare parts, and the operation and maintenance manual arrives in your chosen language with video assembly guidance for the KD-packed unit.
Documentation & Verification
- CE declaration of conformity matching the WFS190 configuration shipped
- Voltage and frequency confirmation sheet signed before dispatch
- Factory test record on your specified panel thickness and strip material
- Operation and maintenance manual in the agreed language
- Electrical schematic with confirmed plug type and circuit requirements
- Packing photographs taken before crate sealing
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for the 4kW total draw with proper earthing
- KD packing means on-site assembly; video guidance walks through each station alignment
- First-run commissioning should use your actual MDF or plywood panels and PVC strips to set glue temperature
- The 0.4–0.6 MPa air supply must be clean and dry to protect the pneumatic feed and trimming cylinders

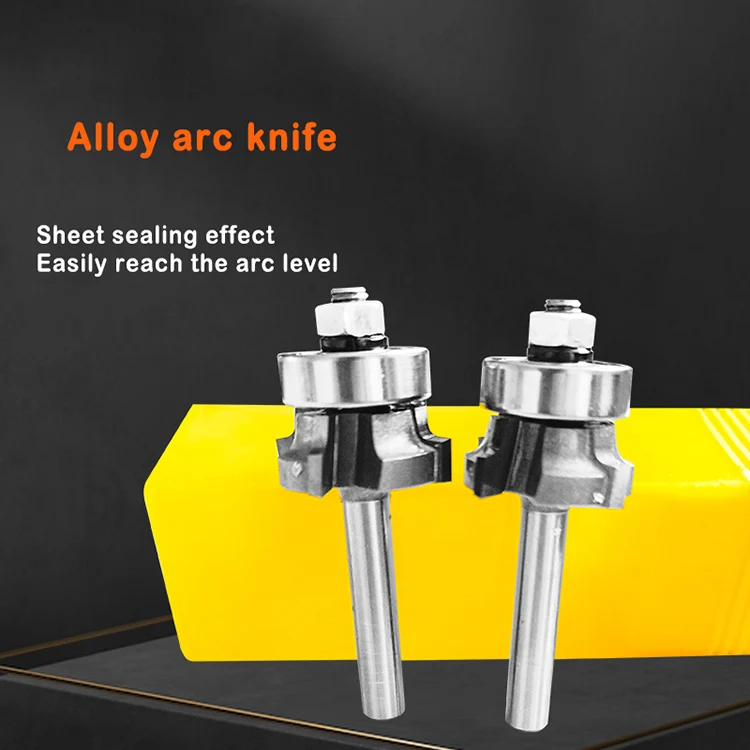

- Polishing wheels and trimming blades are the primary consumables; reorder part numbers are in the spare parts list
- Monthly inspection of the 1000 ml glue pot for residue buildup extends heater element life
What to Share When You Enquire
To match the right configuration, send your typical panel material and thickness range, the edge strip type and thickness you run most often, and your local voltage and frequency. If your workshop has space constraints, confirm the available floor area so the 1900 × 560 mm footprint can be checked against your layout. Let us know whether you need the manual and control labels in a specific language.
Frequently Asked Questions
Q: Is the WFS190 currently in stock and what is the dispatch lead time for a single unit?
A: Stock status is shown live on the store page. When listed as available, the machine is physically in the warehouse and has passed pre-shipment testing. Dispatch covers final packing and freight booking, not manufacturing. Single-unit orders are standard and ship via LCL sea freight or air cargo depending on your timeline and destination.
Q: Can you arrange door-to-door shipping with customs clearance to my country?
A: Door-to-door shipping is available for selected destinations with customs-clearance support included. You receive a freight quote showing transit options before payment. The crate is packed for international transit with the operation manual and spare parts sealed inside, and tracking details are provided once the shipment leaves the warehouse.
Q: Does the machine arrive fully assembled or do I need to set it up myself?
A: The WFS190 ships in KD packing to reduce freight volume and cost. Assembly is required on arrival, and a detailed operation manual plus video guidance are included to walk you through each step. The 140 kg weight means two people can position and assemble the unit without heavy lifting equipment.
Q: How do I confirm the voltage and plug type match my local supply before ordering?
A: The standard configuration is 220V 50Hz single-phase. If your local supply differs, confirm your exact voltage, frequency, and plug type at the enquiry stage. The motor, heater element, and control transformer are adjusted to match before dispatch, and a signed voltage confirmation sheet ships with the machine.
Q: What spare parts are included and how do I reorder consumables like glue and polishing wheels?
A: The machine ships with a starter set of spare parts listed in the included documentation. Consumable reorder part numbers for polishing wheels, trimming blades, and other wear items are in the spare parts list. Glue is sourced locally by most buyers since EVA hot-melt adhesive is widely available from regional suppliers.
