Description
Voltage confirmed before dispatch — every ZDSF50 unit ships only after your local supply is verified against the electrical schematic, so there are no surprises on the shop floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF50 |

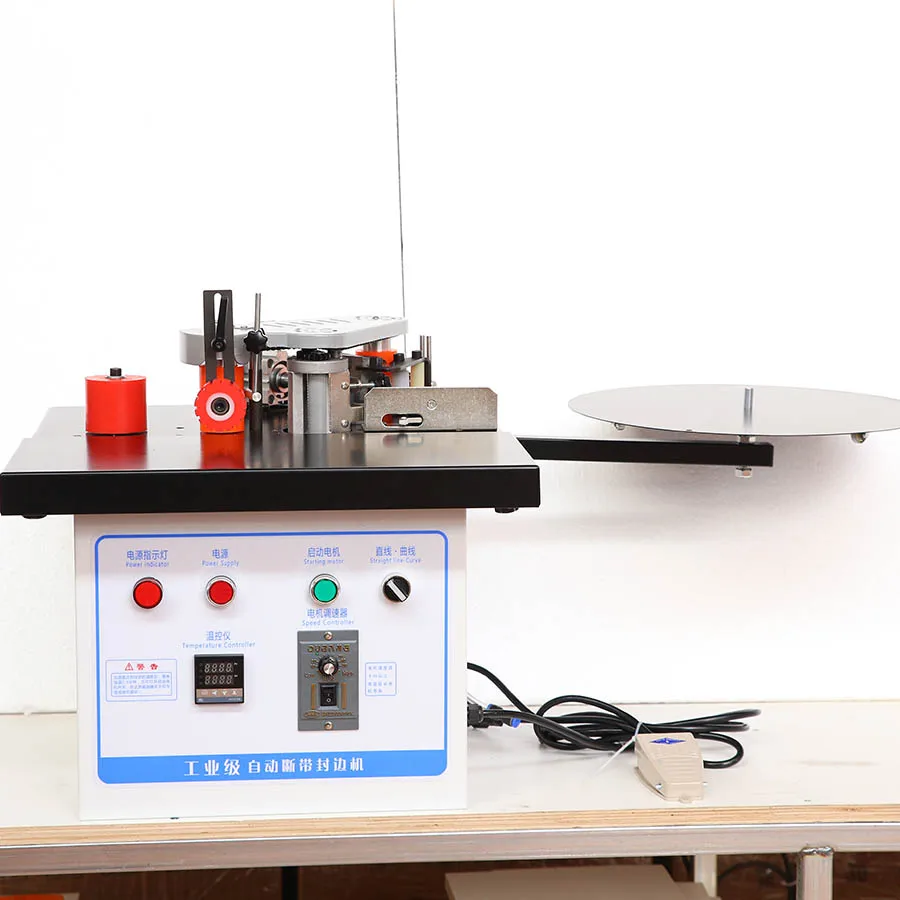

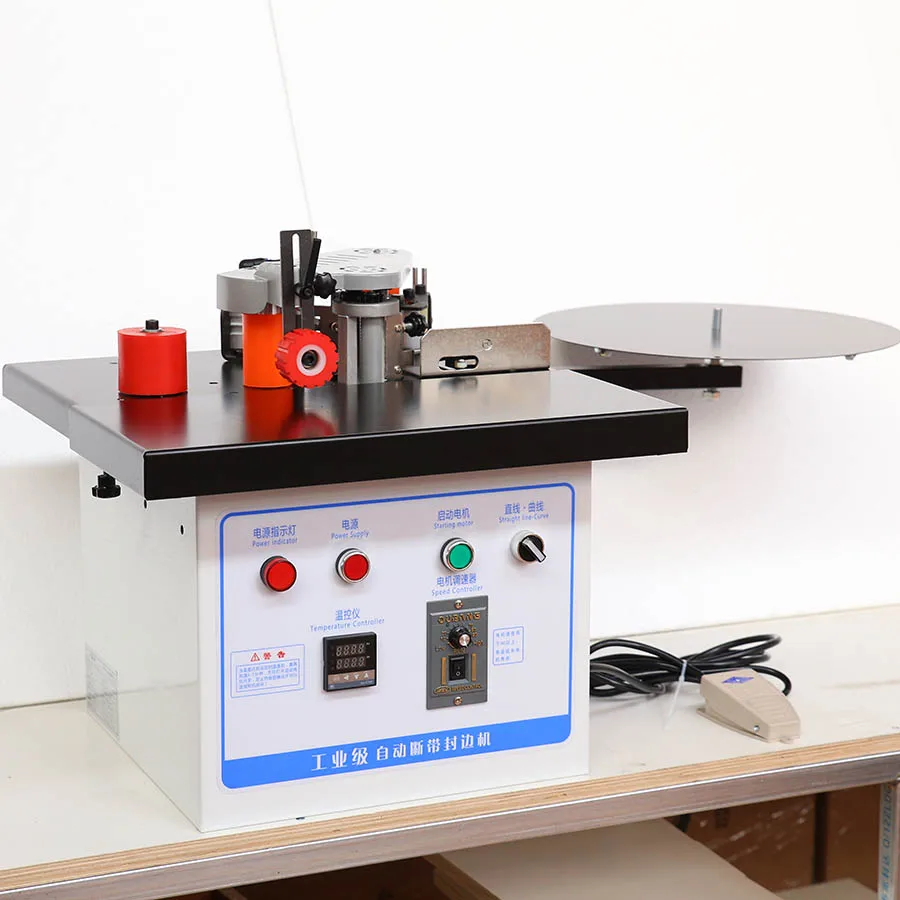

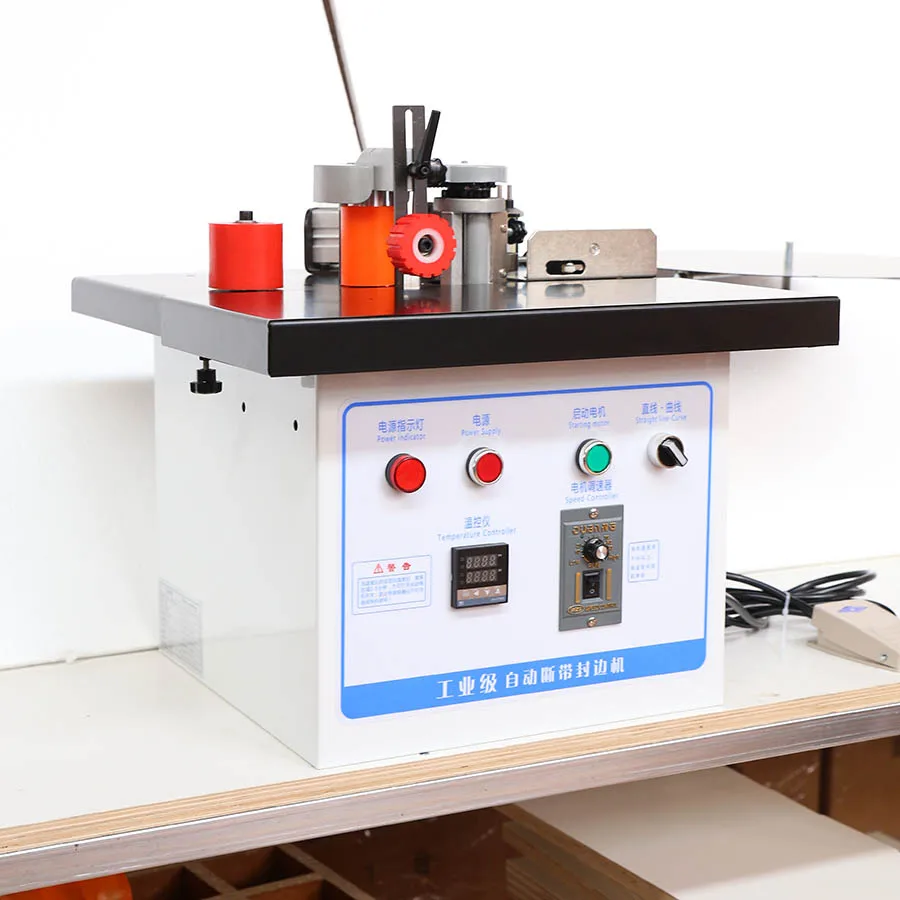

| Product Type | Mini Portable Edge Banding Machine |
| Rated Power | 1.2 kW |
| Voltage & Frequency | 220V (frequency to be confirmed per destination market) |

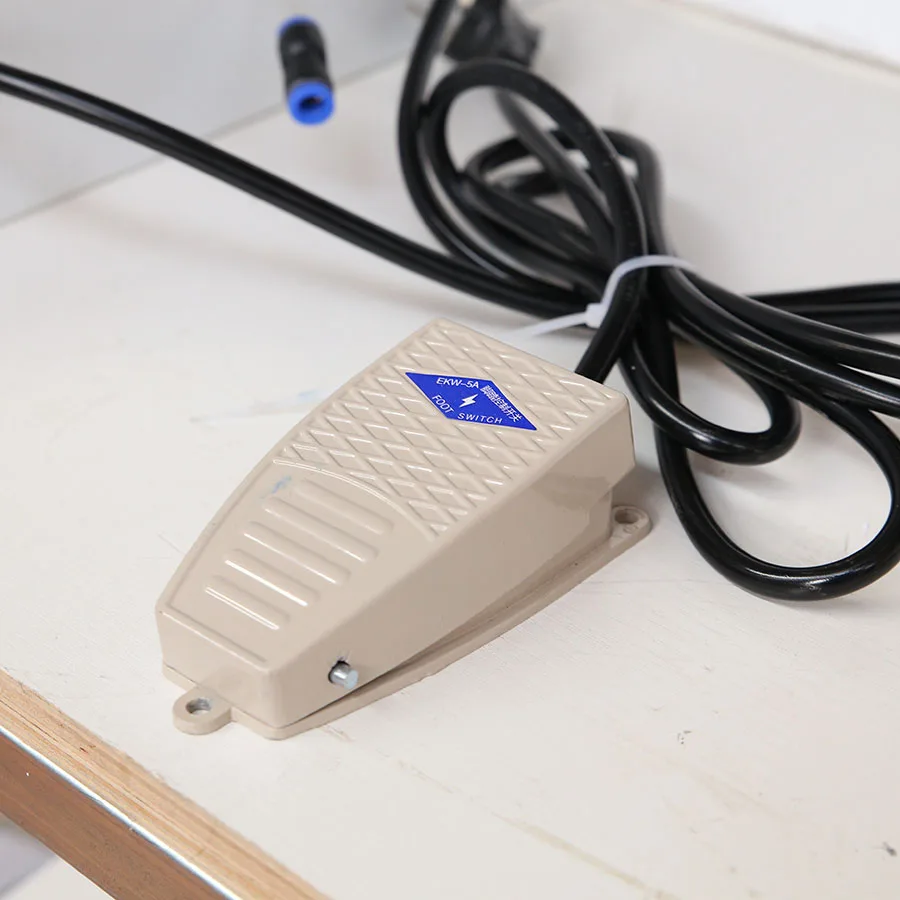

| Control System | Manual operation with foot switch and travel switch |
| Feed Speed | 0–6 m/min |
| Edge Strip Thickness Range | 0.5–1.5 mm |
| Panel Thickness Range | 10–60 mm |
| Glue Pot Capacity | 1000 ml |
| Glue Pot Heating | 4 heating tubes |
| Heating Time | 5–10 min |
| Glue Application | Double-sided via glue-coated rollers |
| Rated Air Pressure | 0.4–0.6 MPa |
| Edge Strip Cutting | Pneumatic belt breaking device; foot switch for curves, travel switch for straight edges |

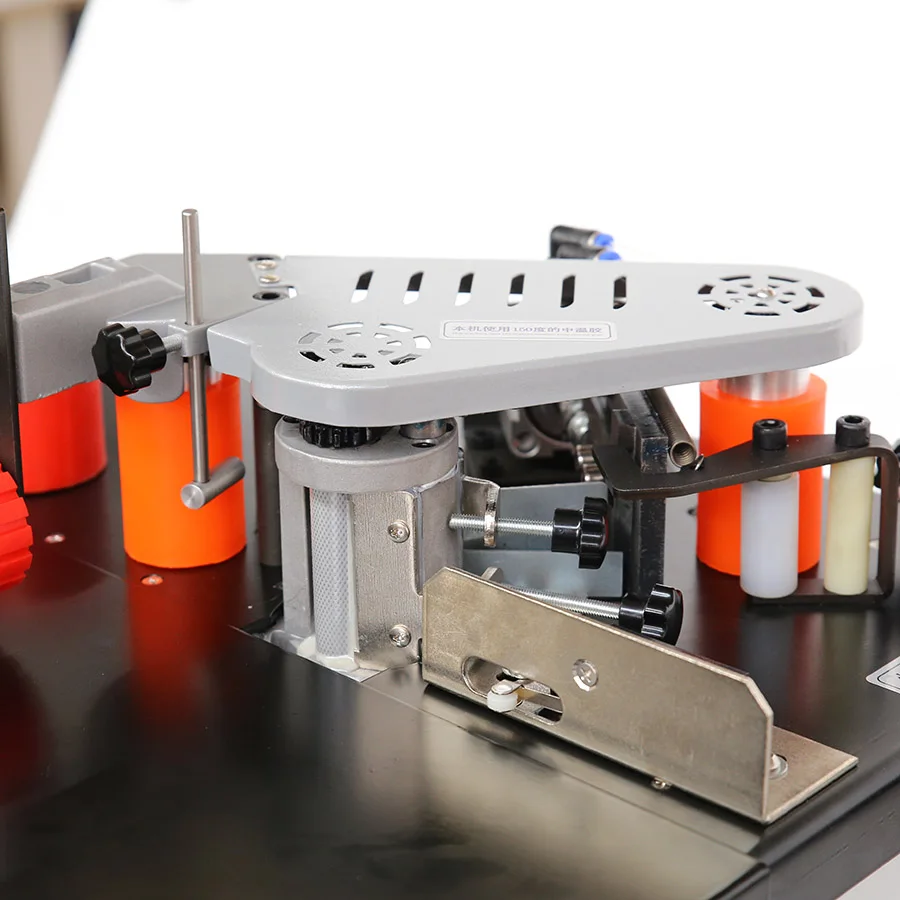

| Pressure Rollers | Adjustable to panel thickness, rubber material |
| Edge Strip Transport | Adjustable bayonet to edge strip height |
| Overall Dimensions | 54 × 54 × 56 cm |
| Net Weight | 26 kg |
| Assembly State | Fully assembled, portable |
Application Suitability
| Application | Material or Output |
|---|---|
| Small workshop edge banding | MDF, plywood, particleboard with PVC or veneer strips |
| Curved and shaped edge profiles | Furniture components with radii, rounded corners and contoured panels |
| On-site cabinet fitting | Custom cabinet panels requiring edge finishing at the installation location |
| Furniture repair and re-banding | Damaged or delaminated edge strips on existing furniture pieces |
| Low-volume prototype runs | One-off panels and sample boards for design approval before batch production |
Why the Voltage Question Should Come Before the Price on a Mini Portable Edge Banding Machine in Stock
A machine that cannot plug into your local supply is dead weight until an electrician sorts it out.
I once shipped a bander to a Middle East customer without double-checking their three-phase supply. The machine arrived rated for 440V while the workshop ran 380V. Their production line sat idle for three weeks waiting for a step-down transformer. That failure was entirely preventable. With the ZDSF50, the voltage and frequency are confirmed against the buyer’s local grid before the order is finalised [NEED_CITE: voltage and frequency standards by export market]. Skipping this step is one of the most common reasons imported woodworking equipment fails at commissioning.
Dispatch Lead Time and Stock Availability
This ZDSF50 mini portable edge banding machine in stock is held ready for fast dispatch, which matters when a small workshop cannot afford a multi-week production gap. Units ship fully assembled, so there is no on-site mechanical build required. The 26 kg weight and compact 54 × 54 × 56 cm footprint mean it can be moved into position by one person and plugged into a standard single-phase outlet once voltage is confirmed.
How Double-Sided Gluing Changes Edge Quality on Curves
Single-sided glue application often leaves visible starved spots along curved profiles where the strip pulls away from the substrate. The ZDSF50 uses glue-coated rollers that apply adhesive to both the panel edge and the back of the strip simultaneously. This double-sided approach maintains adhesion across radii and shaped contours where centrifugal force during feed would otherwise break the bond on a single-glue system [NEED_CITE: edge adhesion failure modes on curved panel profiles]. The 1000 ml glue pot with four heating tubes reaches working temperature in five to ten minutes, which suits short production bursts typical of custom cabinet shops.
Reading the Specs That Matter for Your Panels
The 10–60 mm panel thickness range covers most MDF, plywood and particleboard stock used in furniture and cabinet work. If your panels fall outside this window, the pressure rollers and transport bayonet cannot adjust to hold the strip flush. The 0.5–1.5 mm strip thickness range handles standard PVC and veneer banding; heavier ABS or solid wood lipping requires a different class of machine. Feed speed of 0–6 m/min is variable, letting the operator slow down through tight curves and speed up along straight runs. The pneumatic cutting device, triggered by foot switch on curves and by travel switch on straight edges, keeps both hands free to guide the panel [NEED_CITE: pneumatic edge strip cutting safety standards].
What Happens When the Wrong Bander Meets Your Production Volume
A portable bander is built for intermittent use and short runs. Pushing it into continuous eight-hour shifts at the upper feed speed will overwork the glue pot heating elements and wear the rubber pressure rollers prematurely. Workshops that buy a single entry-level machine and then scale production volume around it often find the glue temperature drifting and edge adhesion becoming inconsistent [NEED_CITE: thermal drift in small glue pots under continuous operation]. The ZDSF50 serves well as a primary machine for low-volume custom work or as a second unit for overflow and repair tasks, but a full-size automatic line is the correct choice once daily throughput demands sustained operation.
Why Sourcing This Machine Here Reduces Risk
Voltage and frequency confirmation happens before the order is locked, eliminating the transformer problem that strands machines on arrival. Every unit undergoes a pre-shipment test run verified against the electrical schematic, and packing photographs are supplied so condition at dispatch is documented. The operation and maintenance manual is provided in the language agreed during the inquiry stage, not a generic English-only booklet. Configuration recommendations are engineer-led, meaning the suitability of the ZDSF50 for your specific panel materials and strip types is assessed before quotation rather than discovered during commissioning.
Documentation & Verification
- Electrical schematic and voltage confirmation matched to your local supply before shipment
- Factory test record documenting a full operational run on your specified panel thickness range
- Operation and maintenance manual supplied in the language agreed at order placement
- Spare parts list covering glue pots, heating tubes and pressure rollers with part numbers
- Packing photographs provided showing machine condition at the point of dispatch
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for at least 1.2 kW with proper earthing
- Ships fully assembled at 26 kg; position on a stable bench and connect compressed air at 0.4–0.6 MPa
- First heat-up cycle takes 5–10 minutes; verify glue temperature on a scrap panel before production
- Adjustable pressure rollers and bayonet must be set to your specific panel and strip thickness combination
- Keep spare heating tubes and rubber pressure rollers on hand to minimise downtime during maintenance
What We Need to Match the Right Machine to Your Workshop
To confirm whether the ZDSF50 fits your operation, share the panel substrates and edge strip materials you work with most often, along with the typical panel dimensions and whether your edges include curves or shaped profiles. Let us know your local voltage and frequency so the electrical configuration can be verified before dispatch. If you are integrating this unit into an existing line, tell us what upstream and downstream equipment it needs to work alongside so feed height and throughput compatibility can be checked.
Frequently Asked Questions
Q: Is the ZDSF50 currently in stock and how quickly can it be dispatched?
A: Yes, the ZDSF50 is held in ready stock on ruiqistore.com. Once voltage and frequency are confirmed against your local supply and the order is finalised, the unit can be prepared for shipment promptly. Pre-shipment testing and packing photographs are completed before the crate leaves the factory, so actual dispatch timing depends on completing those verification steps.
Q: Can you confirm 220V and 50–60Hz compatibility for my country before I place the order?
A: Absolutely. Voltage and frequency confirmation is a standard step before any order is finalised. We review your local supply specifications against the machine’s electrical schematic and provide written confirmation. This prevents the situation where a machine arrives on site and cannot be powered without additional transformers or rewiring.
Q: What edge strip and panel materials does this portable bander handle?
A: The ZDSF50 handles PVC and veneer edge banding in thicknesses from 0.5 to 1.5 mm, applied to MDF, plywood, particleboard and similar panel substrates between 10 and 60 mm thick. It is designed for straight, curved and shaped edge profiles. Heavier strip materials such as thick ABS or solid wood lipping fall outside its specification range.
Q: Does the machine arrive fully assembled or is on-site setup required?
A: The ZDSF50 ships fully assembled and portable at 26 kg. On-site setup involves placing it on a stable workbench, connecting it to a confirmed 220V supply and attaching a compressed air line at 0.4–0.6 MPa. No mechanical assembly is needed. The first heat-up cycle takes five to ten minutes before the glue pot reaches working temperature.
Q: How do I order spare glue pots, heating tubes and pressure rollers?
A: Spare parts are available through the same ordering channel as the machine itself. A spare parts list with part numbers is included with every ZDSF50 shipment, covering consumable items such as heating tubes, rubber pressure rollers and glue pots. Ordering spares at the time of the initial purchase is recommended to reduce downtime during routine maintenance.
