Description
Verified Before Dispatch — every DW702 leaves the warehouse only after your local voltage, plug type, and control language are confirmed in writing and tested under load.
Technical Specifications
| Parameter | Value |
|---|---|

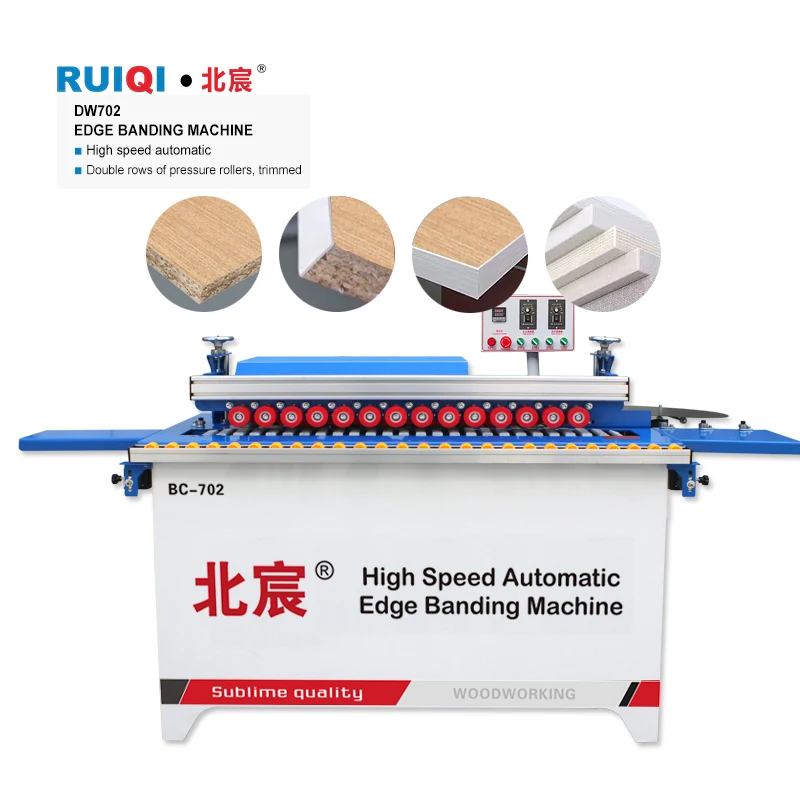

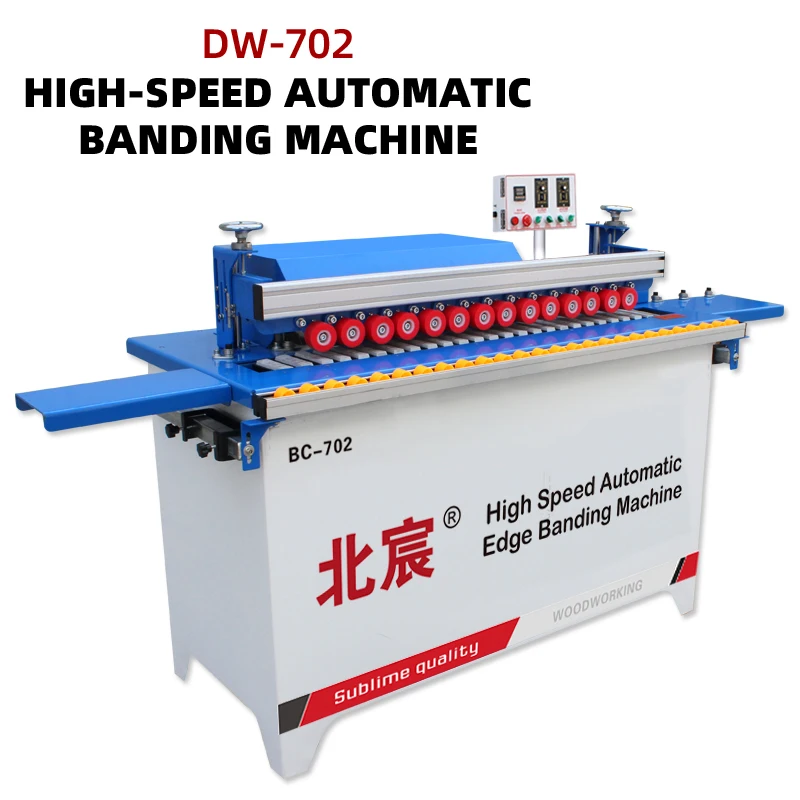

| Model | DW702 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage Options | 220V / 380V / customization available |
| Edge Banding Thickness | 0.3–3mm |
| Edge Banding Height | 0–50mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 10cm |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Transmission Power | 140W |
| Glue Pot Capacity | 1000ml |
| Air Source Pressure | 0.4–0.8MPa |
| Overall Dimensions (L×W×H) | 120×55×110cm |
| Net Weight | 105kg |
| Control Panel Languages | Chinese and English standard; Spanish and other languages on request |
| Plug Options | EU, USA, AU, UK |
| Standard Functions | Gluing, trimming, polishing, automatic head-and-tail cutting, vacuum hold |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard with PVC or melamine edge strips |
| Small-batch custom furniture | Plywood panels with veneer or thin polymer banding |
| Workshop backup edge banding | Medium density fiberboard and blockboard up to 50mm banding height |
| Polymer door production | Polymer composite panels with matched edge material |
| Joinery startup first machine | Wood panels and plywood for initial production validation |
Why the Voltage Question Should Come Before the Price
Confirm your site voltage and frequency in writing before the automatic edge banding machine in stock ships — not after it arrives.
I have watched crates get opened in Southeast Asian workshops only to find a 380V/50Hz machine sitting in a facility wired for 220V/60Hz. The electrician rewires the panel, the motor runs hot within a week, and the glue pot never reaches stable temperature. The downtime cost dwarfs the price difference between a correct and incorrect configuration [NEED_CITE: voltage and frequency standards by export market]. With the DW702, we verify your exact supply before the unit is crated, including plug type and phase confirmation.
Stock Units Configured for Your Workshop
Ordering an automatic edge banding machine in stock should not mean guessing what arrives. The DW702 ships from ready inventory with voltage and plug type locked in at the order stage. A small workshop in Manila running 220V single-phase gets a different internal wiring setup than a cabinet factory in Lima on 380V three-phase. Both are in-stock configurations, not custom builds requiring extended lead times.
Single-Unit Orders Without Minimum Quantity Pressure
Many edge bander suppliers require container-load commitments. The DW702 is available as a single-unit order from stock, which suits a joinery workshop replacing a failed machine or a furniture startup running its first production trial. You order one unit, confirm specifications, and receive it with documentation and spare parts — no negotiation over volume tiers.
Dispatch Lead Time and Packing for Sea Freight
Once voltage, frequency, and language are confirmed, the DW702 moves to pre-shipment testing. The 105kg unit is packed with the glue pot drained, moving parts secured, and control panel protected. Packing photographs are sent before the crate is sealed so you can verify condition and completeness. The compact 120×55×110cm footprint means the crate fits standard LCL consolidation without oversized surcharges [NEED_CITE: LCL shipping dimensions for machinery consolidation].
What the Numbers Mean on the Shop Floor
The 0.3–3mm edge banding thickness range covers the three most common strip types in small workshop production: thin PVC for cabinet carcases, thicker melamine for shelving, and wood veneer for visible faces. Switching between these materials on a single pass without retooling saves setup time across short runs. The 1000ml glue pot holds enough adhesive for continuous operation across a typical half-day batch, reducing mid-shift refill stops that interrupt glue temperature stability.

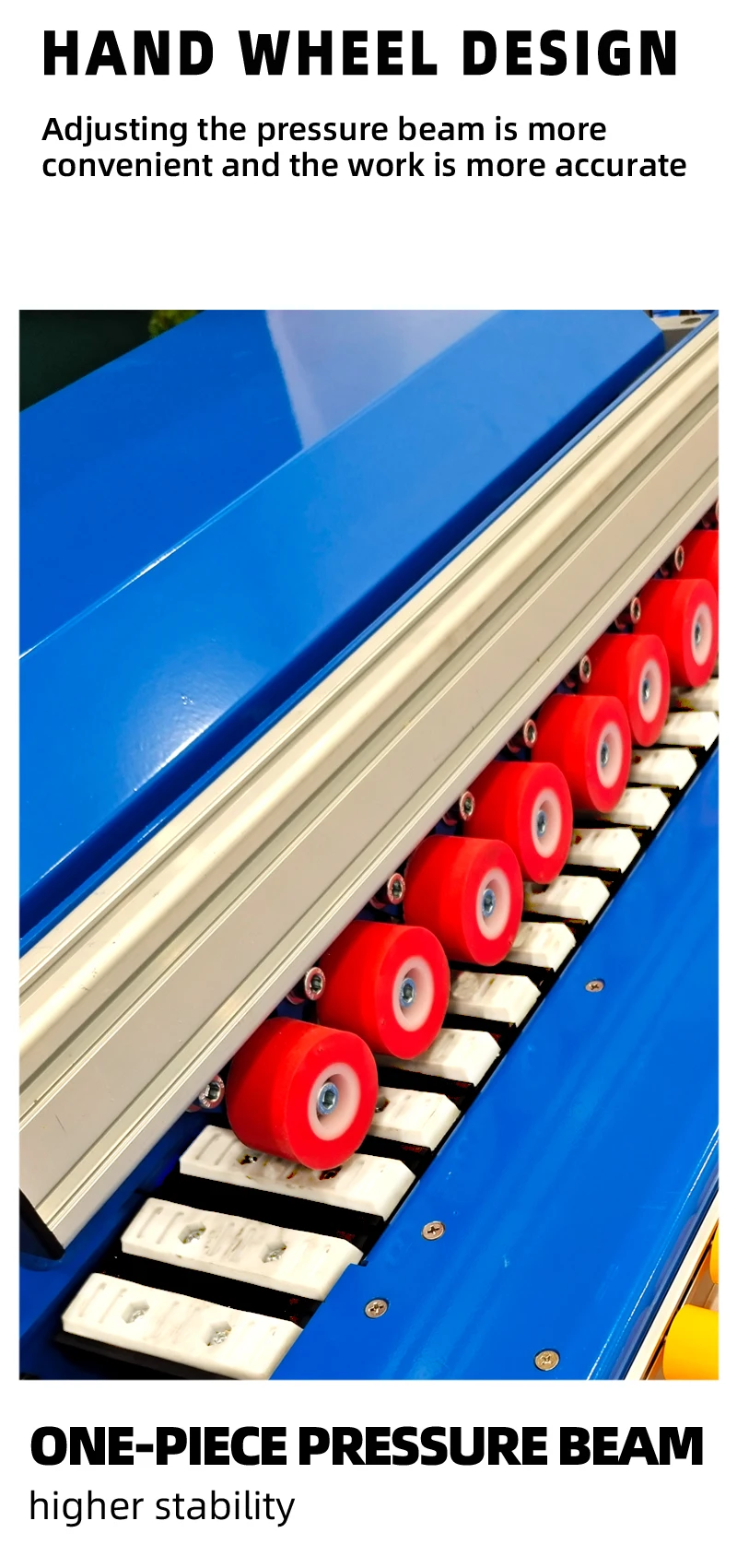

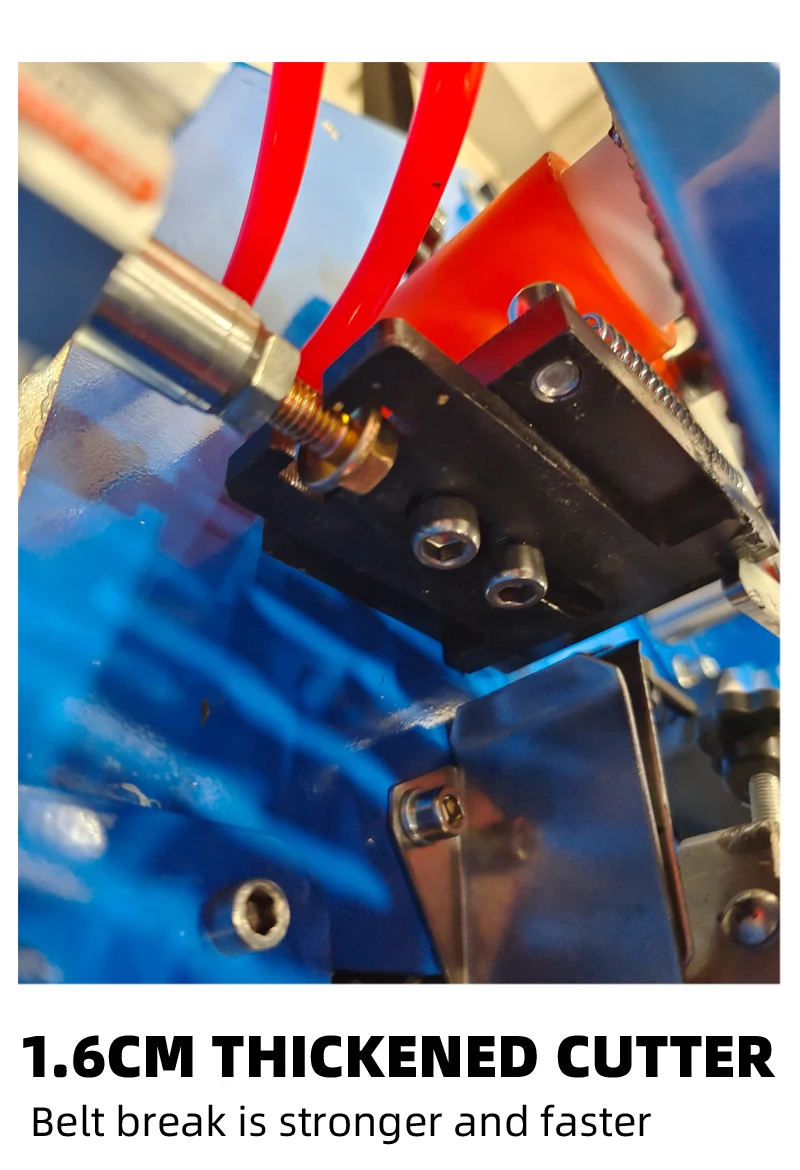

The dual 800W trimming motors handle both top and bottom excess in one pass, which matters when processing particleboard that tends to chip if trimmed in two stages. The 180W × 2 polishing wheels follow immediately, blending the trimmed edge into the panel face. The 1200W vacuum system holds panels flat against the feed bed — essential when running thinner MDF sheets that can lift and cause uneven glue application. Air source pressure at 0.4–0.8MPa drives the pneumatic actuators for head-and-tail cutting, ensuring clean starts and stops on panels as short as 25cm.
When the Wrong Configuration Costs More Than the Machine
A workshop I visited in Vietnam bought an edge bander from a supplier who never asked about their air compressor capacity. The machine required 0.6MPa but their shop ran at 0.3MPa on a shared line. The pneumatic cutters stuttered, leaving ragged ends on every panel. They spent more on a dedicated compressor than the machine itself [NEED_CITE: pneumatic pressure requirements for woodworking machinery actuators]. The DW702 specification sheet clearly states the 0.4–0.8MPa range so you can match it to your existing air supply before committing.
Why Source This Model Here
In-house manufacturing means the DW702 is built, tested, and warehoused under one roof — no trading company markup or communication lag when you need a specification confirmed. Four-stage quality control covers incoming components through pre-shipment verification, so the unit you receive matches the test record. Voltage and language customization is standard procedure, not a premium add-on. Engineer-led configuration means you get a written recommendation based on your panel materials and thickness range within one business day. Factory visits are open if you want to see the DW702 run your actual stock before it ships.
Documentation & Verification
- CE declaration of conformity covering the DW702 automatic edge banding machine
- Factory test record run on your specified panel thickness and edge material
- Electrical schematic with your confirmed voltage and wiring diagram
- Operation and maintenance manual in your agreed language
- Spare parts list with part numbers for consumables and wear items
- Pre-shipment packing photographs showing condition before crating
Installation, Commissioning & Support
- Requires a dedicated circuit matching your confirmed 220V or 380V supply for the 3800W total load
- 120×55×110cm footprint needs a level floor with clearance for panel infeed and outfeed
- Arrives fully assembled; connect power, air supply at 0.4–0.8MPa, and load glue
- First-run guidance covers glue temperature setting for your specific edge banding material
- English or requested-language manual with adjustment procedures for trimming and polishing stations
- Spare parts list includes glue pot seals, trimming blades, and polishing wheels
What to Share When Requesting a Quote
Send your panel material types and the thickness range you run most often, along with the edge banding strip materials and thicknesses in your current or planned production. Confirm your workshop voltage, phase, and frequency so the correct configuration is reserved from stock. If your operators need a specific control panel language, state that upfront.
Frequently Asked Questions
Q: What voltage and plug will my DW702 ship with?
A: We confirm your exact voltage, phase, frequency, and plug type in writing before dispatch. The DW702 supports 220V and 380V configurations, with EU, USA, AU, and UK plug options. The unit is wired and tested under your specified supply before crating.
Q: How fast can a single unit be dispatched from stock?
A: Once your voltage, plug type, and control language are confirmed, the DW702 moves through pre-shipment testing and packing. Typical dispatch follows within a short window after specification confirmation, with packing photographs sent before the crate is sealed.
Q: Can I order just one machine for a trial run?
A: Yes. The DW702 is available as a single-unit order with no minimum quantity requirement. This suits workshops validating output quality before scaling or replacing a failed machine without waiting for a production batch to be built.
Q: What languages does the control panel support?
A: Chinese and English are standard. Spanish and other languages are available on request and confirmed at the order stage so your operators can read the panel from day one without translation delays during commissioning.
Q: How is the machine packed for international shipping?
A: The 105kg DW702 is packed with the glue pot drained, moving parts secured, and the control panel protected. Its 120×55×110cm dimensions fit standard LCL consolidation. Packing photographs are provided before sealing so you can verify completeness and condition.
