Description
Stocked Configuration, Verified Before Dispatch — voltage, plug type and control language confirmed in writing for the DW802 before it leaves the factory floor, so it runs on arrival.
Technical Specifications
| Parameter | Value |
|---|---|

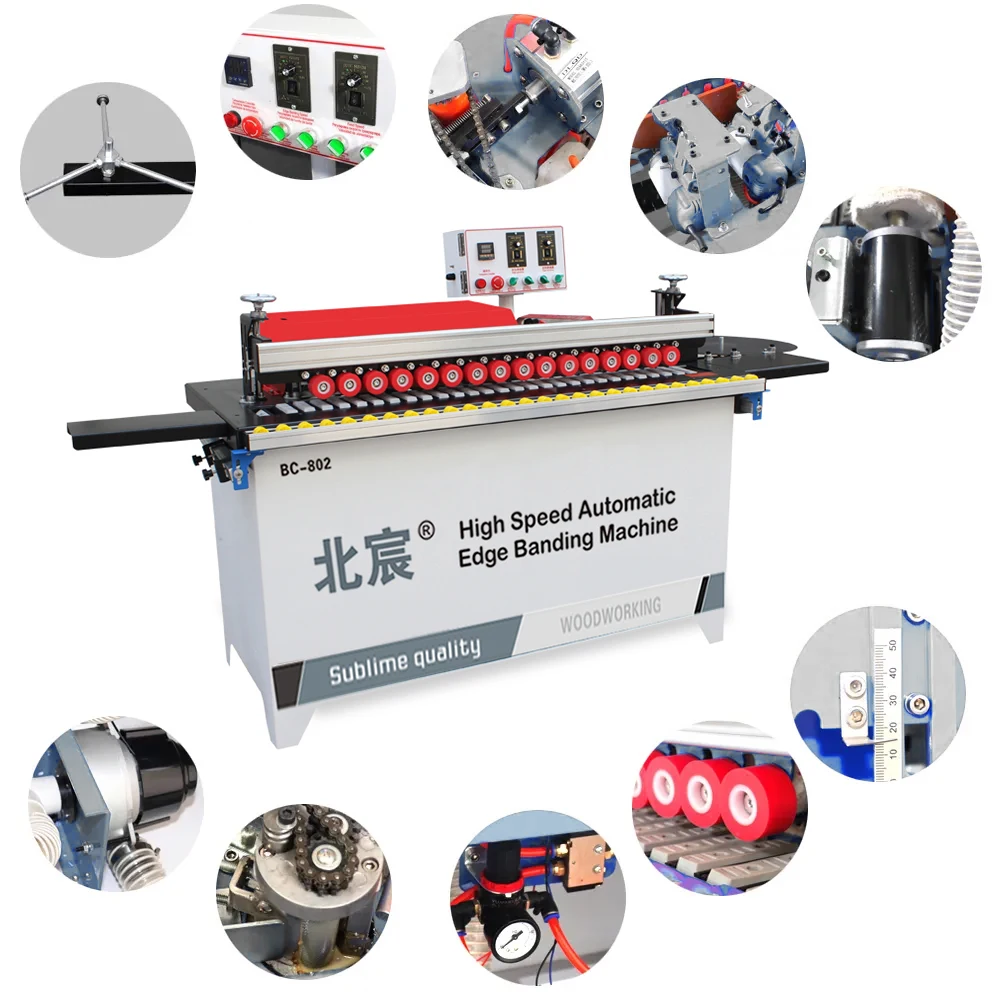

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Rated Power | 4200W |
| Voltage & Frequency | 220V / 380V / customization (frequency basis to be confirmed) |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Glue Pot Capacity | 4000 ml |
| Trimming Motor Power | 800W × 2 |

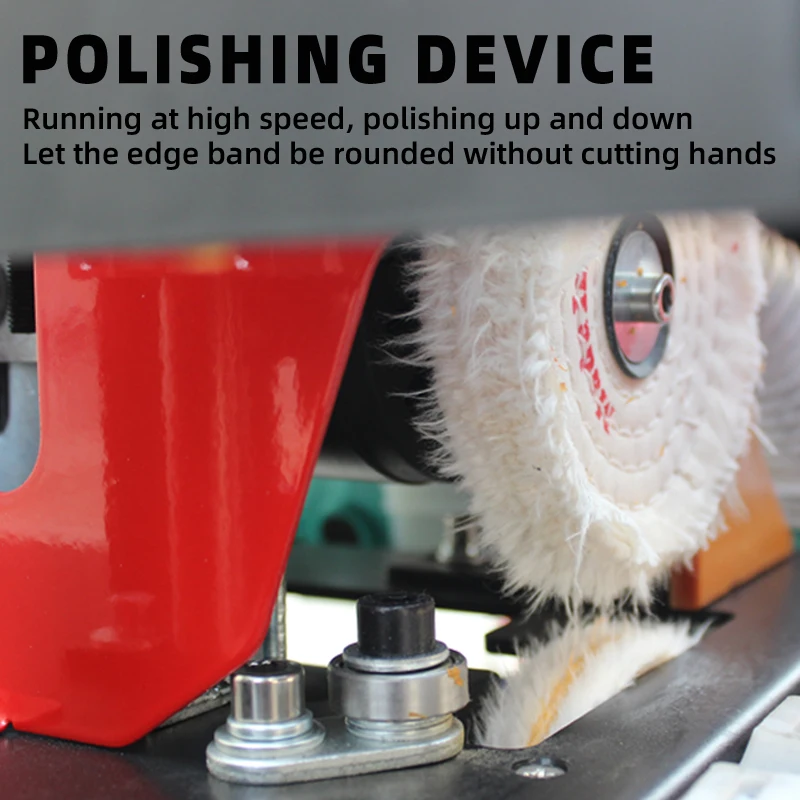

| Polishing Motor Power | 180W × 2 |
| Edge Feed Motor Power | 140W |
| Transmission Motor Power | 140W |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Language Options | Chinese, English (Spanish and others on request) |
| Plug Options | EU / USA / AU / UK |
| Assembly State | Fully assembled, wooden box packed |
| Standard Features | Gluing, trimming, polishing, automatic head and tail cutting, vacuum hold-down |
| Certification | CE (certificate copy available) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC or melamine edge banding |
| Wardrobe panel finishing | Plywood and ecological board with 0.3–3 mm veneer or PVC strips |
| Small-batch furniture production | Solid wood panels requiring trimming and polishing in one pass |
| Home decoration workshop output | Pre-cut boards for shelving, desk tops and built-in joinery |
Why the Voltage Question Should Come Before the Price
An automatic edge banding machine in stock means nothing if the motor is wound for the wrong grid. I have watched containers arrive at workshops where the local supply was 240V/60Hz while the machine was built for 380V/50Hz — the motor hummed, overheated, and tripped the breaker before a single panel was edged. Confirming voltage and frequency in writing is the first step, not the afterthought [NEED_CITE: voltage and frequency standards by export market].
With the DW802, the voltage configuration is locked down during order confirmation. Whether your facility runs on 220V single-phase or 380V three-phase, the motor winding and control transformer are matched to your supply before the machine is crated.
Stocked Units Configured for Your Grid
Availability matters, but only when the machine matches your workshop’s electrical infrastructure. The DW802 ships from ready stock with voltage and plug type confirmed against your local standard. This means the right plug head — EU, USA, AU or UK — is fitted at the factory, and the operator can power on immediately after unpacking. An automatic edge banding machine in stock should never sit idle because of an electrical mismatch.
Lead Time That Actually Means Something
Fast dispatch only counts when the machine is production-ready, not just warehouse-ready. Every DW802 unit undergoes a pre-shipment run test with actual panel stock before crating. The glue pot reaches operating temperature, the trimming stations cut to tolerance, and the vacuum bed holds the panel without slip. This is the difference between a machine that ships today and one that produces today [NEED_CITE: pre-shipment inspection protocols for woodworking machinery exports].
Compact Footprint, Full Function Sequence
The DW802 fits into a 130 × 60 × 95 cm envelope, which is tight for a machine that handles gluing, automatic head and tail cutting, dual trimming and dual polishing in a single pass. Workshops moving from manual edge banding to machine-assisted production often have limited floor space. This unit slots between a panel saw and a drilling station without requiring a dedicated bay.
Reading the Specs That Matter

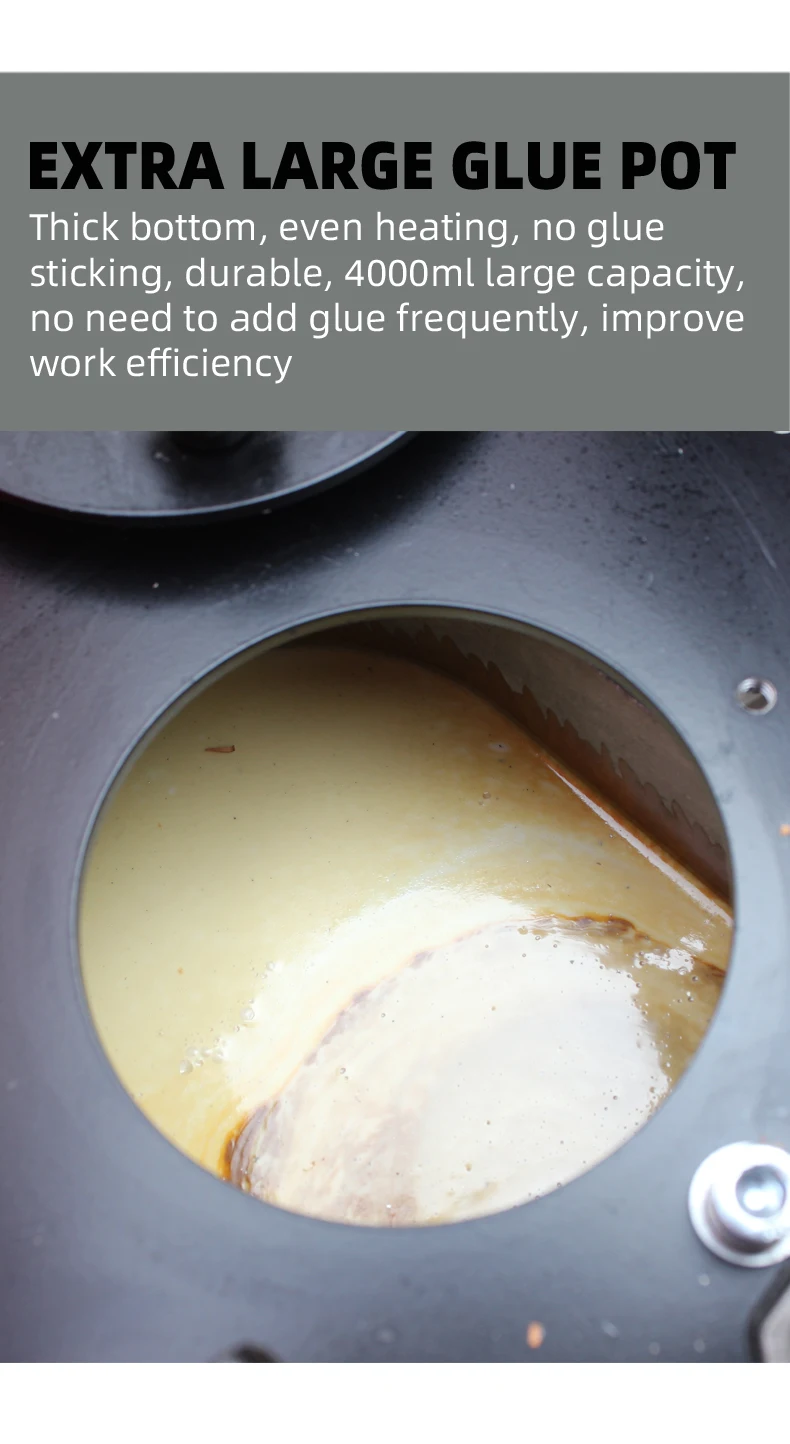

The 4000 ml glue pot capacity allows continuous runs across multiple panels without stopping to refill, which matters when you are edging a batch of cabinet sides in sequence. The dual 800W trimming motors handle both rough and finish trimming of PVC and veneer banding up to 3 mm thick, leaving a clean edge that reduces hand-finishing downstream. The 1200W vacuum system, combined with the silica gel conveyor belt, prevents panel drift during feeding — a common source of uneven glue lines on narrow workpieces below 15 cm width. The 0.4–0.8 MPa air pressure range covers most workshop compressor outputs, so you typically do not need a dedicated air supply.
The Cost of Skipping Configuration Checks
Machines quoted without confirming local voltage and frequency arrive unusable, and the return shipping alone can exceed the original freight cost. Control panels in a language the operator cannot read stall commissioning for days while someone translates button labels. A single machine bought without checking feed height against your panel thickness range leads to jamming or poor glue adhesion on thicker stock [NEED_CITE: common import machinery commissioning failures].
Why Source the DW802 Here
In-house manufacturing with patented cutting mechanisms means the trimming stations on this unit are built to verified tolerances, not assembled from generic sub-assemblies. Voltage, language and plug customization are handled as standard line items, not special requests that add weeks to lead time. The four-stage QC process covers incoming material inspection, in-process checks, finished product testing and pre-shipment verification with a panel run on your specified material. Engineer-led configuration recommendation arrives as a formal quotation within one working day, so you can compare options before committing.
Documentation & Verification
- CE declaration of conformity matching the DW802 unit serial number
- Electrical schematic confirming your ordered voltage and frequency configuration
- Factory test record showing edge banding results on your specified panel thickness
- Operation and maintenance manual in your agreed language with illustrated spare parts list
- Pre-shipment packing photographs documenting crating condition before container loading
Installation, Commissioning & Support
- Requires a level concrete floor and a dedicated 32A circuit matching the confirmed voltage
- Arrives fully assembled in a wooden crate — remove transit bolts and connect air supply
- First run includes glue temperature calibration for your specific banding material thickness
- Operator training covers feed speed adjustment, trimming depth setting and glue pot maintenance
- Spare parts list includes trimming cutters, polishing wheels and silica gel belt segments
What We Need to Move Forward
To confirm the right DW802 configuration for your workshop, share your panel material type and typical thickness range, your facility voltage and frequency, and your preferred control panel language. If you run existing upstream equipment such as a panel saw, let us know the output dimensions so we can verify compatibility with the DW802 minimum sheet size of 25 × 10 cm.
Frequently Asked Questions
Q: What voltage and plug configurations are available for the DW802?
A: The DW802 is configurable for 220V or 380V, with frequency matched to your local grid. Plug options include EU, USA, AU and UK types. Voltage and plug are confirmed in writing during order processing so the machine connects directly to your existing supply without adapters or transformers on arrival.
Q: How quickly can the DW802 ship from ready stock?
A: Stocked units are available for dispatch after pre-shipment testing, which includes a panel run to verify gluing, trimming and polishing functions. Typical dispatch follows within days of configuration confirmation. Exact timing depends on the customization required, such as language or voltage adjustment.
Q: Can I order a single DW802 unit?
A: Single-unit orders are standard. There is no minimum order quantity for the DW802. Each unit ships fully assembled in a wooden crate with documentation, spare parts and the operation manual in your chosen language.
Q: What edge banding materials does the DW802 handle?
A: The machine processes PVC, melamine, veneer and ABS edge banding from 0.3 mm to 3 mm thickness, with banding height from 0 to 50 mm. The dual trimming and polishing stations finish each edge in one pass, suitable for MDF, particleboard, plywood and solid wood panels.
Q: Is installation support included with the DW802?
A: Yes. The DW802 ships with an operation manual, electrical schematic and illustrated spare parts list. Remote guidance covers first startup, glue pot calibration and trimming adjustment. The machine arrives fully assembled, requiring only transit bolt removal, power connection and air supply hookup before production begins.
