Description
Ready-to-Dispatch Availability — DW902 automatic edge banding machine ships from stocked inventory with confirmed 220V electrical configuration, eliminating the typical multi-week build wait for workshops that need capacity on the floor now.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW902 |
| Product Type | High-speed Fully Automatic Edge Banding Machine |
| Function Stations | Gluing, Trimming, End cutting, Scraping, Polishing |
| Voltage | 220V |
| Total Power | 3300W |
| Board Thickness Range | 0-50mm |
| Strip Thickness Range | 0.5-3mm |
| Glue Pot Capacity | 4000ml |
| Overall Dimensions (L×W×H) | 175×60×112cm |
| Net Weight | 240kg |
| Pressure Beam | Integrated pressure beam with double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Edge Strip Cutting Device | Pneumatically controlled |
| Polishing Configuration | Up and down two polishing motors |
| Trimming Configuration | Double high-speed trimming motors (up and down) |
| Feed Speed | (basis to be confirmed) |
| Control System | (basis to be confirmed) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | MDF and particleboard with PVC strip (0.5-3mm) |
| Custom furniture panel processing | Plywood panels with veneer or PVC edge banding |
| Joinery workshop single-pass edge treatment | Melamine-faced boards requiring trimming and polishing |
| Small-batch production runs | Mixed panel thicknesses up to 50mm |
Why the Voltage Question Must Come Before the Order
The DW902 ships configured at 220V with electrical schematics verified before dispatch, so the machine you receive matches the supply in your workshop.
One of the most common reasons an Automatic Edge Banding Machine in stock sits idle after arrival is a voltage or frequency mismatch discovered only when the main breaker trips on first power-up. Workshops in regions with 110V single-phase supply, or those running 60Hz grids, find that a machine wired for a different standard cannot operate without a transformer — adding cost, floor space, and a point of failure that was entirely preventable. Confirming electrical compatibility at the quotation stage, not the unpacking stage, is the difference between a machine that runs on day one and one that waits weeks for an electrician [NEED_CITE: voltage and frequency standards by export market].
Stocked Configuration Means Predictable Lead Time
When a workshop commits to an Automatic Edge Banding Machine in stock, the expectation is straightforward: the machine exists, it is built, and it can ship within days rather than weeks. The DW902 is held in ready-to-dispatch condition with its 220V electrical system, 3300W total power package, and full five-station function sequence — gluing through polishing — already assembled and tested. This removes the variable of production scheduling from the procurement timeline.
What "Ready to Ship" Actually Covers

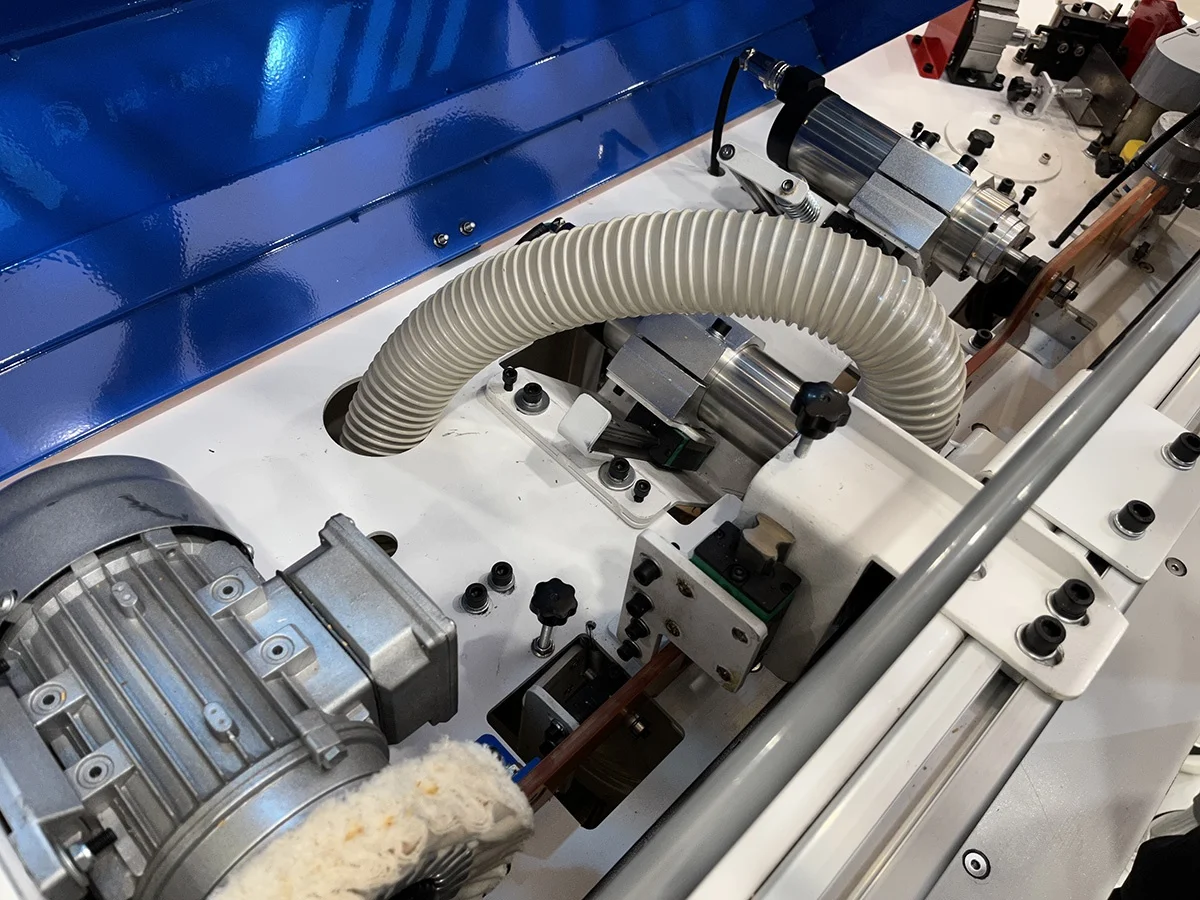

Availability extends beyond the machine itself. The 4000ml glue pot is installed, the silicone conveyor belt is tensioned, and the pneumatically controlled edge strip cutting device is connected to its air supply ports. Dual high-speed trimming motors and dual polishing motors are wired and verified. The buyer receives a unit that requires only placement, power connection, compressed air hookup, and a brief commissioning sequence before the first panel enters the feed [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Spec Sheet Against Your Production Needs

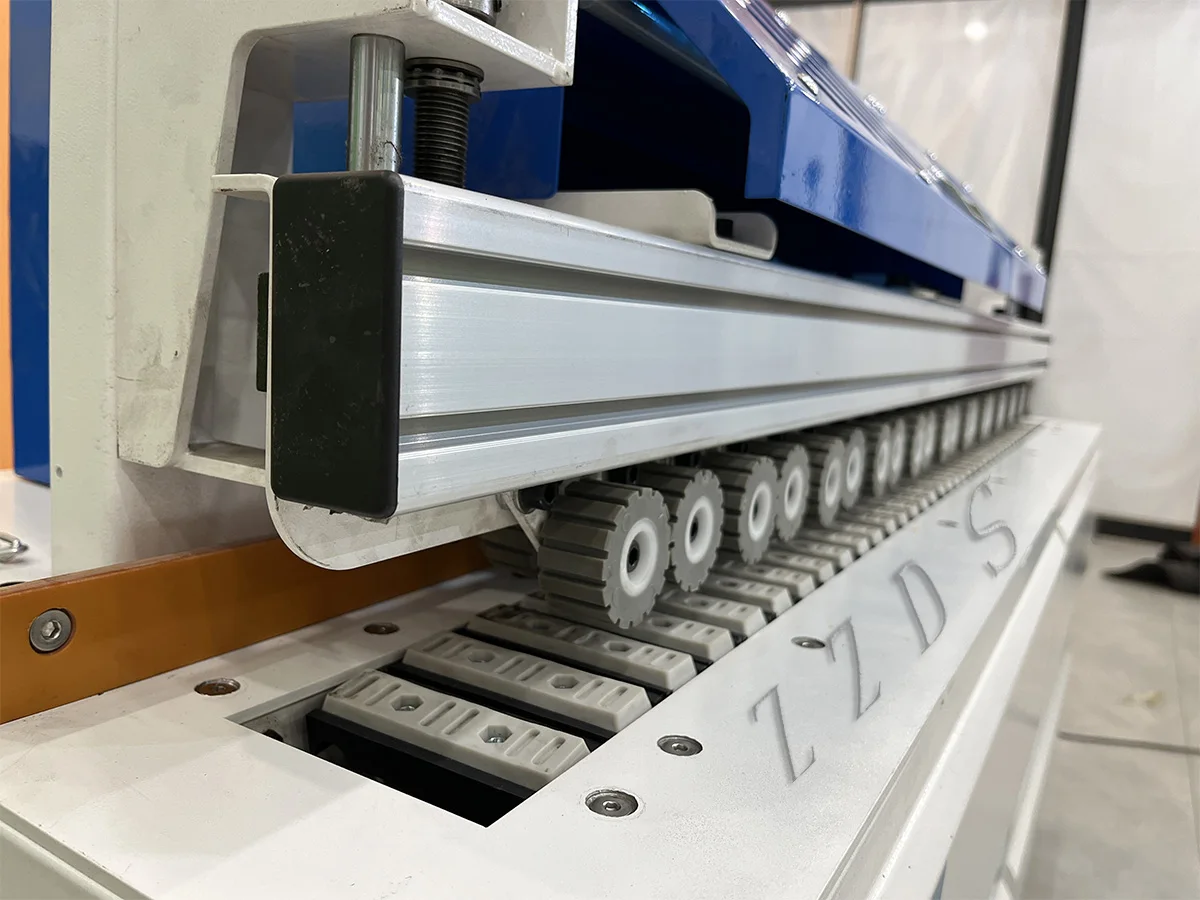

The 0-50mm board thickness range on the DW902 covers the full spectrum of panel stock used in cabinet and furniture work — from thin 3mm MDF backing boards up to thick particleboard shelving and solid-core worktop substrates. The integrated pressure beam with double rows of pressure wheels maintains consistent downward force across this entire range, which directly affects how cleanly the trimming motors cut the edge strip flush. A pressure beam that cannot hold a 50mm panel flat against the silicone conveyor belt will produce visible variation in trim quality between thin and thick stock. The 0.5-3mm strip thickness range handles both thin PVC for high-volume carcass work and thicker veneer strips for visible cabinet faces where a substantial edge profile is specified.
The Cost of Ordering Without Confirming Site Conditions

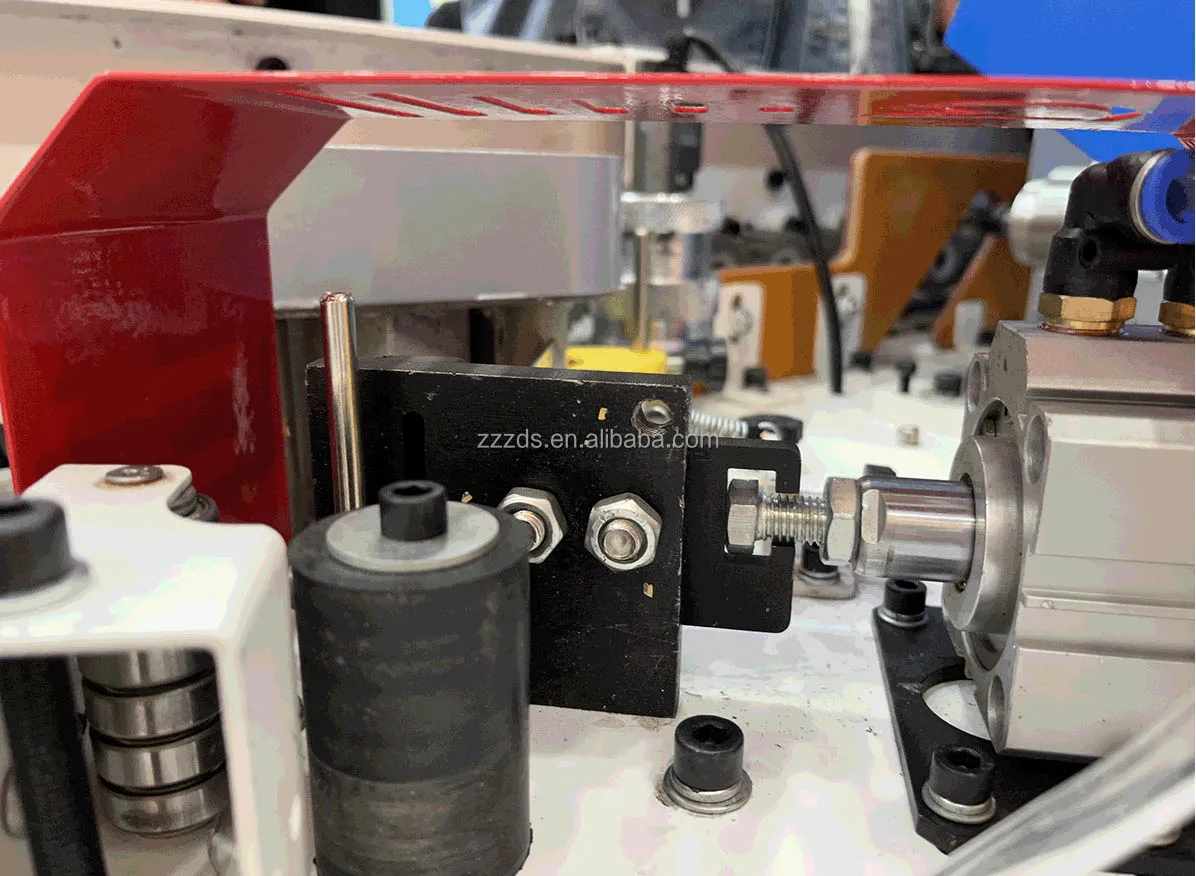

Workshops that source a machine without verifying their compressed air capacity, floor-level loading access, or local electrical code requirements regularly encounter delays that have nothing to do with the equipment itself. A pneumatically controlled cutting device demands a stable air supply at the pressure the manufacturer specifies; an undersized compressor causes intermittent cutting faults that appear random and are difficult to diagnose. Similarly, a 240kg machine in a 175×60×112cm footprint requires a clear path from the delivery point to its final position — a constraint that is trivial to check before ordering but disruptive to discover when the crate is already on the loading dock [NEED_CITE: workshop floor loading and access requirements for industrial machinery].
Why Procurement Through This Channel Works
The DW902 ships with voltage confirmed against the buyer’s local supply standard, documented in the electrical schematic that accompanies every dispatch. Pre-shipment testing covers the complete gluing-to-polishing sequence on panel stock matching the buyer’s stated material range, with a factory test record included in the documentation package. Single-unit orders are standard — there is no minimum order quantity forcing a workshop to buy auxiliary equipment it does not yet need. Operation and maintenance manuals are supplied in the language agreed at order confirmation, so the operator on the floor can read them without translation delay. Spare parts lists ship with the machine, and replacement components are sourced against the same part numbers documented in that list.
Documentation & Verification
- Electrical schematic confirming 220V configuration matching your facility supply
- Factory test record on panel thickness and strip material matching your production range
- Operation manual in agreed language covering all five function stations
- Spare parts list with part numbers for trimming blades, polishing wheels, and pneumatic components
- Packing photographs documenting machine condition and crate integrity before dispatch
- Pre-shipment verification report covering glue pot heating, conveyor tracking, and pneumatic function
Installation, Commissioning & Support
- 175×60×112cm footprint requires a level floor with clearance on both sides for panel infeed and outfeed
- 220V / 3300W total draw requires a dedicated circuit with appropriate breaker rating confirmed by a local electrician
- Machine ships fully assembled; placement requires standard pallet jack or forklift access to the 240kg unit
- Compressed air connection to the pneumatically controlled cutting device must meet specified pressure before first run
- Glue pot initial fill and heat-up sequence covered step-by-step in the operation manual
- Trimming and polishing motor alignment verified at factory; re-check after transport recommended before production start
What to Include in Your Inquiry
Provide the panel materials you process most frequently — MDF, particleboard, plywood, or a mix — along with the edge strip type and thickness you intend to run. Confirm your facility voltage and frequency so the electrical configuration is locked before dispatch. Note any ceiling height or doorway restrictions that affect moving a 175cm long, 112cm tall unit into position, and specify the language you need for the operation manual.
Frequently Asked Questions
Q: Is the DW902 ready to ship now, or is there a production lead time?
A: The DW902 Automatic Edge Banding Machine in stock is held in ready-to-dispatch condition. Once voltage and documentation language are confirmed against your requirements, the unit moves to pre-shipment testing and then ships. There is no production build wait. Typical dispatch occurs within days of order confirmation, depending on destination and shipping arrangement.
Q: Can the voltage be confirmed to match my country’s supply before dispatch?
A: Yes. The DW902 is configured at 220V as standard. Before shipment, we verify this matches your local supply and provide an electrical schematic confirming the configuration. If your facility runs a different voltage or frequency, this is addressed at the quotation stage — not after the machine arrives — so there is no mismatch on commissioning day.
Q: What edge banding materials and thicknesses does this machine handle?
A: The DW902 processes PVC and veneer edge banding strips from 0.5mm to 3mm thickness across panel stock up to 50mm thick. This covers standard PVC for carcass work, thicker veneer for visible furniture faces, and the full range of MDF, particleboard, and plywood panel thicknesses used in cabinet and joinery production.
Q: Is assembly required on arrival, and is installation guidance included?
A: The machine ships fully assembled. On arrival, it requires placement, electrical connection, compressed air hookup, and a commissioning sequence detailed in the operation manual. The manual covers glue pot fill, conveyor start-up, and trimming motor alignment checks. Support is available during the commissioning process if questions arise.
Q: What spare parts ship with the machine, and how are replacements sourced?
A: A spare parts list ships with every DW902, identifying consumable and wear components with their part numbers. Replacement trimming blades, polishing wheels, and pneumatic seals are sourced against these same numbers. The list allows your maintenance team to reorder directly without needing to identify parts from photographs or measurements.
