Description
Ready Stock, Verified Voltage — Every DW802 unit ships only after matching your local power supply, eliminating the three-week transformer delay I once watched a customer endure on a rushed export order.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage & Frequency | 220V / 380V / Custom Configuration |
| Edge Banding Height | 0–50mm |
| Edge Banding Thickness | 0.3–3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 10cm |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000ml |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |

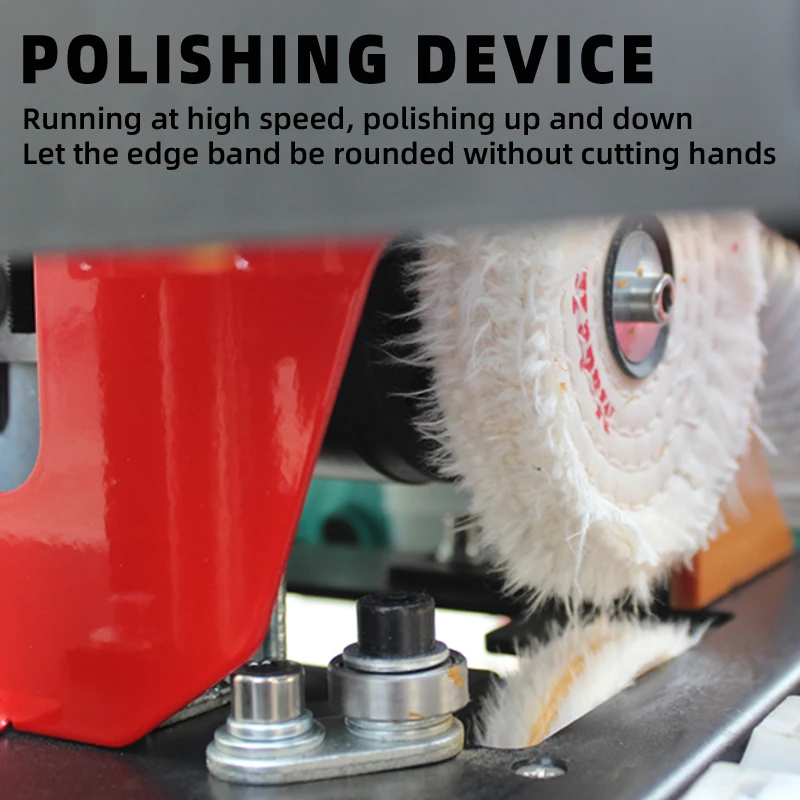

| Key Features | Gluing, edge banding, automatic head-and-tail cutting, trimming, polishing, integrated vacuum |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC or melamine banding |
| Wardrobe and shelving panel finishing | Plywood and ecological board up to 50mm thickness |
| Small-batch furniture production runs | Solid wood panels with veneer edge banding |
| Home decoration joinery components | Straight-edge boards requiring trimming and polishing |
Why Voltage Confirmation Must Come Before Dispatch
We lock in your exact voltage and frequency before the DW802 leaves our floor, so it powers on the day it arrives.
I once helped rush an edge bander to a South American buyer who needed it running within a week. The machine landed, the electrician opened the panel, and the local supply was 440V three-phase — we had prepared the unit for 380V. That machine sat idle in their workshop for three weeks while a step-down transformer was sourced locally. Since then, I treat voltage confirmation as a non-negotiable gate before any automatic edge banding machine in stock fast delivery leaves our shipping bay. The cost of skipping that step is never just the transformer; it is the lost production days, the installer waiting on-site, and the trust that erodes before the first panel is edged [NEED_CITE: voltage and frequency standards by export market].
Stocked and Configured for Your Workshop

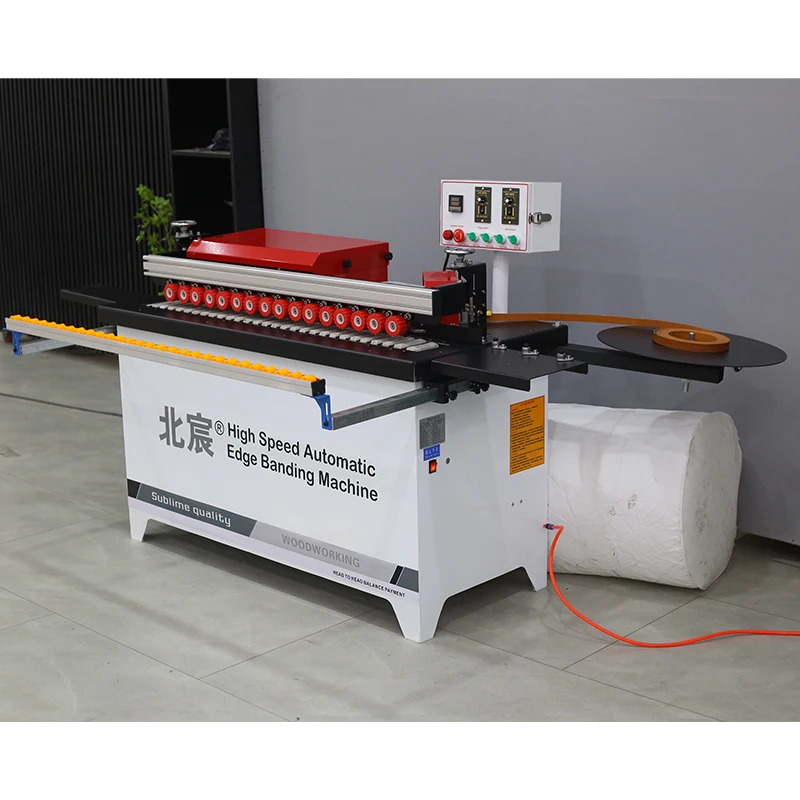

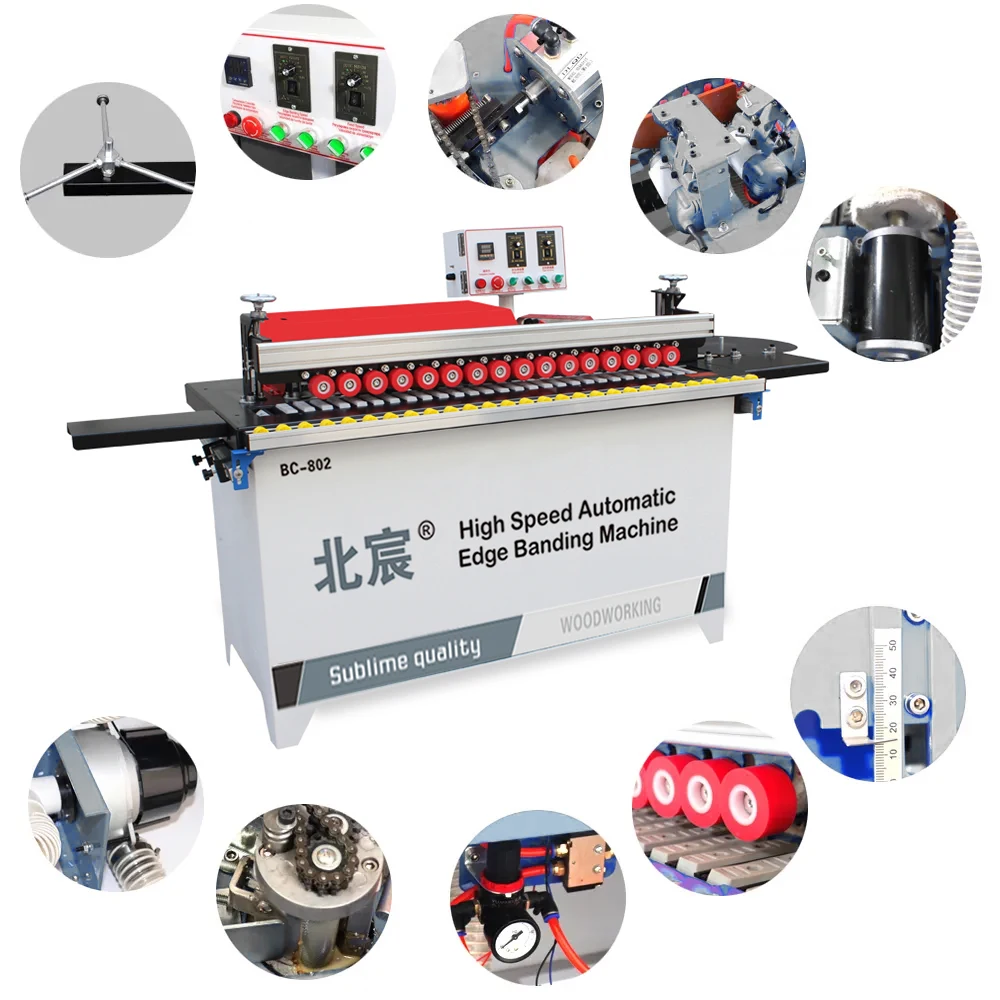

The DW802 sits in our ready-stock pool because small and mid-scale joinery shops cannot absorb multi-week build lead times when an order lands on their desk. This automatic edge banding machine in stock fast delivery configuration covers gluing, head-and-tail cutting, trimming, and polishing within a single 130-centimeter footprint — meaning a workshop moving from manual edge banding to machine-assisted production gets a complete station lineup without sourcing separate units.
What Ready Stock Actually Means at Dispatch
Having a machine physically in the warehouse is only half of the equation. Before any unit is crated, we run it against the voltage and frequency sheet you confirmed at order placement, verify the control panel language matches your operator’s requirement, and document the test with photographs. This process typically adds a short window to dispatch but prevents the far longer delays caused by on-site reconfiguration [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specifications That Matter Most
The 0.3–3mm edge banding thickness range covers the PVC and melamine strips most custom furniture workshops use daily, while the 50mm banding height accommodates thicker solid wood panels common in shelving and worktop applications. The dual 800W trimming motors provide enough cutting force for clean flush trims on particleboard and MDF without tearing the substrate edge. A 4000ml glue pot capacity supports continuous runs through a standard batch of cabinet panels without frequent refill stops, which matters when you are trying to keep a small team moving through a production day. The integrated 1200W vacuum system captures trim waste at the source, keeping the banding area clear of debris that could otherwise mar the glue line on subsequent panels.
The Hidden Cost of Skipping Configuration Checks
When an edge bander arrives with a control panel in a language the operator cannot read, commissioning stalls until someone can translate the interface — and production schedules slip accordingly. Machines ordered without confirming local plug type or phase configuration require electricians to improvise connections on-site, which introduces safety questions and voids warranty assumptions. I have seen workshops buy a single machine on spec, then discover the feed height does not align with their existing saw or boring station, forcing an awkward workflow rearrangement that slows every downstream operation [NEED_CITE: common commissioning failures in exported woodworking machinery].
Why Buyers Source This Model Here
Every DW802 in our stock pool undergoes a pre-shipment test on the panel thickness and banding material you specify, not a generic factory run. Voltage and language configuration are confirmed in writing before the machine moves to packing — this is standard procedure, not an add-on service. The four-stage quality check covers incoming components through to final crating verification, so the unit you receive matches the test record we send you. Engineer-led configuration support means you receive a written recommendation based on your actual panel sizes and daily volume, not a generic catalogue suggestion. Factory visits are welcomed if you want to see your specific unit run before it ships.
Documentation & Verification
- Pre-shipment test record captured on your specified panel thickness and banding material
- Voltage and frequency confirmation sheet signed off before the machine enters packing
- Operation manual and maintenance guide provided in your chosen language at dispatch
- Spare parts list with part numbers included for immediate consumables planning
- Electrical schematic reflecting your confirmed voltage configuration
- CE declaration of conformity and ISO 9001 certificate supplied with shipping documents
Installation, Commissioning & Support
- Requires a dedicated circuit matching your confirmed voltage (220V or 380V) with appropriate breaker rating for the 4200W total draw
- Compact 130 × 60 cm footprint fits standard workshop floors without special foundation work
- Arrives fully assembled — position, connect power and 0.4–0.8 MPa air supply, and run calibration panels
- Glue pot temperature and feed alignment set during commissioning for your primary banding material
- Operator training covers PLC interface navigation in your confirmed language setting
- Spare trimmer blades and polishing wheels recommended for initial stock based on your daily volume
What to Share When Requesting a Quote
To match you with the right stocked configuration, we need your local voltage and phase specification, the primary panel materials and thicknesses you will be edging, and your preferred control panel language. If you have existing upstream saws or downstream boring stations, share their working heights so we can confirm feed-line compatibility.
Frequently Asked Questions
Q: Is the DW802 currently in stock and how quickly can it ship?
A: This model is held in our ready-stock pool for fast dispatch. Once voltage, frequency, and control panel language are confirmed, we complete a pre-shipment test and pack the unit. Dispatch timing depends on configuration requirements and destination logistics, which we quote at order placement.
Q: Can you confirm voltage and plug type before shipping to my country?
A: Yes. We require your local voltage, phase, and frequency specification before any unit leaves our facility. The machine is configured and tested against those exact parameters, and a confirmation sheet is included in the shipping documentation so your electrician can verify on arrival.
Q: Which edge banding materials does the DW802 handle?
A: The machine processes PVC, melamine, and veneer edge banding in thicknesses from 0.3mm to 3mm, with a banding height range up to 50mm. It is designed for straight-edge applications on MDF, particleboard, plywood, ecological board, and solid wood panels.
Q: Can the control panel language be set before delivery?
A: The PLC interface is configured to your chosen language before shipment. Chinese and English are standard options, and Spanish or other languages can be arranged during the order confirmation stage so the operator can navigate menus from day one.
Q: What spare parts should I order with the machine?
A: We include a spare parts list with your shipment covering trimmer blades, polishing wheels, and glue pot components. For workshops running daily production, ordering an initial consumables package with the machine avoids downtime while sourcing replacements locally.
