Description
Stocked for Immediate Dispatch — ZDSF802 units are assembled, tested, and held in warehouse inventory so your workshop avoids the typical multi-week wait associated with made-to-order edge banders.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF802 |
| Product Type | Full-line Automatic Edge Banding Machine |
| Function | Gluing, End cutting, Trimming, Vacuuming, Buffing |
| Rated Voltage | 220V (other voltages available on request) |
| Rated Power | 4KW |
| Strip Thickness | 0.5-2.5mm |
| Sheet Thickness | 10-50mm |
| Rated Air Pressure | 0.6-0.8 MPa |
| Working Speed | 0-7m/min |
| Conveyor Belt Speed | 0-14m/min |
| Glue Capacity | 4000ml |
| Overall Size | 190×60×130cm |
| Machine Weight | 150kg |
| Control Panel | Digital display of glue pot temperature, independent switch |

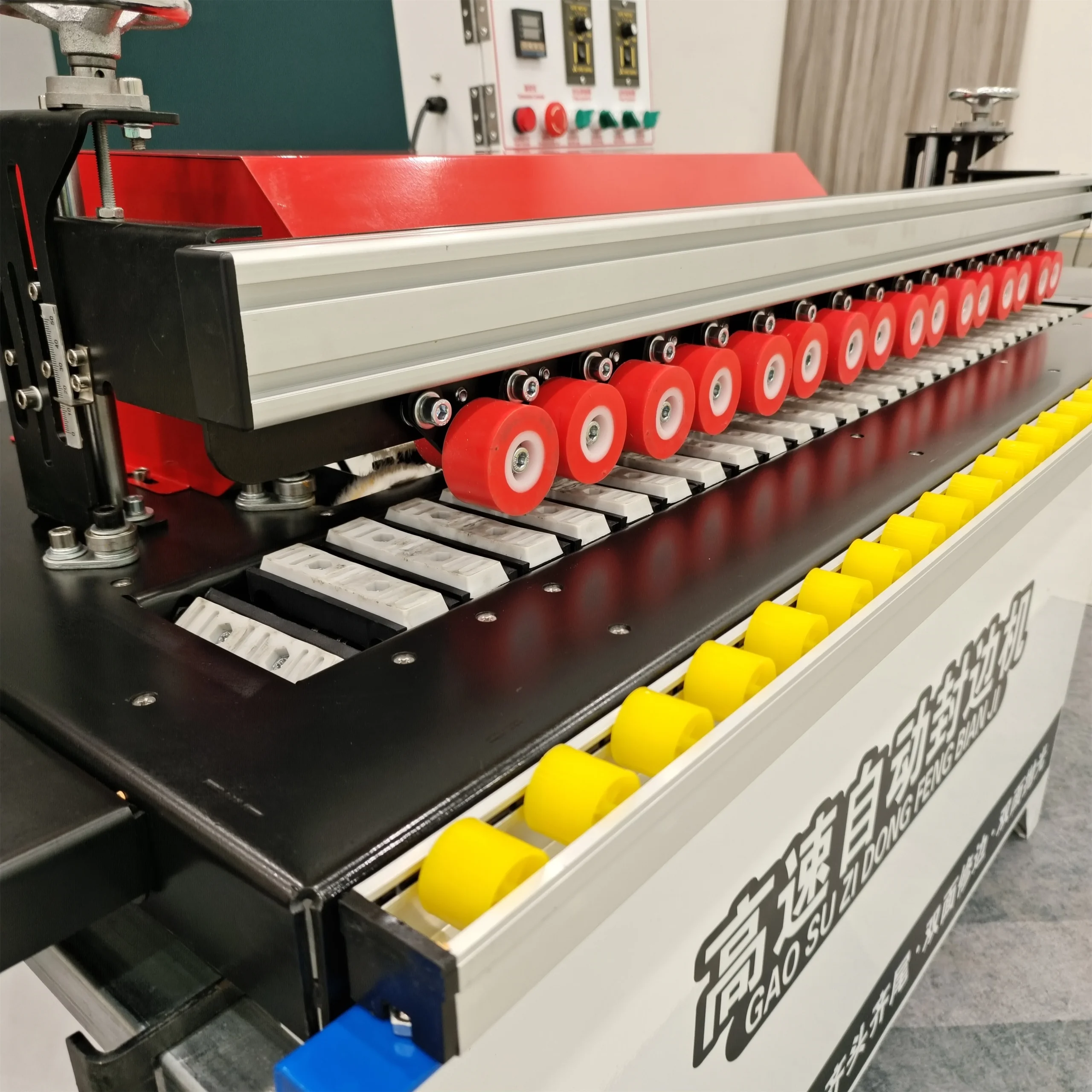

| Pressure Beam | Integrated pressure beam, double rows of pressure wheels |
| Conveyor Belt Material | Silicone material |
| Trimming | Double high-speed trimming motors, trimming up and down |
| Polishing | Up and down two polishing motors |
| Edge Banding Tray | Included |

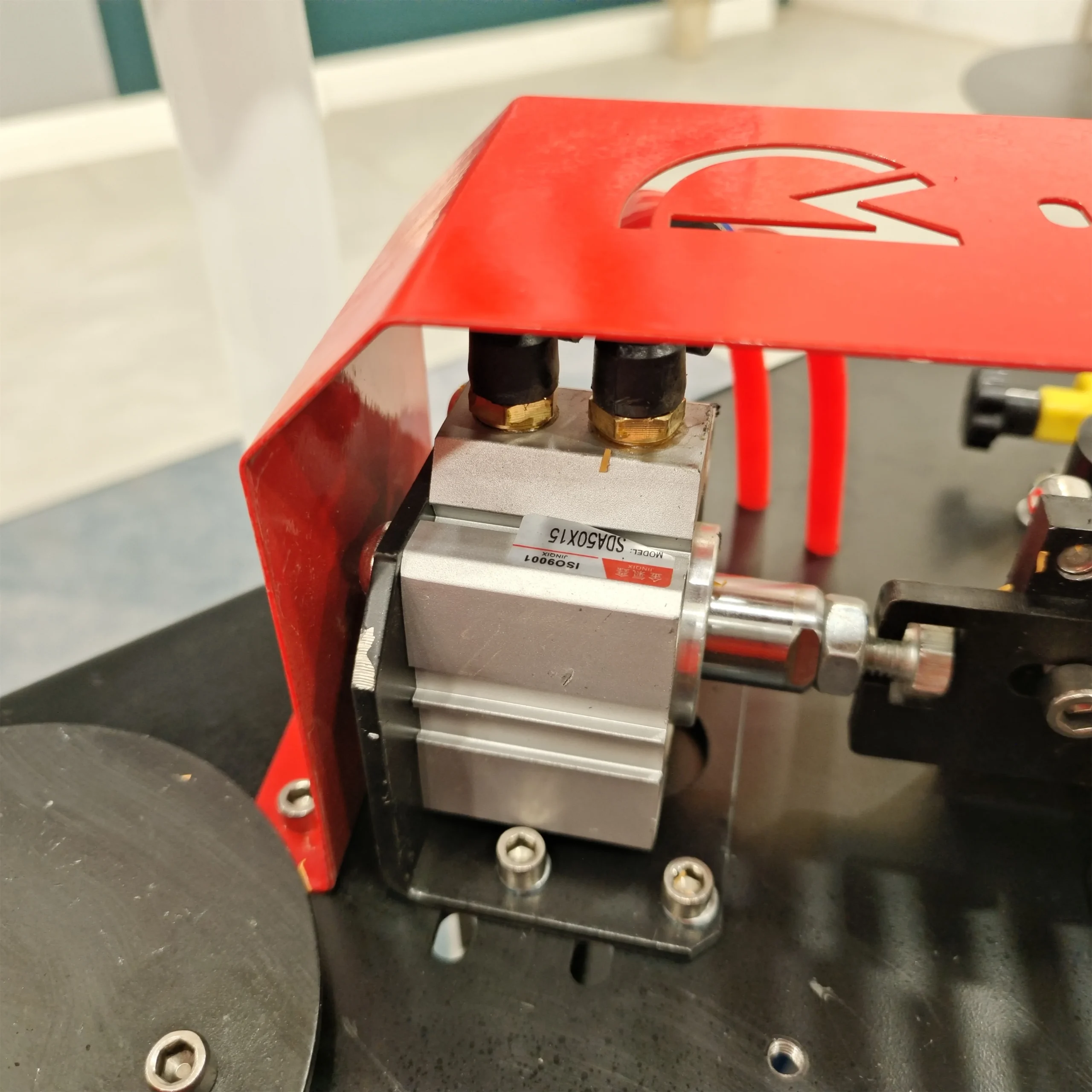

| Belt Breaking Method | Pneumatically controlled |
Application Suitability
| Application | Material or Output |
|---|---|
| Kitchen cabinet edge banding | MDF, particleboard, plywood panels 10-50mm thick |
| Custom furniture panel processing | PVC and veneer edge banding strips 0.5-2.5mm |
| Small to medium workshop production | Batch runs of shelving, wardrobe, and desk components |
| Joinery workshop automation | Solid wood panels requiring clean trimmed edges |
Why the Voltage Question Should Come Before the Price on Every Edge Banding Machine in stock
Confirming your local voltage and frequency before dispatch prevents a machine from arriving as dead weight on the factory floor.
I once watched a customer in Southeast Asia receive a crated edge bander that sat unopened for eleven days because the three-phase supply at his workshop did not match what the machine required. The electrician had to rewire a dedicated circuit, and the panel board needed a separate breaker. An Edge Banding Machine in stock is only useful if it can actually run when you uncrate it [NEED_CITE: voltage and frequency standards by export market]. The cost of the rewiring job alone exceeded the shipping surcharge that would have covered a factory-configured motor.
What Ready Stock Actually Means for Your Timeline
Stocked units ship within days rather than weeks, but availability is only one part of the equation. The ZDSF802 Edge Banding Machine in stock has already passed a four-stage quality check — incoming material inspection, in-process assembly verification, finished product testing, and a pre-shipment run with actual panel material. When you place an order, the machine does not go back to the beginning of the production queue; it moves straight to crating.
Matching Stock Configuration to Your Workshop
Not every stocked configuration fits every buyer. The ZDSF802 ships at 220V by default, and if your workshop operates on a different supply, a voltage swap takes additional lead time. Before confirming an order, share your local voltage, phase count, and frequency so the warehouse team either releases a matching unit or flags the necessary modification. This single step eliminates the most common cause of commissioning delays [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Numbers That Matter on the Shop Floor
The 10-50mm sheet thickness range covers most panel materials a cabinet shop handles daily, from thin MDF drawer bottoms to thicker plywood carcase sides. A 4000ml glue pot means the operator is not stopping mid-batch to top up adhesive — that capacity sustains continuous runs through a typical morning shift. The double high-speed trimming motors work the top and bottom edges in a single pass, which directly affects how square the finished edge sits against adjacent panels during assembly. Pneumatically controlled belt breaking replaces manual snapping, giving a cleaner break line on thicker PVC strips up to 2.5mm without the operator wrestling the feed.
The Cost of Skipping Configuration Checks
A machine that arrives with the wrong control panel language stalls commissioning until someone rewrites the labels or translates the menus. An Edge Banding Machine in stock that lacks a pre-shipment test record leaves the buyer discovering tolerance issues only after the first panel batch fails assembly. These problems do not show up in a quotation spreadsheet; they surface on a Monday morning when the line is supposed to start producing [NEED_CITE: industrial machinery pre-shipment inspection standards].
Why Procurement Teams Return for Repeat Orders
Voltage confirmation happens before the crate closes, not after the container sails. Every stocked ZDSF802 ships with an operation manual in the language you specify at order time. A spare parts list accompanies each unit so your maintenance team can reorder consumables before they run out. Factory test records are generated on the actual panel thickness you intend to process. Engineer-led configuration recommendations arrive within 24 hours of your inquiry, including a formal quotation with no hidden surcharges.
Documentation & Verification
- CE declaration of conformity covering the ZDSF802 electrical and mechanical safety scope
- Factory test record run on your specified panel thickness and edge strip material
- Electrical schematic confirming voltage, phase, and breaker rating for your electrician
- Operation and maintenance manual printed in your agreed language before crating
- Spare parts list with part numbers matching the components inside your machine
- Packing photographs taken after final inspection and before the crate is sealed
Installation, Commissioning & Support
- Allocate a level concrete pad at least 200×70cm with clearance for panel infeed and outfeed on the 190cm frame
- Install a dedicated 220V circuit with appropriate breaker rating for the 4KW total load
- Connect compressed air at 0.6-0.8 MPa with a filter-regulator-lubricator upstream of the machine
- Calibrate glue pot temperature on the digital display to match your adhesive manufacturer’s specification
- Run test panels through all stations — gluing, end cutting, trimming, vacuuming, and buffing — before production starts
- Stock replacement trimming blades and polishing wheels from the included spare parts list
What to Share With Your Inquiry
Send your typical panel material, thickness range, and the edge strip type you plan to run most often. Include your workshop voltage, phase count, and frequency so the right configuration is pulled from stock. If you already have upstream saws or downstream boring machines, mention their feed heights so the ZDSF802 conveyor aligns without custom risers.
Frequently Asked Questions
Q: What voltage options are available and how do I confirm before dispatch?
A: The ZDSF802 ships at 220V as standard. Other voltages are configured at the factory upon request. Share your local supply specifications — voltage, phase, and frequency — at the inquiry stage so the warehouse team releases a matching unit or schedules the modification before crating. This avoids rewiring costs and commissioning delays at your site.
Q: How can I verify the machine handles my specific panel materials?
A: Request a pre-shipment test record. The factory runs your specified MDF, particleboard, or plywood through the ZDSF802 at your required thickness and documents edge quality, glue adhesion, and trimming results. You receive photographs and the test parameters so you can evaluate output before the machine leaves the facility.
Q: What is the lead time for stocked units versus custom voltage orders?
A: Stocked units at standard 220V are prepared for dispatch within days once payment clears and documentation is confirmed. Orders requiring voltage reconfiguration or language-specific control panels add lead time for the modification and a second round of testing. Your sales contact provides the exact schedule at the quotation stage.
Q: Which consumables and spare parts should I order alongside the machine?
A: The ZDSF802 ships with an initial spare parts list covering trimming blades, polishing wheels, and pneumatic wear items. Review that list with your maintenance team and add quantities based on your expected weekly run hours. Ordering spares with the machine means they arrive in the same crate and are on hand from day one.
Q: Is installation guidance available after delivery?
A: Yes. The ZDSF802 documentation package includes wiring diagrams, air-line connection details, and step-by-step commissioning instructions. Remote guidance is available for first startup and parameter calibration. Share your workshop layout in advance so the support team can advise on conveyor alignment with your existing equipment.
