Description
Voltage Confirmed Before Dispatch — every DW1800 ships with a signed electrical schematic matching your workshop’s exact phase and frequency, eliminating the three-week transformer delay that stalls production lines overseas.
Technical Specifications
| Parameter | Value |
|---|---|

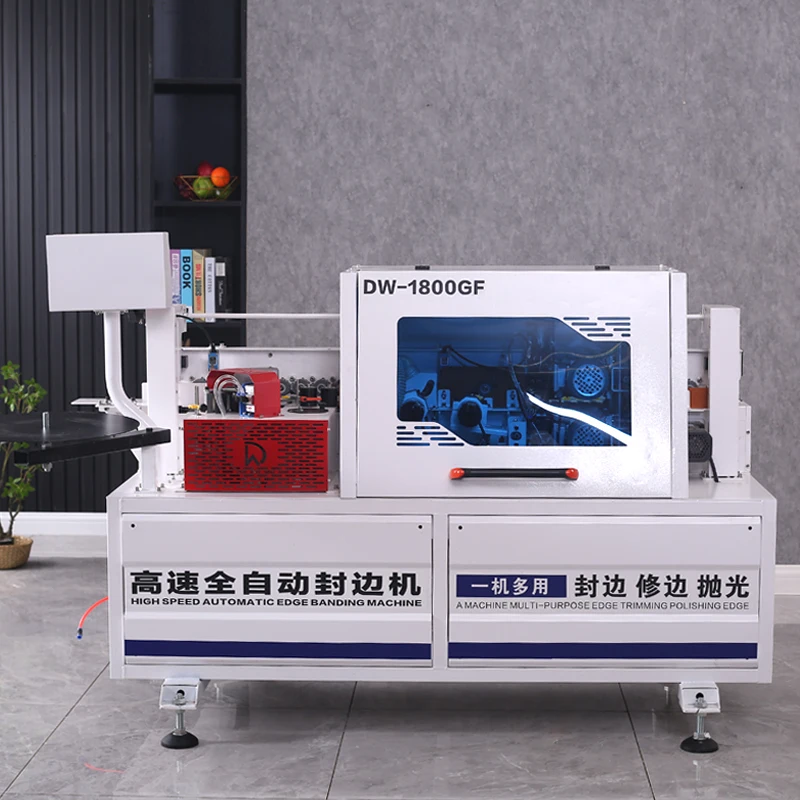

| Model | DW1800 |

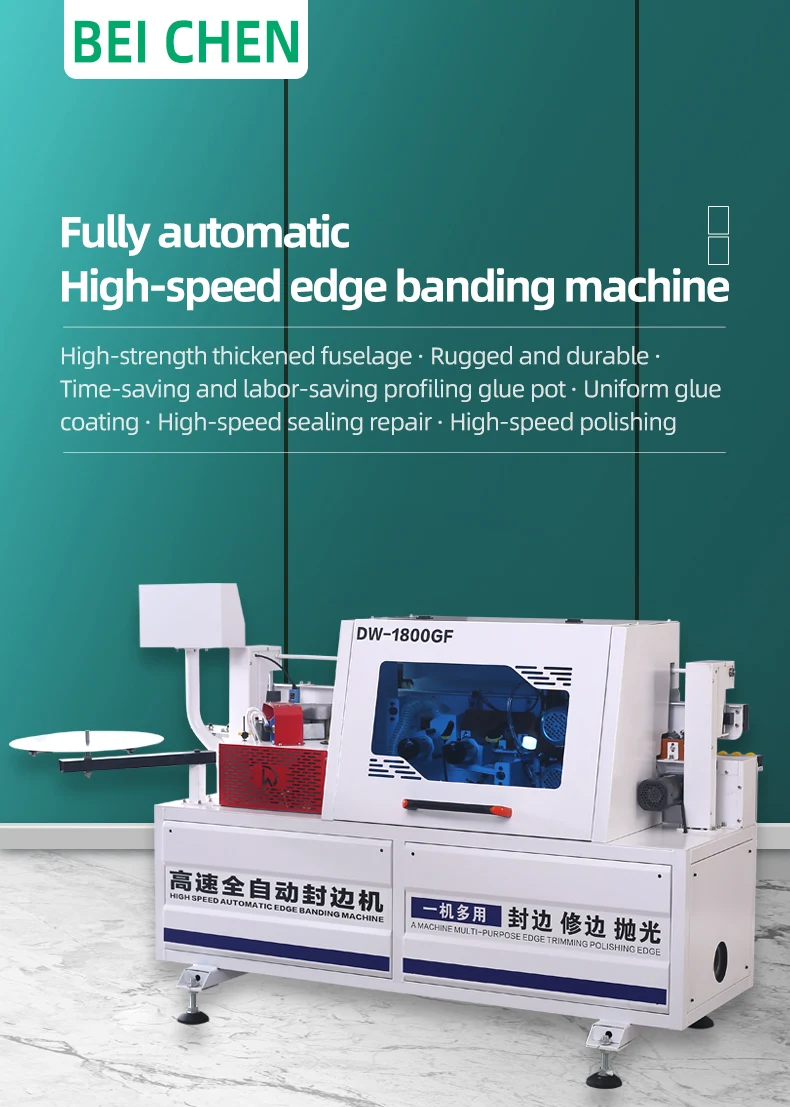

| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage Options | 380V / 220V / 415V (basis not stated in source — confirm frequency and phase) |
| Feed Speed | 0–14 m/min |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 20 cm |
| Minimum Sheet Width | 10 cm |

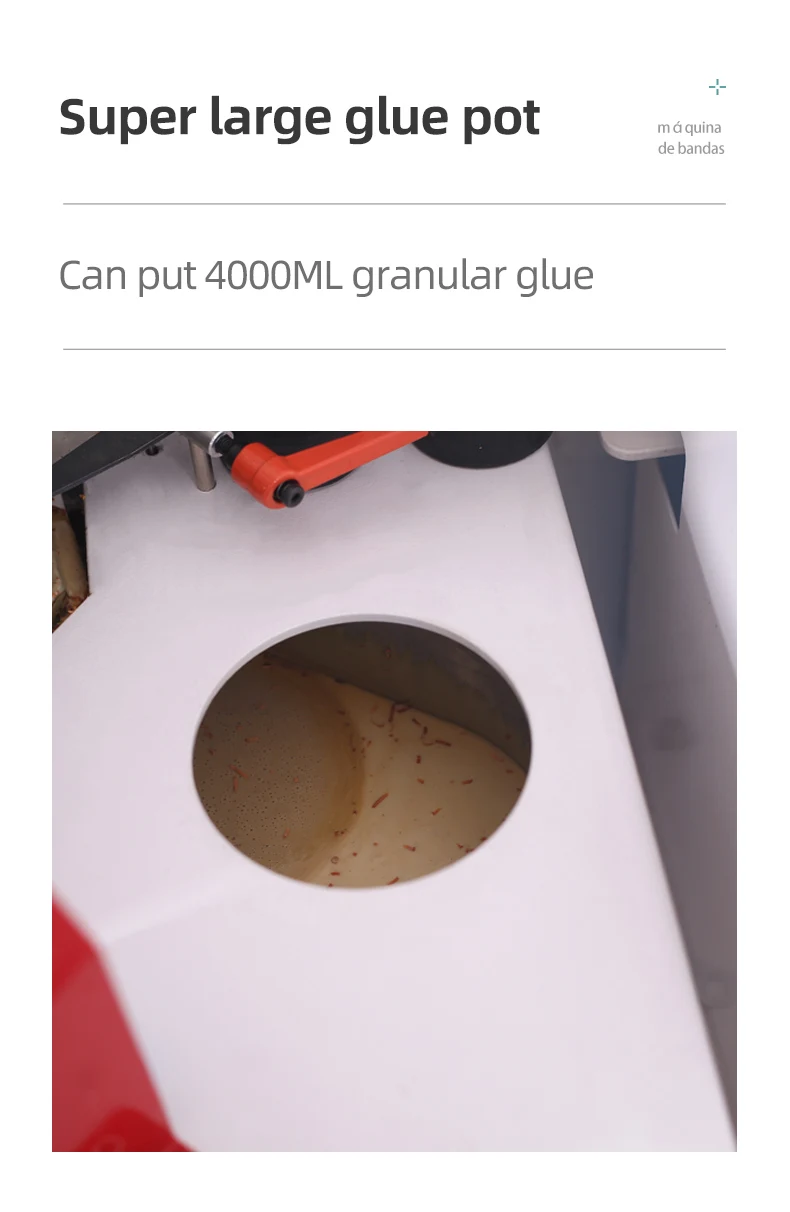

| Glue Pot Capacity | 4000 ml |
| Trimming Power | 800 W × 2 at 24,000 r/min |
| Polishing Power | 380 W × 2 |
| Vacuum Power | 550 W |
| Air Source Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 220 × 65 × 125 cm |
| Net Weight | 320 kg |

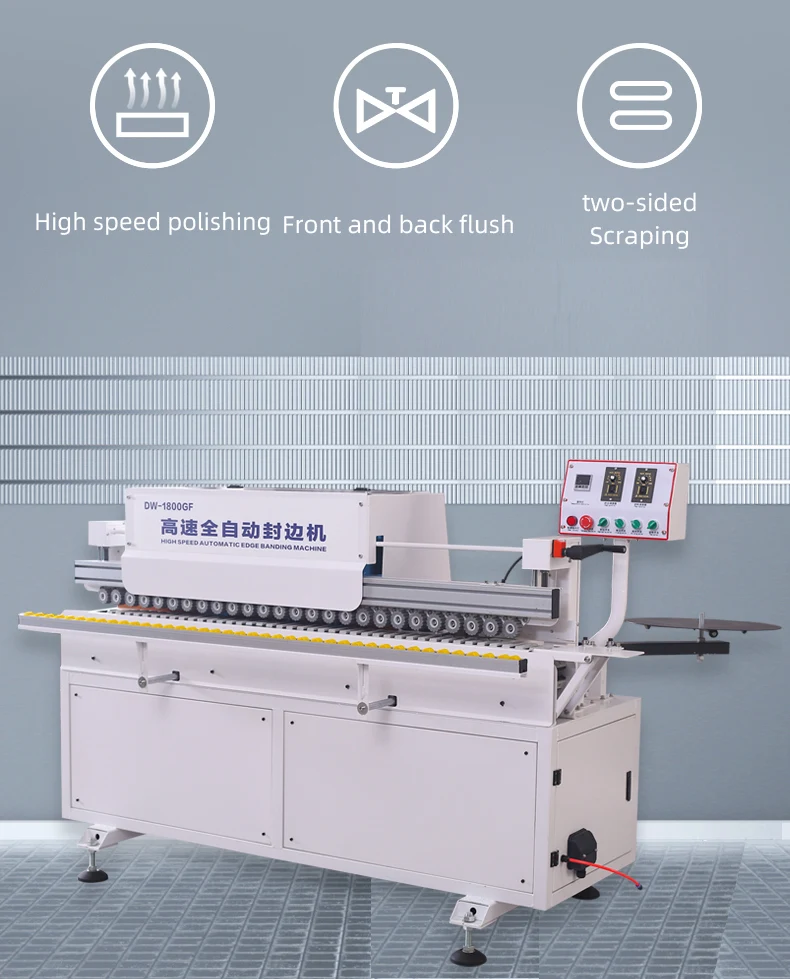

| Key Features | Double-sided gluing, top and bottom trimming, front and rear alignment, flexible edge scraping, dust extraction |
| Language Options | Chinese and English (other languages customizable) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard, plywood |
| Cabinet door and carcass finishing | PVC panels, ABB boards |
| Small-batch joinery components | Solid wood and similar hardness plates |
| Narrow offcut and shelf edge processing | Melamine and veneer strips down to 20 × 10 cm |
Why the Voltage Question Must Come Before the Quotation
A machine rated for 380V arriving at a 415V three-phase workshop becomes an expensive paperweight until a transformer shows up.
I have watched entire production lines in East Africa sit idle for weeks because the edge bander was dispatched on a default voltage setting that did not match the local grid. The DW1800 Automatic Edge Banding Machine in stock is only released for shipping after your site voltage, frequency, and plug type are confirmed in writing and reflected on the electrical schematic [NEED_CITE: voltage and frequency standards by export market]. This step takes one extra day on our side and saves you from sourcing step-down transformers in regions where they are neither cheap nor fast to procure.
Dispatch Timing When Stock Is Already on the Floor
The DW1800 Automatic Edge Banding Machine in stock is held ready for fast dispatch from the warehouse. Once your voltage and control panel language are locked in, the pre-shipment test runs on your specified parameters and the unit is crated for export. The gap between order confirmation and container loading stays short because the machine is already assembled and bench-tested — we are not waiting for a production slot to open up.
What Ready Stock Actually Means for Your Schedule
Buyers planning a workshop expansion or replacing a failed machine need a unit on the water within days, not weeks. The stocked DW1800 units carry the full station sequence — gluing, trimming, polishing, scraping, and dust extraction — so there is no waiting for optional modules to arrive from a separate supplier [NEED_CITE: typical lead times for configured woodworking machinery]. You receive a complete edge banding station, not a base model waiting for upgrades.
Reading the Spec Sheet Against Your Panel Range
The 0–14 m/min feed speed gives operators room to slow down for delicate veneer strips and speed up for high-volume PVC runs on particleboard. The 4000 ml glue pot capacity supports sustained production without frequent refills, which matters when you are running full sheets of MDF cabinet components back to back. Edge banding thickness coverage from 0.3 to 3 mm means the same machine handles thin melamine on shelf edges and thicker PVC on worktop fronts without a tooling changeover.
The Cost of Skipping Voltage and Plug Confirmation
When a machine arrives with the wrong plug or an incompatible voltage, the buyer faces a choice between airfreighting a transformer or rewiring the motor — both of which add cost and downtime that no quotation warned about. I have seen workshops in South Asia run extension cables through doorways just to reach a socket that matched the shipped plug, creating a safety hazard the factory inspection never intended [NEED_CITE: CE machinery directive requirements for industrial equipment]. The DW1800 ships with your chosen plug standard and a motor wound for your confirmed voltage, so the first day on your floor is a production day, not an electrical troubleshooting day.
Why Buyers Come Back for a Second Machine
The DW1800 sits in a product family that scales from entry-level to full-function, so a workshop that starts with this unit can add capacity later without learning a new control interface or switching spare parts suppliers. Voltage and language customization is treated as standard procedure, not a special request that adds weeks to lead time. The four-stage quality check covers incoming material, in-process assembly, finished product, and pre-shipment verification — and the test record travels with the machine in the crate. An engineer reviews your panel types and production volume before confirming the configuration, so the recommendation is based on your actual workflow rather than a catalogue default.
Documentation & Verification
- CE declaration of conformity referencing the DW1800 edge banding station
- Electrical schematic showing your confirmed voltage, phase, and plug type
- Factory test record run on your specified panel thickness and edge material
- Operation and maintenance manual in your agreed control panel language
- Spare parts list covering first-year consumables for trimming and polishing heads
- Packing photographs taken before crate closure for shipping condition reference
Installation, Commissioning & Support
- Requires a level concrete floor supporting the 320 kg footprint across 220 × 65 cm
- Dedicated circuit matching confirmed voltage at 4.9 kW total draw with appropriate breaker rating
- Arrives assembled; connect power, air supply at 0.4–0.6 MPa, and dust extraction ducting
- First run includes feed speed calibration and trimming head alignment on your panel stock
- Multilingual control panel walkthrough with operator-level parameter adjustment training
- Spare trimming blades and polishing wheels included for initial production period
What to Share When Requesting a Quote
Send your workshop voltage and frequency, the panel materials and edge banding types you run most often, and the control panel language your operators need. If you are integrating the DW1800 into an existing line, mention the upstream saw and downstream boring setup so the feed height and throughput can be matched. Samples of your edge banding material help confirm glue temperature and trimming pressure settings before the machine leaves the floor.
Frequently Asked Questions
Q: What voltage and plug options are available, and how is compatibility confirmed before shipping?
A: The DW1800 supports 380V, 220V, and 415V configurations with EU, USA, AU, and UK plug options. Before dispatch, your local voltage, frequency, and phase are confirmed and documented on the electrical schematic that ships with the machine, ensuring the motor and control system match your workshop supply from day one.
Q: Is this model in stock, and what is the dispatch lead time after voltage confirmation?
A: Stocked DW1800 units are available for fast dispatch once your voltage and language preferences are confirmed. The pre-shipment test and crating follow immediately after confirmation, keeping the gap between order and container loading to a matter of days rather than production weeks.
Q: Can the control panel be supplied in English, Spanish, or another language?
A: Chinese and English are standard, and additional languages are customizable on request. The agreed language is set before the pre-shipment test so operators see familiar labels during commissioning, reducing setup errors and the need for translator support on the factory floor.
Q: What edge banding materials and thicknesses does the DW1800 handle?
A: The machine covers 0.3 to 3 mm edge banding thickness across PVC, veneer, and melamine strips, with a banding height range up to 50 mm. This allows a single station to process everything from thin shelf edging to thicker worktop profiles without tooling swaps.
Q: How is the machine packed, and what documentation is included for customs clearance?
A: The DW1800 is crated with packing photographs taken before closure. The shipment includes the CE declaration, commercial invoice, packing list, and operation manual, providing the documentation package needed for smooth customs processing at your destination port.
