Description

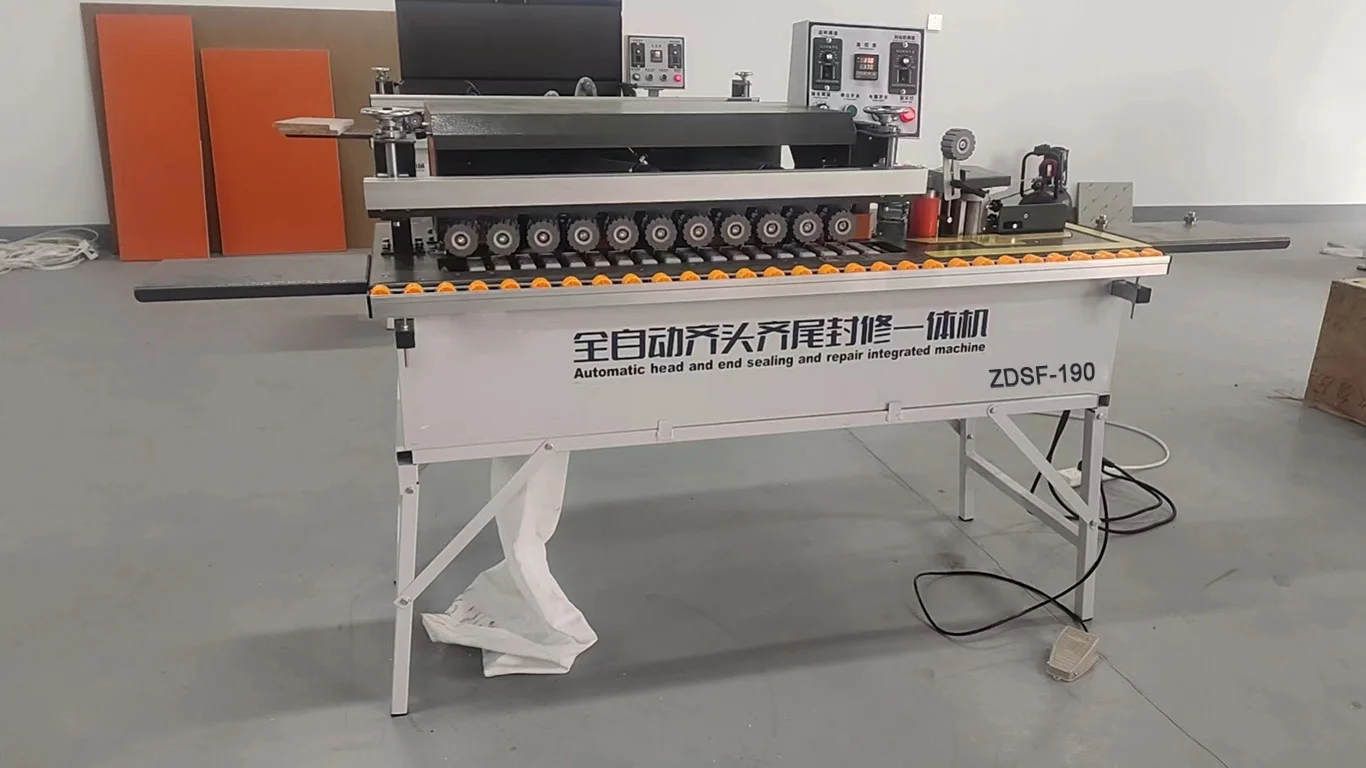

Ready for Immediate Dispatch — this ZDSF190 portable edge bander is tested at 220V/50Hz, loaded with your chosen language panel, and cleared for single-unit shipping without a factory-build wait.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Portable Automatic Edge Banding Machine (Curved and Straight Dual-purpose) |
| Edge Type | Curved and straight lines |
| Voltage & Frequency | 220V 50Hz (basis not stated in source — confirm if other voltage options available) |
| Rated Power | 4 kW |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Trimming Cutter | 4-blade alloy arc knife |
| Transmission | Crawler transmission with steel rod slide rails |
| Pressure Beam | Aluminum alloy, adjustable |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |

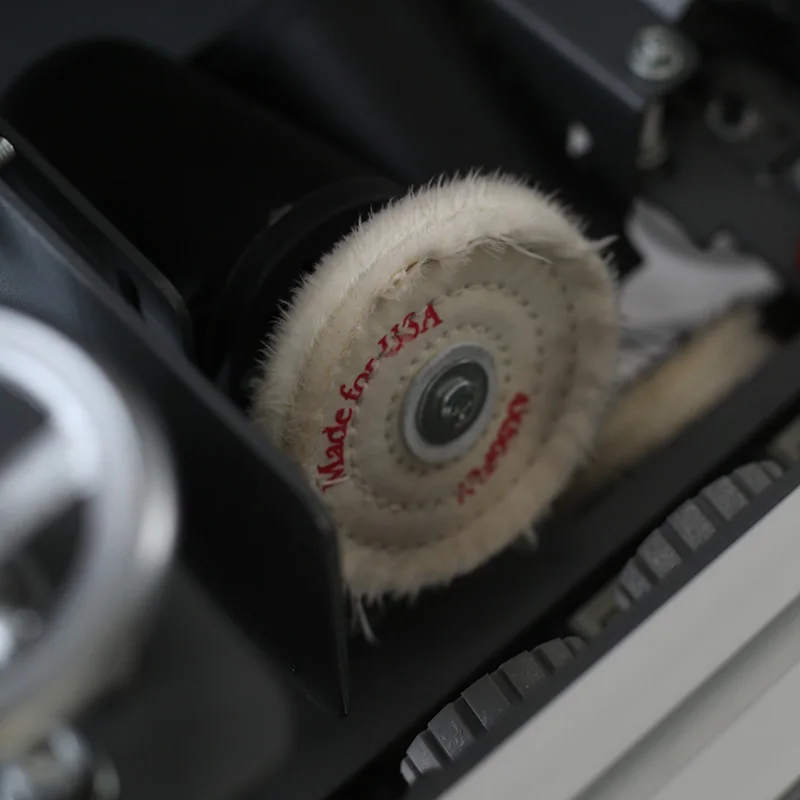

| Key Features | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper and lower trimming and polishing, large diameter surrounding vacuum |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture workshop edge banding | MDF and plywood panels with PVC or veneer strips |
| Small-scale cabinet production | Particleboard panels up to 50 mm thick |
| Joinery shop curved profile work | Solid wood panels with curved edge contours |
| On-site mobile woodworking | Mixed straight and curved panel jobs in compact workspaces |
Why the Voltage Question Should Come Before the Price on a portable edge banding machine in stock
A machine that cannot plug into your local supply is not a bargain; it is a 120 kg paperweight.
I have watched entire commissioning schedules collapse because a machine arrived wired for a voltage that simply does not exist in the buyer’s workshop. The operator stands there with a multimeter and a translator app, while the project deadline slips day by day [NEED_CITE: voltage and frequency standards by export market]. The ZDSF190 ships at a confirmed 220V/50Hz, and that specification is locked on the configuration sheet before the crate closes — not discovered when the container is opened on the other side of the world.
Dispatch Timing That Matches a Workshop’s Urgency
When a small furniture shop commits to a new edge bander, the gap between order and first cut is where cash flow stalls. This portable edge banding machine in stock is held in ready-to-ship condition, meaning the lead time is measured in days for packing and transport, not weeks for a production slot. A single-unit order is the standard transaction here, so a joinery startup does not have to commit to a container load just to get one machine running.
Curved and Straight Work on One Floor Space

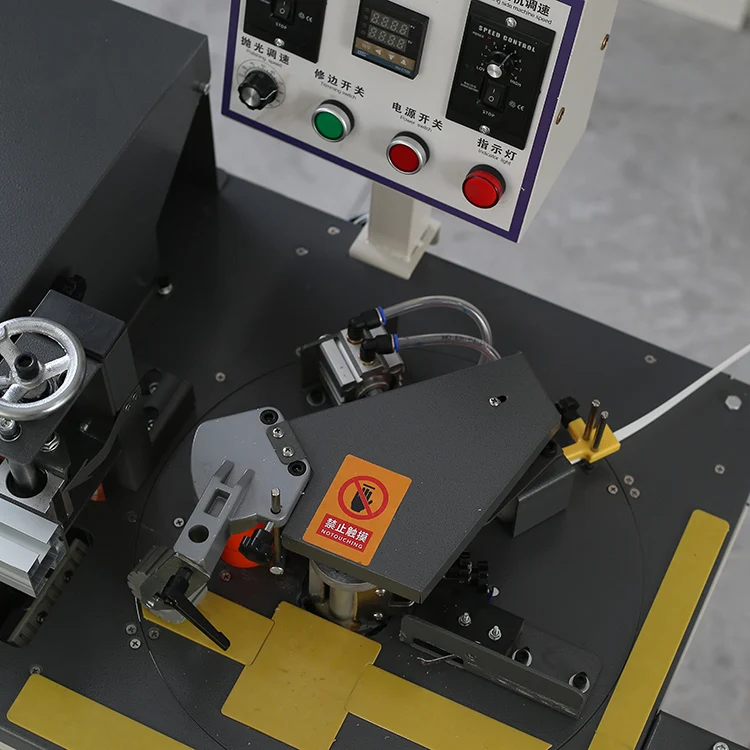

The 180° rotation mechanism lets the operator switch from a straight cabinet side panel to a curved chair seat profile without moving the workpiece to a second station. For a workshop that runs short batches with mixed geometries, that dual-purpose function compresses two machine footprints into a 1900 × 560 mm footprint. The unit sits on a standard workshop floor without special foundation work, which matters when space is rented by the square meter [NEED_CITE: CE machinery directive requirements for small workshop equipment].
Reading the Spec Sheet Against Real Panel Work

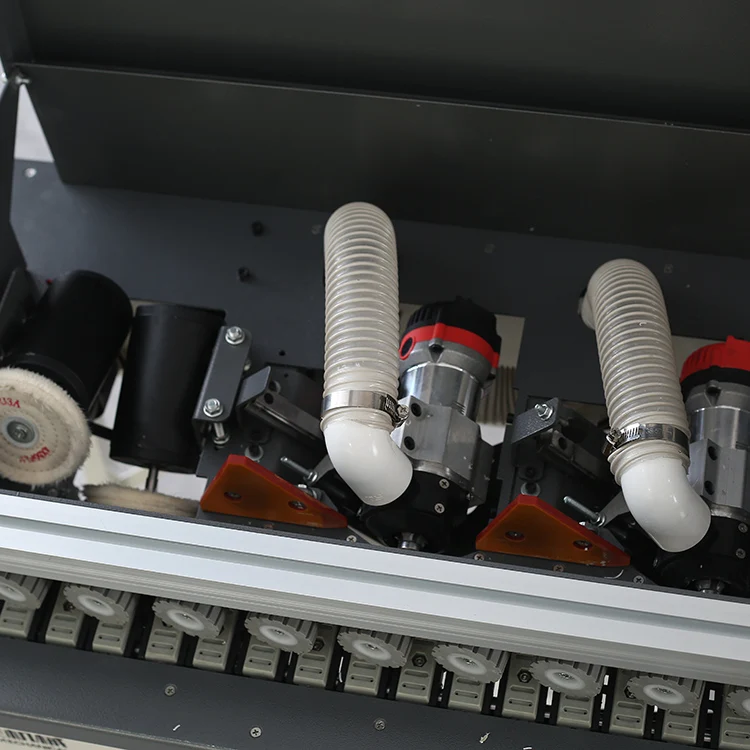

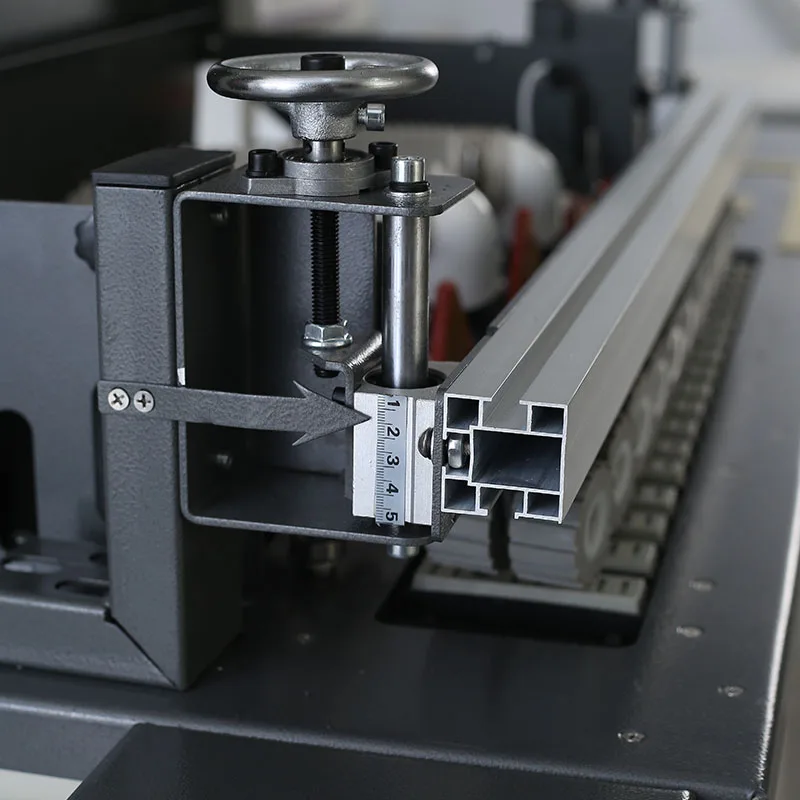

The 10–50 mm sheet thickness range covers the common MDF and plywood panels used in cabinet and furniture construction, while the 0–14 m/min feed speed gives the operator room to slow down on tight curves or push the pace on long straight runs. The 4-blade alloy arc trimming cutter is designed to follow curved contours cleanly, which directly affects whether the assembled furniture shows visible glue lines at the joints. The double-sided gluing system applies adhesive to both the panel edge and the strip simultaneously, improving bond consistency on porous substrates like particleboard where single-sided gluing often leaves dry spots. The adjustable aluminum alloy pressure beam with double-row rubber pressure wheels keeps the panel stable through the feed path, preventing the drift that causes uneven trimming on narrower workpieces.
What Happens When the Configuration Is Wrong
A control panel in a language the operator cannot read turns a simple feed speed adjustment into a guessing game. I have seen a curve banding machine sit idle for two full days because the local team could not navigate a Chinese-only interface to reset a fault code [NEED_CITE: operator interface language requirements for exported machinery]. The machine itself was fine. The configuration was not. That is why every ZDSF190 leaving the warehouse goes through a language and voltage verification pass before the packing photographs are taken.
Why Procurement Through This Channel Works
The stock-held inventory means you see a specific unit with a serial number, not a catalog rendering. Each machine goes through a pre-shipment test that runs actual panel material at your specified thickness, generating a test record you receive before the crate is sealed. The configuration sheet confirms voltage, frequency, control language, and optional settings as a signed document — not a verbal promise on a chat thread. Spare parts ship inside the same crate, so the first consumable replacement does not require a separate international shipment. Single-unit orders are the baseline, and dispatch follows immediately after payment confirmation and the final verification checklist is cleared.
Documentation & Verification
- Factory test record showing trim quality on your specified panel thickness and edge strip material
- Electrical schematic confirming 220V/50Hz wiring and component ratings before dispatch
- Operation and maintenance manual delivered in the operator’s working language
- Spare parts list with part numbers matching the exact unit shipped
- Packing photographs documenting crate condition and machine securing method
- CE declaration of conformity covering the portable automatic edge banding machine category
Installation, Commissioning & Support
- Requires a flat floor area of approximately 2.0 × 0.7 m with standard workshop clearance around the 1900 × 560 × 1300 mm unit
- Dedicated 220V/50Hz circuit rated for the 4 kW total draw, separate from high-draw equipment like compressors
- Assembly required on arrival; the crawler transmission and pressure beam must be aligned and secured to the base frame
- Pneumatic connection to a 0.4–0.6 MPa air supply with a dedicated filter-regulator upstream of the machine inlet
- First-run calibration of the 4-blade trimming cutter against your specific strip thickness range of 0.5–2.5 mm
- Glue pot initial fill and temperature stabilization using the 800 W heating element before the first production panel is fed
What to Prepare Before Requesting a Quote
Send the panel materials you run most often — MDF, plywood, particleboard, or solid wood — along with the typical thickness range and the edge strip materials and widths in your current jobs. Confirm your workshop voltage and frequency, the language your operators read, and whether you need the machine configured for predominantly straight work, curved profiles, or a balanced mix.
Frequently Asked Questions
Q: Is this machine currently in stock and what is the dispatch lead time?
A: The ZDSF190 is held in ready-to-ship stock, so the timeline from order to dispatch is driven by the pre-shipment verification and packing process rather than a production build cycle. Once your voltage and language configuration is confirmed and the test run is completed, the unit is crated and released to the freight forwarder. Single-unit orders follow the same fast-track process.
Q: Can the voltage be changed from 220V/50Hz to match my local power supply?
A: The standard configuration is 220V/50Hz, and that is what the in-stock units carry. If your local supply differs, raise this before ordering so the configuration sheet can be reviewed against available options. Shipping a machine wired for the wrong voltage creates a commissioning delay that is entirely avoidable with a pre-order confirmation.
Q: What is the minimum order quantity — can I buy a single unit?
A: The minimum order is one unit. This channel is built for workshops and small factories ordering individual machines, not container-load commitments. The single-unit order receives the same pre-shipment test, documentation package, and spare parts kit as a multi-machine shipment.
Q: What edge banding strip materials and thicknesses does the ZDSF190 handle?
A: The machine processes PVC and veneer edge banding strips in the 0.5–2.5 mm thickness range. The double-sided gluing system and 4-blade alloy arc trimming cutter are set up for these materials during the pre-shipment test, so you can confirm edge quality on your specific strip stock before the machine ships.
Q: How is the machine packed and what assembly is required on arrival?
A: The 120 kg unit is crated with securing brackets and packing photographs are provided before dispatch. On arrival, the pressure beam and certain transmission components require assembly and alignment to the base frame. The operation manual in your language covers the assembly sequence and the initial calibration of the trimming and polishing stations.
