Description
Ready Stock Assurance — ZDSF50+ units ship within days of order confirmation, with voltage and language verified before dispatch so your workshop gets a plug-and-go mini edge banding machine.
Technical Specifications
| Parameter | Value |
|---|---|

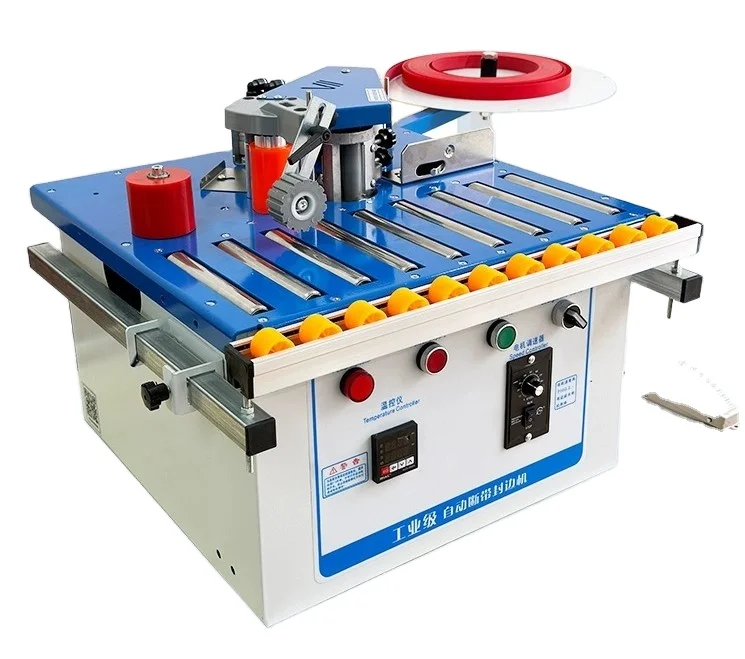

| Model | ZDSF50+ |
| Product Type | Mini Edge Banding Machine |
| Rated Voltage | 220V Single-Phase |
| Rated Power | 1.2 kW |
| Feed Speed | 0–6 m/min |
| Sheet Thickness Range | 10–60 mm |
| Strip Thickness Range | 0.5–1.5 mm |
| Glue Pot Capacity | 1000 ml |
| Heating Method | 4 Heating Tubes |
| Gluing Type | Double-Sided Glue-Coated Rollers |
| Tape Breaking | Pneumatic with Foot Switch; Automatic via Travel Switch |
| Pressure Rollers | Adjustable, Rubber Material |
| Rated Air Pressure | 0.4–0.6 MPa |
| Heating Time | 5–10 min |
| Overall Dimensions | 54 × 54 × 56 cm |
| Net Weight | 28 kg |
| Key Features | Portable Design, Curve and Straight Line Capability, Double-Sided Gluing |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge finishing | MDF, plywood, particleboard with PVC or veneer strips |
| On-site joinery curved edge banding | Solid wood panels with veneer or PVC banding |
| Small workshop straight-line production | Particleboard and MDF shelving and carcass panels |
| Startup furniture operations | Plywood casework transitioning from manual to mechanised banding |
| Repair and rework stations | Damaged edge strip replacement on assembled furniture components |
Why Voltage Confirmation Matters More Than Lead Time
A machine that cannot power on is not a delivery — it is a crate in your workshop.
I once watched a container arrive at a customer’s facility only for the electrician to discover the machine was wired for a supply the site did not have. Three weeks of idle floor space followed while a transformer was sourced and installed. With a Mini Edge Banding Machine in stock, the advantage of fast dispatch is lost entirely if the electrical configuration does not match the destination [NEED_CITE: voltage and frequency standards by export market]. That is why every ZDSF50+ order goes through a voltage confirmation check before it leaves the packing bench.
Dispatch Readiness Without Configuration Surprises
Stock availability means little if the unit still needs adaptation for the buyer’s electrical environment. Each ZDSF50+ Mini Edge Banding Machine in stock is listed at its standard 220V single-phase configuration, which suits a large share of workshop outlets globally. For destinations where local supply differs, confirmation happens at the quotation stage — not at the unpacking stage.
The Real Cost of a Misconfigured Arrival
When a machine sits unpowered, the losses extend beyond the equipment price. Workshop schedules stall, operators lose familiarisation time, and installation contractors may need to return for a second visit. A Mini Edge Banding Machine in stock that arrives correctly configured eliminates this cascade [NEED_CITE: typical costs of on-site electrical retrofitting for imported machinery]. The pre-dispatch verification sheet included with every ZDSF50+ order documents the voltage, frequency, and plug type confirmed for the receiving facility.
How the Glue System and Feed Mechanics Translate to Workshop Output

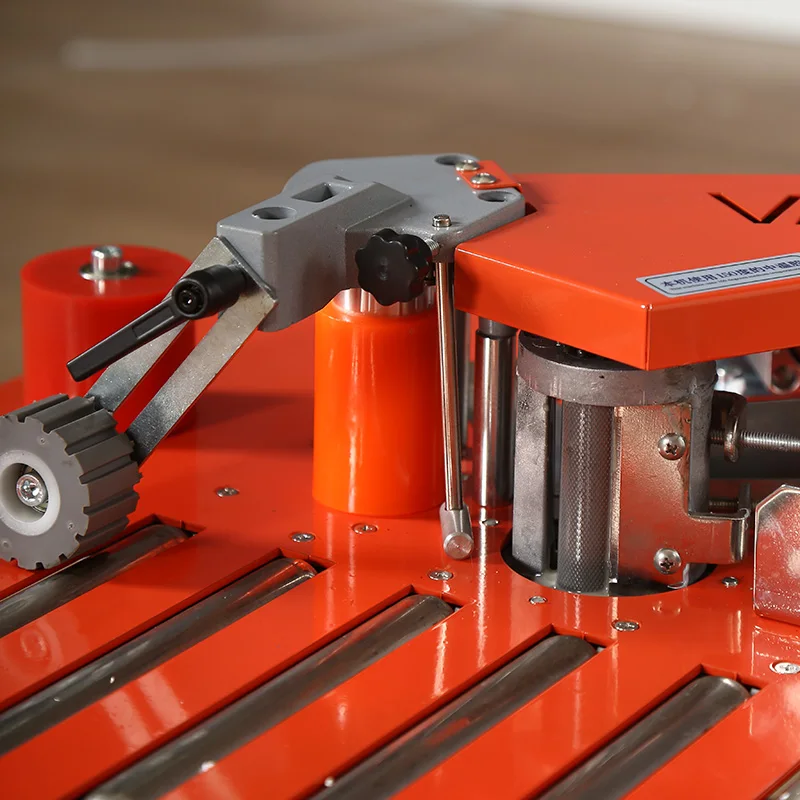

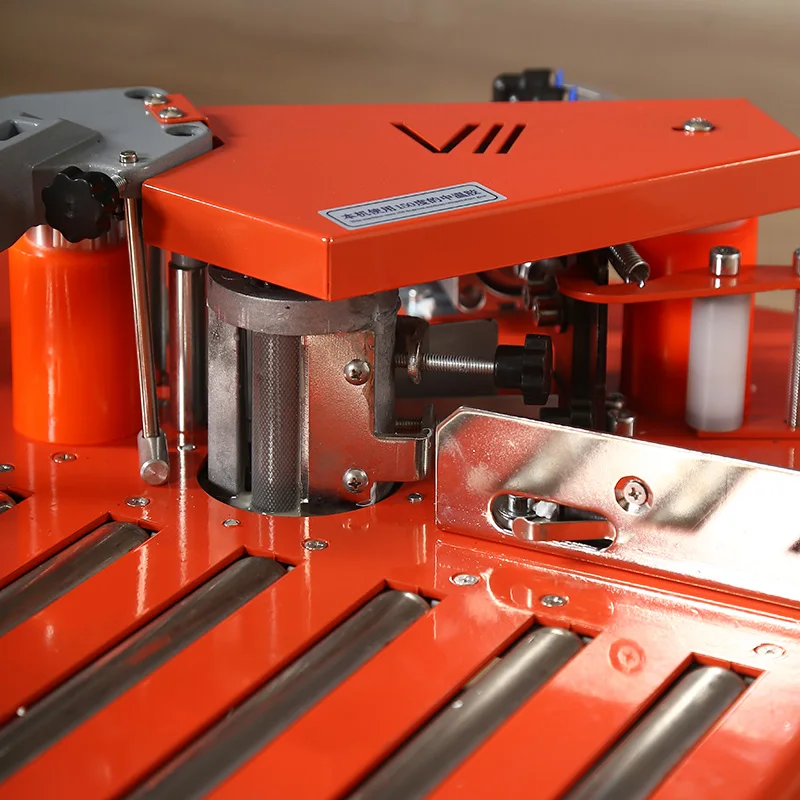

The double-sided glue-coated roller system on the ZDSF50+ applies adhesive to both the panel edge and the strip simultaneously. In practice, this means firmer adhesion on porous substrates like particleboard where single-sided gluing can leave starved areas along the glue line. The 1000 ml glue pot with four heating tubes brings the adhesive to working temperature within five to ten minutes, reducing the wait time at the start of each shift. The adjustable rubber pressure rollers track the board thickness from 10 mm up to 60 mm, maintaining consistent contact across the full strip width.
Feed speed is variable from 0 to 6 m/min, which gives the operator control when transitioning between straight runs and curved profiles. On curved edges, a slower feed allows the strip to conform to the radius without lifting. The pneumatic tape-breaking system, triggered by foot switch or automatically via the travel switch on straight sections, removes the manual tearing step that often leaves uneven strip ends on smaller machines [NEED_CITE: edge banding adhesion standards for furniture panel substrates].
The Hidden Cost of Choosing the Wrong Compact Bander
Workshops that select an entry-level bander without matching it to their actual panel mix often find the pressure rollers cannot hold firm on thicker stock, producing visible glue lines and strip lift on boards above the machine’s effective range. Curved profiles demand slow, controlled feed and flexible strip material; units lacking variable speed and adjustable transport bayonets produce cracked veneer on tight radii.
Pneumatic tape breaking is sometimes dismissed as a luxury, but manual strip cutting on high-volume days introduces fatigue errors and inconsistent end trims [NEED_CITE: operator fatigue impact on edge finish quality in small workshops]. These issues compound when the machine is pushed beyond its designed scope, turning what should be a fast supplementary unit into a bottleneck.
Why Procurement Through This Channel Works for Single-Unit Orders
The ZDSF50+ is stocked as a complete, tested unit rather than assembled to order, which keeps the dispatch window short for workshops that need edge banding capability now. Voltage confirmation is handled at the quotation stage with a written record, so there is no guesswork when the crate arrives.
Pre-shipment testing covers a run on the buyer’s specified panel thickness range, documented with photographs included in the shipping file. Operation manuals are supplied in the language the operator will actually read, not a generic default. Spare parts lists ship with the machine, covering wear items like pressure rollers and glue pot components so the workshop can plan consumable orders without waiting for a breakdown.
Documentation & Verification
- Voltage confirmation sheet matched to your facility supply before dispatch
- Pre-shipment test record on your specified panel and strip thickness
- Packing photographs showing unit condition prior to crating
- Operation and maintenance manual in your agreed language
- Spare parts list covering consumable and wear-item references
- CE declaration of conformity included in the documentation pack
Installation, Commissioning & Support
- 220V single-phase connection on a dedicated 1.2 kW circuit with earth bonding
- Compact 54 × 54 × 56 cm footprint requires only a flat, stable bench surface
- Arrives fully assembled — no on-site mechanical build needed
- Air supply connection at 0.4–0.6 MPa for pneumatic tape breaking activation
- First-run guidance on glue temperature and feed speed for your panel material
- Wear-item spare parts identified for local sourcing or reorder planning
What to Include in Your Enquiry
To match the right unit to your workshop, provide the panel materials and thickness range you work with most often, along with your local voltage and frequency so confirmation can happen at the quotation stage. If you plan to run curved profiles, note the minimum radius and strip type — this determines whether the standard ZDSF50+ configuration covers your needs or whether adjustments are required before dispatch.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The ZDSF50+ Mini Edge Banding Machine is held in ready stock. Once your voltage and language requirements are confirmed at the quotation stage, dispatch follows within days rather than weeks. Pre-shipment testing and packing documentation are completed before the unit leaves the facility.
Q: Can the voltage be confirmed or adapted for my local electrical supply before shipping?
A: Yes. Every order includes a voltage confirmation step where your local supply specifications are recorded and matched against the machine configuration. The 220V single-phase setup covers most workshop environments, and the confirmation sheet travels with the shipment as a verifiable record.
Q: What edge banding materials and board thicknesses does the ZDSF50+ handle?
A: The machine processes PVC and veneer edge strips between 0.5 mm and 1.5 mm thick, applied to panels ranging from 10 mm to 60 mm. Both straight and curved profiles are supported, with variable feed speed allowing the operator to adjust for radius work.
Q: How is the machine packaged and what are the shipping options for a single-unit order?
A: Each ZDSF50+ is crated with protective packing and photographed before sealing. Single-unit orders are shipped via standard freight channels, with packing photographs and customs documentation included. Shipping options are confirmed at quotation based on your destination port or address.
Q: What consumables and spare parts should I order with the machine?
A: A spare parts list is supplied with every order, identifying wear items such as rubber pressure rollers, glue pot heating tubes, and transport bayonet components. Ordering consumables alongside the machine ensures your workshop has replacement stock on hand for uninterrupted production.
