Description
Voltage-Verified Dispatch — every ZDSJCX-880S unit undergoes electrical schematic cross-check against your local grid standard before leaving the warehouse, eliminating dead-on-arrival delays.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSJCX-880S |
| Product Type | Automatic Edge Banding Machine |
| Overall Dimensions (L×W×H) | 8.82 × 1.07 × 1.85 m |
| Net Weight | 3200 kg |
| Total Power | 47.1 kW |
| Voltage | 380 V (frequency configurable upon confirmation) |
| Air Pressure Requirement | 0.6–0.8 MPa |
| Vacuum Opening Size | Ф100 × 6 |
| Panel Thickness Range | 18–22 mm |
| Edge Banding Thickness Range | 0.5–0.8 mm |
| Edge Banding Width | 58 mm |
| Minimum Sheet Width | 150 mm |
| Minimum Sheet Length | 300 mm |
| Conveying Speed | 6–8 m/min |

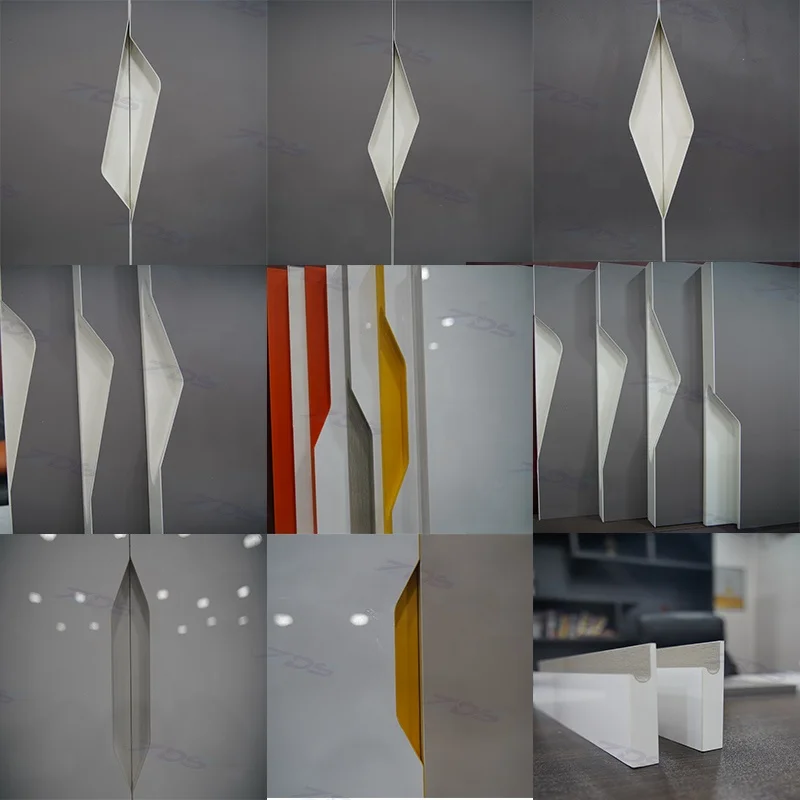

| Machining Shape Options | J type, C type, oblique straight, left/right semi-pass, water drop, rhombus, triangle, and 15+ profiles |
| Warranty | One year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel processing | MDF and melamine-faced particleboard with PVC or ABS banding |
| Cabinet and wardrobe door production | Plywood substrates requiring tight edge adhesion |
| Small-batch joinery workshops | Solid wood panels up to 22 mm thickness |
| Distributor demo and sampling | Mixed board types for local showroom testing |
Why the Voltage Question Must Come Before the Order
Confirming your facility’s voltage and frequency before dispatch prevents a three-week production standstill.
I have watched factories sit idle because an automatic edge banding machine in stock arrived wired for 380V/50Hz while the local grid runs on a different phase or frequency. The machine powers on, but the motors overheat or the control board refuses to initialize. Sourcing a step-up transformer locally, rewiring the main panel, and waiting for replacement contactors turns a fast reorder into a month-long bottleneck [NEED_CITE: voltage and frequency standards by export market]. Verifying electrical compatibility at the quotation stage removes this risk entirely.
Stock Status and Dispatch Timing
When you need an automatic edge banding machine in stock for immediate capacity expansion, the window between order confirmation and container loading defines your production recovery timeline. The ZDSJCX-880S ships from our Yangtze Delta warehouse with pre-completed factory run tests, so the unit has already processed test panels through all trimming stations before it reaches the crate.
Single-Unit Orders and Shipping Options
Purchasing a single unit does not mean waiting for a full container consolidation. We quote LCL or FCL sea freight options at the point of order, and air freight is available for urgent replacements where downtime costs outweigh shipping premiums. Every shipment includes crating photographs and a packing list matched to your customs broker’s requirements.
Reading the Numbers That Matter on the Shop Floor
The 47.1 kW total power draw tells your electrician exactly what dedicated circuit and breaker rating the machine demands — undersizing this line causes intermittent faults that mimic control board failures. The 18–22 mm panel thickness range covers standard MDF and particleboard used in cabinet carcasses, but if your production regularly runs 25 mm shelving stock, the pressure beam and feed chain clearance need adjustment before the first sheet enters. Conveying speed at 6–8 m/min suits batch sizes where edge quality takes priority over raw throughput; pushing feed rates beyond the glue pot’s open-time window causes adhesion failure on porous substrates. The 0.6–08 MPa air pressure requirement means your compressor must sustain that pressure at the machine inlet, not just at the tank, accounting for line losses across the workshop [NEED_CITE: compressed air pressure drop in pneumatic tool lines].
The Hidden Cost of Skipping Pre-Dispatch Verification
Ordering a machine based solely on catalogue specifications, without confirming how those specs interact with your existing air supply and electrical infrastructure, creates a cascade of delays. Panels arrive at the feed chain, but the glue pot has not reached temperature because the heating element was rated for a different voltage. The trimming stations cut, but the pneumatic cylinders stutter because the workshop compressor cannot maintain 0.6 MPa at the required volume. Each mismatch adds days of on-site troubleshooting that could have been resolved with a single pre-shipment checklist [NEED_CITE: common causes of edge bander commissioning delays].
Why Source This Machine Through Our Stock Channel
Our warehouse holds units with completed four-stage QC, meaning incoming material inspection, in-process assembly checks, finished product testing, and pre-shipment verification have already occurred before you place your order. Voltage confirmation happens at the quotation stage — we match your local grid standard and update the electrical schematic before the machine is crated. The operation manual and control panel language are set to your operator’s requirement, so commissioning does not stall over untranslated error codes. Factory test records on your specific panel thickness range ship inside the crate, giving your maintenance team a baseline reference. One-year warranty coverage includes a spare parts list cross-referenced to your machine’s serial number for fast reordering.
Documentation & Verification
- Factory test record on 18–22 mm panel thickness before dispatch
- Electrical schematic confirming your local voltage and frequency
- Operation manual in your operator’s agreed language
- Spare parts list matched to machine serial number
- Packing photographs and customs documentation set
- CE declaration of conformity for import clearance
Installation, Commissioning & Support
- Dedicated 47.1 kW circuit with correctly rated breaker required before delivery
- Compressed air line sized to sustain 0.6–0.8 MPa at machine inlet
- Machine arrives fully assembled; only dust extraction hoses require connection
- Video-guided first startup covering glue pot temperature and feed chain alignment
- Wear parts for trimming stations identified in the serial-matched spare parts list
- Monthly lubrication schedule for the 8.82 m feed chain and pressure beam rails
What We Need to Confirm Your Dispatch
To move from inquiry to crating, we need your local voltage and phase configuration, the primary board materials and thicknesses you run, and your preferred control panel language. Share your workshop floor space and existing dust extraction layout so we can verify the Ф100 × 6 vacuum openings align with your ducting. If you require a sample edge-banded panel shipped before the machine leaves, provide the exact substrate and banding material specification.
Frequently Asked Questions
Q: How quickly can the ZDSJCX-880S ship after I confirm the order?
A: Units held in our Yangtze Delta warehouse are pre-inspected and can enter crating once your voltage and language requirements are confirmed. Typical dispatch follows within a short window after payment clearance, though exact timing depends on current stock levels and the complexity of any electrical modifications needed for your market.
Q: My factory runs on a non-standard voltage — can the machine be adapted?
A: The standard configuration is 380V, but we reconfigure motors, transformers, and contactors to match your local grid before the machine ships. You must provide your exact voltage, phase, and frequency at the quotation stage so the electrical schematic is updated and verified before crating begins.
Q: Do you support single-unit LCL shipping or is a full container required?
A: Single-unit orders ship via LCL sea freight with dedicated crating to protect the 3200 kg machine during transit. We provide shipping options and estimated transit times at the quotation stage, and air freight can be arranged for urgent replacements where production downtime is the primary concern.
Q: What support is available when the machine arrives at my facility?
A: The machine arrives fully assembled, requiring only electrical connection, air line hookup, and dust extraction attachment. We provide video-guided commissioning covering glue pot calibration and feed chain setup, and the included factory test record gives your team a reference baseline for edge quality on your specific panel range.
Q: How does the one-year warranty cover spare parts?
A: The warranty covers manufacturing defects in components such as trimming motors, pneumatic valves, and feed chain elements. A spare parts list matched to your machine’s serial number is included in the crate, enabling you to reorder consumables and wear parts directly with exact part numbers throughout the machine’s service life.
