Description

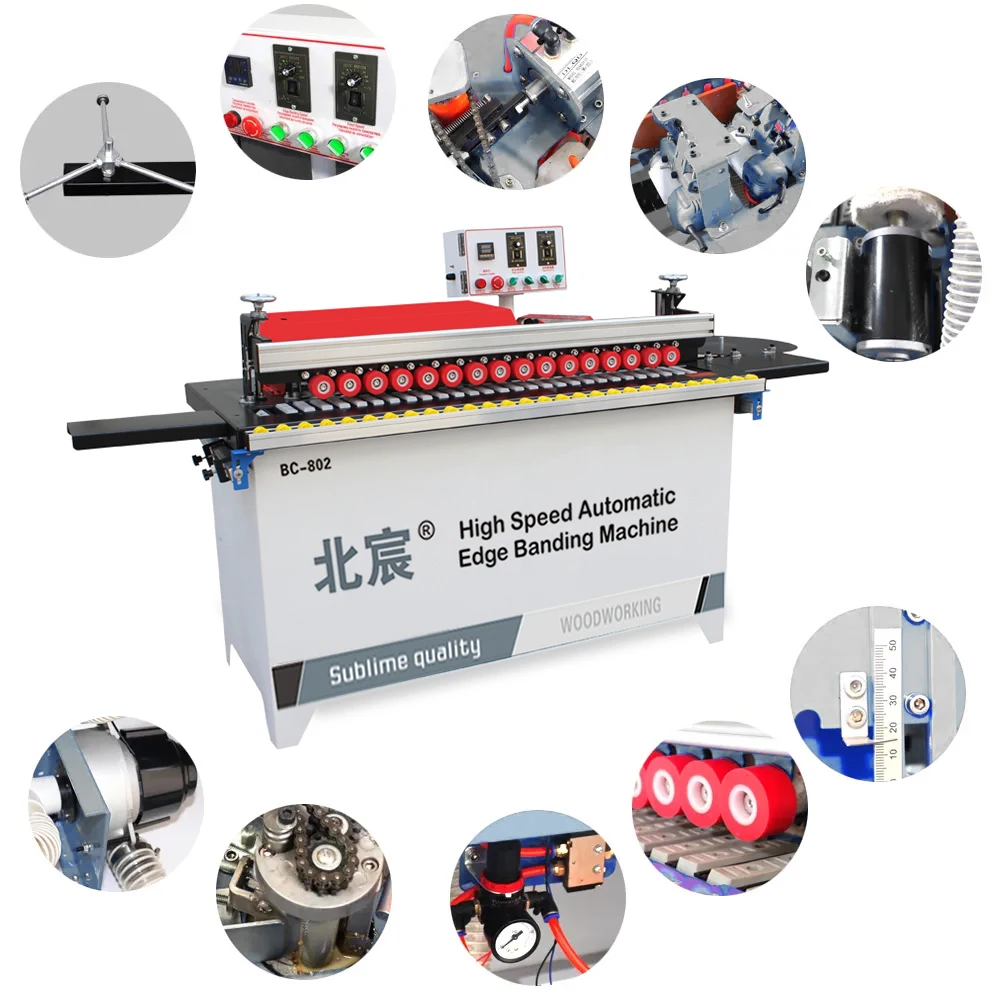

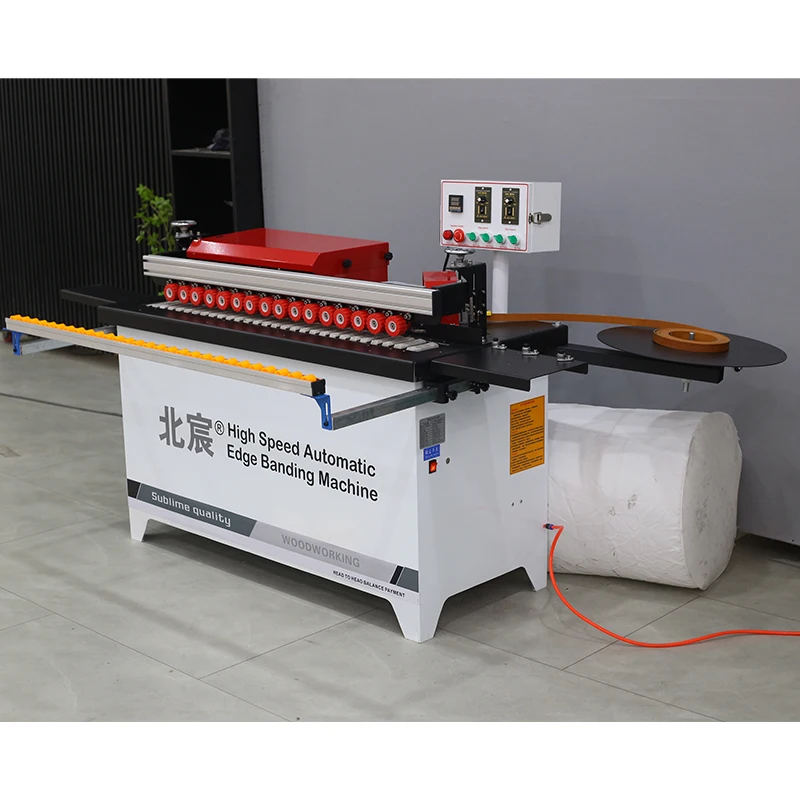

Ready for Fast Dispatch — voltage-confirmed DW802 edge bander built to order specifications with pre-shipment testing, eliminating the unusable-on-arrival problem that stalls workshop commissioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage Options | 220V / 380V / customizable |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Glue Pot Capacity | 4000 ml |
| Trimming Power | 800W × 2 |

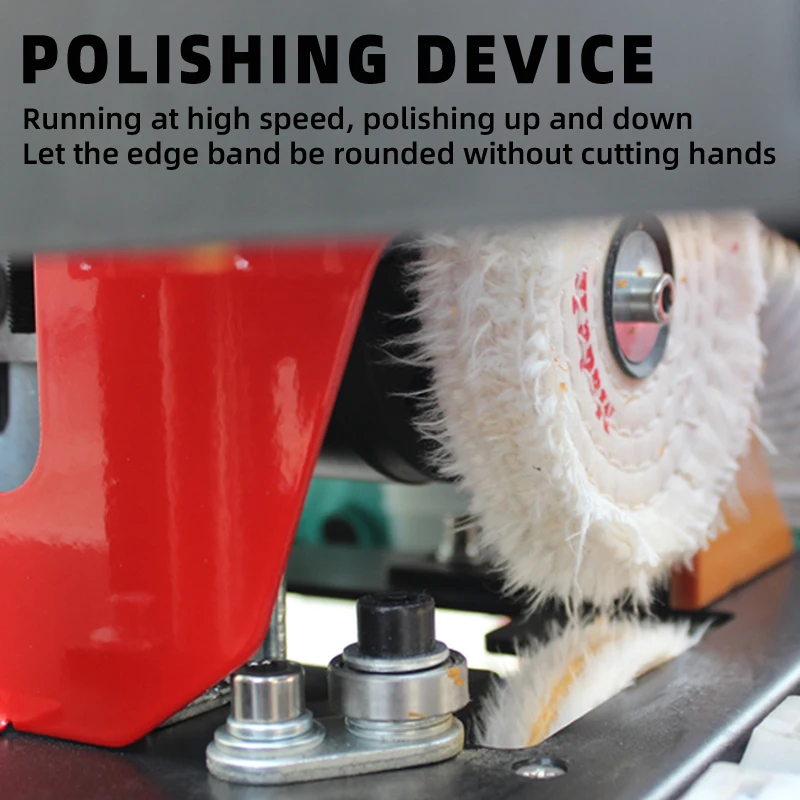

| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Air Source Pressure | 0.4–0.8 MPa |
| Conveyor Belt Material | Silica gel |
| Product Size | 130 × 60 × 95 cm |
| Product Weight | 135 kg |
| Assembly State | Fully assembled |
| Control Language Options | Chinese, English, customizable (Spanish and others available) |
| Key Features | Gluing, trimming, polishing, automatic head-and-tail cutting, vacuum hold-down |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard panels up to 50 mm thickness |
| Home decoration built-in furniture | Plywood and ecological board with PVC or veneer banding |
| Small-batch joinery production | Solid wood panels requiring clean trim and polish finish |
| Workshop transition from manual to machine banding | Straight-edge panels in single-unit or short-run batches |
Why the Voltage Question Must Come Before the Price Quote
An Automatic Edge Banding Machine in stock means nothing if it cannot run on your workshop’s electrical supply.
I have watched crated machines sit on factory floors for weeks because the buyer received a 380V three-phase unit while their facility only had 220V single-phase power. The return shipping alone cost more than the original freight, and production schedules slipped while replacement units were sourced. Voltage mismatch ranks among the most common avoidable failures in cross-border machinery procurement [NEED_CITE: voltage and frequency standards by export market]. The DW802 listing confirms your local supply requirement at the order stage — 220V, 380V, or a custom configuration — so the machine that arrives is the machine you can plug in and run.
Stock Availability Without the Configuration Guesswork
Ordering an Automatic Edge Banding Machine in stock should not mean accepting whatever voltage and language settings happen to be on the warehouse floor. The DW802 ships with your confirmed electrical specification and control panel language, whether English, Spanish, or another agreed option. This approach keeps the dispatch timeline short while ensuring the operator can read every label and alarm message from day one.
Compact Footprint for Space-Constrained Workshops
At 130 × 60 × 95 cm and 135 kg, this unit fits through standard workshop doors and occupies a fraction of the floor space that larger six-station banders require. I once saw a facility lose two weeks of production because a full-size edge bander could not pass through the loading bay — the team had to remove a section of wall. The DW802 avoids that class of problem entirely, making it practical for joinery shops and custom cabinet makers operating in leased or converted spaces [NEED_CITE: typical industrial doorway clearance standards].
Reading the Numbers That Actually Matter on the Shop Floor

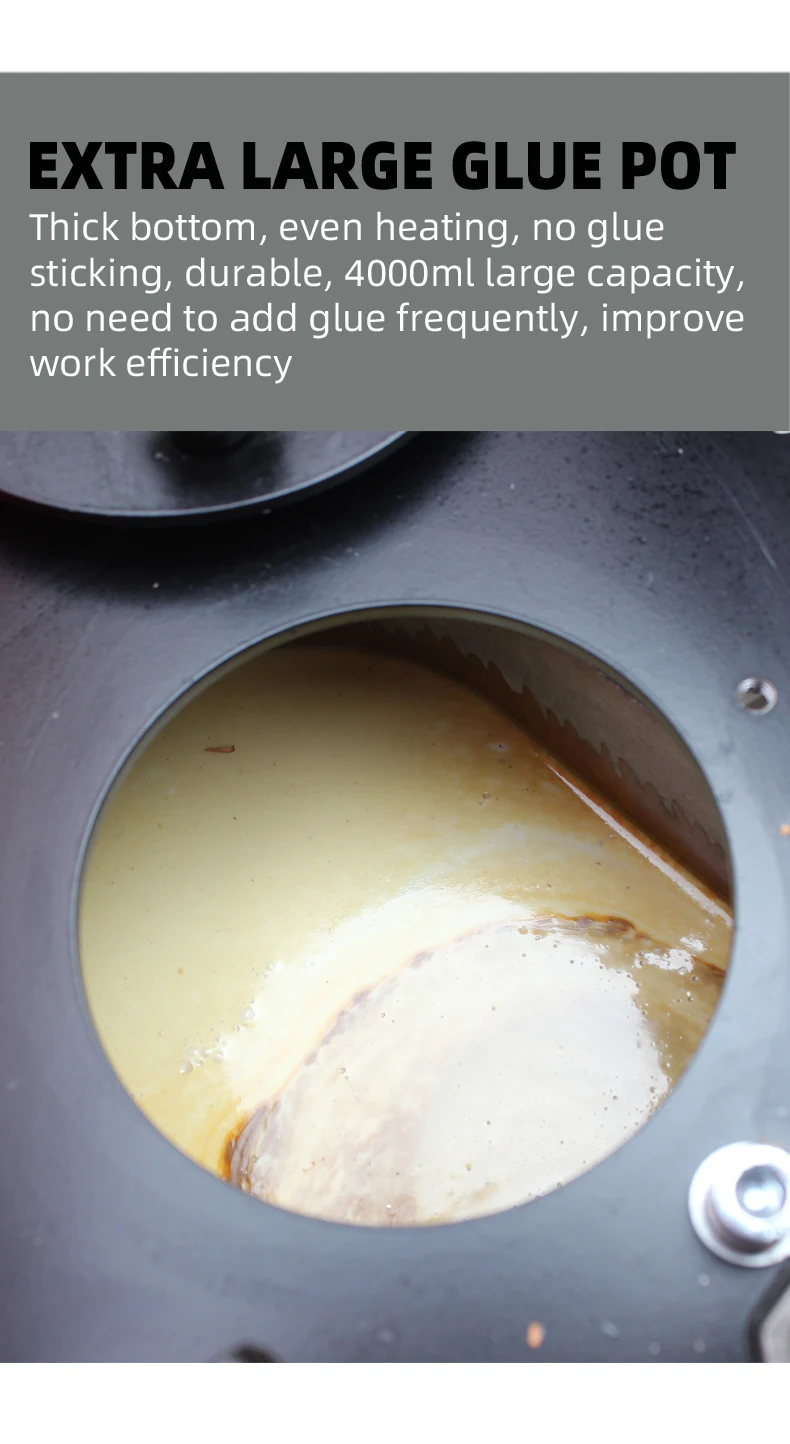

The 4000 ml glue pot capacity allows extended production runs without stopping to refill adhesive, which matters when you are banding a batch of cabinet carcasses in sequence and every interruption risks cold glue joints on the next panel. The dual 800W trimming motors handle both coarse and fine trimming passes across PVC and veneer banding up to 3 mm thick, leaving a clean edge that reduces hand-finishing time downstream. The silica gel conveyor belt grips panels without marring finished surfaces, a detail that becomes critical when you are running pre-laminated ecological board where scratches mean scrap. With an air pressure requirement of 0.4–0.8 MPa, the pneumatic systems for head-and-tail cutting and pressure beam engage reliably from a standard workshop compressor.
The Hidden Cost of Skipping the Pre-Shipment Verification
When edge banding machines ship without a documented factory test, tolerance and alignment issues surface only after installation — when panels emerge with visible glue lines or uneven trim that fails assembly inspection. Resolving these faults on-site without the original technician present can take days of trial and error. A pre-shipment test record tied to your panel thickness range confirms that the DW802 produced acceptable edges before it left the factory, giving you a baseline to reference during commissioning [NEED_CITE: edge banding quality inspection criteria for furniture assembly].
What Separates a Fast Order from a Risky One
Voltage and frequency are confirmed in writing before production, so the machine matches your facility’s electrical infrastructure. The control panel language is set to your operator’s requirement — no more guessing at alarm codes in an unfamiliar script. Every DW802 ships with a factory test record, not just a generic certificate, documenting actual edge quality on a defined panel material. Spare parts are packed with the unit rather than promised as a future shipment, which means wear items like trimming blades and polishing wheels are on hand when you need them. The silica gel conveyor and vacuum hold-down system arrive fully assembled, reducing first-day setup to power connection, air line hookup, and a test run.
Documentation & Verification
- CE declaration of conformity covering the DW802 electrical and mechanical safety scope
- ISO 9001 certificate referencing the manufacturing quality management system
- Factory test record documenting edge trim quality on your specified panel thickness
- Electrical schematic with confirmed voltage and wiring diagram for your local supply
- Operation and maintenance manual in your agreed control panel language
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply at 4200W total draw
- Compact 130 × 60 × 95 cm footprint needs only a level concrete floor with no special foundation
- Arrives fully assembled — connect power, air supply at 0.4–0.8 MPa, and run a test panel
- First-run parameter setting covers glue temperature, feed speed, and trimming depth for your material
- Included spare parts list identifies trimming blades, polishing wheels, and glue pot seals for reorder
Before You Request a Quote
Tell us your panel material type and thickness range, the edge banding material you plan to run (PVC, ABS, or veneer), and your workshop’s voltage and frequency. If you are replacing a manual process, share your current daily panel volume so we can confirm the DW802 matches your throughput requirement or recommend a higher-tier model from the same product family.
Frequently Asked Questions
Q: What voltage options are available and how is the correct one confirmed before shipping?
A: The DW802 supports 220V, 380V, and custom voltage configurations. At the order stage, you provide your facility’s voltage, phase, and frequency. We confirm the electrical specification in writing and include the wiring schematic in your documentation package, so the machine matches your workshop supply on arrival.
Q: How quickly can the machine be dispatched after order confirmation?
A: Stocked DW802 units are prepared for dispatch once voltage and language specifications are confirmed. The pre-shipment test and documentation package are completed before crating. Exact dispatch timing depends on your configuration requirements and is quoted at the order stage.
Q: Is a single-unit order accepted, and what shipping options are offered?
A: Single-unit orders are standard for this model. Shipping options include LCL consolidation or dedicated container loading depending on your destination port. The fully assembled 135 kg unit is crated with protective packing for ocean or land freight.
Q: What does the included spare parts kit cover?
A: The packed spare parts list includes wear items specific to the DW802 — trimming blades, polishing wheels, and glue pot seals — so you can maintain production continuity without waiting for international parts shipments during the first months of operation.
Q: Can the control panel language be set to English or another language before delivery?
A: Yes. Control panel language options include English, Chinese, and customizable alternatives such as Spanish. Your preferred language is confirmed at order and applied before the pre-shipment test, ensuring operators can navigate all functions and alarms from the first day.
