Description
Stock Verified Before Quotation — every DW902 automatic edge banding machine is physically inspected and voltage-matched to your facility before it leaves the Ningjin floor, eliminating the dead-on-arrival failures I have seen stall workshops for weeks.
Technical Specifications
| Parameter | Value |
|---|---|

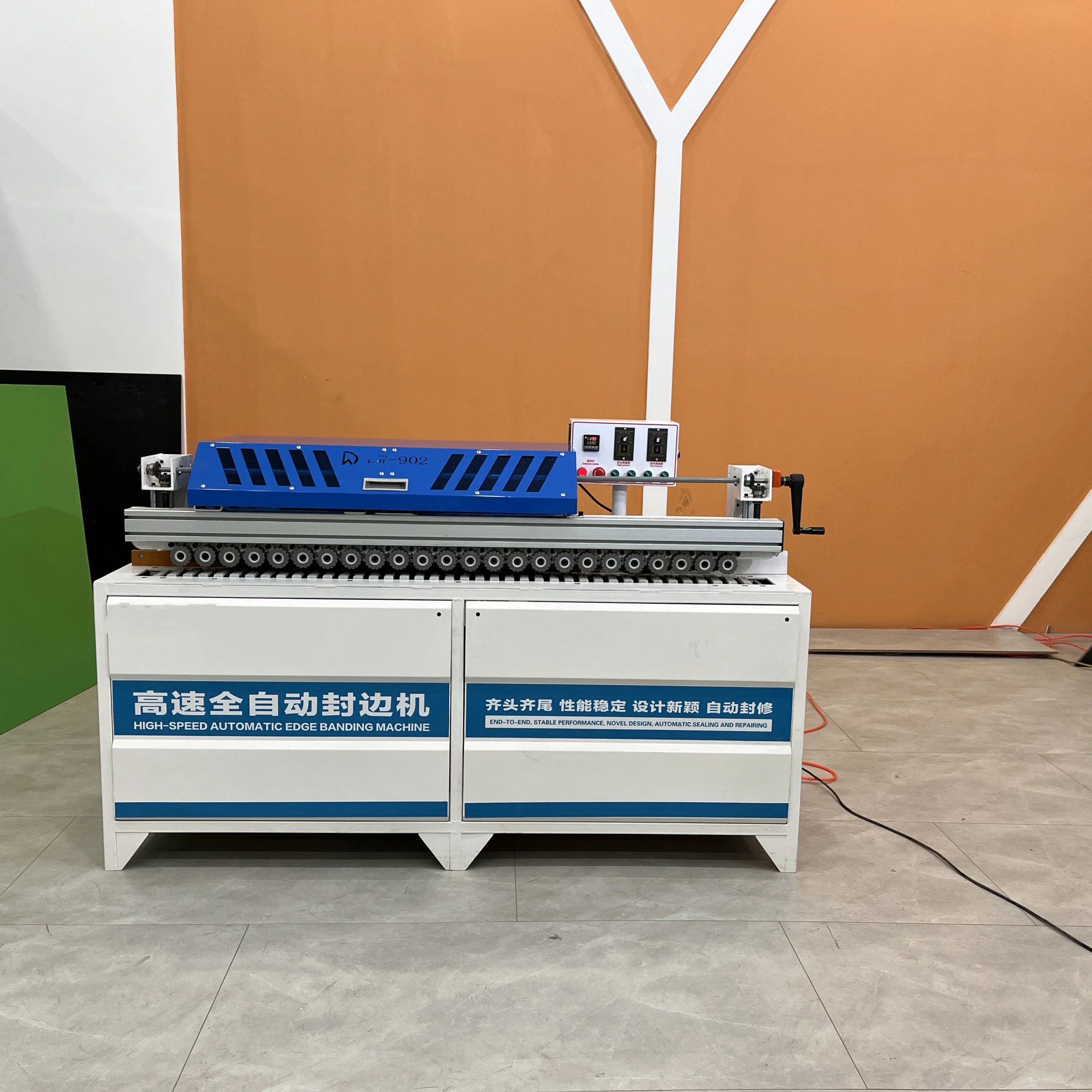

| Model | DW902 |
| Product Type | High-speed Fully Automatic Edge Banding Machine |
| Function Stations | Gluing, Trimming, End Cutting, Scraping, Polishing |
| Voltage | 220V (frequency 50Hz/60Hz to be confirmed per destination market) |
| Total Power | 3300W |
| Board Thickness Range | 0–50mm |
| Strip Thickness Range | 0.5–3mm |
| Glue Pot Capacity | 4000ml |
| Overall Dimensions (L×W×H) | 175×60×112 cm |
| Net Weight | 240kg |

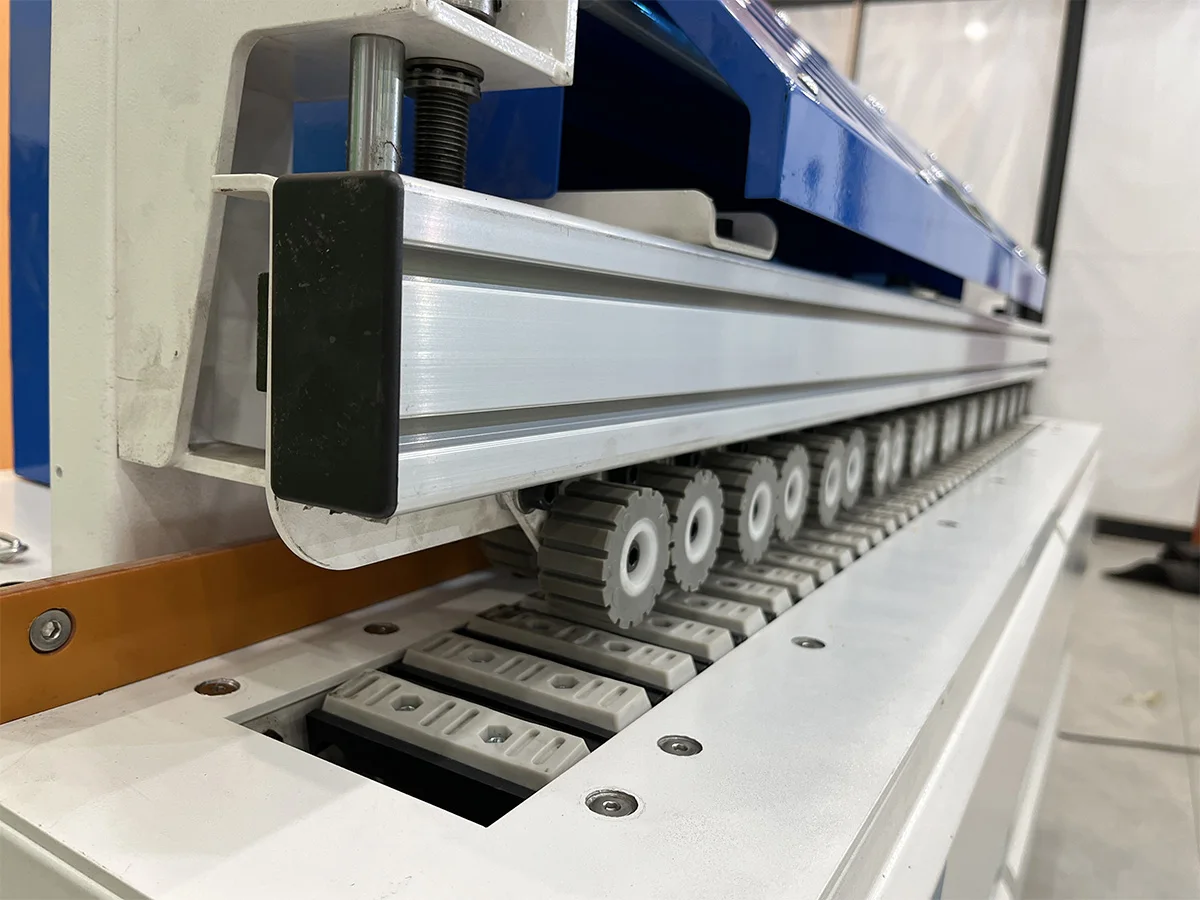

| Pressure Beam | Integrated pressure beam with double rows of pressure wheels |
| Conveyor Belt | Silicone material |
| Edge Strip Cutting | Pneumatically controlled |

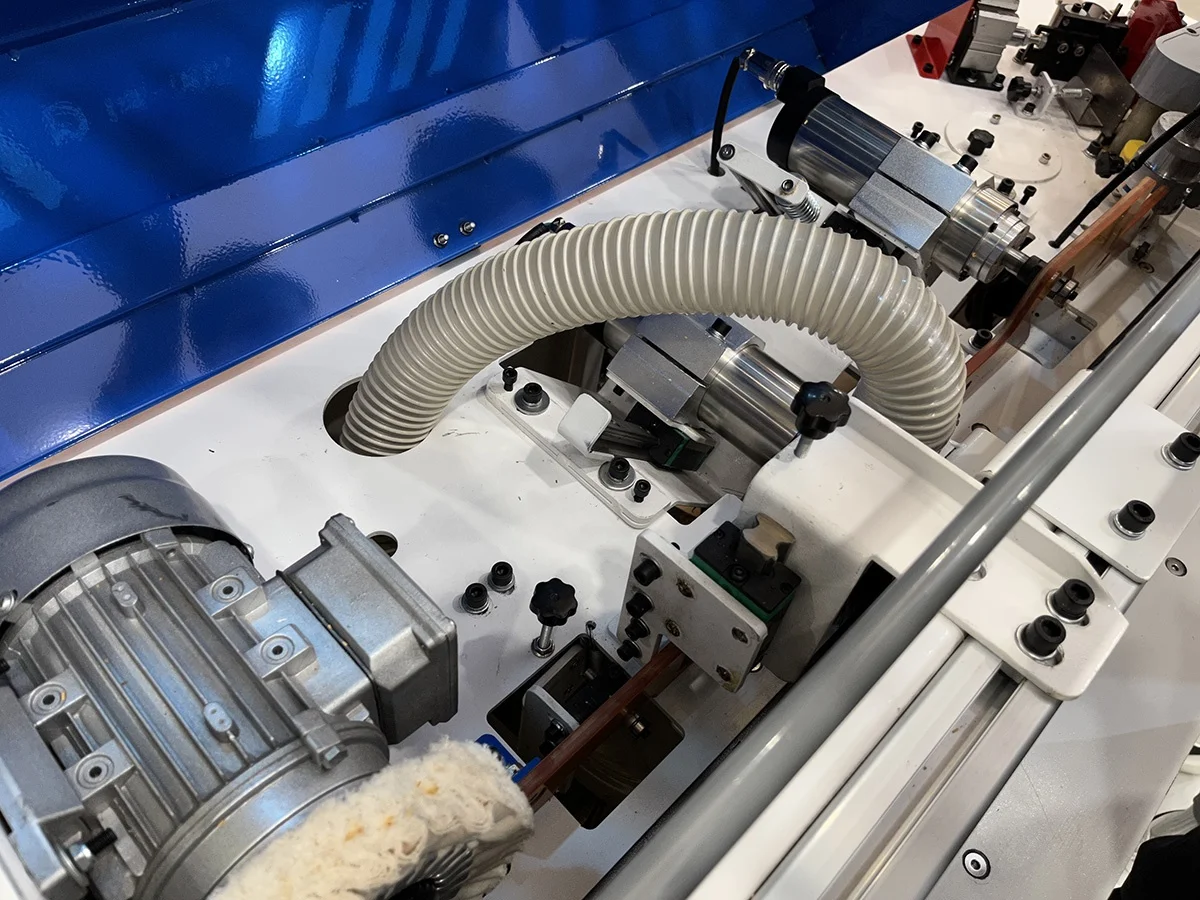

| Polishing Motors | Up and down dual polishing motors |

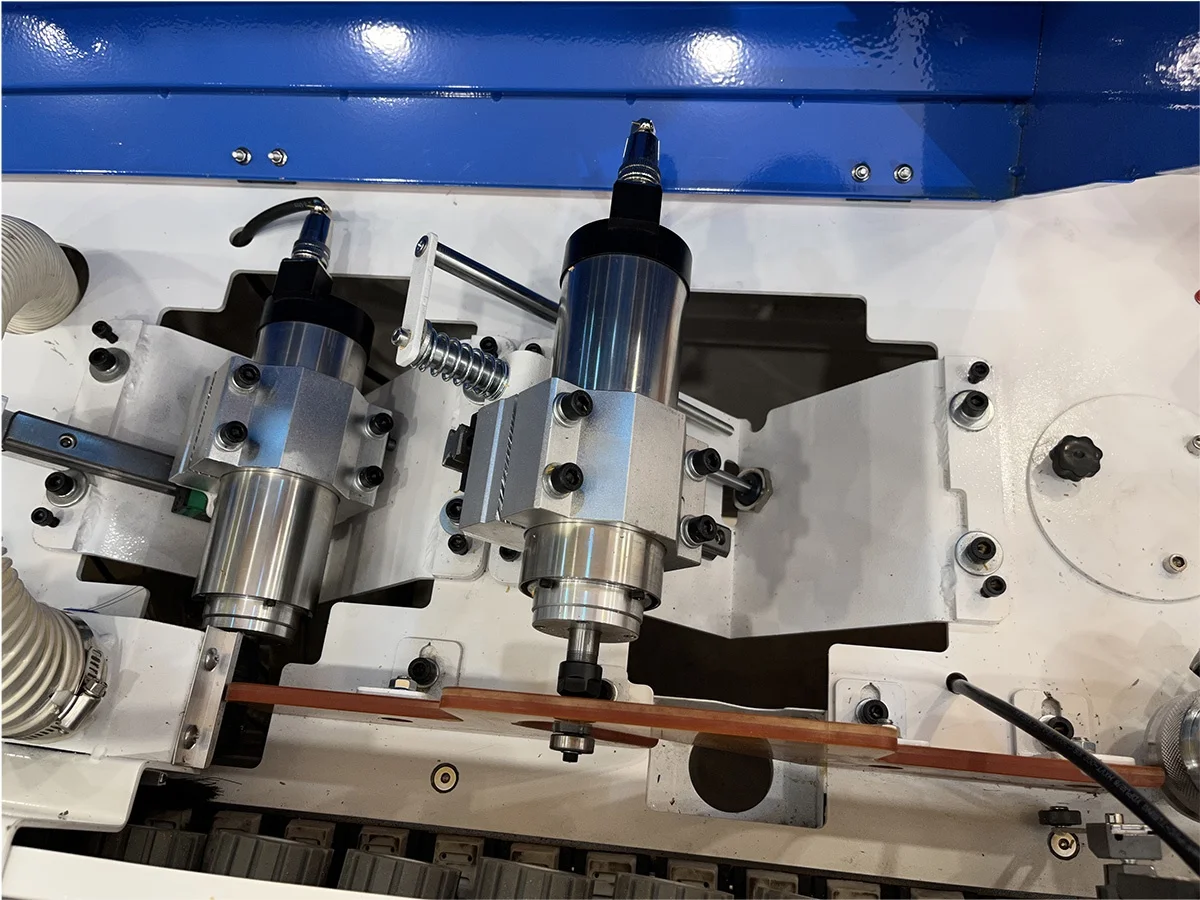

| Trimming Motors | Double high-speed trimming motors (up and down) |
| Key Features | Single-pass five-station processing, pneumatic strip feed, dual-motor trimming and polishing |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF and particleboard with PVC strips 0.5–3mm |
| Cabinet door and carcass finishing | Plywood panels with PVC or veneer edge banding |
| Small-batch workshop production | Solid wood panels requiring trimming and polishing in one pass |
| Replacement machine for existing lines | Board thicknesses up to 50mm across common furniture substrates |
Why the Voltage Question Must Come Before the Freight Quote
A machine that cannot plug into your shop floor is not a machine — it is a 240kg paperweight.
Early in my career, I watched a cabinet maker in Southeast Asia take delivery of a high-speed edge bander wired for 380V three-phase while his facility ran 220V. The unit sat idle for three weeks while a step-up transformer was sourced locally, delaying an entire kitchen contract. That experience reshaped how I handle every dispatch. [NEED_CITE: voltage and frequency standards by export market]
The DW902 automatic edge banding machine in stock ships configured at 220V, but the frequency — 50Hz or 60Hz — must match your local grid before the crate is sealed. Confirming this detail at the quotation stage costs nothing; correcting it after arrival costs weeks.
Dispatch Timing That Respects Your Production Schedule
Workshops replacing a failed edge bander or adding capacity for a seasonal contract cannot absorb multi-week production lead times. The DW902 is held in ready stock so that once voltage, frequency, and language preferences are confirmed, the unit can be crated and dispatched without waiting for a build slot. Single-unit orders are accepted, which matters when a joinery shop needs exactly one machine to fill a gap on the floor.
Stock Availability Without Configuration Guesswork
Buying from stock sometimes means accepting whatever specification sits in the warehouse. The DW902 automatic edge banding machine in stock is different because the core five-station configuration — gluing, end cutting, trimming, scraping, and polishing — covers the full workflow most small-to-mid furniture workshops require. The integrated pressure beam with double rows of pressure wheels and the silicone conveyor belt handle panels up to 50mm thick, so the machine is not limited to light-duty stock. [NEED_CITE: CE machinery directive requirements for industrial woodworking equipment]
How Five Stations Translate to Finished Edge Quality
The gluing station feeds from a 4000ml glue pot, which reduces refill interruptions during sustained runs of cabinet panels. After the strip is applied, the pneumatically controlled end cutter trims the leading and trailing edges cleanly. Double high-speed trimming motors — one up, one down — remove excess strip from both faces simultaneously, and the dual polishing motors that follow leave a consistent surface finish. For a workshop producing MDF or particleboard furniture with PVC edging, this sequence means each panel exits the machine ready for assembly, with no secondary hand-finishing required.
Reading the Specifications That Actually Matter on the Floor
Board thickness range and feed speed define what a workshop can realistically run through the machine. The DW902 accepts panels from 0 to 50mm, covering everything from thin MDF shelving to thick solid-wood worktops. Strip thickness range of 0.5–3mm accommodates both thin PVC for cabinet carcasses and thicker veneer strips for visible furniture edges. The glue pot capacity of 4000ml is large enough to sustain continuous operation without the operator stopping to refill mid-batch. Total power draw at 3300W means the machine can run on a standard single-phase 220V circuit without requiring a dedicated high-amperage supply — a practical consideration for workshops that share electrical infrastructure with other equipment.
The Hidden Cost of Skipping Voltage and Frequency Confirmation
When a machine arrives with the wrong electrical configuration, the consequences extend beyond the transformer cost. Production schedules slip, contract penalties accumulate, and the workshop owner loses confidence in the supplier relationship entirely. I have seen operators attempt to run 50Hz-rated motors on 60Hz supply, which causes the trimming and polishing motors to spin faster than designed, leading to premature bearing wear and inconsistent edge finish. [NEED_CITE: effects of frequency mismatch on induction motor performance in industrial machinery]
These are not theoretical risks. They are the reason every quotation for the DW902 automatic edge banding machine in stock includes a mandatory voltage and frequency confirmation step before dispatch authorization.
Why Buyers Source This Machine Through This Channel
Stocked inventory means the machine is physically available for inspection and dispatch, not a catalog listing with an estimated build date. Voltage and frequency are confirmed against your facility’s electrical standard before the unit is crated, so it works on arrival. The operation and maintenance manual is provided in your agreed language, not a generic translation that operators cannot follow. Pre-shipment testing is documented and included with every dispatch, giving you a verification record tied to your specific panel thickness range. Spare parts are packed with the machine so that consumable replacements are on hand from day one.
Documentation & Verification
- CE declaration of conformity applicable to woodworking edge banding machinery
- Factory test record documenting edge quality on your specified board thickness and strip material
- Electrical schematic with confirmed voltage and frequency matching your facility supply
- Operation and maintenance manual produced in your agreed operator language
- Spare parts list with part numbers packed inside the crate for immediate reference
Installation, Commissioning & Support
- Requires a level concrete floor area of approximately 175×60cm with clearance for panel infeed and outfeed
- Dedicated 220V single-phase circuit rated for 3300W continuous draw, with frequency confirmed before connection
- Arrives partially assembled; pressure beam and polishing stations require on-site alignment and calibration
- First-run commissioning includes setting glue temperature to match your PVC or veneer strip material
- Operator training covers pneumatic strip loading, glue pot refill procedure, and trimming motor adjustment
- Consumable spare parts including scraper blades and polishing pads included for initial production period
What We Need to Match Your Machine to Your Floor
Before dispatch, we confirm your local voltage and frequency, the panel materials and strip types you will run most often, and your preferred language for the control interface and documentation. If you are replacing an existing machine, share the feed height and throughput of your current line so the DW902 integrates without bottlenecking upstream or downstream stations.
Frequently Asked Questions
Q: What is the dispatch lead time for the DW902 from stock?
A: Because the DW902 automatic edge banding machine in stock is held as finished inventory, dispatch timing depends on completing the voltage and frequency confirmation, running a pre-shipment test on your specified panel range, and arranging freight. Once these steps are cleared, the unit is crated and released for shipping without waiting for a production build slot.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are standard for this model. Many buyers are workshops replacing one machine or adding a first automatic edge bander to a manual operation, so there is no minimum quantity requirement imposed on the DW902.
Q: What shipping options are available and how is freight quoted?
A: Freight is quoted based on your destination port or door address after the crate dimensions and weight are confirmed. Options typically include sea freight for cost efficiency or air freight for urgent replacements. The 240kg net weight and 175×60×112cm dimensions determine the shipping class.
Q: Is the 220V configuration compatible with my local power supply?
A: The DW902 ships at 220V, which matches single-phase supply standards in many markets. However, frequency must also be confirmed — 50Hz or 60Hz — because running a motor at the wrong frequency affects trimming and polishing performance. This confirmation is completed before dispatch.
Q: What spare parts are included, and how do I order replacements?
A: A spare parts list with part numbers is packed with every DW902 shipment, covering common consumables like scraper blades, polishing pads, and trimming cutters. Replacement orders are placed by referencing these part numbers, and availability is confirmed at the time of request.
