Description
In-Stock Dispatch — ready-to-ship 220V automatic edge banders cleared through pre-shipment testing, packed with spare wear parts and dispatched on short lead times for workshops that cannot afford production delays.
Technical Specifications
| Parameter | Value |
|---|---|

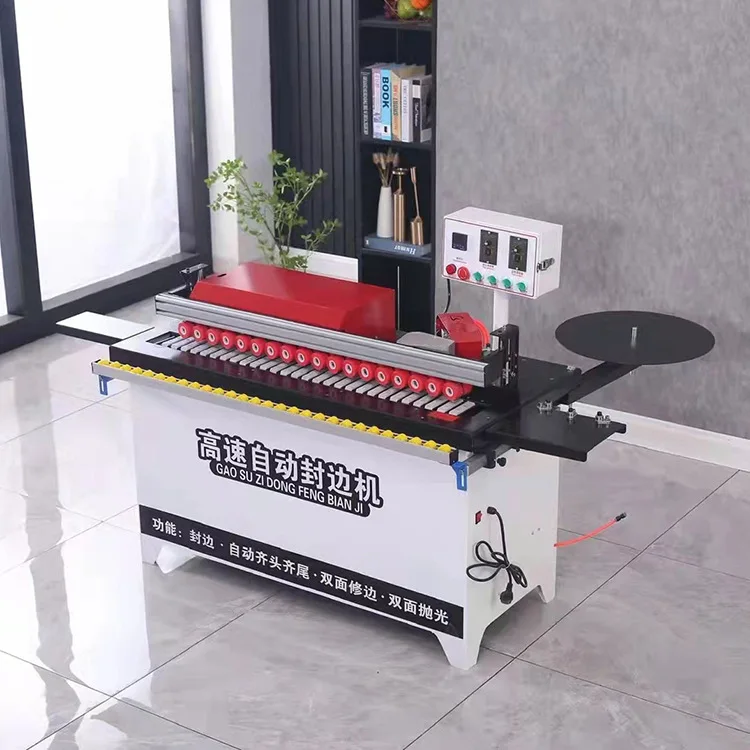

| Product Type | Automatic Edge Banding Machine |
| Model | 802 |
| Rated Voltage | 220V |
| Rated Power | 4kW |
| Trimming Power | 800W×2 (upper and lower) |
| Polishing Power | 180W×2 (upper and lower) |
| Suction Power (Dust Collector) | 1200W |
| Heating Power | 1000W (5-10min warm-up) |
| Feed Speed | 0-10m/min |
| Conveyor Belt Speed | 0-10m/min |
| Strip Thickness Range | 0.5-2.5mm |
| Sheet Thickness Range | 10-50mm |

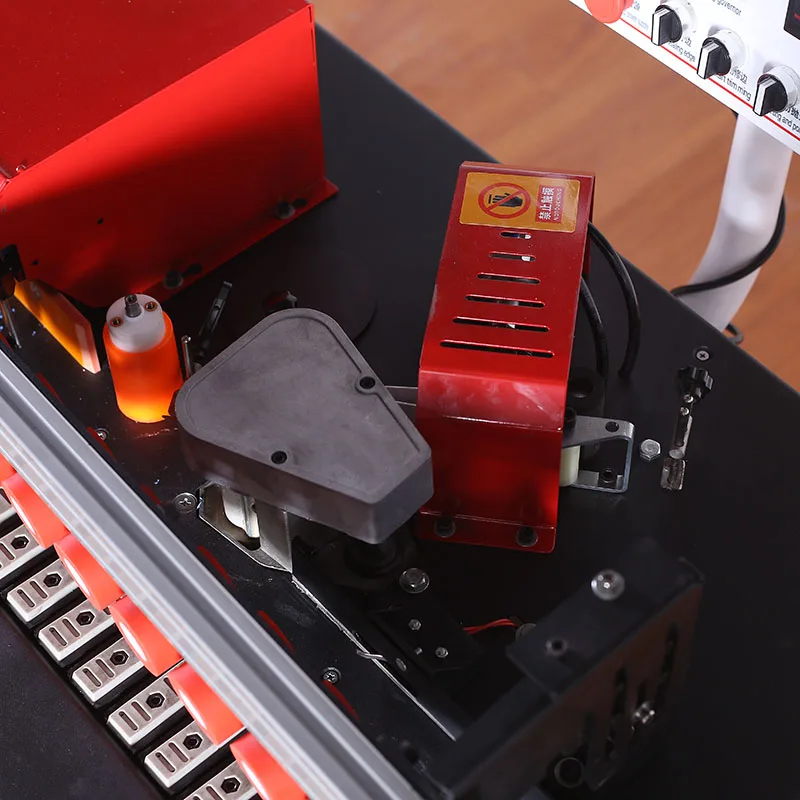

| Glue Pot Capacity | 4000ml |
| Rated Air Pressure | 0.4-0.6MPa |
| Overall Dimensions | 130×65×75cm |
| Machine Weight | 150kg |
| Edge Type | Straight line |
| Function Stations | Automatic plate feeding, end cutting, upper and lower trimming, upper and lower polishing |
| Dust Extraction | Built-in 1200W dust collector |

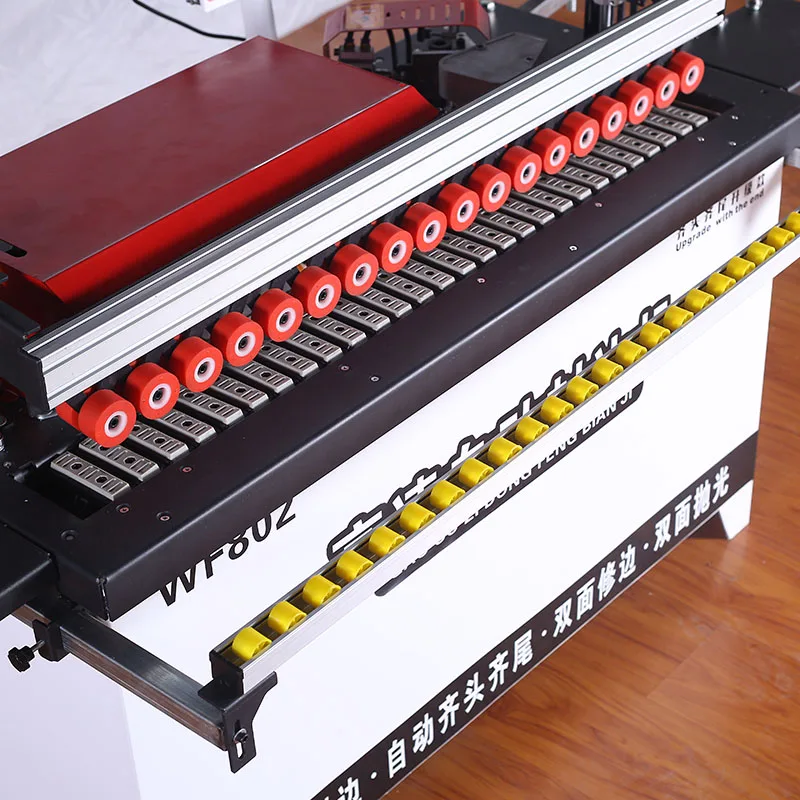

| Pressure Beam | One-piece pressure beam, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Control Panel | Digital display of glue pot temperature, independent switches |
| Belt Breaking Method | Pneumatically controlled |
| Trimming Motors | Double high-speed trimming motors (up and down) |

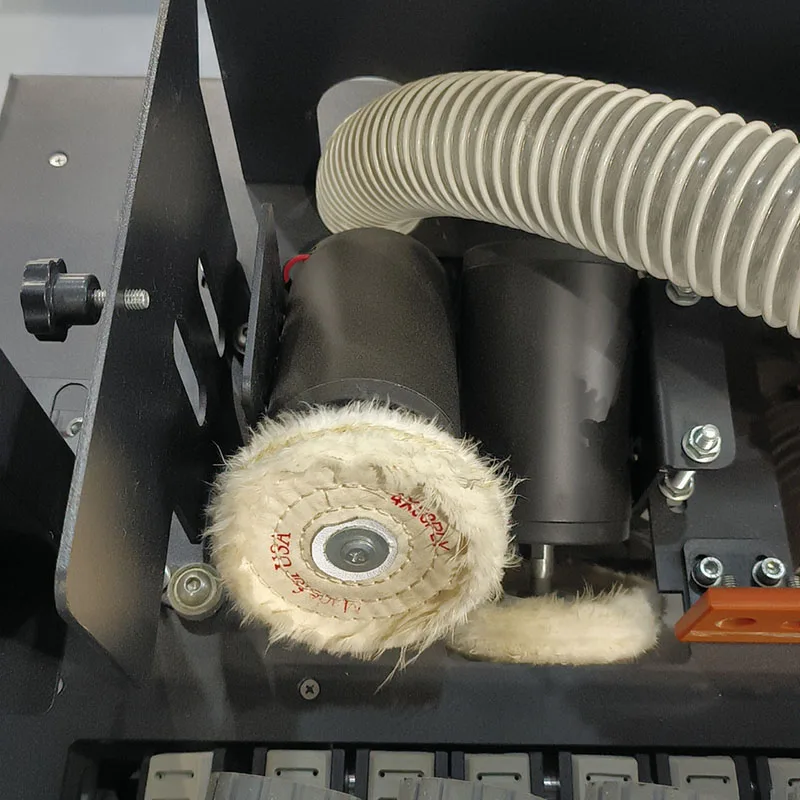

| Polishing Motors | Double polishing motors (up and down) |
| Extendable Support | Extendable fluent strips for large plates |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard with PVC edge banding |
| Small-batch wardrobe panel finishing | Plywood and melamine-faced chipboard |
| Joinery workshop straight-edge work | Solid wood panels with veneer banding |
| Startup furniture factory daily runs | Laminate and PVC strips on engineered boards |
Why the Voltage Question Must Be Settled Before the Machine Leaves the Warehouse
A 220V machine is only correct if the destination workshop actually supplies 220V at the right frequency.
I once flew to a site in West Africa to commission a new edge bander, only to find the local supply fluctuated far outside the rated tolerance. The control panel would not power up reliably, and the glue pot heater cycled erratically, producing uneven adhesive spread. The factory had ordered the machine without anyone confirming the local standard. Voltage and frequency mismatches remain one of the most common avoidable causes of commissioning failure in export markets [NEED_CITE: voltage and frequency standards by export market]. For this Automatic Edge Banding Machine in stock, the 220V configuration is documented and verified against the buyer’s local supply before dispatch, removing that risk from the process entirely.
Stock Availability Means the Machine Ships Within Days, Not Weeks

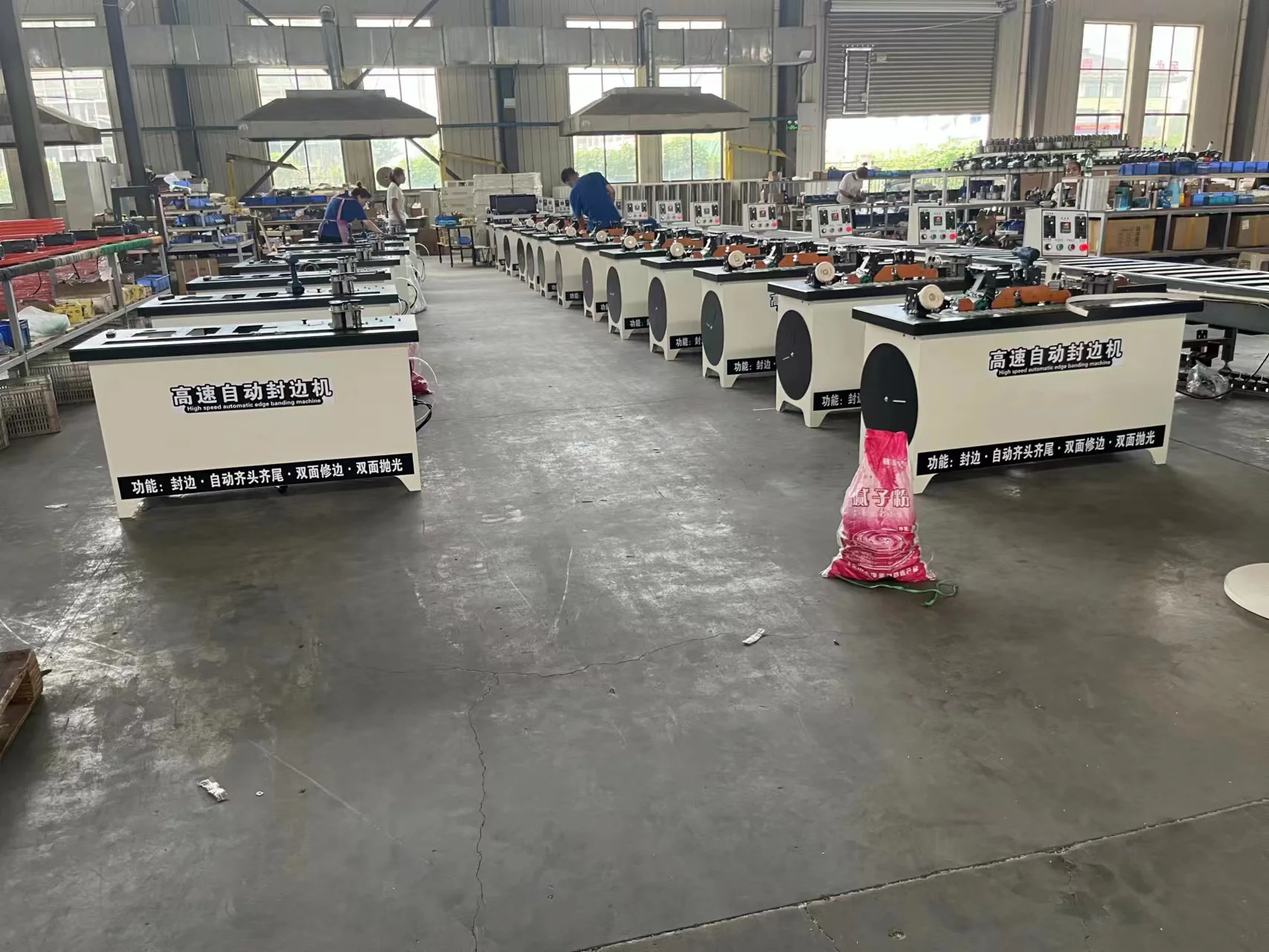

Workshops transitioning from manual edge banding to their first automatic unit rarely have the luxury of a multi-month build schedule. This Automatic Edge Banding Machine in stock carries a 220V electrical configuration that suits a wide range of markets across Southeast Asia, Africa and South America. Once the order is confirmed and voltage is re-checked against the destination, the unit moves from the ready-stock area straight into pre-shipment testing and packing.
Every Machine Leaves With a Spare Wear-Parts Kit
Having replaced a trimming blade on-site in humid conditions with no spare available, I now make sure each machine ships with an extra set of high-wear consumables. That means replacement trimming blades, polishing pads and glue pot seals are inside the crate. The operator can swap them on the shop floor without waiting for an international shipment of small parts.
Reading the Specifications Against Your Panel and Banding Range
The 10-50mm sheet thickness range covers standard MDF, particleboard and plywood panels used in cabinet and furniture work, while the 0.5-2.5mm strip range handles both thin PVC and thicker melamine or veneer banding. The 4000ml glue pot capacity reduces the frequency of refill stops during a continuous production run compared to smaller pots common on entry-level units. Feed speed is adjustable from 0 to 10m/min, letting the operator slow down for dense solid wood panels or open up for high-volume particleboard runs. The built-in 1200W dust collector eliminates the need for a separate extraction unit, which matters in compact workshops where floor space and duct routing are limited [NEED_CITE: dust extraction requirements for small woodworking workshops].
What Happens When Entry-Level Machines Meet Production-Level Demand
Buyers sometimes place a compact edge bander into a daily volume it was never designed to sustain. The trimming motors run hot, the silicone conveyor belt wears prematurely and the glue pot struggles to maintain stable temperature at continuous feed rates. I have seen edge banders of this class pulled from a line after six months of production-level duty, their bearings and heating elements degraded from sustained overload. Matching the machine class to realistic daily throughput prevents premature wear and avoids the cost and downtime of a forced replacement [NEED_CITE: equipment duty cycle guidelines for woodworking machinery].
How Ready-Stock Procurement Works Here
Voltage and frequency are confirmed against the buyer’s local supply before the machine is released from stock, so a 220V unit is not dispatched to a 240V or 110V market by mistake. Pre-shipment testing is run on actual panel samples, and the test record travels with the machine documentation. Single-unit orders are accepted with the same configuration and documentation process as larger batches. The operation and maintenance manual is supplied in the language agreed during the order process, not defaulted to a language the operator cannot read. The built-in dust collector means no external extraction equipment needs to be sourced or ducted before commissioning.
Documentation & Verification
- Factory test record run on panel thickness matching your production range
- Electrical schematic confirming 220V wiring and component ratings
- Machine specification sheet with all function station parameters listed
- Operation and maintenance manual supplied in your agreed language
- Spare parts list with part numbers for consumables and wear items
- Packing photographs documenting machine condition before crating
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4kW total draw plus startup surge
- Compact 130×65×75cm footprint fits standard workshop floors without special foundations
- Ships partially assembled; pressure beam and extendable support strips attach on-site
- First-run glue pot warm-up takes 5-10 minutes before feed and trimming can begin
- Built-in 1200W dust collector eliminates external ductwork during installation
- Spare wear kit included in crate covers initial months of trimming and polishing use
Tell Us About Your Panels and Your Workshop
To match the right machine from stock, share the panel materials you process most often — MDF, particleboard, plywood or solid wood — along with the banding type and thickness you run. Let us know your local voltage and frequency so we can confirm the 220V configuration suits your supply. If you have existing upstream saws or downstream boring machines, mention their feed heights so we can verify compatibility across your line.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: Yes, the Model 802 Automatic Edge Banding Machine in stock is held in our ready-stock area and can be dispatched within days of order confirmation and voltage verification. Pre-shipment testing and packing add a short window before the machine is released to the carrier.
Q: Can the 220V configuration be changed to match my local voltage before shipping?
A: The unit is configured for 220V operation from the factory. If your local supply differs, discuss your exact voltage and frequency during the inquiry so we can confirm suitability or identify a unit configured for your market from available stock.
Q: What is included in the package with the machine?
A: Each shipment includes the operation and maintenance manual in your agreed language, a spare wear-parts kit, electrical schematic, machine specification sheet, factory test record and packing photographs. The built-in 1200W dust collector is integrated into the machine and requires no separate purchase.
Q: Can I order a single unit or is there a minimum order quantity?
A: Single-unit orders are accepted with the same pre-shipment testing, documentation and spare parts inclusion as larger orders. There is no minimum order quantity requirement for this ready-stock model.
Q: How does the built-in dust collector compare to external extraction systems?
A: The integrated 1200W collector captures trimming and polishing dust at the source without external ductwork. For compact workshops this removes the cost and floor space of a separate extraction unit, though high-volume continuous production may still benefit from a centralized system.
