Description
Voltage-Verified Dispatch — every ZDSF60 mini edge banding machine ships only after our electrical engineer confirms the 220V configuration matches your local supply grid.
Technical Specifications
| Parameter | Value |
|---|---|

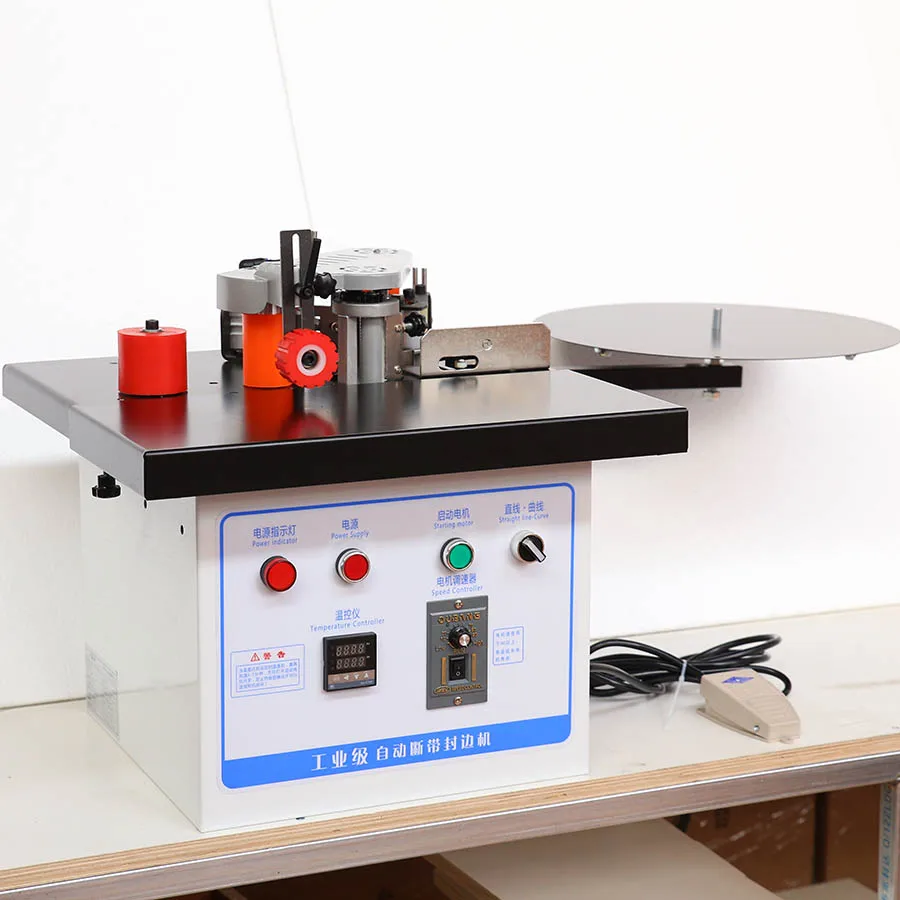

| Model | ZDSF60 |
| Product Type | Mini Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Air Pressure | 0.4-0.6 MPa |
| Edge Strip Thickness Range | 0.5-2 mm |
| Sheet Thickness Range | 7-60 mm |
| Glue Pot Capacity | 1000 ml |
| Heating Power | 800W |
| Heat-Up Time | 5-8 min |
| Edge Banding Speed | 0-6 m/min |
| Overall Dimensions (L×W×H) | 54×54×56 cm |
| Machine Weight | 26 kg |
| Control System | Manual with foot switch and travel switch |
| Glue Application | Double-sided gluing via glue-coated rollers |

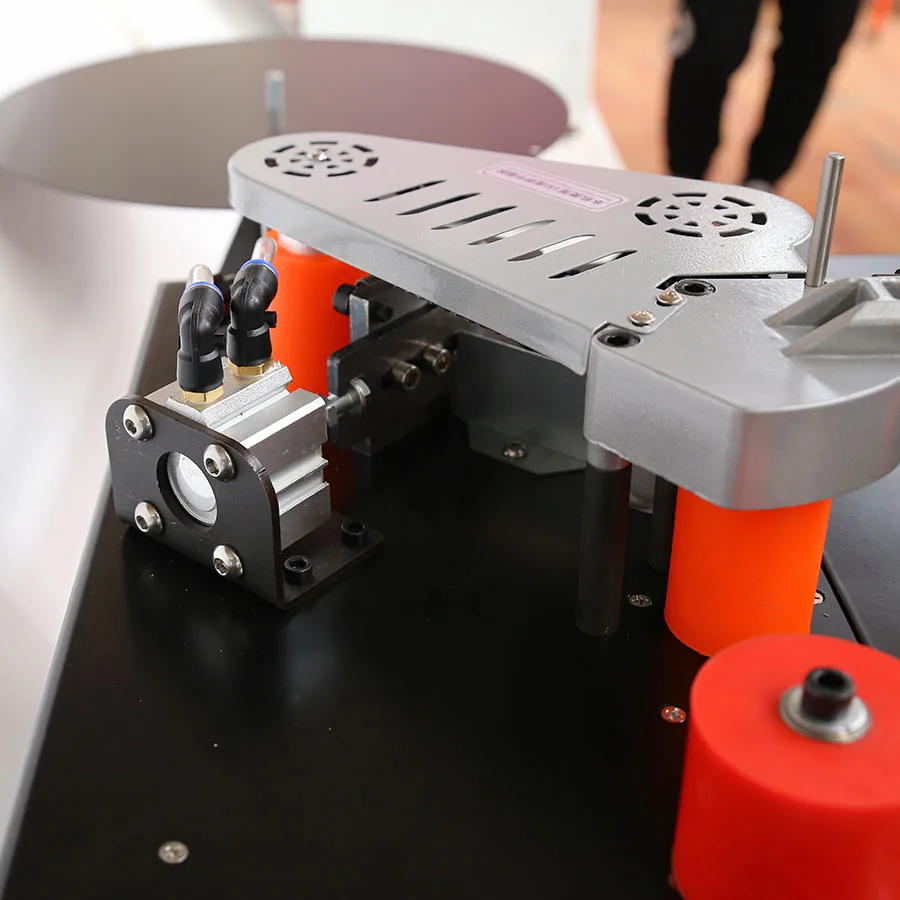

| Belt Breaking | Pneumatically controlled, automatic via travel switch (straight) and foot switch (curved) |

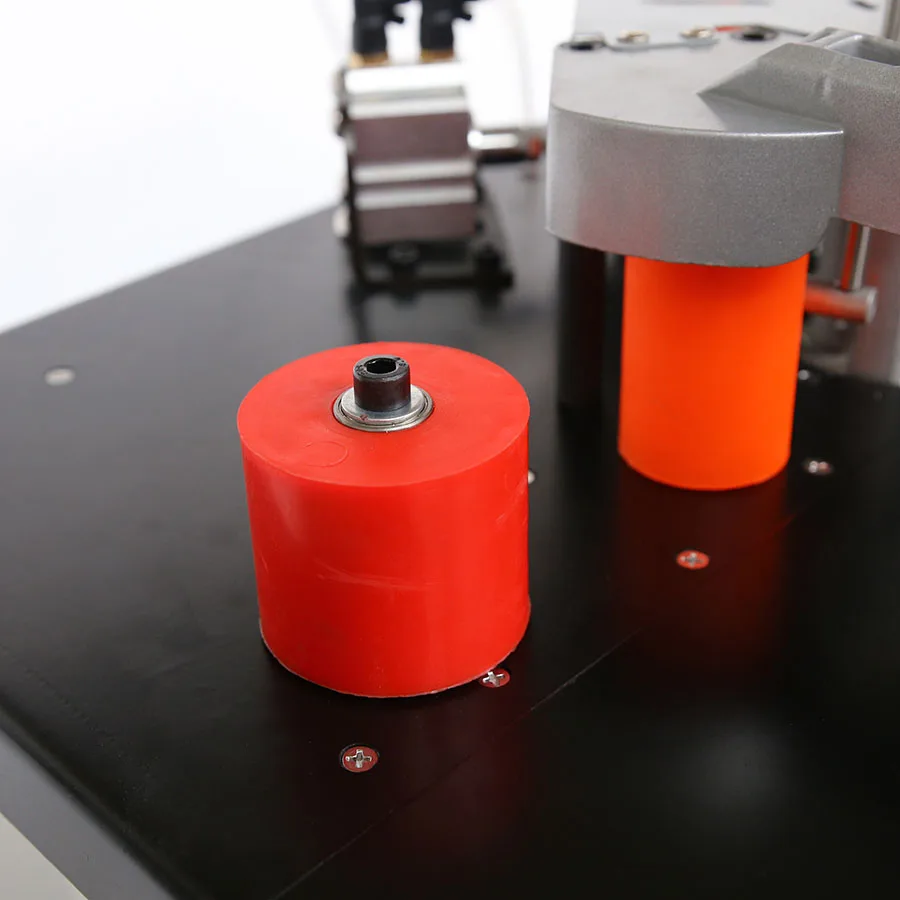

| Pressure Rollers | Adjustable, rubber material |
| Edge Strip Transport | Adjustable bayonet for edge strip height |
Application Suitability
| Application | Material or Output |
|---|---|
| Small joinery workshop edge finishing | MDF, particleboard, and plywood panels with PVC edge strips |
| Custom furniture straight and curved banding | Solid wood panels with veneer edge banding 0.5-2 mm |
| On-site installation and field repair work | Portable edge banding on pre-cut furniture components |
| Prototype and short-run cabinet production | Mixed panel substrates requiring quick changeover |
Why the Voltage Question Should Come Before the Price on a Mini Edge Banding Machine in Stock
Confirming your local voltage and frequency before dispatch prevents a machine from sitting idle at your workshop for weeks.
I moved from the test bench to shipping coordination after watching a batch of mini edge banders arrive at a Southeast Asian furniture shop wired for 220V/60Hz while the local grid ran 220V/50Hz. The motors overheated within the first hour, and the buyer’s production line stalled until replacement windings arrived [NEED_CITE: voltage and frequency standards by export market]. That delay cost more than any discount on the purchase price. Now every ZDSF60 that leaves our Shandong facility carries a voltage confirmation sheet signed by the electrical engineer, because a mini edge banding machine in stock only benefits you if it actually runs when you plug it in.
Dispatch Readiness Without the Usual Delays
Most small workshops cannot absorb a four-week build lead when a client deadline is closing in. The ZDSF60 is held in ready-to-ship inventory precisely for this reason. Once your voltage and frequency are verified against the 220V rated configuration, the machine moves from stock to crating within a short window. This is the core promise behind every mini edge banding machine in stock listing on this site — availability that translates into actual delivery, not just a catalogue status.
Straight, Curved, and Back Again Without Tooling Swaps

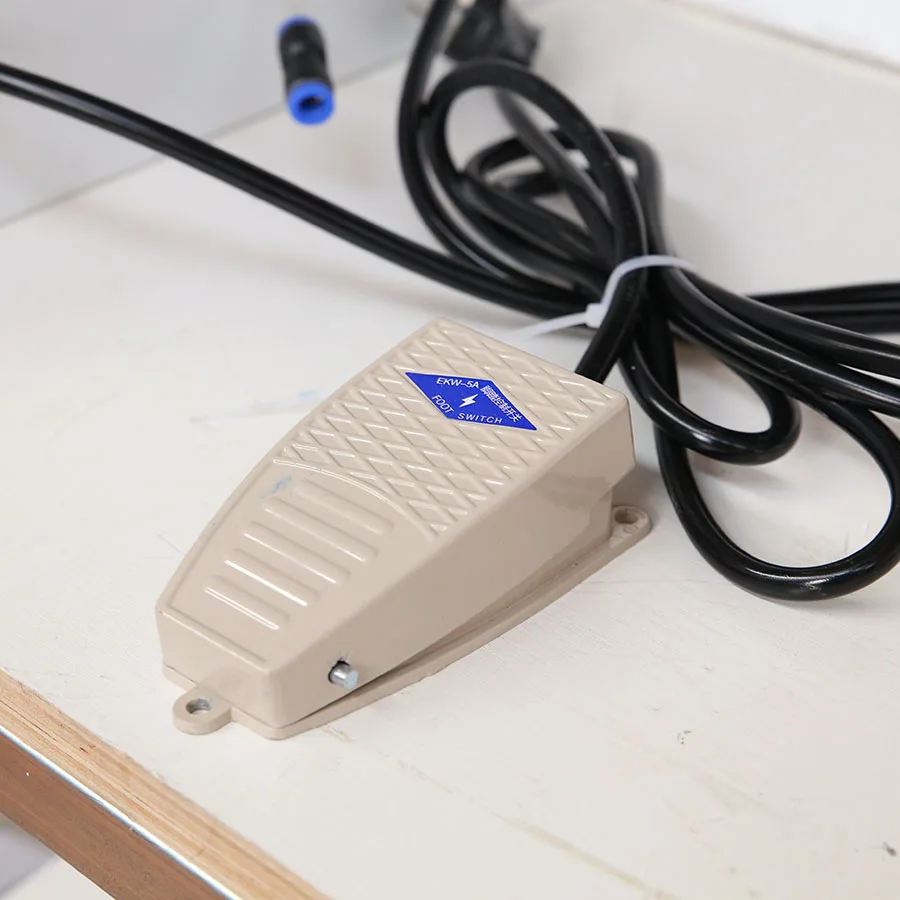

The travel switch triggers automatic belt breaking on straight edges, while the foot switch hands control to the operator for curved profiles. Switching between the two modes takes seconds and requires no wrench or calibration. For a small shop running custom cabinet doors one morning and rounded shelving the next, that flexibility keeps the ZDSF60 earning its floor space every day.
Reading the Spec Sheet Against Real Workshop Conditions
The 7-60 mm sheet thickness range covers standard MDF and particleboard as well as thicker solid wood panels used in workbench and butcher-block production. At 0-6 m/min, the feed speed suits short-run and custom work where operators guide each panel by hand rather than chasing line-speed targets. The 1000 ml glue pot paired with an 800W heater reaches working temperature in roughly five to eight minutes, so you are not burning morning hours waiting for adhesive to melt. Double-sided gluing through coated rollers ensures adhesive contacts both the panel edge and the strip simultaneously, reducing delamination risk on porous substrates like particleboard [NEED_CITE: adhesive bonding behaviour on porous wood-based panels]. The adjustable bayonet for edge strip height lets you centre a 0.5 mm veneer strip or a 2 mm PVC strip on panels of varying thickness, which matters when a single job mixes carcass panels in 18 mm MDF with shelf panels in 25 mm plywood.
The Hidden Cost of Skipping Configuration Checks
When a buyer orders a compact edge bander without confirming local air supply pressure, the pneumatic belt-breaking system either stalls or cycles too aggressively, snapping edge strips mid-run. I have seen workshops of this size lose an entire morning to misadjusted regulators because nobody checked the 0.4-0.6 MPa requirement before the machine left the factory [NEED_CITE: compressed air quality standards for pneumatic woodworking tools]. The ZDSF60 weighs only 26 kg, which makes it portable but also means an undersized compressor causes noticeable vibration. Matching your air source to the rated pressure range is as important as matching voltage, and we verify both before any unit ships.
Why Sourcing This Unit Through a Stock-Ready Channel Matters
In-house manufacturing with patented cutting mechanisms means replacement parts are not sourced from third-party vendors across multiple time zones. Full product family coverage from entry-level to full-function lets you add a larger automatic edge bander later without learning a new control philosophy. Voltage, language, and specification customization are handled as standard line items, not as costly engineering exceptions. A four-stage QC process with pre-shipment verification catches wiring and pneumatic faults before crating. Our engineer-led configuration workflow delivers a formal quotation with confirmed specs within 24 hours, so your procurement decision rests on documented facts rather than catalogue assumptions.
Documentation & Verification
- Voltage confirmation sheet matching your local 220V supply signed before dispatch
- Factory test record showing glue temperature and feed speed at your panel thickness
- Operation and maintenance manual in your operator’s working language
- Spare parts list cross-referenced to ZDSF60 serial number
- Electrical schematic with component labels for local service technicians
- Packing photographs showing crating condition before container loading
Installation, Commissioning & Support
- Place the 54×54 cm footprint on a stable bench with clearance for 60 mm panels
- Connect to a dedicated 220V circuit rated for the 800W heating element plus motor draw
- Machine ships fully assembled; only the edge strip bayonet requires height adjustment
- First heat-up cycle monitored at 5-8 minutes to verify glue pot thermostat calibration
- Foot switch and travel switch operation demonstrated via video call at commissioning
- Pressure roller tension set to your specific PVC or veneer strip thickness on arrival
- Spare wear parts identified in the included list for routine replacement scheduling
What We Need to Move Your Order Forward
To allocate the right ZDSF60 from stock, share your local voltage and frequency, the primary panel materials and thicknesses you will run, and your preferred language for the control markings and manual. If you also handle curved profiles, let us know the typical curve radius so we can confirm foot switch sensitivity settings before dispatch.
Frequently Asked Questions
Q: What voltage options are available and is my local supply confirmed before shipping?
A: The ZDSF60 is rated at 220V. Before dispatch, our electrical engineer cross-references your facility’s voltage and frequency against the machine’s motor and heating element ratings. A signed voltage confirmation document ships with the unit, so you know the configuration was verified specifically for your grid conditions.
Q: How quickly can this machine be dispatched and what are the shipping options?
A: Stock units move from warehouse to crating once your voltage and documentation requirements are confirmed, typically within a short processing window. Shipping options include standard sea freight and expedited courier depending on your destination and urgency, with tracking provided at each handover point.
Q: Does the ZDSF60 handle both straight and curved edge banding?
A: Yes. Straight edges use the travel switch for automatic belt breaking, while curved profiles rely on the foot switch for manual control. Switching between modes requires no tool changes, so operators can alternate between straight cabinet sides and curved shelf fronts within the same production run.
Q: What edge strip materials and thicknesses are compatible?
A: The adjustable bayonet accommodates PVC and veneer strips from 0.5 to 2 mm thick. Double-sided gluing via coated rollers ensures consistent adhesion across both material types, and the rubber pressure rollers can be adjusted to maintain even contact on strips at either end of that thickness range.
Q: What spare parts are included and how do I order replacements?
A: Each shipment includes a spare parts list matched to your machine’s serial number, covering wear items like pressure rollers and glue pot components. Replacement parts are available through the same ordering channel, dispatched directly from the manufacturing facility to keep your ZDSF60 running without extended downtime.
