Description
Dispatch-Ready Configuration — Voltage confirmed, plug matched, and control panel language set before the ST-30 leaves the factory floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-30 |
| Product Type | Portable Edge Banding Machine |
| Total Power | 1000 W |
| Voltage & Frequency | 220V / 380V / customization available |
| Edge Motor Power | 20 W |
| Overall Dimensions (L×W×H) | 38 × 35 × 35 cm |
| Net Weight | 12 kg |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 3 cm |
| Edge Banding Tape Compatibility | ABS, PVC, Melamine, Veneer |
| Edge Type | Straight and Curved |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Control Panel Languages | Chinese, English (other languages on request) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Small-scale furniture manufacturing | MDF, particleboard, and plywood panels for cabinet and shelving components |
| Custom interior decoration workshops | Melamine-faced boards with ABS or PVC edge banding on curved and straight profiles |
| On-site joinery touch-ups and repairs | Veneer edge banding on solid wood panels and pre-fabricated furniture parts |
| Prototyping and low-volume production | Short-run panels in varied widths and thicknesses, including curved-edge assemblies |
Why Voltage Confirmation Must Happen Before the Order
A Portable Edge Banding Machine in stock only saves you time if it actually runs when it arrives.
I have watched workshops take delivery of compact edge banders only to discover the motor hums but never engages — the local supply is 60 Hz while the machine was wound for 50 Hz, or the plug simply does not fit the wall socket. The ST-30 ships with voltage matched to your facility and the correct plug type pre-fitted, so the first thing you do after unboxing is switch it on, not call an electrician [NEED_CITE: voltage and frequency standards by export market]. Control panel language is loaded at the factory as well, meaning your operator reads the interface from the very first test cycle.
Stock That Arrives Ready to Run
The ST-30 is held in inventory specifically for workshops that cannot absorb multi-week production lead times. When you need a portable edge banding machine in stock and dispatched quickly, the priority is not just speed off the shelf — it is arriving in a condition that lets you edge-band on the same day you uncrate it. Voltage, plug, and language are locked in during the order confirmation so no secondary wiring or translation step delays commissioning.

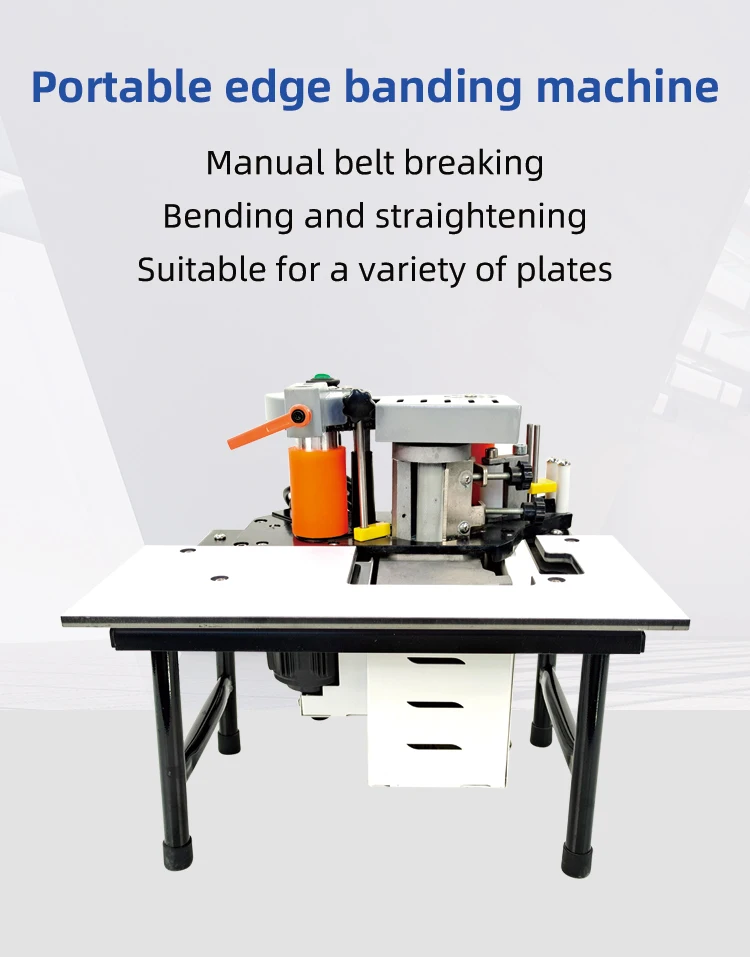

Straight and Curved Edges From One Compact Unit
Most portable banders in this footprint handle only straight runs, forcing a second machine or manual trimming for curved panels. The ST-30 manages both geometries across ABS, PVC, melamine, and veneer tapes from 0.3 mm up to 3 mm thick. For a small studio cutting radiused cabinet doors or curved reception desk components, that dual capability removes a bottleneck without adding floor space [NEED_CITE: edge banding material behaviour on curved substrates].
What the Numbers Mean at the Bench

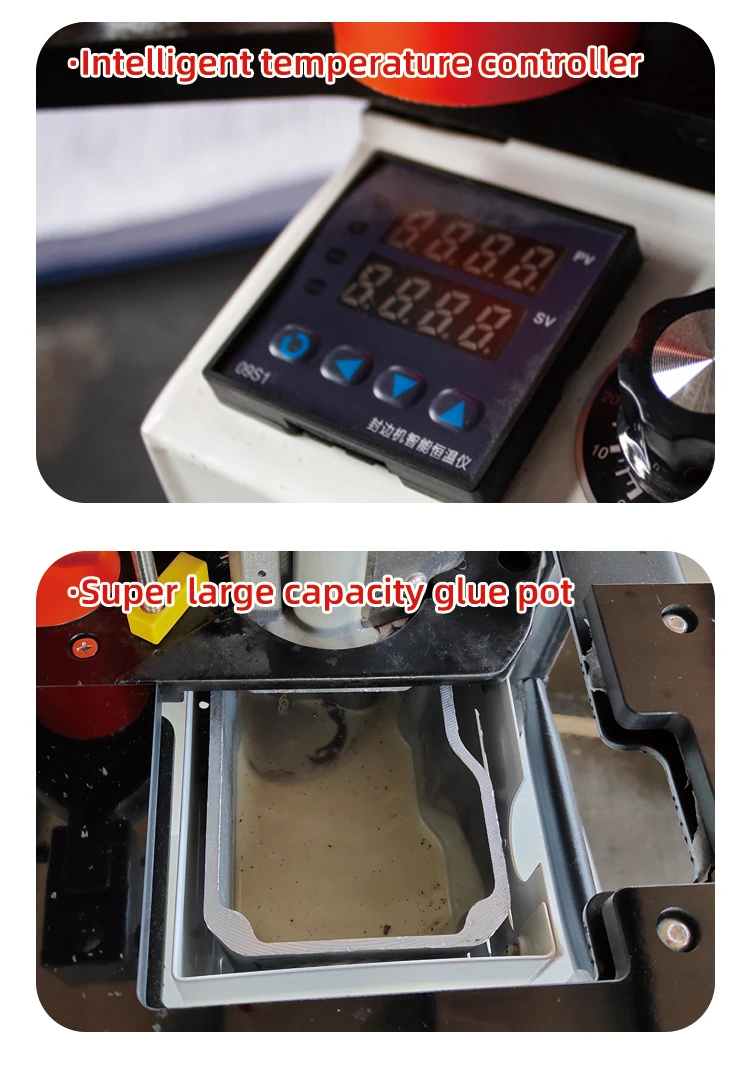

The 1000 W total power drives the glue heater and feed mechanism through extended sessions without thermal cutout, while the separate 20 W edge motor provides the torque needed to press banding firmly against the panel edge. The 1000 ml glue pot holds enough hot-melt adhesive for long production runs before requiring a refill, reducing mid-job interruptions. At 12 kg and 38 × 35 × 35 cm, the ST-30 sits on a standard workbench and can be repositioned between stations or carried to an installation site. The 0–50 mm edge banding height range covers most furniture-grade panel thicknesses, and the 3 cm minimum sheet width allows narrow strips and off-cuts to be banded without special fixturing.
The Cost of Skipping Configuration Checks
Ordering a stocked machine without verifying local electrical supply remains one of the most frequent reasons for delayed commissioning in small workshops. A voltage mismatch does not always cause immediate failure — sometimes the motor simply runs hotter than designed, shortening bearing life and degrading glue temperature stability over weeks of operation. Equally, a control panel in an unfamiliar language adds minutes to every setup change and invites parameter errors that show up as inconsistent glue lines or banding lift at the trimming stage [NEED_CITE: common edge banding defects from incorrect temperature settings]. These problems are avoidable when specifications are confirmed at the point of order rather than after delivery.
Why Procurement Teams Source the ST-30 Here
- In-house manufacturing with patented cutting mechanisms ensures tolerance claims are backed by verifiable test records rather than catalogue promises.
- Voltage, plug type, and control language are confirmed per order — not left to chance or assumed from a default build.
- Four-stage quality control including pre-shipment verification means every stocked unit is tested before crating.
- Engineer-led configuration advice is available within 24 hours, matching the ST-30 to your panel range and daily throughput.
- A full product family from entry-level to production-line banders allows your workshop to scale without switching suppliers.
Documentation & Verification
- Factory test record showing edge banding on your specific panel thickness and banding material before dispatch
- Machine specification sheet confirming voltage, frequency, and plug type matched to your facility
- Electrical schematic supporting local maintenance and troubleshooting
- Operation and maintenance manual supplied in the agreed language at point of order
- Packing photographs documenting machine condition prior to crating
Installation, Commissioning & Support
- Place the 38 × 35 × 35 cm unit on a level bench capable of supporting 12 kg plus working panels
- Connect to a dedicated circuit matching the confirmed 220V or 380V supply with correct plug type
- Load hot-melt adhesive into the 1000 ml glue pot and allow full heat-up before the first feed pass
- Verify edge banding alignment on a test panel in both straight and curved modes before production runs
- Maintain the 20 W edge motor brushes and glue pot heater element per the supplied manual schedule
Preparing Your Inquiry
To match the right ST-30 configuration to your workshop, share your local voltage and frequency, the banding materials you work with most often, and the language your operators need on the control panel. If you run unusual panel widths or curved profiles regularly, include typical dimensions so the engineer can confirm suitability before dispatch.
Frequently Asked Questions
Q: How do I confirm the correct voltage and plug type before ordering?
A: Provide your workshop’s supply voltage, frequency, and socket standard when you submit an inquiry. The engineer reviews compatibility and confirms the matching configuration in the formal quotation, so the ST-30 ships with the correct plug and wiring already installed.
Q: Can the control panel and manual be supplied in my local language?
A: Chinese and English are standard. Additional languages are available on request and confirmed at the order stage. The operation manual is supplied in the same agreed language, ensuring your operator can follow setup and maintenance instructions without translation.
Q: What banding materials and thicknesses does the ST-30 handle?
A: The machine accepts ABS, PVC, melamine, and veneer tapes from 0.3 mm to 3 mm thick on both straight and curved edges. The 0–50 mm height range covers most furniture panels. Minimum sheet width is 3 cm, allowing narrow strips to be banded.
Q: How long is the dispatch lead time for a stocked ST-30?
A: Stocked units are prepared for dispatch after voltage, plug, and language confirmation are completed. Shipping options and estimated transit times are quoted upfront based on your destination, so you have a clear delivery window before committing to the order.
Q: What spare parts are included, and how do I reorder later?
A: A spare parts list accompanies every shipment, covering high-wear consumables specific to the ST-30. Reorders are placed through the same channel as the original purchase, with part numbers and specifications documented in your manual for straightforward identification.
