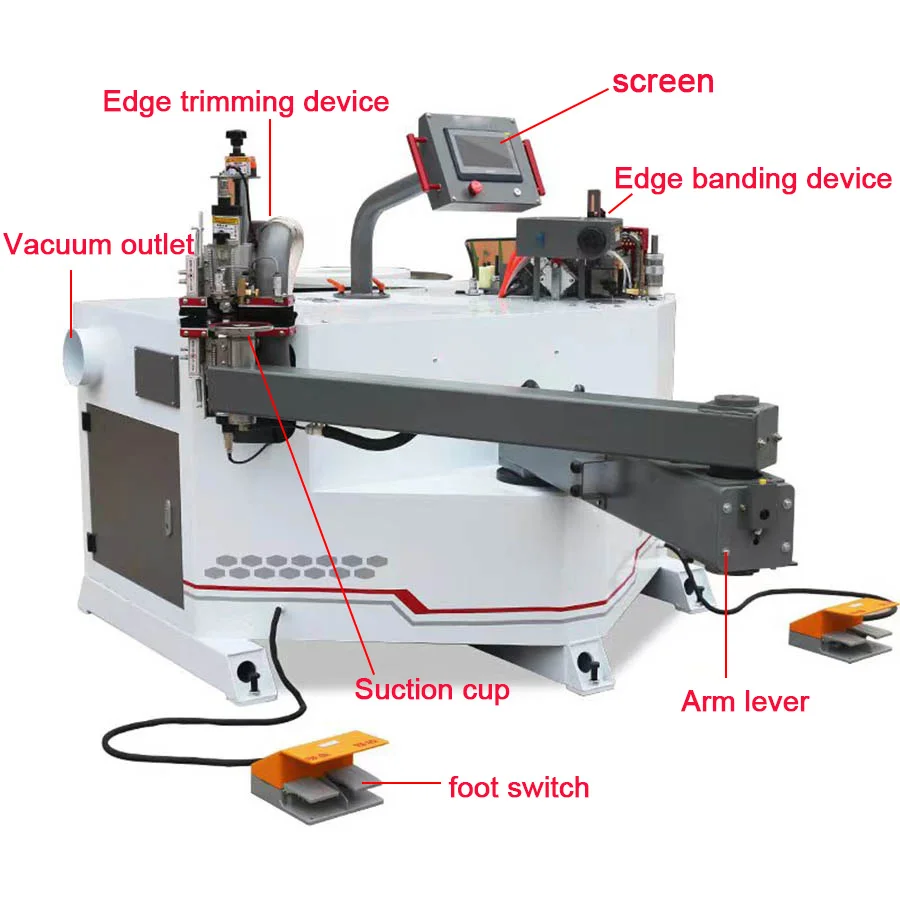

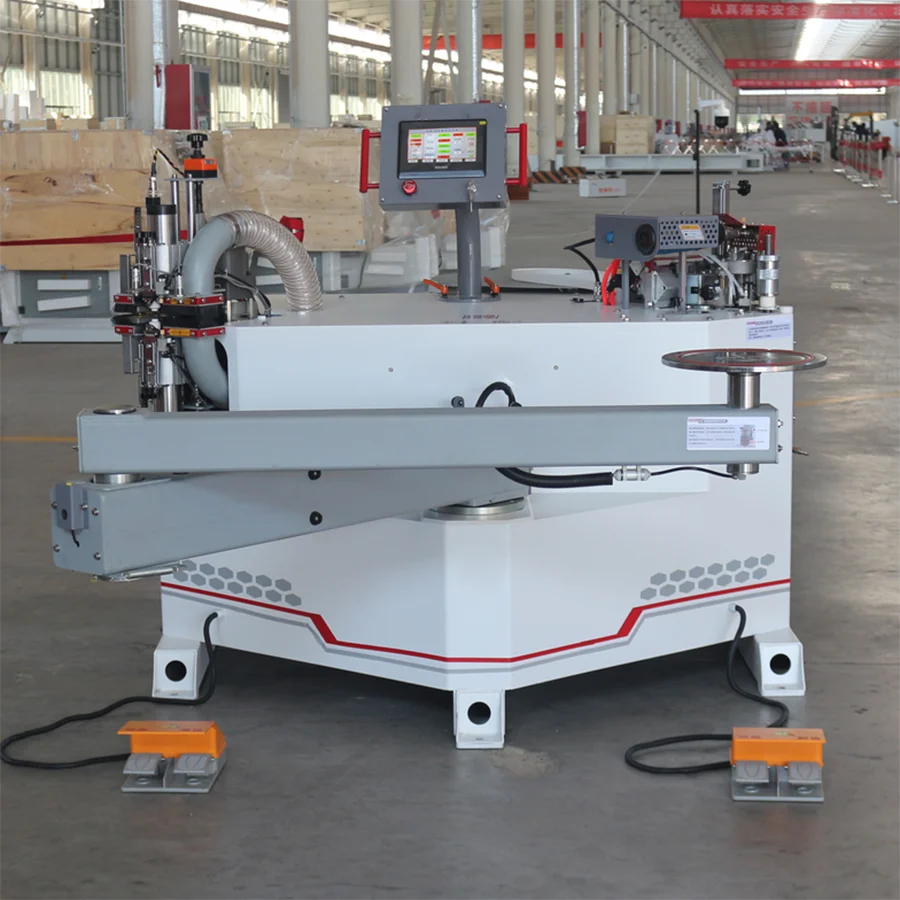

Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS-700 |
| Product Type | Automatic Curved Edge Banding Machine |
| Rated Power | 6 kW |
| Voltage & Frequency | 380V / 50Hz (configurable from 110V to 440V) |

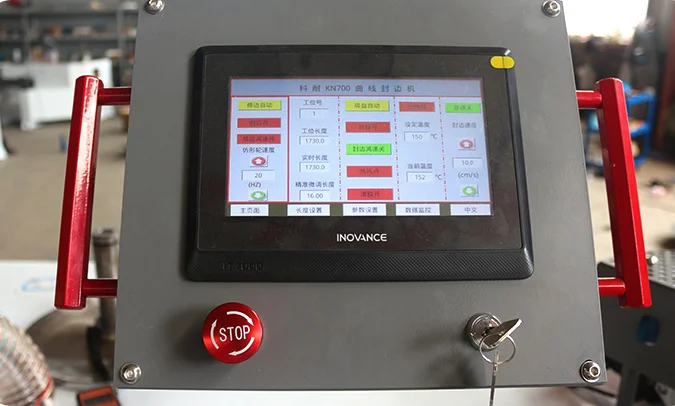

| Control System | PLC (HIU-XP) with Touch Screen (IT7000) |
| Overall Dimensions (L×W×H) | 1550 × 1440 × 1350 mm |
| Net Weight | 451 kg |
| Edge Banding Thickness Range | 0.5–3 mm |
| Edge Banding Width Range | 14–70 mm |
| Edge Banding Speed | 0–22 m/min (basis not stated in source) |
| Glue Pot Operating Temperature | 110°C–210°C |
| Glue Pot Capacity | 2600 ml |
| Glue Type Compatibility | PUR and EVA |
| Air Supply Requirement | 0.6–0.8 MPa |
| Edge Banding Motor | 220V 400W servo motor |
| Trimming High-Speed Motor | 220V 400Hz 24,000 rpm |
| Trimming Profiling Motor | 220V 60W single-phase motor |
| Frequency Transformer | MD200 2.2 kW |
| Laser Displacement Sensor | 1030 |
| Docking Error | ±0.3 mm (via laser distance measurement) |
| Length of Stacking Arm | 2270 mm |
| Touch Screen Data Storage | Up to 20 form data profiles |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Curved cabinet door edge banding | MDF and plywood with PVC or veneer strips |
| Shaped shelving and display furniture | Particleboard with 0.5–3 mm edge banding |
| Custom radius panel edging | Solid wood panels with PUR or EVA adhesive |
| Mixed straight-and-curve workshop orders | Laminate and melamine-faced board substrates |
Why Voltage Confirmation Matters More Than the Quoted Price
Specifying the correct voltage and frequency before order placement eliminates the most common reason newly delivered edge banders sit idle on the workshop floor.
I once handled a shipment where the buyer selected an automatic curved edge banding machine in stock and had it dispatched within days, only to discover the local three-phase supply ran at 60Hz while the motor was wound for 50Hz. The servo drive faulted on first power-up. Eleven days of downtime followed while replacement components were shipped across two borders [NEED_CITE: voltage and frequency standards by export market]. Confirming your facility’s exact electrical supply during the order process, not after the crate arrives, removes that entire failure class from the timeline.
Dispatch Timing for Single-Unit Curved Edging Orders
Stocked ZDS-700 units are configured for immediate pre-shipment testing rather than built against a backlog. For a workshop replacing a manual edge banding process or adding curved-panel capability to an existing line, the difference between ordering a ready unit and commissioning a production run is measured in weeks. The touch screen arrives pre-loaded with up to 20 form data profiles, so operators can begin setting up curved panel programs on the first day of commissioning rather than building profiles from blank memory.

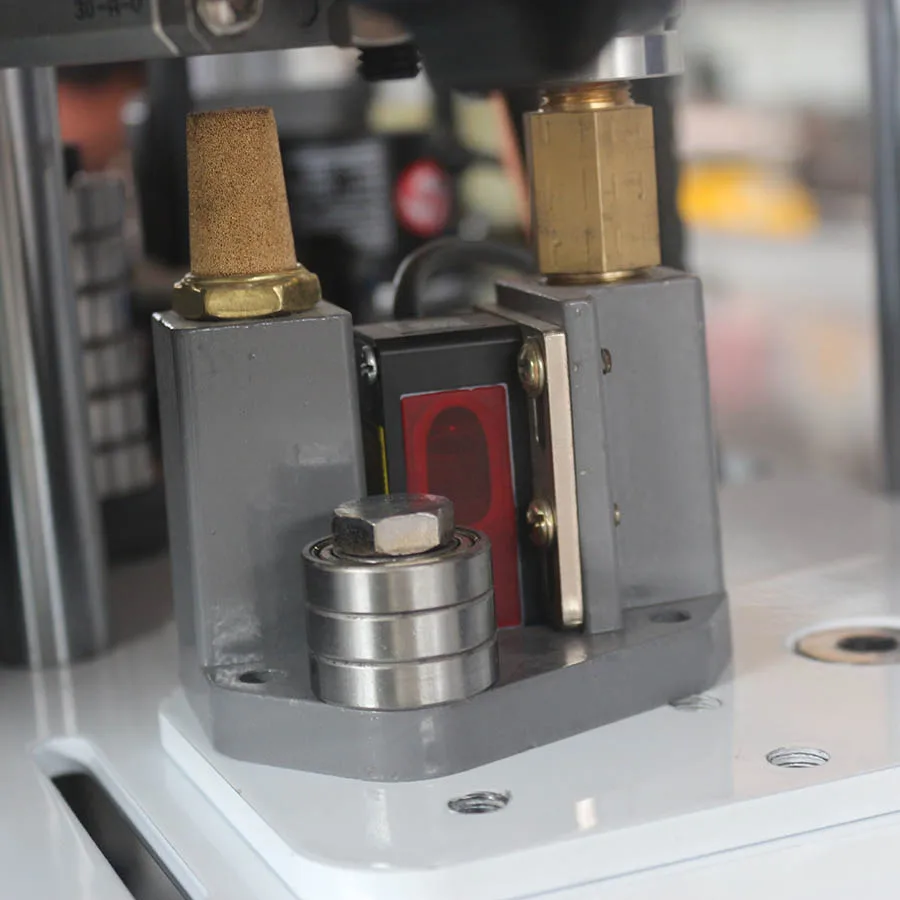

Tracking Panel Geometry Without Manual Intervention
The laser displacement sensor continuously measures the panel edge position during the feeding cycle. When a curved panel enters the edging zone, the 400W servo motor adjusts feed pressure in real time, keeping the PVC or veneer strip aligned to the contour. This removes the need for an operator to manually guide the workpiece through the trimming station, which is where most visible glue-line inconsistencies originate in small-workshop curved edging [NEED_CITE: CE machinery directive requirements for industrial equipment]. The ±0.3 mm docking tolerance holds across the full 14–70 mm banding width range.

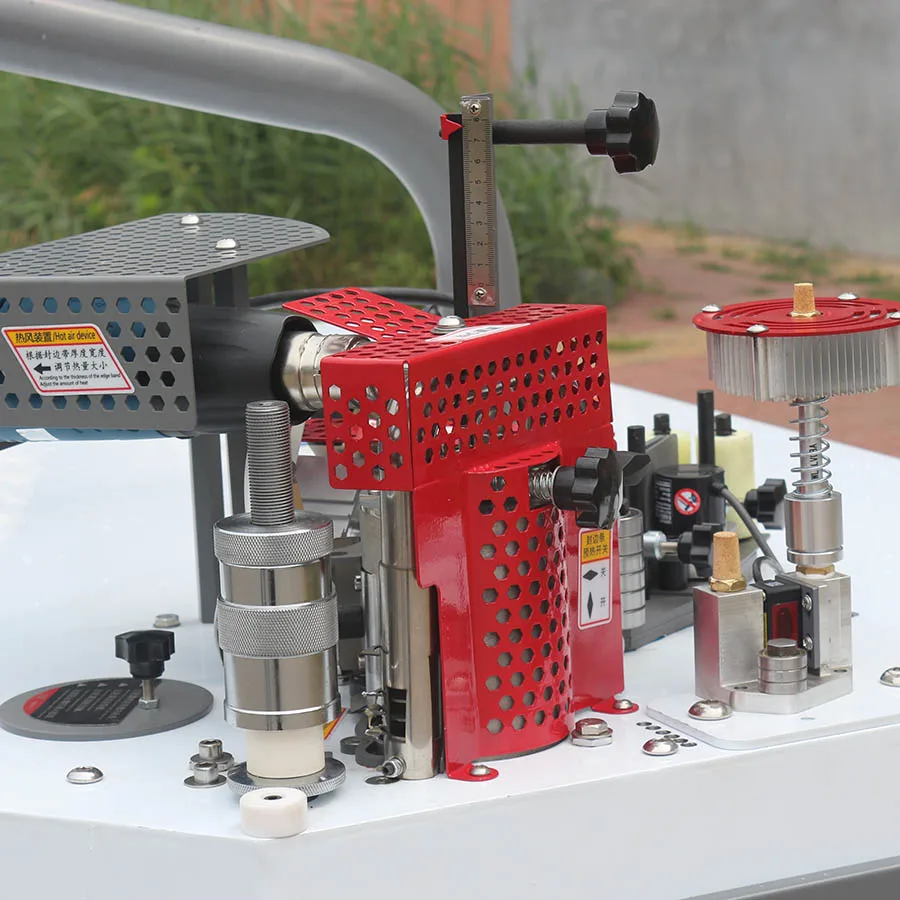

Reading the Spec Sheet Against Your Panel Mix
The 2600 ml glue pot maintains adhesive temperature between 110°C and 210°C, which covers the activation window for both standard EVA and moisture-curing PUR formulations. PUR delivers a near-invisible glue line on curved MDF panels where EVA tends to creep at tight radii, but PUR requires the higher end of that temperature band and a sealed pot between shifts to prevent premature curing. The 0.5–3 mm banding thickness range accommodates thin veneer for visible furniture faces as well as heavier PVC for worktop edges. Feed speed spans 0–22 m/min, though actual throughput depends on curve radius and panel thickness — operators typically run slower on tight radii to maintain adhesive contact. The 24,000 rpm trimming motor produces a clean shear cut on PVC and veneer without chipping, provided the profiling motor’s 60W tracking pressure is matched to the substrate density.
The Cost of Skipping Spare Blades at Order Stage
I watched a customer commission a curved edgebander that ran beautifully for two weeks, then the trimming blades dulled on high-density particleboard and no spares were on site. The machine sat idle for eleven days waiting for replacement cutters to clear customs. When an automatic curved edge banding machine in stock leaves our floor, I verify that spare trimming blades and scrapers are included in the crate alongside the standard spare parts kit [NEED_CITE: typical spare parts lead times for imported woodworking machinery]. Losing production to a missing consumable is preventable at the ordering stage.
What Distinguishes This Fulfillment Channel
Stocked ZDS-700 units carry verified test records from the four-stage quality check covering incoming material inspection, in-process assembly verification, finished-product performance testing, and pre-shipment validation on curved panels. Voltage and frequency are confirmed against your facility’s supply before the unit is released from stock, not assumed from a default configuration. The touch screen language, electrical schematics, and operation manuals are matched to your operator’s reading language during the order process. Single-unit orders receive the same packing photographs and customs documentation as larger production shipments, so receiving inspection is straightforward regardless of order size.
Documentation & Verification
- CE declaration of conformity matching the ZDS-700 curved edge bander configuration
- Factory test record on your specified panel thickness and curve radius before dispatch
- Electrical schematic confirming voltage and frequency for your local supply
- Operation and maintenance manual in the agreed operator language
- Spare parts list with trimming blade and scraper part numbers
- Packing photographs for receiving inspection and customs clearance
Installation, Commissioning & Support
- Requires a dedicated 380V / 50Hz three-phase circuit rated for at least 6 kW with appropriate breaker sizing
- Air supply at 0.6–0.8 MPa must be plumbed to the 2L storage tank before first run
- Allow minimum 1550 × 1440 mm floor footprint plus operator clearance on the 2270 mm stacking arm side
- PLC touch screen loaded with up to 20 form profiles during factory testing for faster on-site setup
- First-run parameter calibration on your actual curved panel substrates and banding materials
- Spare trimming blades and scrapers shipped inside the crate for immediate availability
What We Need to Match the Right Unit to Your Line
Share the curved panel substrates you process most frequently, the edge banding material and thickness range, and your local three-phase voltage and frequency so we can confirm electrical compatibility before release. If your workshop runs both straight and curved profiles, let us know the typical changeover frequency so the touch screen data storage can be pre-configured for your panel mix.
