Description
Fast Stock Dispatch — Every ZDSF210 unit is voltage-verified against your local grid before crating, so a portable automatic edge bander in stock ships ready to run on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF210 |
| Product Type | Automatic Edge Banding Machine |
| Edge Banding Speed | 6 m/min |
| Belt Feed Motor | 25 W |
| Board Feed Motor | 120 W |
| Trimming Motor | 800 W × 2 |
| Heating Motor | 800 W |
| Vacuum Fan | 1200 W |
| Overall Dimensions (L×W×H) | 1500 × 570 × 630 mm |
| Net Weight | 155 kg |
| Glue Pot Capacity | 1000 ml |
| Guide Rail Type | Steel rod guide rail |
| Trimming Station | Profile trimming (up/down, left/right) |
| Pressing System | Elastic device secondary pressing |
| Dust Extraction | Airtight dust collection and cleaning |
| Polishing | Cross polishing station |
| Edge Scraping | Flexible scraping and glue line cleaning |
| Motor Base | Frame type motor base |
| Function Stations | Gluing, trimming, scraping, polishing |
| Voltage & Frequency | Configurable (basis not stated in source — confirm local requirement) |
| Panel Thickness Range | (basis not stated in source — confirm min/max) |
| Control System | (basis not stated in source — confirm PLC or manual) |
| Warranty | 1 Year (core components: Motor, Engine) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge sealing | MDF and particleboard with PVC or melamine banding |
| Small joinery workshop production | Plywood panels with wood veneer edge banding |
| On-site furniture finishing | Solid wood panels requiring portable edge processing |
| Startup furniture factory line entry | Linear panel edge banding at low to mid volume |
Why the Voltage Question Should Come Before the Price
A portable edge banding machine fast delivery promise means nothing if the unit arrives wired for the wrong grid.
I once watched a Dubai workshop sit idle for three weeks because a compact edge bander shipped with a 220 V single-phase motor while the shop floor ran 380 V three-phase. The electrician had to rewire the entire cabinet on-site, and the carpentry crew lost their installation window. That single oversight cost more in downtime than the machine itself [NEED_CITE: voltage and frequency standards by export market]. When sourcing an Automatic Edge Bander in stock, confirming local voltage and frequency is the first checkpoint, not an afterthought on the packing list.
Stock Availability and Single-Unit Ordering
The ZDSF210 sits in our ready-stock pool as a Portable Edge Banding Machine fast delivery option for workshops that cannot wait through a production cycle. Single-unit orders ship directly from the warehouse without minimum-order constraints, which matters for a joinery startup buying its first automated edge sealer or a cabinet maker adding capacity for a specific project. Lead time is measured in days rather than weeks once voltage and control language are confirmed.
Dispatch Verification Before the Crate Closes
Every stock unit goes through a pre-shipment routine that mirrors the original factory QC gate. We power the ZDSF210 at the configured voltage, run a test panel through the full gluing-trimming-scraping-polishing sequence, and photograph the edge finish alongside the electrical nameplate. Those images, together with the factory test record, reach the buyer before the crate is sealed. This step catches wiring mismatches and control-panel language errors while the machine is still on our floor [NEED_CITE: pre-shipment inspection protocols for exported woodworking machinery].
How the Compact Footprint Translates to Workshop Layout

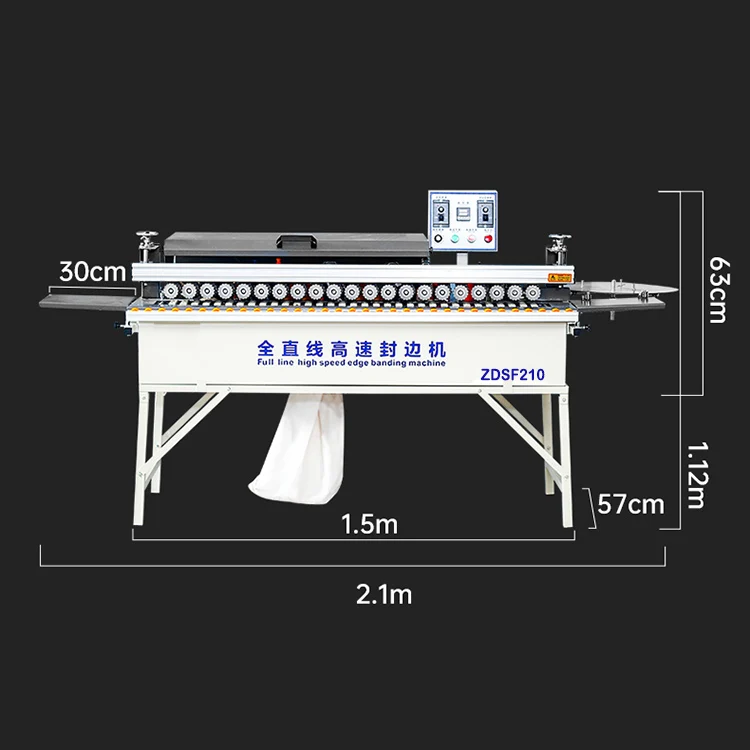

At 1500 × 570 × 630 mm and 155 kg, the ZDSF210 fits through a standard doorway and rolls into position on its frame-type motor base. The steel rod guide rail keeps the feed path rigid without requiring a separate foundation pad, so a small workshop can place the machine against a wall and still maintain material flow on both sides. The integrated dust-collection port connects to a standard extraction hose, eliminating the need for a dedicated fan room when floor space is tight.
Trimming Precision and Edge Finish Quality

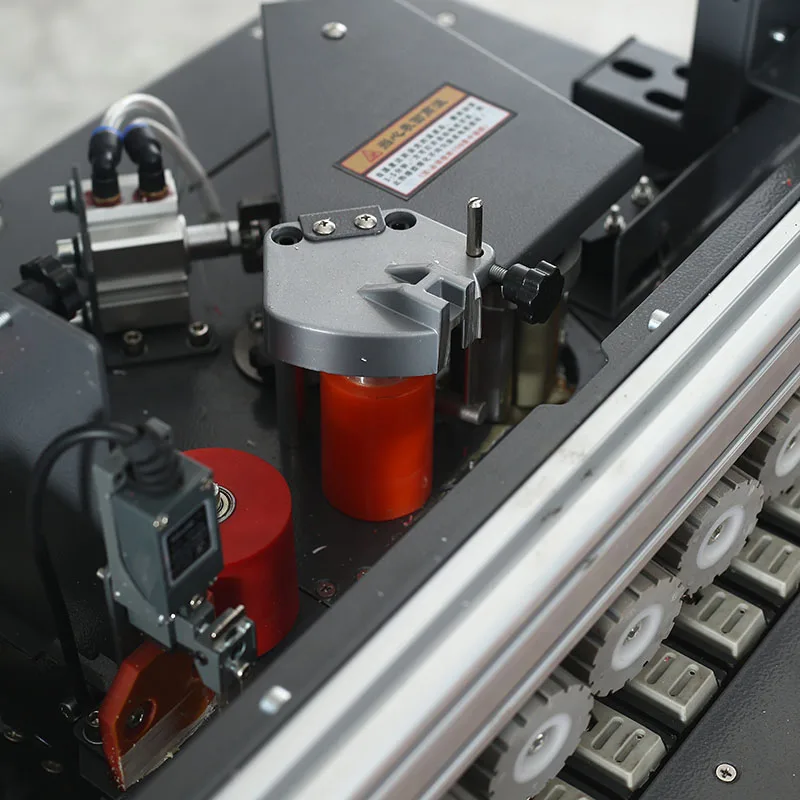

The dual 800 W trimming motors move in four axes — up, down, left, and right — following the panel contour set by the steel rod guide rail. This profile-trimming action removes excess PVC or veneer overhang in a single pass, and the elastic secondary pressing device holds the banding flat against the substrate during the cut. Downstream, the flexible scraper cleans residual glue lines while the cross-polishing station buffs the edge to a uniform sheen. The sequence produces a finished edge suitable for visible cabinet faces without a manual touch-up step, keeping the six-meter-per-minute feed rate usable for production rather than just sample runs [NEED_CITE: edge banding quality standards for custom furniture panels].
The Cost of Skipping Configuration Checks
Workshops that order a stock edge bander without confirming panel thickness range often discover the feed rollers cannot grip thin MDF or cannot clear thicker solid-wood stock. The ZDSF210 handles a defined thickness window, and running material outside that range causes the banding to drift during the trimming pass, leaving uneven overhang that must be reworked by hand. Similarly, a glue pot temperature that does not match the adhesive specified for local humidity will produce brittle bond lines in winter or stringy residue in summer, both of which show up as customer complaints on installed cabinetry [NEED_CITE: adhesive selection for edge banding across climate zones].
Why Buyers Source This Model Here
Our warehouse keeps the ZDSF210 as an Automatic Edge Bander in stock specifically for buyers who need one unit now rather than a container load later. Voltage customization from 110 V to 440 V is applied before dispatch, not left as a field modification. The four-stage QC process — incoming material, in-process, finished product, and pre-shipment — is applied to every stock unit, not just custom builds. Operation manuals ship in the buyer’s agreed language, and spare-parts lists are included so replacements can be ordered without reverse-engineering part numbers from photographs.
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 edge banding assembly
- ISO 9001 certificate for the manufacturing facility that built this unit
- Electrical schematic confirming configured voltage and phase before dispatch
- Factory test record showing edge finish on buyer-specified panel material
- Packing photographs documenting crate condition and accessory count at loading
Installation, Commissioning & Support
- Place the 155 kg unit on a level floor; no anchor bolts required for the frame-type base
- Connect to a dedicated circuit matching the confirmed voltage; avoid shared lines with welders
- Machine ships fully assembled; only the dust hose and power cable need attachment
- First-run guidance covers glue pot temperature, feed speed, and trimming offset settings
- Elastic pressing device and scraper blades are the primary wear items; spares ship in the box
- Monthly inspection of the steel rod guide rail alignment maintains feed accuracy over time
Ready to Move Forward
Send us your panel material type, typical thickness range, and the exact voltage and frequency at your workshop. Let us know the control-panel language your operators read so we label the interface before the ZDSF210 leaves the warehouse. If you need a sample edge-banded panel shipped with the machine for your own quality check, tell us the banding material and we will run it during the pre-shipment test.
Frequently Asked Questions
Q: What voltage options are available and how is compatibility confirmed before dispatch?
A: The ZDSF210 is configurable across common industrial voltages. Before crating, we record your local voltage and frequency, rewire the motor and heating circuit accordingly, and send you a photo of the updated electrical nameplate along with the wiring schematic. This prevents the three-week rewiring delay that unplanned shipments commonly cause on site.
Q: What is the dispatch lead time and can I order just one unit?
A: Stock units of this Portable Edge Banding Machine fast delivery model ship within days of configuration confirmation. Single-unit orders are standard; there is no minimum-order quantity. We crate and hand over to your forwarder as soon as the pre-shipment test photos and documentation reach your inbox.
Q: Which edge banding materials and panel thicknesses does the ZDSF210 handle?
A: The machine processes PVC, wood veneer, and melamine banding on MDF, plywood, and particleboard substrates. Panel thickness capacity depends on the feed roller gap setting; confirm your exact range with us so we preset the machine before dispatch and include the correct scraper profile in the spare-parts kit.
Q: Is installation guidance provided and what does the warranty cover?
A: We supply a language-specific operation manual and a first-run checklist covering glue temperature, feed speed, and trimming offsets. The one-year warranty covers the motor and engine core components. Remote troubleshooting support is available for the life of the machine, and replacement parts are shipped from the same warehouse that dispatched your unit.
Q: What spare parts are included and how do I order replacements later?
A: Each ZDSF210 ships with a starter set of scraper blades, polishing pads, and a spare heating element matched to the configured voltage. A numbered spare-parts list is included in the documentation pack. When you need replacements, reference the part numbers and we dispatch from stock, typically within the same lead-time window as a new machine order.
