Description
Voltage-Confirmed Dispatch — Every XZF450 bevel edge bander ships only after your local voltage and plug type are locked in writing, eliminating dead-on-arrival surprises.
Technical Specifications
| Parameter | Value |
|---|---|

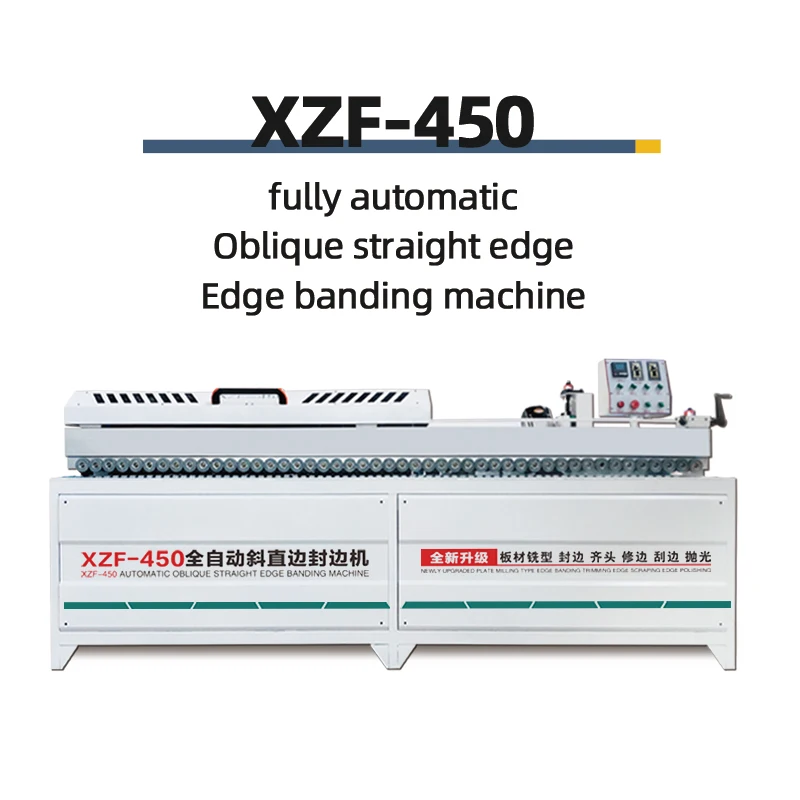

| Model | XZF450 |
| Product Type | 45 Degree Bevel Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V / 415V (frequency to confirm at order) |
| Pre-milling Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Feed Speed | 0–12 m/min |
| Transmission Power | 180 W |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4000 ml |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 300 mm |
| Minimum Sheet Width | 150 mm |
| Air Source Pressure | 0.5–0.7 MPa |
| Overall Dimensions (L×W×H) | 300 × 65 × 135 cm |
| Net Weight | 430 kg |

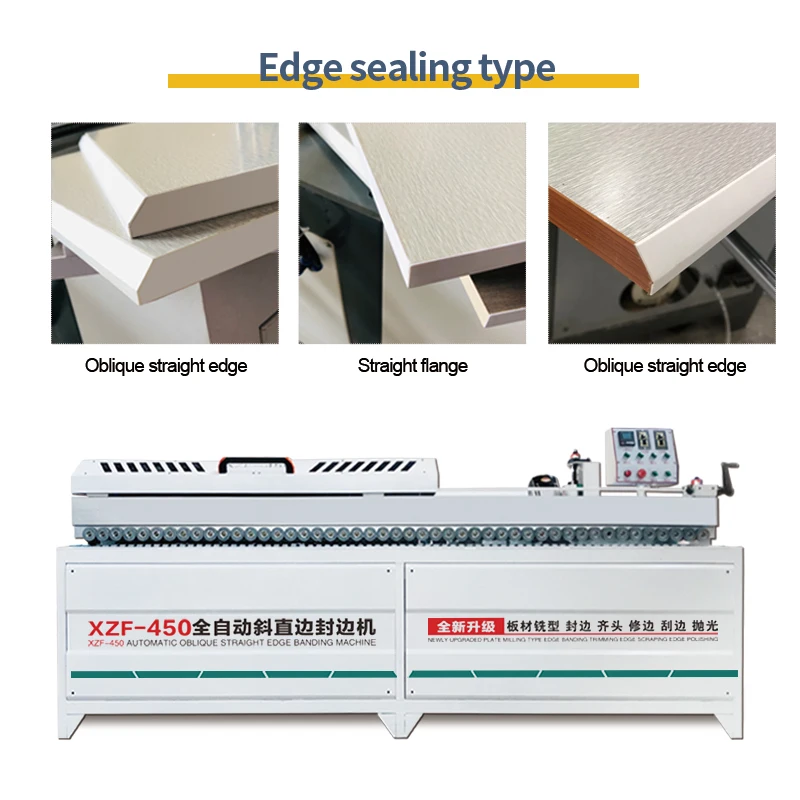

| Bevel Angles | 30° / 45° / 60° |
| Plug Options | EU, USA, AU, UK |
| Control Panel Language | Chinese and English standard; other languages customizable |
Application Suitability
| Application | Material or Output |
|---|---|
| Bevel edge banding for cabinet doors | MDF and melamine-faced particleboard with PVC or ABS edging |
| Angled edge finishing on furniture panels | Plywood and blockboard with veneer or melamine banding |
| 90-degree straight edge banding | Solid wood panels and polymer door blanks |
| Small-batch custom panel edging | Mixed substrates in a jobbing workshop environment |
Why the Voltage Question Should Come Before the Price on a 45 Degree Bevel Edge Banding Machine in Stock
A machine that cannot power on is not a machine — it is a crate.
I spent years running service calls across the Yangtze Delta manufacturing belt, and the most expensive visit I ever made was to a workshop where a brand-new edge bander sat silent for three weeks. The factory ran 220V three-phase at 60 Hz. The machine had been built for 380V at 50 Hz. Nobody checked. The transformer retrofit alone cost more than the shipping. That is why, on the order fulfillment side, the voltage and frequency confirmation happens before the proforma invoice is issued — not after [NEED_CITE: voltage and frequency standards by export market]. A 45 Degree Bevel Edge Banding Machine in stock means nothing if it cannot run when it arrives.
Dispatch Timeline and What "Ready to Ship" Actually Means
When we list the XZF450 as a 45 Degree Bevel Edge Banding Machine in stock, the machine is assembled, tested, and sitting in the warehouse — not halfway through a build schedule. Dispatch lead time depends on the destination port and the voltage configuration you confirm. Standard voltage builds with EU or USA plugs typically move fastest because those configurations are the most commonly staged. Once your voltage, frequency, and plug type are signed off, the machine goes through a final pre-shipment test on your specified panel thickness range and is crated for export within days, not weeks.
Single-Unit Ordering Without a Minimum Order Trap
Many workshops need exactly one bevel edge bander to fill a gap in their line or to add angled edge capability they previously outsourced. The XZF450 is available as a single-unit order with no bundled machinery requirement. You receive one machine, one set of documentation, one packing list, and one bill of lading. Shipping options — LCL consolidation, FCL if you combine with other equipment, or courier for critical spare parts — are quoted at the order stage so there are no surprises at the port of discharge [NEED_CITE: typical shipping options for single-unit industrial machinery].
Reading the XZF450 Specifications for Your Workshop

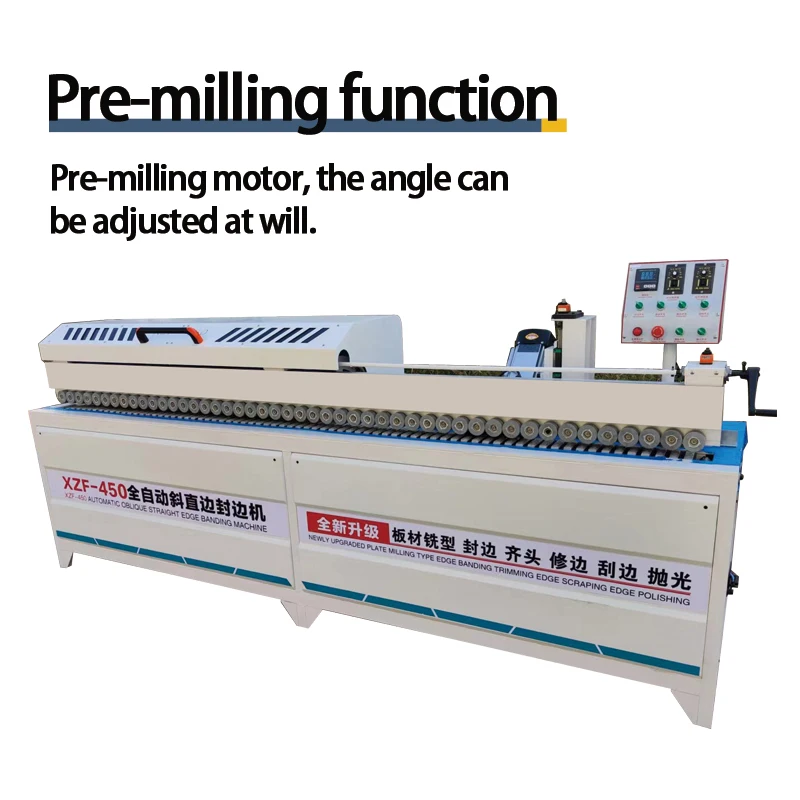

The 4 kW pre-milling motor is the first station the panel meets. It removes a thin layer from the substrate edge before gluing, which matters when you are working with melamine-faced chipboard where the sawn edge is rarely clean enough for direct adhesion. Without pre-milling, the glue bonds to saw marks and dust residue, producing visible glue lines on light-colored PVC edging — one of the most common complaints in panel edging quality.

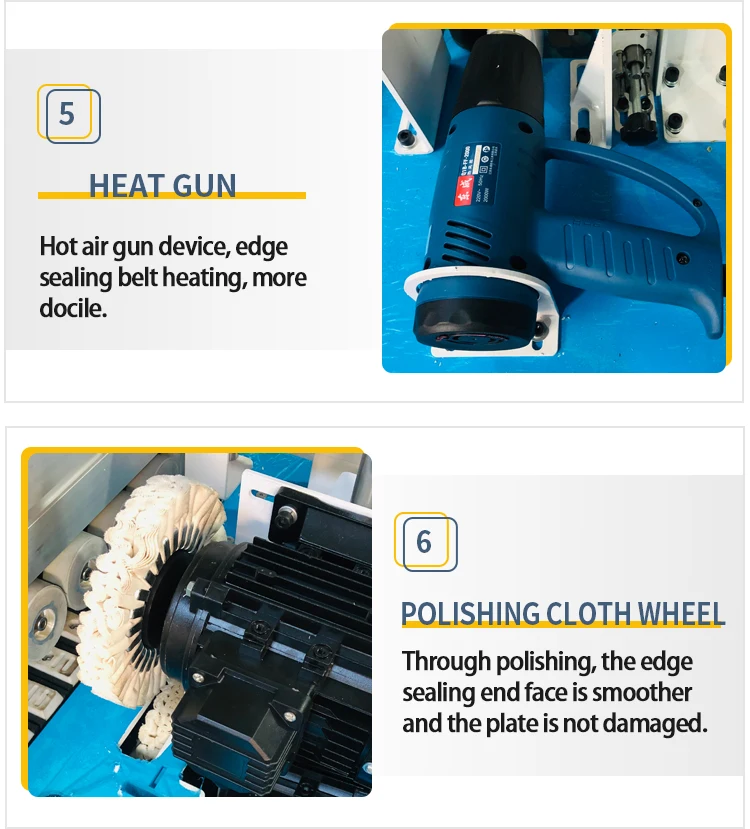

Feed speed is adjustable from 0 to 12 m/min. At the lower end, this lets a new operator learn the machine on short panels (minimum sheet length is 300 mm) without the workpiece running away. At the higher end, it supports steady throughput on longer cabinet side panels. The seven integrated functions — pre-milling, gluing and banding, end trimming, rough and fine trimming, scraping, and polishing — mean one operator and one pass produce a finished edge. That eliminates the need for separate trimming and polishing stations on a workshop floor where space is limited.

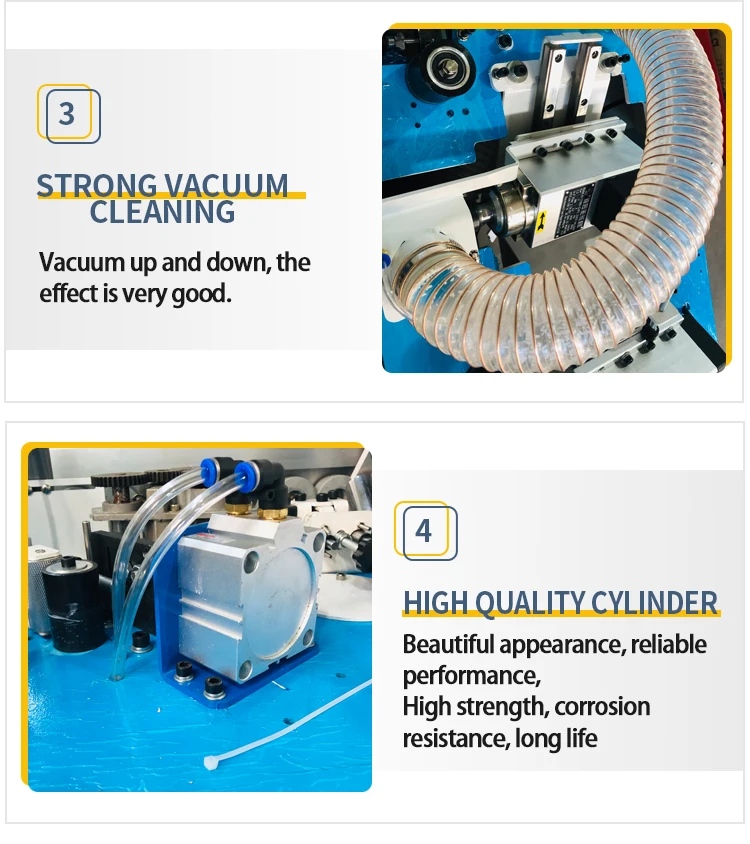

The glue pot holds 4000 ml, which is sufficient for a full shift of standard edge banding work without mid-shift refills. Air source pressure between 0.5 and 0.7 MPa drives the pneumatic actuators for trimming and scraping; confirming your compressor can sustain that range under continuous draw prevents chatter marks on the finished edge.
The Hidden Cost of Skipping Pre-Order Configuration
When a bevel edge bander arrives with the wrong plug type, the workshop either cuts and replaces the plug — voiding the electrical certification in many jurisdictions — or sources an adapter that may not handle 9.5 kW continuous draw safely. When the control panel language is unfamiliar to the operator, commissioning stalls because feed speed, glue temperature, and trimming depth are all set through that interface. These are not warranty claims. They are ordering failures. Confirming plug type (EU, USA, AU, or UK), voltage, and control panel language before the machine leaves the factory costs nothing and prevents weeks of downtime [NEED_CITE: CE machinery directive requirements for industrial equipment].
Why Procurement Through This Channel Reduces Arrival Risk
Voltage and frequency are confirmed in writing with a screenshot of your facility electrical specification before production release, so the XZF450 you receive matches your power supply. A formal quotation with full configuration detail is issued within one working day of your inquiry, which means you can compare line items against other suppliers without guessing what is included. Pre-shipment testing is run on your specified panel material and thickness, and the test record ships with the machine so you have a baseline. OEM and private-label options are available if you are a distributor stocking for regional customers. Factory visits are welcomed if you want to see the machine run before you pay the deposit.
Documentation & Verification
- CE declaration of conformity specific to the XZF450 configuration shipped
- Voltage confirmation document signed by your facility electrician before dispatch
- Factory test record run on your specified panel material and edge banding thickness
- Electrical schematic with circuit diagram for your confirmed voltage and frequency
- Operation and maintenance manual in your agreed language with spare parts list
- Packing photographs showing crate condition and machine securing before container loading
Installation, Commissioning & Support
- The XZF450 requires a 380V or 415V dedicated circuit rated for at least 9.5 kW continuous draw
- Floor space of 300 × 65 cm plus operator clearance on the infeed and outfeed sides
- Machine ships fully assembled; only dust extraction hose and air supply connection needed on arrival
- Air compressor must sustain 0.5–0.7 MPa under continuous pneumatic draw for trimming actuators
- First-run commissioning guidance provided remotely using your control panel language setting
- Spare wearing parts list included with recommended reorder intervals for trimming cutters and scraper blades
What We Need to Move Your Order Forward
To confirm configuration and issue a quotation, send your facility voltage and frequency, preferred plug type, and the primary panel materials and edge banding thicknesses you will run. If your workshop has existing upstream or downstream equipment, include the feed height and conveyor speed so we can verify compatibility with the XZF450 infeed table.
Frequently Asked Questions
Q: What is the current dispatch lead time for the XZF450?
A: Stocked configurations with standard voltage and plug types can be crated for export within days of order confirmation. Custom voltage builds or non-standard control panel languages add a short staging period. We provide a confirmed dispatch date at the quotation stage, not an estimated range.
Q: Can I order a single unit, and what shipping options are available?
A: Yes, the XZF450 is available as a single-unit order. We quote LCL consolidation, FCL loading if you are combining equipment, or courier for urgent spare parts. Shipping options are presented with estimated transit times at the order stage.
Q: Will the voltage, plug type, and control panel language be confirmed before the machine ships?
A: All three are confirmed in writing before the proforma invoice is issued. We require your facility electrical specification, and the machine is built or staged to match. A voltage confirmation document ships with the machine.
Q: What documentation comes with the machine for customs and commissioning?
A: Each dispatch includes the CE declaration, electrical schematic, factory test record, operation manual in your language, spare parts list, and packing photographs. These documents cover customs clearance and on-site commissioning requirements.
Q: How do I arrange installation guidance once the machine arrives?
A: Remote installation guidance is provided based on your control panel language. The XZF450 ships assembled, so on-site work is limited to connecting power, air supply, and dust extraction. A commissioning checklist is included in the documentation package.
